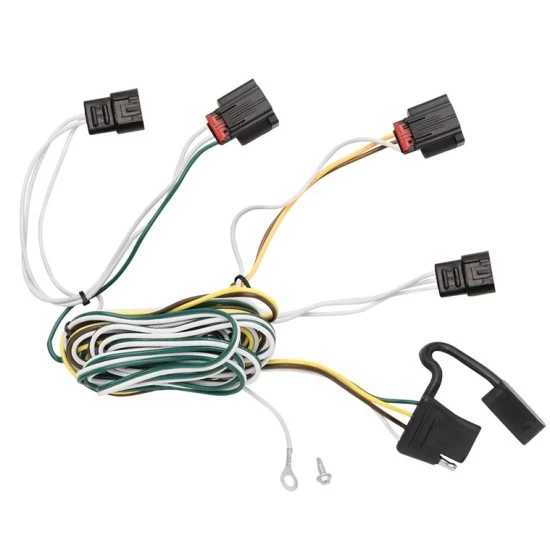

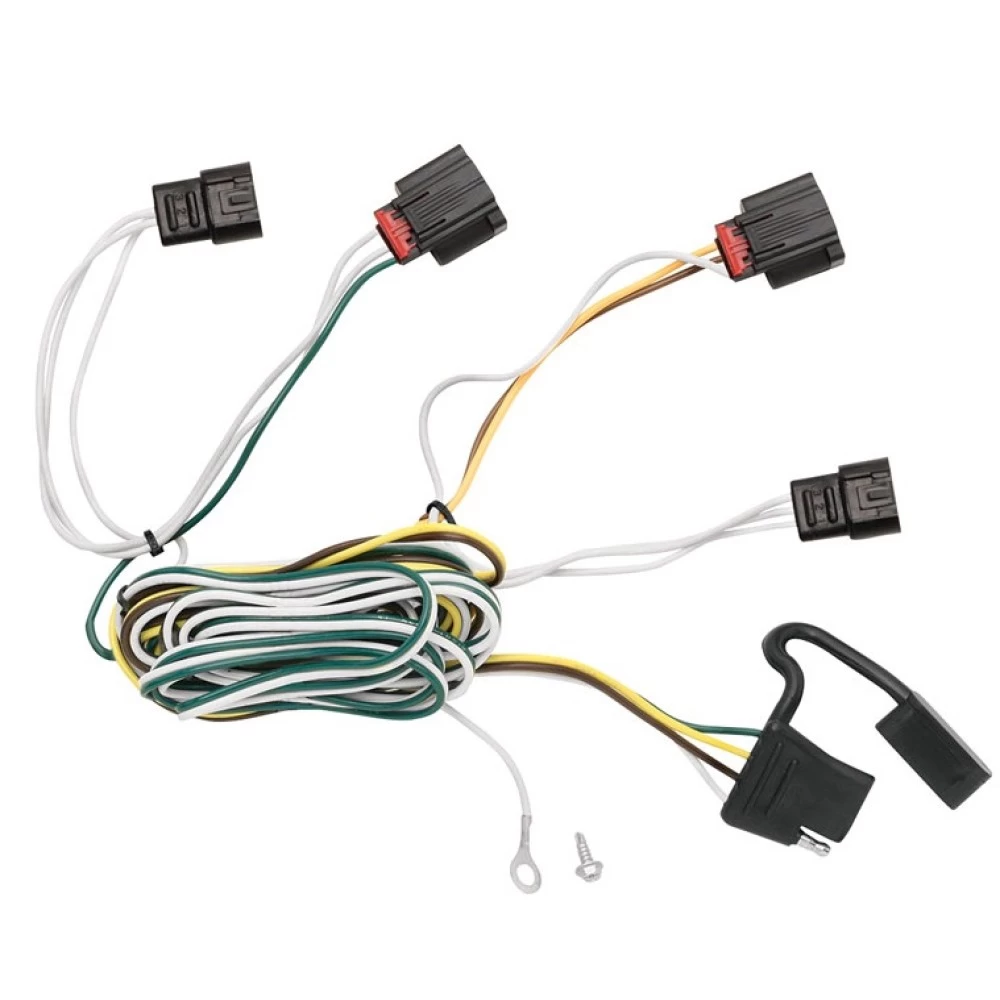

Installation Instructions for T-Connector Adapter for Dodge Journey

Part Numbers:

• 118495

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• Test Probe

Step-by-Step Instructions:

1. Remove the Right-Side Taillight Assembly:

   • Open the tailgate.
   • Remove the vehicle’s right-side taillight assembly by removing the two clips holding the taillight in place.
   • Locate the connection points behind each taillight housing that match the T-Connector adapter ends.

2. Install the Driver-Side T-Connector:

   • Separate the vehicle’s wiring connectors on the driver’s side, ensuring not to break the locking tabs.
   • Insert the T-Connector end with the yellow wire between the vehicle connectors.
   • Ensure all connectors are clean, fully inserted, and the locking tabs are secure.

3. Route the Wiring:

   • Route the T-Connector harness containing the green wire and the 4-flat connector down through the opening behind the driver’s side taillight.
   • Route the 4-flat connector to the center of the vehicle.
   • Route the green wire underneath the vehicle to the passenger-side taillight opening.

4. Install the Passenger-Side T-Connector:

   • Repeat step 2 on the passenger side using the T-Connector with the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud.
   • If no ground stud is available, drill a 3/32” hole.
   • Clean the area of dirt and rustproofing and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind any surface before drilling to avoid damage or injury.
   • Do not drill into exposed surfaces or the vehicle floor or bed.

6. Store the 4-Flat Connector:

   • When not in use, store the 4-flat connector in the spare tire compartment.
   • A mounting bracket for the 4-flat connector is sold separately.

7. Test the Installation:

   • Test and verify the installation using a test light or trailer.
   • Ensure all connections are complete for the T-Connector to function properly.

   Specifications:

   • Max. stop/turn light: (7.5 amps)
   • Max. tail lights: (7.5 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum ratings.
• Follow all installation instructions carefully.

Manufacturer Notes:

• Refer to the vehicle owner’s manual for additional guidance.
• Always use safety glasses and follow safety precautions during installation.

Installation Instructions for T-Connector Adapter for Vehicle

Part Numbers:

• 118495

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• Test Probe

Step-by-Step Instructions:

1. Remove the Right-Side Taillight Assembly:

   • Open the tailgate.
   • Remove the vehicle’s right-side taillight assembly by removing the two clips holding the taillight in place.
   • Locate the connection points behind each taillight housing that match the T-Connector adapter ends.

2. Install the Driver-Side T-Connector:

   • Separate the vehicle’s wiring connectors on the driver’s side, ensuring not to break the locking tabs.
   • Insert the T-Connector end with the yellow wire between the vehicle connectors.
   • Ensure all connectors are clean, fully inserted, and the locking tabs are secure.

3. Route the Wiring:

   • Route the T-Connector harness containing the green wire and the 4-flat connector down through the opening behind the driver’s side taillight.
   • Route the 4-flat connector to the center of the vehicle.
   • Route the green wire underneath the vehicle to the passenger-side taillight opening.

4. Install the Passenger-Side T-Connector:

   • Repeat step 2 on the passenger side using the T-Connector with the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud.
   • If no ground stud is available, drill a 3/32” hole.
   • Clean the area of dirt and rustproofing and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind any surface before drilling to avoid damage or injury.
   • Do not drill into exposed surfaces or the vehicle floor or bed.

6. Store the 4-Flat Connector:

   • When not in use, store the 4-flat connector in the spare tire compartment.
   • A mounting bracket for the 4-flat connector is sold separately.

7. Test the Installation:

   • Test and verify the installation using a test light or trailer.
   • Ensure all connections are complete for the T-Connector to function properly.

   Specifications:

   • Max. stop/turn light: (7.5 amps)
   • Max. tail lights: (7.5 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum ratings.
• Follow all installation instructions carefully.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

• This product is covered by a [warranty period]. For complete warranty instructions, please download the full installation PDF.

Technical Support:

• For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Manufacturer Notes:

• Refer to the vehicle owner’s manual for additional guidance.
• Always use safety glasses and follow safety precautions during installation.

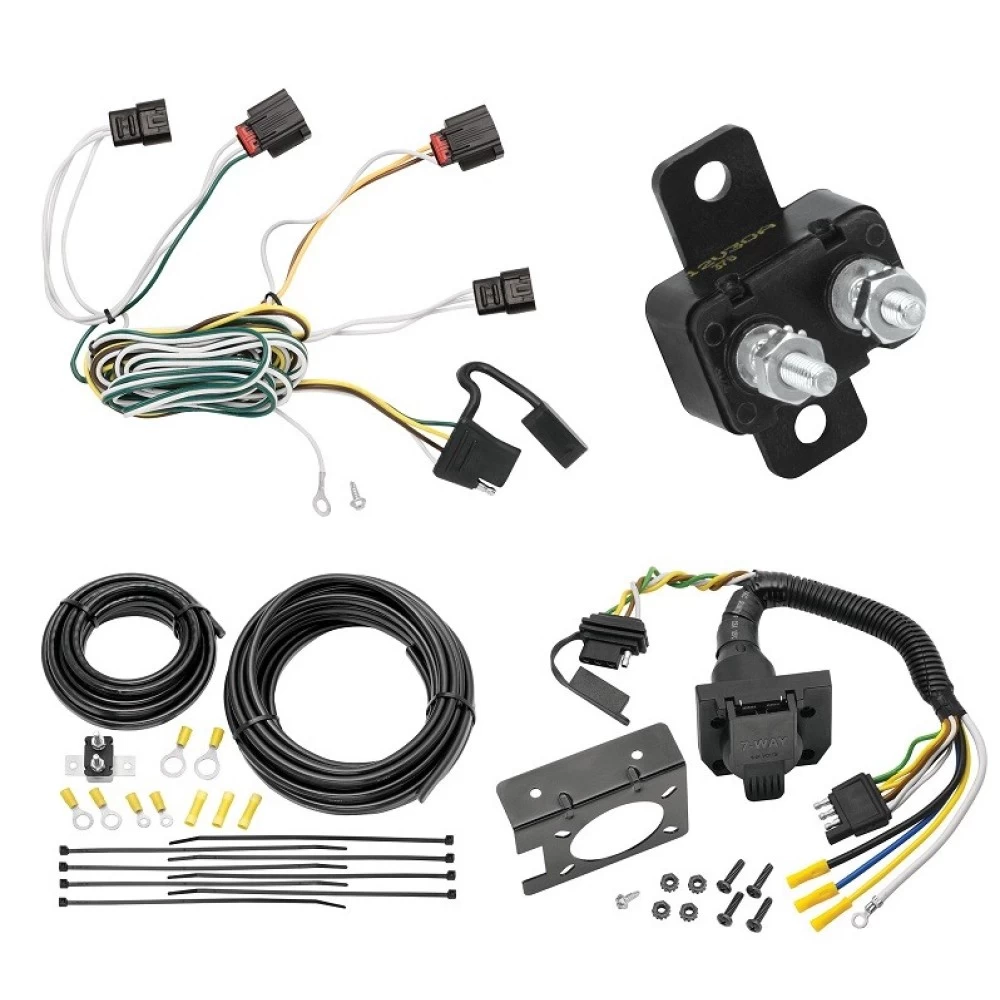

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
