Installation Instructions for T-Connector Adapter

Part Numbers:

• 118356

Wiring Access Location:

• Underneath the vehicle behind the rear protective covers on both sides.

Tools Required:

• Drill with a 3/32" drill bit.
• Screw or cable ties (provided in the kit).

Step-by-Step Instructions:

1. Temporarily remove the protective covers under the vehicle next to the rear bumper.

   • Locate the vehicle’s wiring harnesses underneath the vehicle behind the protective covers.
   • These harnesses will have connection points matching the ends of the T-Connector on both sides.

2. Starting on the driver’s side:

   • Separate the vehicle’s wiring harness connectors.
   • Note: Be careful not to damage the locking tabs.
   • Ensure the mating surfaces are free of dirt. Clean if necessary.

3. Insert the T-Connector containing the yellow wire between the vehicle connectors.

   • Ensure the connectors are fully inserted with locking tabs secure.

4. Repeat steps 2 and 3 for the passenger’s side using the T-Connector containing the green wire.

5. Locate a suitable grounding point near the adapter, such as the vehicle frame or cross member.

   • Caution: Do not drill into the vehicle floor or bed.
   • Clean the area of dirt and rustproofing.
   • Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.

6. Test the installation with a test light or trailer.

7. Bundle and secure wires to the vehicle’s crossmember using the provided cable ties.

8. Reinstall the protective covers removed in step 1.

   • Specifications:
     • This unit is rated for 7.5 amps per circuit.

Hardware List:

• T-Connector adapter.
• Eyelet and screw.
• Cable ties.

Safety Notes:

• Handle all connectors with care to avoid damage.
• Ensure all connections are clean and securely fastened.
• Test the installation after completing all steps to verify functionality.

Manufacturer Notes:

• Follow all warnings and instructions provided with the product.
• Use a test light or trailer to confirm proper installation.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118356

Wiring Access Location:

• Underneath the vehicle behind the rear protective covers on both sides.

Tools Required:

• Drill with a 3/32" drill bit.
• Screw or cable ties (provided in the kit).

Step-by-Step Instructions:

1. Remove Protective Covers:

   • Temporarily remove the protective covers under the vehicle next to the rear bumper.
   • Locate the vehicle’s wiring harnesses underneath the vehicle behind the protective covers.
   • These harnesses will have connection points matching the ends of the T-Connector on both sides.

2. Install the Driver-Side T-Connector:

   • Starting on the driver’s side, separate the vehicle’s wiring harness connectors.
   • Note: Be careful not to damage the locking tabs.
   • Ensure the mating surfaces are free of dirt. Clean if necessary.

3. Connect the Yellow-Wire T-Connector:

   • Insert the T-Connector containing the yellow wire between the vehicle connectors.
   • Ensure the connectors are fully inserted with locking tabs secure.

4. Install the Passenger-Side T-Connector:

   • Repeat steps 2 and 3 for the passenger’s side using the T-Connector containing the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point near the adapter, such as the vehicle frame or cross member.
   • Caution: Do not drill into the vehicle floor or bed.
   • Clean the area of dirt and rustproofing.
   • Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.

6. Test the Installation:

   • Use a test light or connect a trailer to verify proper functionality.

7. Secure the Wiring Harness:

   • Bundle and secure wires to the vehicle’s crossmember using the provided cable ties.

8. Reinstall Protective Covers:

   • Reinstall the protective covers removed in step 1.

Specifications:

• Rated Current: 7.5 amps per circuit

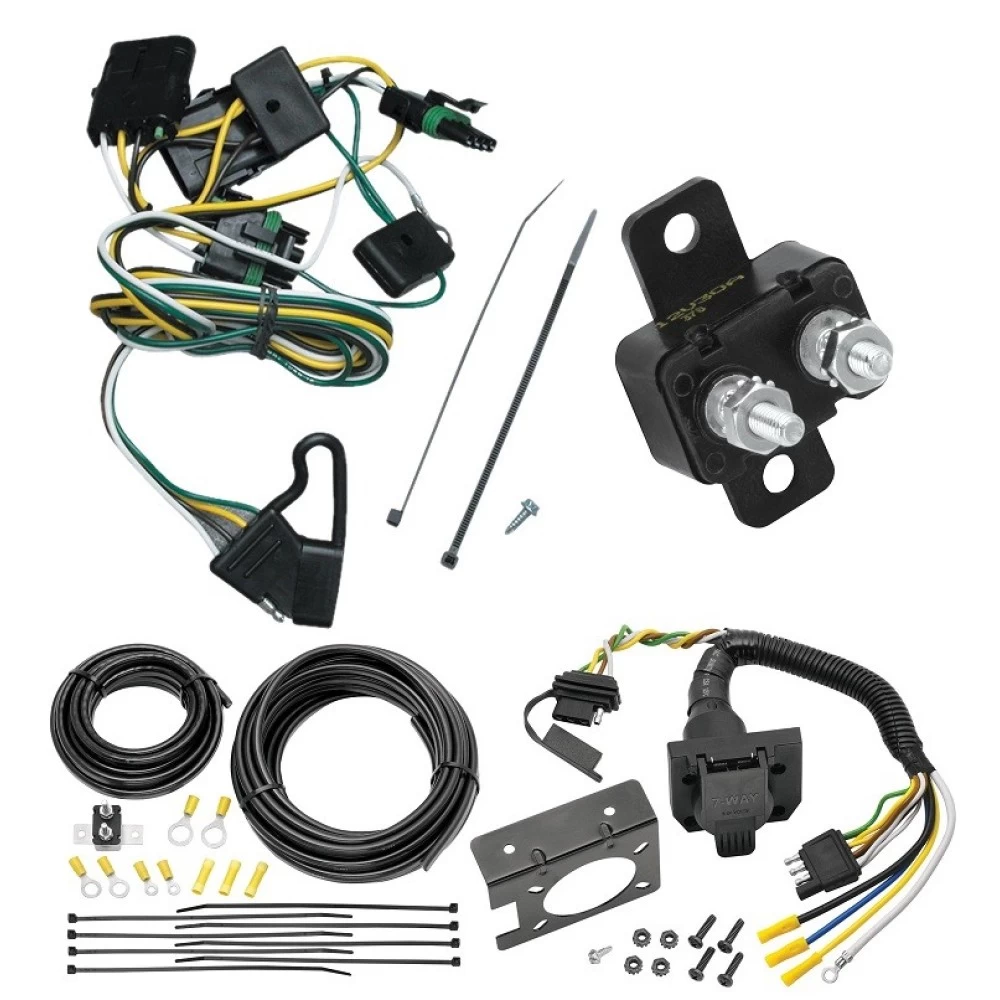

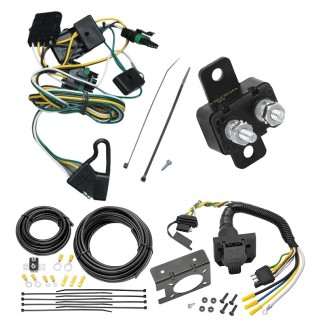

Hardware List:

• T-Connector adapter
• Eyelet and screw
• Cable ties

Safety Notes:

• Handle all connectors with care to avoid damage.
• Ensure all connections are clean and securely fastened.
• Test the installation after completing all steps to verify functionality.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:
This product comes with a limited warranty for [insert duration here] covering [insert coverage details]. For complete warranty instructions, please download the full installation PDF.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
