Installation Instructions for T-Connector Adapter

Part Numbers:

• 118341

Wiring Access Location:

• Tail light wiring harness near the rear interior panels on both sides of the vehicle.

Tools Required:

• Drill with a 3/32" drill bit.
• Screwdriver.

Step-by-Step Instructions:

1. Open the rear door of the vehicle and remove the five screws attaching the threshold panel.

2. Remove the shade latch screws located on each side of the vehicle (Fig. A).

   • Carefully pull the plastic trim panels away from the side of the vehicle to expose the vehicle wiring (Fig. B).

3. Locate the vehicle’s tail light wiring harness.

   • This harness will have connection points on both sides with connectors matching the ends of the T-Connector adapter.

4. Separate the harness connectors on the left (driver’s) side.

   • Note: Be careful not to damage the locking tabs.

5. Insert the T-Connector harness containing the yellow wire between the harness connectors and lock into place.

   • Ensure the connectors are fully inserted with locking tabs secure.

6. Repeat steps 4 and 5 on the right (passenger) side using the connector containing the green wire.

7. Locate a suitable grounding point near the connector, such as the vehicle’s frame or cross member.

   • Caution: Do not drill into the vehicle floor or bed.
   • Clean the area of dirt and rustproofing.
   • Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.

8. Test the installation with a test light or trailer.

9. Route the yellow wire under the threshold panel.

   • Secure the threshold and side panels with the screws removed in steps 1 and 2.

   • Specifications:

     • This unit is rated for 4 amps per circuit.

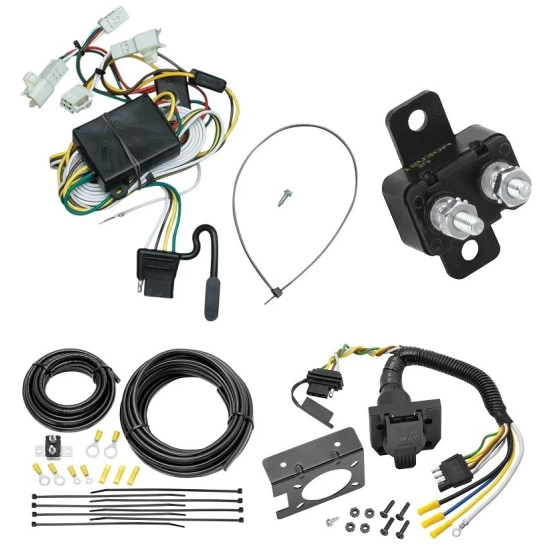

Hardware List:

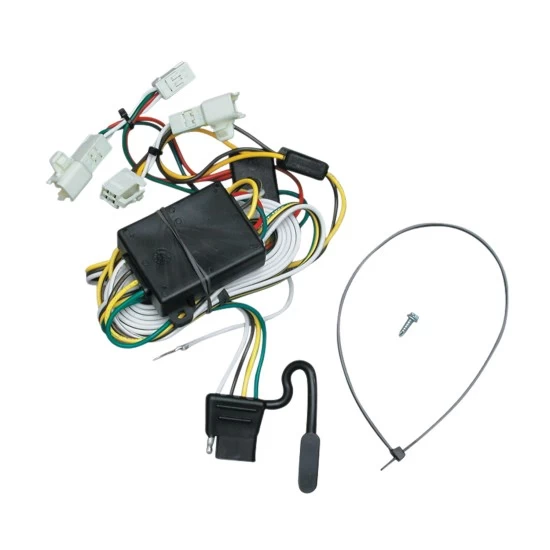

• T-Connector adapter.
• Eyelet and screw.
• Cable ties.

Safety Notes:

• Handle all connectors with care to avoid damage.
• Ensure all connections are clean and securely fastened.
• Test the installation after completing all steps to verify functionality.

Manufacturer Notes:

• Follow all warnings and instructions provided with the product.
• Use a test light or trailer to confirm proper installation.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118341

Wiring Access Location:

• Tail light wiring harness near the rear interior panels on both sides of the vehicle.

Tools Required:

• Drill with a 3/32" drill bit.
• Screwdriver.

Step-by-Step Instructions:

1. Open the rear door of the vehicle and remove the five screws attaching the threshold panel.

2. Remove the shade latch screws located on each side of the vehicle (Fig. A).

   • Carefully pull the plastic trim panels away from the side of the vehicle to expose the vehicle wiring (Fig. B).

3. Locate the vehicle’s tail light wiring harness.

   • This harness will have connection points on both sides with connectors matching the ends of the T-Connector adapter.

4. Separate the harness connectors on the left (driver’s) side.

   • Note: Be careful not to damage the locking tabs.

5. Insert the T-Connector harness containing the yellow wire between the harness connectors and lock into place.

   • Ensure the connectors are fully inserted with locking tabs secure.

6. Repeat steps 4 and 5 on the right (passenger) side using the connector containing the green wire.

7. Locate a suitable grounding point near the connector, such as the vehicle’s frame or cross member.

   • Caution: Do not drill into the vehicle floor or bed.
   • Clean the area of dirt and rustproofing.
   • Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.

8. Test the installation with a test light or trailer.

9. Route the yellow wire under the threshold panel.

   • Secure the threshold and side panels with the screws removed in steps 1 and 2.

   • Specifications:

     • This unit is rated for 4 amps per circuit.

Hardware List:

• T-Connector adapter.
• Eyelet and screw.
• Cable ties.

Safety Notes:

• Handle all connectors with care to avoid damage.
• Ensure all connections are clean and securely fastened.
• Test the installation after completing all steps to verify functionality.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:
This product comes with a limited warranty for [insert duration here] covering [insert coverage details]. For complete warranty instructions, please download the full installation PDF.
