Trailer Hitch Tow Package w/ 7‑Way RV Wiring For 05‑24 Nissan Frontier 09‑12 Suzuki Equator w/ 2" Drop Mount 2" Ball Class 3 2" Receiver All Models

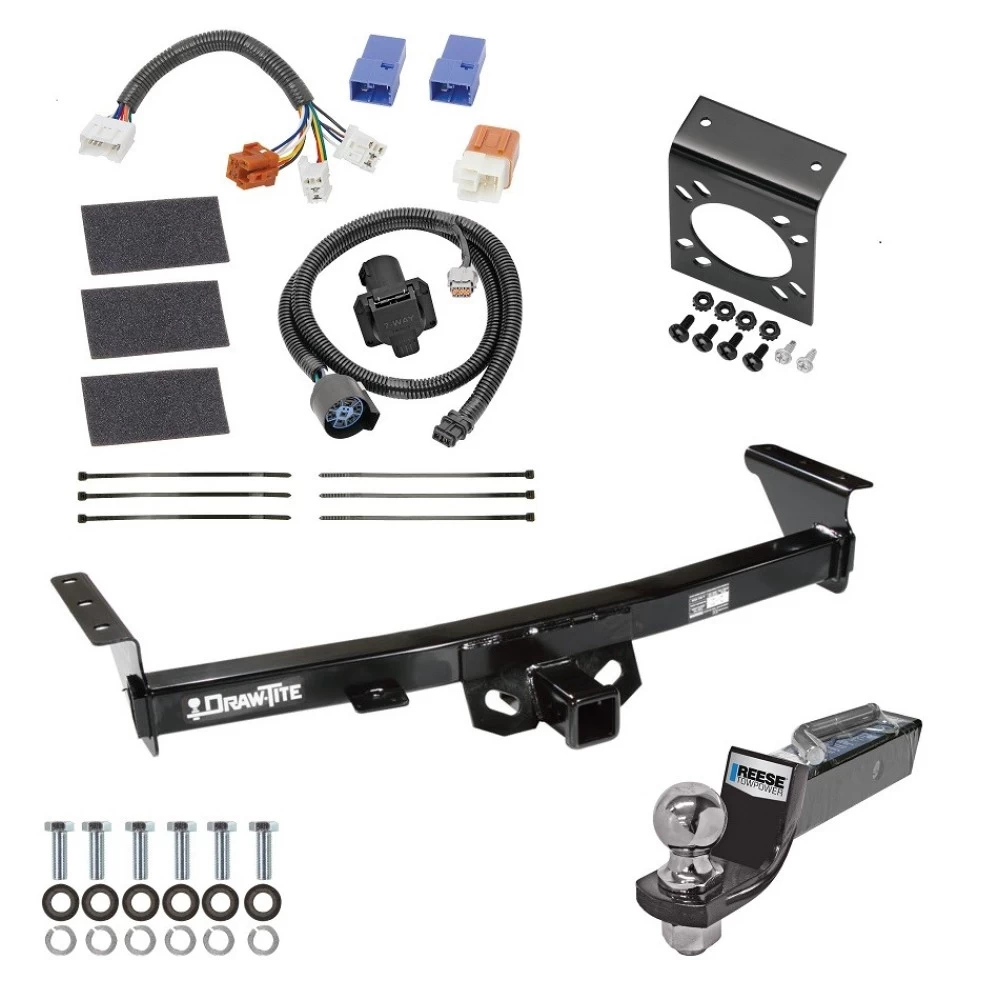

Model: 75282 118266 20212 21536Custom Fit Trailer Hitch
Tow Harness Wiring Package (7-Way)
2" Chrome Ball
Mounting Bracket for 7-Way Connectors
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2005 - 2024 Nissan, Frontier, All Styles
2009 - 2012 Suzuki, Equator, All Styles
Trailer Hitch Specs:
| Part Number | 75282 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 750/800 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118266 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
7-Way Mount Bracket
| Part Number | 20212 |
| Fits | 7-Way Flat Pin Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty |
1 Year |
Towing Starter Kit Specs:
| Part Number | 21536 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Ball Size | 2" |
| Ball Shank Dia. | 1" |
| Ball-Mount Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 6,000 lb Gross Towing Weight 600 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Ball-Mount Finish | Black Powdercoat |
| Ball Finish | Chrome (Cold forged for superior strength) |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wide range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with with trailers that have electric brakes. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
$315 74 $495.17 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$495.17 $315 74
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $78.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75282 118266 20212 21536
- Includes: Class 3 Trailer Tow Hitch, Tow Custom Harness, Mounting Bracket, Trailer Tow Hitch Ball Mount Starter Kit
Compatibility Chart
Description
Custom Fit Trailer Hitch
Tow Harness Wiring Package (7-Way)
2" Chrome Ball
Mounting Bracket for 7-Way Connectors
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2005 - 2024 Nissan, Frontier, All Styles
2009 - 2012 Suzuki, Equator, All Styles
Trailer Hitch Specs:
| Part Number | 75282 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 750/800 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118266 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
7-Way Mount Bracket
| Part Number | 20212 |
| Fits | 7-Way Flat Pin Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty |
1 Year |
Towing Starter Kit Specs:
| Part Number | 21536 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Ball Size | 2" |
| Ball Shank Dia. | 1" |
| Ball-Mount Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 6,000 lb Gross Towing Weight 600 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Ball-Mount Finish | Black Powdercoat |
| Ball Finish | Chrome (Cold forged for superior strength) |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wide range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with with trailers that have electric brakes. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Hitch Tow Package w/ 7-Way RV Wiring For 05-24 Nissan Frontier 09-12 Suzuki Equator w/ 2" Drop Mount 2" Ball Class 3 2" Receiver All Models Install Notes
Installation Instructions for Nissan Frontier and Suzuki Equator
Part Numbers:
- 75282
- 44526
- 87539
- 75990 (U-Haul)
Applications:
- Nissan Frontier
- Suzuki Equator
Tools Required:
- Wrenches: 19mm
- Drill Bits: None
Wiring Access Location:
- PU3
Step-by-Step Instructions:
-
Raise Hitch Into Position:
- Lift the hitch into place, aligning it with the existing weldnuts in the frame rail.
-
Install Fasteners:
- Secure the hitch using the provided hardware:
- Insert and tighten six (6) M12 x 1.25 x 35mm bolts with flat washers and lock washers.
- Secure the hitch using the provided hardware:
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
Hardware List:
- (6) M12 x 1.25 x 35mm Hex Bolts
- (6) 1/2" Flat Washers
- (6) 1/2" Lock Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 800 lbs (363 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 750 lbs (341 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for T-One® T-Connector for Nissan Pathfinder, Xterra, Frontier, and Equator
Part Numbers:
- 118266
Tools Required:
- Test Probe
- Trim Panel Puller
Step-by-Step Instructions:
Jumper Harness Installation:
-
Insert Relays:
- Insert the relays (included) into the relay and fuse harness.
- Note: Using relays other than those provided can result in malfunction or damage to the vehicle or trailer.
-
Locate the Vehicle's 12-Pin Jumper Plug:
- Find the jumper plug inside the vehicle cabin, on the passenger side, behind the kick panel.
-
Remove the Passenger Side Kick Panel:
- Use a trim panel puller to temporarily remove the passenger side floor sill by pulling upwards and then toward the rear of the vehicle.
- Remove the kick panel to access the 12-pin jumper plug.
-
Connect the Jumper Harness:
- Insert the jumper harness into the vehicle’s 12-pin connector and lock it in place.
- Secure the jumper harness using the provided cable ties and foam tape to prevent damage or rattling.
-
Reinstall Panels:
- Replace the passenger side kick panel and floor sill to their original positions.
Tow Plug Harness Installation:
-
Locate the Vehicle Tow Plugs:
- Underneath the vehicle, locate the tow plugs near the driver’s side rear tire.
- Remove the protective caps from the tow plugs.
-
Connect the T-Connector:
- Attach the T-Connector to the vehicle’s mating connector.
- Ensure connectors are fully inserted with locking tabs in place.
-
Install the 7-Way Socket:
- Plug the 7-way socket (provided) into the Trailer Tow Harness.
- Mount the 7-way socket in an accessible location using a bracket or electrical box (not included).
- Secure the remainder of the T-Connector harness with the provided cable ties.
-
Test the Installation:
- Verify all connections are complete.
- Test the installation using a test light or trailer.
- Warning: Overloading circuits can cause fires. Do not exceed the following ratings:
- Max. stop/turn light: 10 amps
- Max. tail lights: 10 amps
- Max. backup: 10 amps
- Max. power circuit: 20 amps
- Max. trailer brakes: 3 axles/6 brakes (18 amps)
Safety Notes:
- Follow all vehicle warnings and installation instructions.
- Always wear safety glasses and use appropriate precautions during installation.
Manufacturer Notes:
- Store these instructions for future reference.
- Refer to the vehicle owner’s manual for additional details.
