Product Details
- Brand: Draw-Tite
- Model: 362960 118376 63820

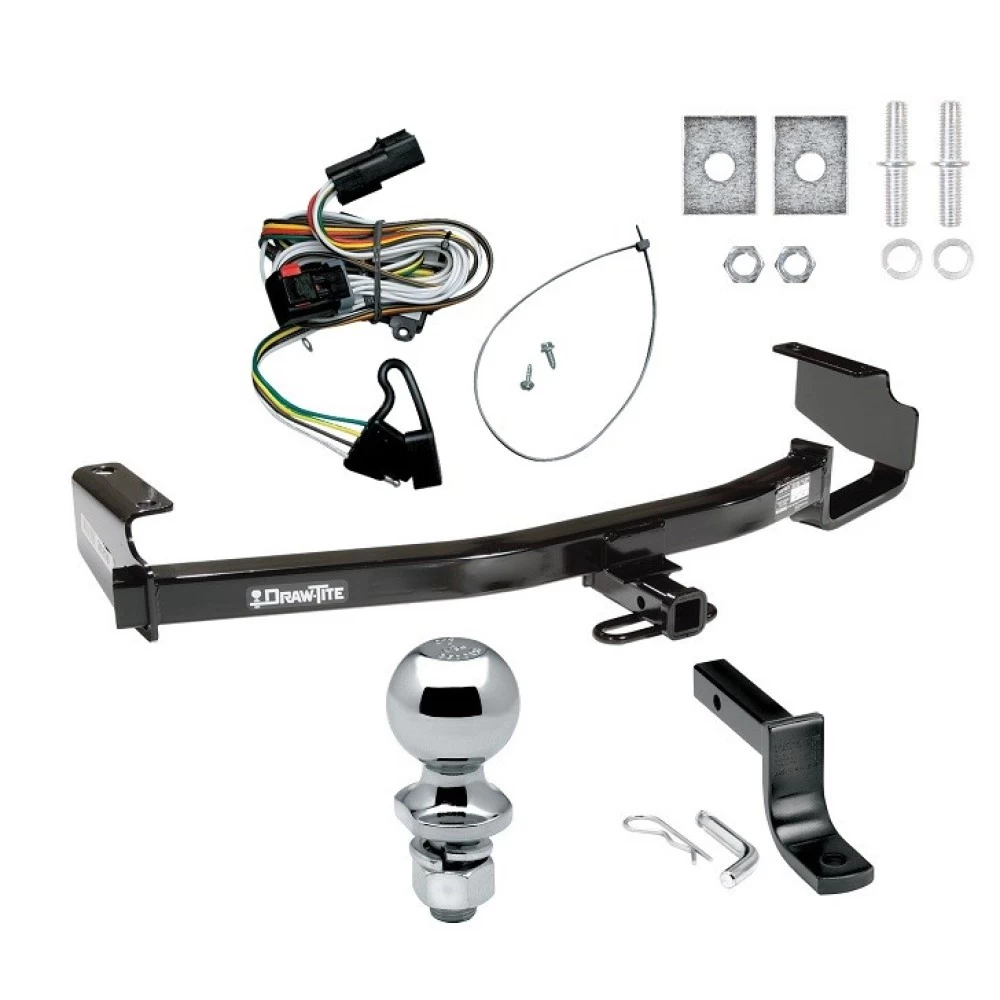

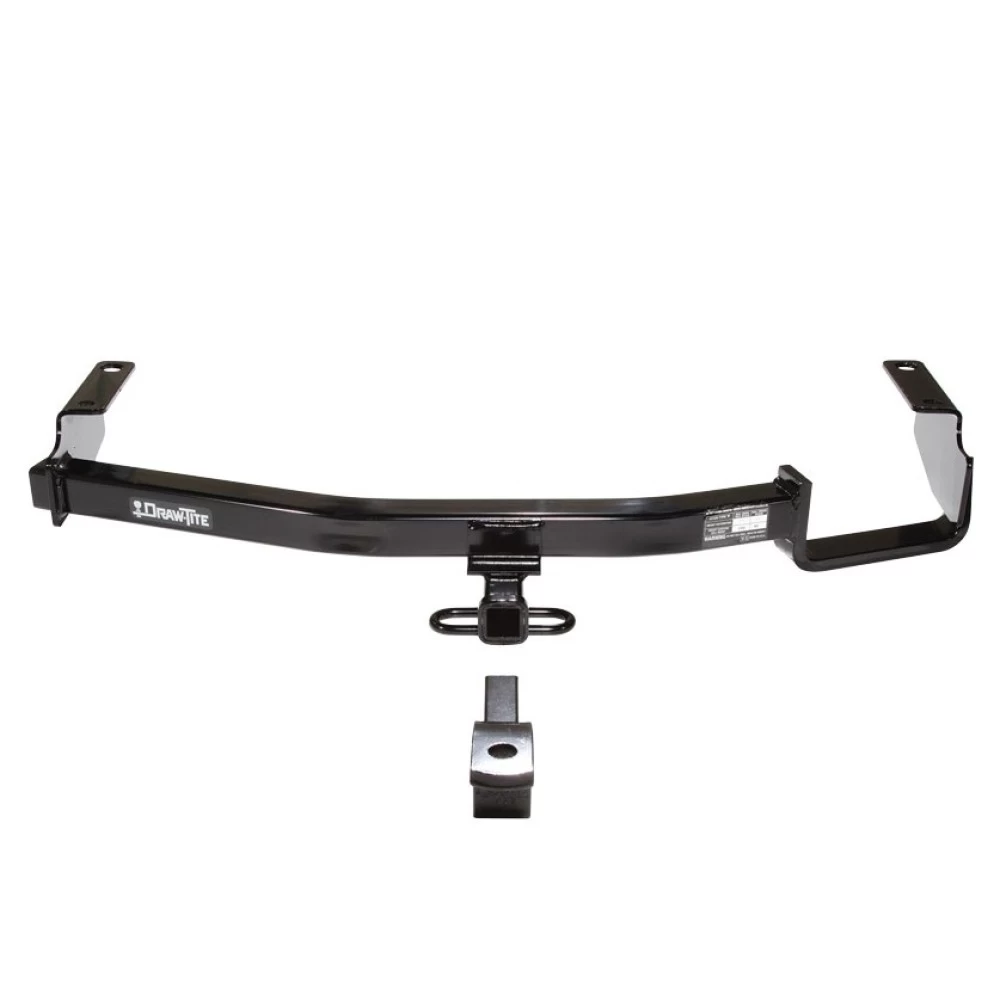

- Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 01-03 Chrysler Dodge Town & Country Complete Package w/ Wiring Draw Bar Kit and 2" Ball Install Notes
Installation Instructions for Chrysler Town & Country, Chrysler Voyager, Dodge Caravan, Plymouth Voyager
Part Numbers:
- 06369
- 36296
- 90165
- 39602 (U-Haul)
Wiring Access Location:
- SUV1
- SUV2
Tools Required:
- Wrenches: 18 mm, 19 mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Front Bumper Bolts:
- Remove the front bumper bolts on both sides of the vehicle.
-
Install M12 x 1.75 Studs:
- Install the M12 x 1.75 studs into the holes where the front bumper bolts were removed. Tighten by hand until seated. Final tightening will occur when the nuts are secured later.
-
Remove Rear Bumper Bolts:
- Remove the rear bumper bolts.
-
Position and Secure Hitch:
- Place the hitch into position as shown in the instructions.
- Install the remaining fasteners into the existing weldnuts on the frame.
-
Tighten Fasteners:
- Tighten all M12 x 1.75 fasteners to 75 ft-lbs (102 N*m) using a torque wrench.
Hardware List:
- (2) Stud – M12 x 1.75
- (2) Spacer – 3/16 x 1-1/2 x 2
- (2) Lock Washer – 1/2"
- (2) Hex Nut – M12 x 1.75
Safety Notes:
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- Plug all holes in the trunk pan or other body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Observe all safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying Capacity: 3,500 lbs (1,589 kg) trailer weight, 300 lbs (136 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Drawbar must be used in the rise position only.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Compatible with all models of Chrysler Town & Country, Chrysler Voyager, Dodge Caravan, and Plymouth Voyager (2WD, 4WD, short and long wheelbase).
- Installation time for professional installers is approximately 30 minutes.
- For more detailed instructions, refer to the QR code or manual provided.
Installation Instructions for Chrysler Town & Country, Chrysler Voyager, Dodge Caravan, Plymouth Voyager
Part Numbers:
- 06369
- 36296
- 90165
- 39602 (U-Haul)
Wiring Access Location:
- SUV1
- SUV2
Tools Required:
- Wrenches: 18 mm, 19 mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Front Bumper Bolts:
- Remove the front bumper bolts on both sides of the vehicle.
-
Install M12 x 1.75 Studs:
- Install the M12 x 1.75 studs into the holes where the front bumper bolts were removed. Tighten by hand until seated. Final tightening will occur when the nuts are secured later.
-
Remove Rear Bumper Bolts:
- Remove the rear bumper bolts.
-
Position and Secure Hitch:
- Place the hitch into position as shown in the instructions.
- Install the remaining fasteners into the existing weldnuts on the frame.
-
Tighten Fasteners:
- Tighten all M12 x 1.75 fasteners to 75 ft-lbs (102 N*m) using a torque wrench.
Hardware List:
- (2) Stud – M12 x 1.75
- (2) Spacer – 3/16 x 1-1/2 x 2
- (2) Lock Washer – 1/2"
- (2) Hex Nut – M12 x 1.75
Safety Notes:
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- Plug all holes in the trunk pan or other body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Observe all safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying Capacity: 3,500 lbs (1,589 kg) trailer weight, 300 lbs (136 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Drawbar must be used in the rise position only.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Compatible with all models of Chrysler Town & Country, Chrysler Voyager, Dodge Caravan, and Plymouth Voyager (2WD, 4WD, short and long wheelbase).
- Installation time for professional installers is approximately 30 minutes.
- For more detailed instructions, refer to the QR code or manual provided.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118376
Wiring Access Location:
- Driver’s side rear taillamp and jack storage compartment.
Tools Required:
- Utility knife.
- Drill with a 3/32" drill bit.
- Cable ties (provided).
- Double-sided tape (provided).
Step-by-Step Instructions:
-
Remove the driver’s side rear taillamp housing (Fig. 1).
- Slide the red locking tab on the harness connector to the unlocked position.
- Disconnect the wire harness from the taillamp sockets.
-
Pull the vehicle’s wiring harness and rubber grommet slightly out on the driver’s side.
-
With the wiring and grommets exposed, slit the grommet using a utility knife from the hole where the vehicle wiring passes through to the outside edge (Fig. 2).
- Unwrap the tape around the grommet tabs or cut the tabs off the grommet holding the wires.
-
Open the vehicle’s jack storage cover on the driver’s side.
- Partially remove the driver’s side rear trim panel.
- If necessary, peel back the black tape covering a hole on the vehicle body panel.
- Push the T-Connector’s end through the jack storage compartment and out to the driver’s side rear taillamp opening.
- Reposition the tape over the hole and wires if necessary.
- Plug the T-Connector into the mating plug on the taillamp socket and the vehicle’s wiring harness.
- Secure the connectors with the red locking tab (Fig. 3).
-
Place the rubber grommet over the T-Connector wiring and reseat it into the grommet hole.
-
Locate a suitable grounding point near the taillamp opening.
- Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
- Caution: Do not drill into exposed surfaces.
-
Secure the black converter box and trailer wiring with double-sided tape or cable ties.
- Alternatively, mount the converter using the provided screw and mounting tab to prevent damage or rattling.
- Note: Place the converter box inside the jack storage compartment.
-
Test the installation with a circuit tester or trailer.
-
Reinstall all trim panels removed during the process.
-
Replace the taillamp housing, positioning the wire harness between the housing and the vehicle body.
-
Store the 4-flat connector in the jack storage compartment when not in use.
-
Specifications:
- This unit is rated for 7.5 amps per circuit.
-
Hardware List:
- T-Connector adapter.
- Black converter box.
- Eyelet and screw.
- Double-sided tape.
- Cable ties.
Safety Notes:
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
- Do not exceed the specified amperage rating to prevent damage or fire.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a circuit tester or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118376
Wiring Access Location:
- Driver’s side rear taillamp and jack storage compartment.
Tools Required:
- Utility knife
- Drill with a 3/32" drill bit
- Cable ties (provided)
- Double-sided tape (provided)
Step-by-Step Instructions:
-
Remove the Driver’s Side Rear Taillamp Housing:
- Slide the red locking tab on the harness connector to the unlocked position.
- Disconnect the wire harness from the taillamp sockets.
-
Expose the Vehicle’s Wiring Harness and Grommet:
- Pull the vehicle’s wiring harness and rubber grommet slightly out on the driver’s side.
-
Modify the Grommet:
- Using a utility knife, slit the grommet from the hole where the vehicle wiring passes through to the outside edge (Fig. 2).
- Unwrap or remove the tape around the grommet tabs or cut off the tabs holding the wires.
-
Access the Jack Storage Compartment:
- Open the vehicle’s jack storage cover on the driver’s side.
- Partially remove the driver’s side rear trim panel.
- Peel back the black tape covering a hole on the vehicle body panel if necessary.
-
Route and Connect the T-Connector:
- Push the T-Connector’s end through the jack storage compartment and out to the driver’s side rear taillamp opening.
- Reposition the tape over the hole and wires if necessary.
- Plug the T-Connector into the mating plug on the taillamp socket and the vehicle’s wiring harness.
- Secure the connectors with the red locking tab (Fig. 3).
-
Reseat the Grommet:
- Place the rubber grommet over the T-Connector wiring and reseat it into the grommet hole.
-
Ground the White Wire:
- Locate a suitable grounding point near the taillamp opening.
- Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
- Caution: Do not drill into exposed surfaces.
-
Secure the Converter Box and Wiring:
- Use double-sided tape or cable ties to secure the black converter box and trailer wiring.
- Alternatively, mount the converter using the provided screw and mounting tab to prevent damage or rattling.
- Note: Place the converter box inside the jack storage compartment.
-
Test the Installation:
- Use a circuit tester or connect a trailer to confirm functionality.
-
Reinstall Components:
- Reinstall all trim panels removed during the process.
- Replace the taillamp housing, ensuring the wire harness is positioned properly between the housing and the vehicle body.
- Store the 4-flat connector in the jack storage compartment when not in use.
Specifications:
- Current Rating: 7.5 amps per circuit
Hardware List:
- T-Connector adapter
- Black converter box
- Eyelet and screw
- Double-sided tape
- Cable ties
Safety Notes:
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
- Do not exceed the specified amperage rating to prevent damage or fire.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
