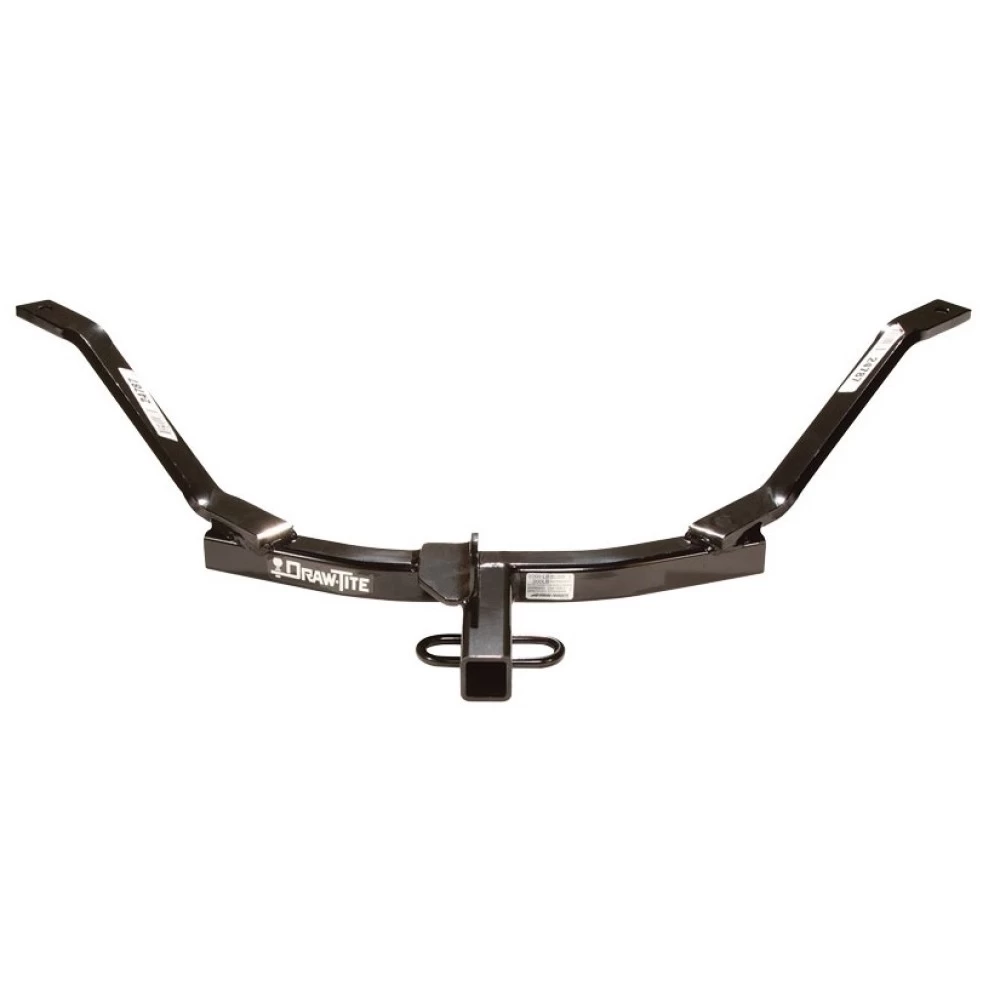

Installation Instructions for Honda Accord (Includes Hybrid Models)

Part Numbers:

• 60953
• 24787
• 77161

Wiring Access Location:

• PC3

Tools Required:

• Wrenches: 11/16", 3/4"
• Drill Bits: 9/16"

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Lower Exhaust:

   • Remove both rubber isolators from the muffler hangers to lower the exhaust.
   • Be careful not to let the mufflers fall under their own weight.

2. Prepare Heat Shields:

   • Mark and drill two holes, each 4 1/2” from the forward-most hole on the frame channel.
   • Use the hitch as a template to ensure proper alignment.
   • Remove the heat shield to drill the holes, then reinstall once complete.

3. Fishwire Carriage Bolts:

   • Thread the bolt leader onto the carriage bolt and insert it through the reinforcing plate.
   • Fishwire the bolt and plate through the access hole in the frame and pull them through the existing hole.
   • Repeat on the other side and leave bolt leaders attached to prevent the hardware from falling back into the frame.

4. Install Clamping Block:

   • Insert a 1-1/2” carriage bolt through the square hole in the hitch and the vehicle’s tie-down loop on the driver’s side.
   • Attach the clamping block, conical toothed washer, and nut, then hand-tighten to hold the hitch in place.

5. Attach Hitch to Frame Straps:

   • Fish the bolt leaders through the hitch’s frame strap holes.
   • Carefully raise the hitch into position, remove the bolt leaders, and secure with conical toothed washers and nuts.

6. Tighten Fasteners:

   • Use a torque wrench to tighten all:
     • 1/2” fasteners to 75 Lb.-Ft. (102 N*M).
     • 7/16” fasteners to 50 Lb.-Ft. (68 N*M).

7. Reinstall Exhaust:

   • Raise the exhaust back into position and reattach the rubber isolators.

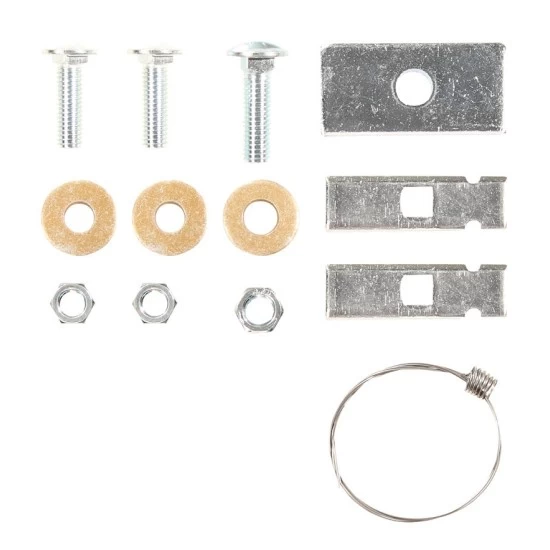

Hardware List:

• (2) 7/16”-14 x 1-1/2” Carriage Bolts
• (2) 1/2”-13 x 1-1/2” Carriage Bolts
• (1) 1/2” Conical Toothed Washer
• (2) 7/16” Conical Toothed Washers
• (1) 1/2” Nut
• (2) 7/16” Nuts
• (2) Reinforcing Plates
• (1) 1-1/2” x 3” Clamping Block
• (2) Bolt Leaders

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3592
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• For vehicles with an appearance panel, remove the panel covering the trunk pan before installation and return it to the vehicle owner.

Installation Instructions for Various Vehicles

Part Numbers:

• 60953
• 24787
• 77161

Wiring Access Location:

• PC3

Tools Required:

• Wrenches: 11/16", 3/4"
• Drill Bits: 9/16"

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Lower Exhaust:

   • Remove both rubber isolators from the muffler hangers to lower the exhaust.
   • Be careful not to let the mufflers fall under their own weight.

2. Prepare Heat Shields:

   • Mark and drill two holes, each 4 1/2” from the forward-most hole on the frame channel.
   • Use the hitch as a template to ensure proper alignment.
   • Remove the heat shield to drill the holes, then reinstall once complete.

3. Fishwire Carriage Bolts:

   • Thread the bolt leader onto the carriage bolt and insert it through the reinforcing plate.
   • Fishwire the bolt and plate through the access hole in the frame and pull them through the existing hole.
   • Repeat on the other side and leave bolt leaders attached to prevent the hardware from falling back into the frame.

4. Install Clamping Block:

   • Insert a 1-1/2” carriage bolt through the square hole in the hitch and the vehicle’s tie-down loop on the driver’s side.
   • Attach the clamping block, conical toothed washer, and nut, then hand-tighten to hold the hitch in place.

5. Attach Hitch to Frame Straps:

   • Fish the bolt leaders through the hitch’s frame strap holes.
   • Carefully raise the hitch into position, remove the bolt leaders, and secure with conical toothed washers and nuts.

6. Tighten Fasteners:

   • Use a torque wrench to tighten all:
     • 1/2” fasteners to 75 Lb.-Ft. (102 N*M).
     • 7/16” fasteners to 50 Lb.-Ft. (68 N*M).

7. Reinstall Exhaust:

   • Raise the exhaust back into position and reattach the rubber isolators.

Hardware List:

• (2) 7/16”-14 x 1-1/2” Carriage Bolts
• (2) 1/2”-13 x 1-1/2” Carriage Bolts
• (1) 1/2” Conical Toothed Washer
• (2) 7/16” Conical Toothed Washers
• (1) 1/2” Nut
• (2) 7/16” Nuts
• (2) Reinforcing Plates
• (1) 1-1/2” x 3” Clamping Block
• (2) Bolt Leaders

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3592
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• For vehicles with an appearance panel, remove the panel covering the trunk pan before installation and return it to the vehicle owner.

Additional Information:

• Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

• For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:

• For complete warranty instructions, please download the full installation PDF.
