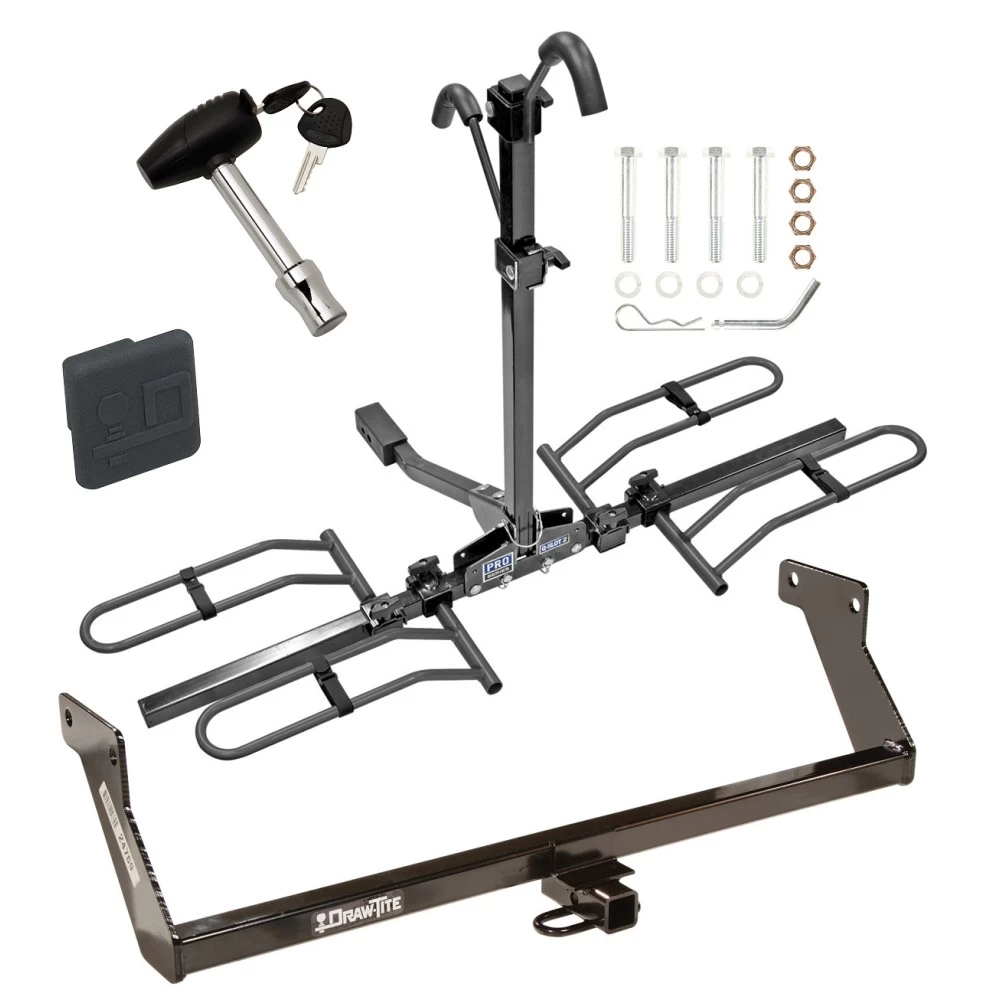

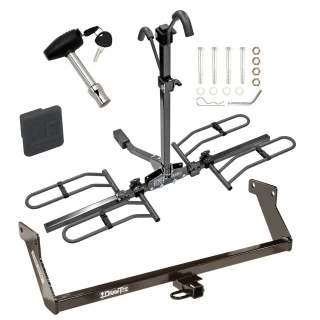

Trailer Tow Hitch For 07‑12 Dodge Caliber Platform Style 2 Bike Rack w/ Hitch Lock and Cover
Model: 24769 63134 580407 2211Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 Dodge, Caliber, All Styles
2008 - 2012 Dodge, Caliber, Except SRT-4
Trailer Hitch Specs:
Bike Rack Specs:
Security Lock Pin Specs:
Part Number | 580407 |
Fits | 2" and 1-7/8" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 2211 |
Fits | 1-1/4" Receiver |
Brand | Draw-Tite |
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 12 2007 2008 2009 2010 2011 2012
$392 49 $629.76 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$629.76 $392 49
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $98.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24769 63134 580407 2211
- Includes: Class 1 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Color | Black |
Drawbar Included | No |
Drilling Required | No |
Gross Towing Weight | 2,000 lbs. |
Hitch Class | I |
Material | Steel |
Maximum Tongue Weight | 200 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 1.25 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 Dodge, Caliber, All Styles
2008 - 2012 Dodge, Caliber, Except SRT-4
Trailer Hitch Specs:
Bike Rack Specs:
Security Lock Pin Specs:
Part Number | 580407 |
Fits | 2" and 1-7/8" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 2211 |
Fits | 1-1/4" Receiver |
Brand | Draw-Tite |
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 12 2007 2008 2009 2010 2011 2012
Get Expert Help
Trailer Tow Hitch For 07-12 Dodge Caliber Platform Style 2 Bike Rack w/ Hitch Lock and Cover Install Notes
Installation Instructions for Dodge Caliber (Except SRT4)
Part Numbers:
- 77145
- 24769
- 60832
Wiring Access Location:
- PC1, PC2
Tools Required:
- Wrenches: 15/16”
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Insert 5/8” Bolts:
- Place 5/8” bolts into the bushings from the outboard side of the frame rails.
- Leave the bolts flush with the inboard frame rail.
-
Position Hitch:
- Raise the hitch into position and push the 5/8” bolts through the brackets to support the hitch.
-
Attach Remaining Fasteners:
- Secure the hitch using the provided lock washers and hex nuts as shown in the instructions.
-
Tighten Fasteners:
- Torque all 5/8”-11 fasteners to 100 Lb.-Ft. (136 N*M) using a torque wrench.

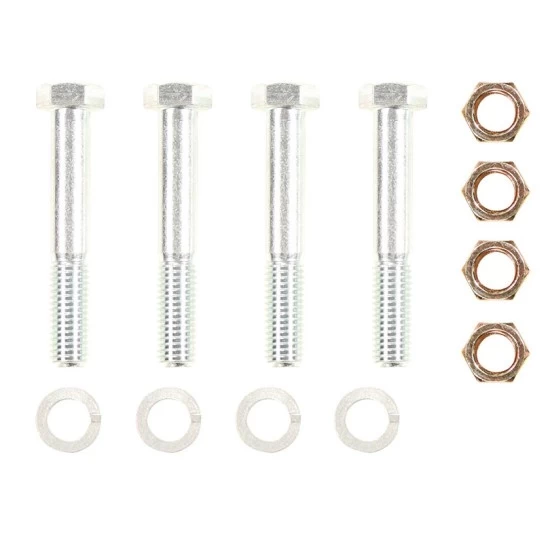

Hardware List:
- (4) Hex Bolts: 5/8”-11 x 4”
- (4) Lock Washers: 5/8”
- (4) Hex Nuts: 5/8”-11
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3591
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Installation Instructions for Dodge Caliber (Except SRT4)
Part Numbers:
- 77145
- 24769
- 60832
Wiring Access Location:
- PC1, PC2
Tools Required:
- Wrenches: 15/16”
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Insert 5/8” Bolts:
- Place 5/8” bolts into the bushings from the outboard side of the frame rails.
- Leave the bolts flush with the inboard frame rail.
-
Position Hitch:
- Raise the hitch into position and push the 5/8” bolts through the brackets to support the hitch.
-
Attach Remaining Fasteners:
- Secure the hitch using the provided lock washers and hex nuts as shown in the instructions.
-
Tighten Fasteners:
- Torque all 5/8”-11 fasteners to 100 Lb.-Ft. (136 N*M) using a torque wrench.
Hardware List:
- (4) Hex Bolts: 5/8”-11 x 4”
- (4) Lock Washers: 5/8”
- (4) Hex Nuts: 5/8”-11
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3591
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Revision:
24769 Rev. A 6/25/2014
