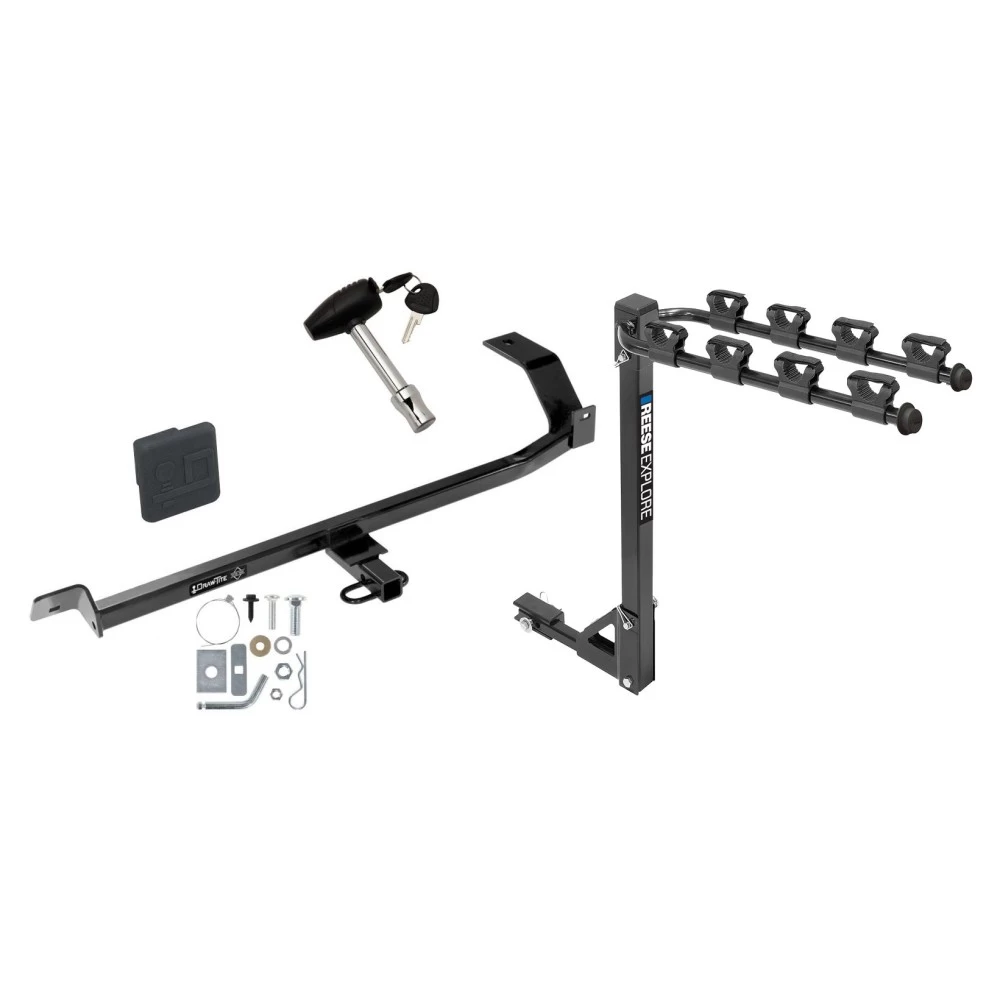

Trailer Tow Hitch w/ 4 Bike Rack For 08‑17 Mitsubishi Lancer Exc Evolution Ralliart Dual Exhaust tilt away adult or child arms fold down carrier w/ Lock and Cover
Model: 24885 1393100G 580407 2211Custom Fit Trailer Hitch
4 Bike Carrier
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2008 - 2017 Mitsubishi, Lancer, 4 Dr. Sedan, Except Evolution, Ralliart & w/Dual Exhaust
2010 - 2014 Mitsubishi, Lancer, 5 Dr. Hatchback, Except Ralliart & w/Dual Exhaust
Trailer Hitch Specs:
Bike Rack Specs:
Part Number | 580407 |
Fits | 2" and 1-1-4" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 2211 |
Fits | 1-1/4" Receiver |
Brand | Draw-Tite |
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 08 09 10 11 12 13 14 15 16 17 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017
$341 67 $545.95 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$545.95 $341 67
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $85.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24885 1393100G 580407 2211
- Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Color | Black |
Drawbar Included | No |
Drilling Required | No |
Gross Towing Weight | 2,000 lbs. |
Hitch Class | I |
Material | Steel |
Maximum Tongue Weight | 200 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 1.25 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description
Custom Fit Trailer Hitch
4 Bike Carrier
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2008 - 2017 Mitsubishi, Lancer, 4 Dr. Sedan, Except Evolution, Ralliart & w/Dual Exhaust
2010 - 2014 Mitsubishi, Lancer, 5 Dr. Hatchback, Except Ralliart & w/Dual Exhaust
Trailer Hitch Specs:
Bike Rack Specs:
Part Number | 580407 |
Fits | 2" and 1-1-4" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 2211 |
Fits | 1-1/4" Receiver |
Brand | Draw-Tite |
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 08 09 10 11 12 13 14 15 16 17 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017
Get Expert Help
Trailer Tow Hitch w/ 4 Bike Rack For 08-17 Mitsubishi Lancer Exc Evolution Ralliart Dual Exhaust tilt away adult or child arms fold down carrier w/ Lock and Cover Install Notes
Installation Instructions for Mitsubishi Lancer (All Single Exhaust Models, Including GT)
Part Numbers:
- 24885
- 60302
- 77273
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches/Sockets: 3/4”, 15/16”, 12mm, 13mm
- Other Tools: Jig saw, cut-off wheel, or die grinder (for enlarging frame hole), Spray lubricant
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Exhaust:
- Remove the rubber isolators from the metal pegs on the muffler and tailpipe using spray lubricant for easier removal.
-
Enlarge Frame Hole:
- Enlarge the passenger-side vehicle frame hole as shown in the provided diagram to allow the bolt and block to pass through.
-
Install Passenger-Side Fasteners:
- Use a bolt leader to fish a 7/16” carriage bolt and block through the enlarged frame hole and back down through the attachment hole. Leave the bolt leader in place for guiding the bolt in a later step.
-
Remove Existing Bolt:
- Remove the 8mm bolt from the passenger-side bottom of the frame rail. Return the bolt to the vehicle owner.
-
Position Hitch:
- Raise the hitch into position above the tailpipe.
- Align the hitch sidearm with the bottom of the frame and guide the bolt leader through the hitch sidearm hole.
- Pull the carriage bolt through the hitch sidearm, remove the bolt leader, and loosely install the conical toothed washer and hex nut. Ensure the carriage bolt engages with the square hole in the block.
-
Attach Driver-Side Tow Hook:
- Place the large block with the round hole on the back side of the vehicle tow hook.
- Insert a 5/8” carriage bolt through the square hole in the hitch bracket, the tow hook opening, and the block. Loosely install the lock washer and hex nut.
-
Replace Passenger-Side Bolt:
- Replace the 8mm bolt removed in Step 4 with the supplied 8mm bolt, threading it through the hitch and into the vehicle weld nut.
-
Tighten All Fasteners:
- Torque the bolts to the following specifications:
- 7/16”-14 GR5 Carriage Bolt: 50 Lb.-Ft. (68 N*M)
- 5/8”-11 GR5 Carriage Bolt: 150 Lb.-Ft. (203 N*M)
- 8mm Bolt: 25 Lb.-Ft. (37 N*M)
- Torque the bolts to the following specifications:
Hardware List:
- (1) Carriage Bolt: 7/16”-14 x 1-3/4” GR5
- (1) Carriage Bolt: 5/8”-11 x 2” GR5
- (1) Hex Bolt: 8mm x 1.25 x 35mm CL9.8
- (1) Block: 1-3/4” x 2-1/2” (round hole)
- (1) Block: 7/8” x 3” (square hole)
- (1) Lock Washer: 5/8”
- (1) Conical Toothed Washer: 7/16”
- (1) Hex Nut: 5/8”-11
- (1) Hex Nut: 7/16”-14
- (1) Bolt Leader: 7/16”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Use silicone sealant around frame access holes to prevent water entry.
Installation Instructions for Vehicle (All Single Exhaust Models, Including GT)
Part Numbers:
- 24885
- 60302
- 77273
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches/Sockets: 3/4”, 15/16”, 12mm, 13mm
- Other Tools: Jig saw, cut-off wheel, or die grinder (for enlarging frame hole), Spray lubricant
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Exhaust:
- Remove the rubber isolators from the metal pegs on the muffler and tailpipe using spray lubricant for easier removal.
-
Enlarge Frame Hole:
- Enlarge the passenger-side vehicle frame hole as shown in the provided diagram to allow the bolt and block to pass through.
-
Install Passenger-Side Fasteners:
- Use a bolt leader to fish a 7/16” carriage bolt and block through the enlarged frame hole and back down through the attachment hole. Leave the bolt leader in place for guiding the bolt in a later step.
-
Remove Existing Bolt:
- Remove the 8mm bolt from the passenger-side bottom of the frame rail. Return the bolt to the vehicle owner.
-
Position Hitch:
- Raise the hitch into position above the tailpipe.
- Align the hitch sidearm with the bottom of the frame and guide the bolt leader through the hitch sidearm hole.
- Pull the carriage bolt through the hitch sidearm, remove the bolt leader, and loosely install the conical toothed washer and hex nut. Ensure the carriage bolt engages with the square hole in the block.
-
Attach Driver-Side Tow Hook:
- Place the large block with the round hole on the back side of the vehicle tow hook.
- Insert a 5/8” carriage bolt through the square hole in the hitch bracket, the tow hook opening, and the block. Loosely install the lock washer and hex nut.
-
Replace Passenger-Side Bolt:
- Replace the 8mm bolt removed in Step 4 with the supplied 8mm bolt, threading it through the hitch and into the vehicle weld nut.
-
Tighten All Fasteners:
- Torque the bolts to the following specifications:
- 7/16”-14 GR5 Carriage Bolt: 50 Lb.-Ft. (68 N*M)
- 5/8”-11 GR5 Carriage Bolt: 150 Lb.-Ft. (203 N*M)
- 8mm Bolt: 25 Lb.-Ft. (37 N*M)
- Torque the bolts to the following specifications:
Hardware List:
- (1) Carriage Bolt: 7/16”-14 x 1-3/4” GR5
- (1) Carriage Bolt: 5/8”-11 x 2” GR5
- (1) Hex Bolt: 8mm x 1.25 x 35mm CL9.8
- (1) Block: 1-3/4” x 2-1/2” (round hole)
- (1) Block: 7/8” x 3” (square hole)
- (1) Lock Washer: 5/8”
- (1) Conical Toothed Washer: 7/16”
- (1) Hex Nut: 5/8”-11
- (1) Hex Nut: 7/16”-14
- (1) Bolt Leader: 7/16”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Use silicone sealant around frame access holes to prevent water entry.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
