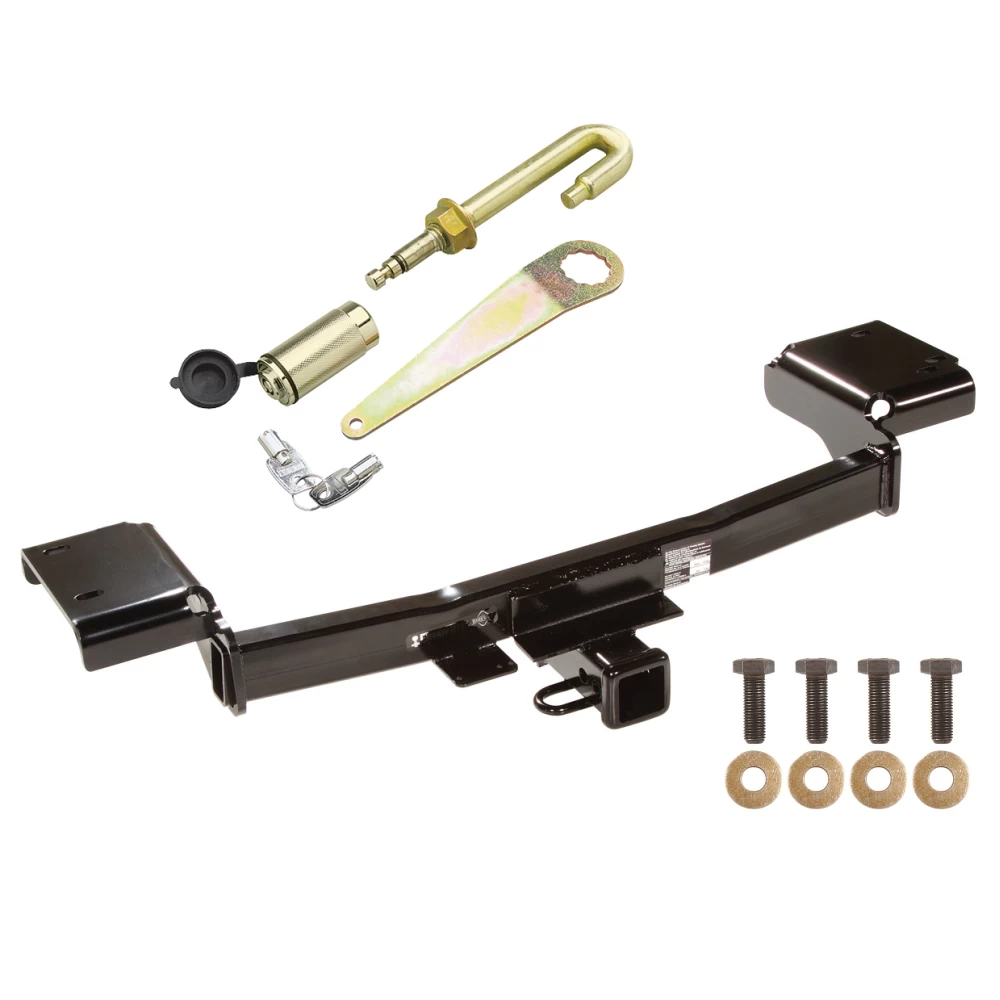

Trailer Tow Hitch For 10‑15 Hyundai Tucson 11‑16 Kia Sportage Class 3 2" Towing Receiver w/ J‑Pin Anti‑Rattle Lock
Model: 75717 63201Custom Fit Trailer Hitch
Security J-Pin
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2011 - 2016 KIA, Sportage, All Styles
Trailer Hitch Specs:
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 10 11 12 13 14 15 16 2010 2011 2012 2013 2014 2015 2016
$251 79 $400.67 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$400.67 $251 79
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $62.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75717 63201
- Includes: Class 3 Trailer Tow Hitch, J-Pin Anti-Rattle Device
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Ball Mount Included | No |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 3,500 lbs. |
Gross Towing Weight w/ Weight Distribution Kit | 5,250 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 525 lbs. |
Maximum Tongue Weight w/ Weight Distribution Kit | 525 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description

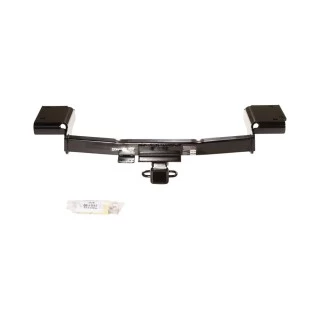

Custom Fit Trailer Hitch
Security J-Pin
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2011 - 2016 KIA, Sportage, All Styles
Trailer Hitch Specs:
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 10 11 12 13 14 15 16 2010 2011 2012 2013 2014 2015 2016
Get Expert Help
Trailer Tow Hitch For 10-15 Hyundai Tucson 11-16 Kia Sportage Class 3 2" Towing Receiver w/ J-Pin Anti-Rattle Lock Install Notes
Installation Instructions for Hyundai Tucson and Kia Sportage
Part Numbers:
- 75717
- 87612
- 44666
- 75188 U-HAUL
Wiring Access Location:
- Hyundai Tucson: SUV1, SUV2
- Kia Sportage: SUV1, SUV5
Tools Required:
- Wrenches: 16mm
- Drill Bits: None
Step-by-Step Instructions:
- Raise the vehicle using a hoist or ramps for better access to the underside.
- While supporting the exhaust, remove the rear hangers and lower the exhaust until the hitch can be positioned over the muffler tips and aligned with existing weld nuts in the frame.
- Loosely install the M10 hex bolts with conical washers in four places, as shown.
- Tighten all M10 CL10.9 fasteners to the specified torque.
- Reinstall the rear hangers for the exhaust.

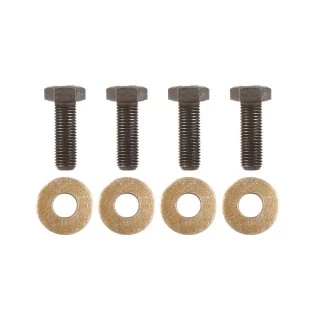

Hardware List:
- Qty (4): Hex Bolt – M10 x 1.25 x 30mm CL 10.9
- Qty (4): Conical Washer – 3/8”
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 5,250 lbs (2,381 kg)
- Max Tongue Weight: 525 lbs (238 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 3,500 lbs (1,588 kg)
- Max Tongue Weight: 525 lbs (238 kg)
Manufacturer Notes:
- If additional exhaust clearance is required, bend the exhaust hanger rod as necessary.
- Tighten all M10 CL10.9 fasteners to 42 lb-ft (57 N*m) using a torque wrench.
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions
Part Numbers:
- 75717
- 87612
- 44666
- 75188 U-HAUL
Wiring Access Location:
- Hyundai Tucson: SUV1, SUV2
- Kia Sportage: SUV1, SUV5
Tools Required:
- Wrenches: 16mm
- Drill Bits: None
Step-by-Step Instructions:
- Raise the vehicle using a hoist or ramps for better access to the underside.
- While supporting the exhaust, remove the rear hangers and lower the exhaust until the hitch can be positioned over the muffler tips and aligned with existing weld nuts in the frame.
- Loosely install the M10 hex bolts with conical washers in four places, as shown.
- Tighten all M10 CL10.9 fasteners to the specified torque.
- Reinstall the rear hangers for the exhaust.
Hardware List:
- Qty (4): Hex Bolt – M10 x 1.25 x 30mm CL 10.9
- Qty (4): Conical Washer – 3/8”
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 5,250 lbs (2,381 kg)
- Max Tongue Weight: 525 lbs (238 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 3,500 lbs (1,588 kg)
- Max Tongue Weight: 525 lbs (238 kg)
Manufacturer Notes:
- If additional exhaust clearance is required, bend the exhaust hanger rod as necessary.
- Tighten all M10 CL10.9 fasteners to 42 lb-ft (57 N·m) using a torque wrench.
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
