Trailer Tow Hitch For 12‑17 Mazda 5 Platform Style 2 Bike Rack w/ Hitch Lock and Cover

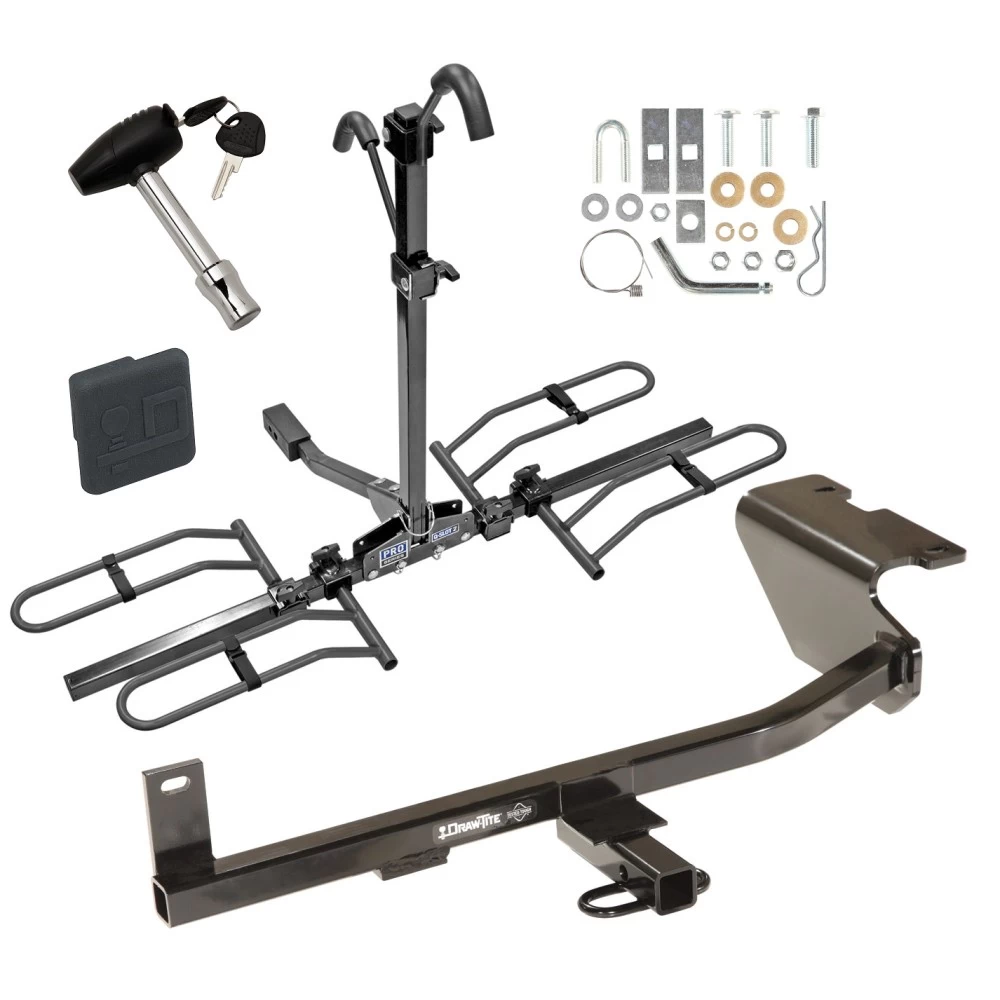

Model: 24874 63134 580407 2211Includes Everything Pictured:

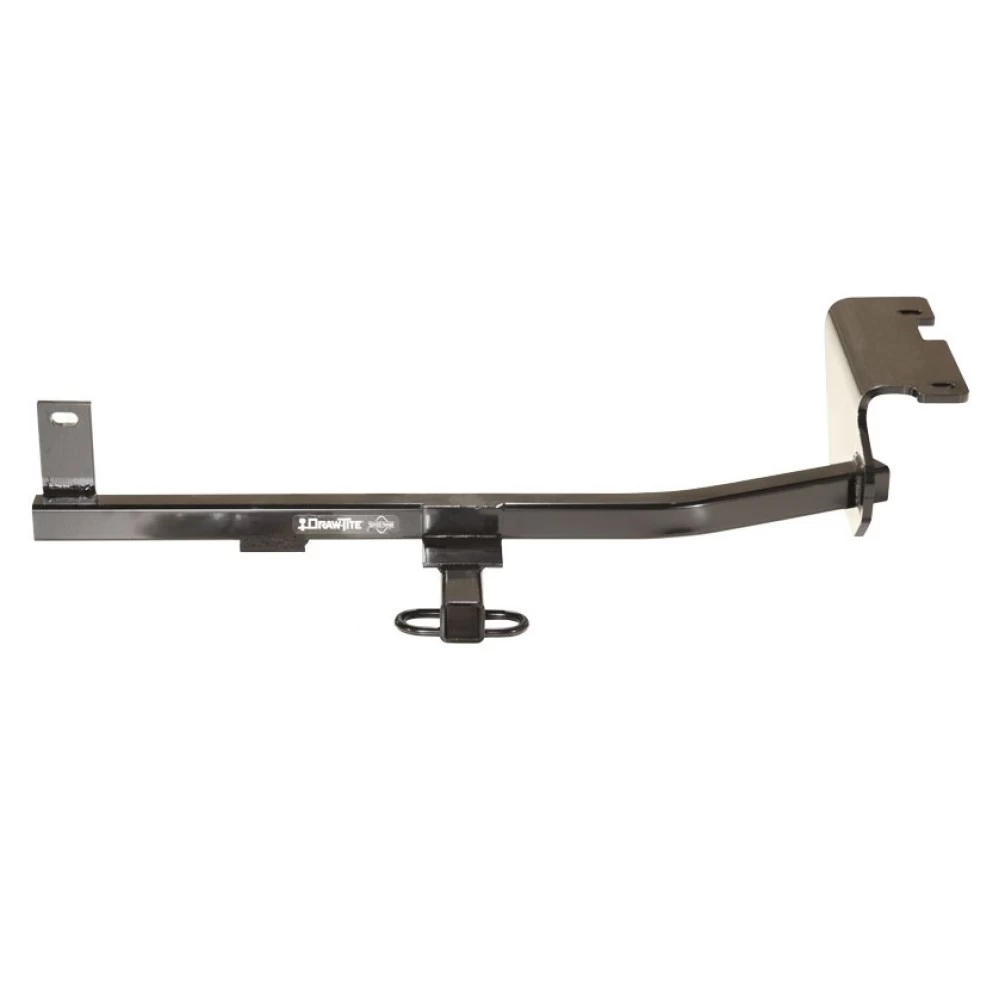

Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2012 - 2017 Mazda, 5, All Styles
Trailer Hitch Specs:
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2012 - 2017 Mazda, 5, All Styles
Trailer Hitch Specs:
| Part Number | 24874 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Rack Specs:
| Part Number | 63134 |
| Brand | Pro Series |
| Finish | Black Powdercoat |
| Rubber Number of Bikes | 2 |
| Capacity | 90 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 35 lbs. |
| Warranty | 1 Year Warranty |
| Installation Instructions | |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 2211 |
| Fits | 1-1/4" Receiver |
| Brand | Draw-Tite |
| Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 12 13 14 15 16 17 2012 2013 2014 2015 2016 2017
$396 88 $636.64 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
Best Price on Web Guarantee
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$636.64 $396 88
Pay in 4 interest-free installments of
$99.00
with
Learn more
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $99.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24874 63134 580407 2211
- Includes: Class 1 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Includes Everything Pictured:
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2012 - 2017 Mazda, 5, All Styles
Trailer Hitch Specs:
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2012 - 2017 Mazda, 5, All Styles
Trailer Hitch Specs:
| Part Number | 24874 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Rack Specs:
| Part Number | 63134 |
| Brand | Pro Series |
| Finish | Black Powdercoat |
| Rubber Number of Bikes | 2 |
| Capacity | 90 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 35 lbs. |
| Warranty | 1 Year Warranty |
| Installation Instructions | |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 2211 |
| Fits | 1-1/4" Receiver |
| Brand | Draw-Tite |
| Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 12 13 14 15 16 17 2012 2013 2014 2015 2016 2017
Get Expert Help
Trailer Tow Hitch For 12-17 Mazda 5 Platform Style 2 Bike Rack w/ Hitch Lock and Cover Install Notes
Installation Instructions for Mazda 5
Part Numbers:
- 24874
- 60291
- 77262
Wiring Access Location:
- PC3, PC4
Tools Required:
- Pull Wires (provided)
- Masking Tape
- Small Screwdriver
- Paint
- Wrenches: 11/16", (2) 3/4"
- Drill Bits: 3/8” or 1” Hole Saw or Cutting Tool
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Fascia Tabs:
- Remove the two (2) plastic rivets fastening the fascia tabs to the trunk pan.
- Use a screwdriver to remove the rivet centers and then the remaining pieces. Retain rivets for reinstallation.
- Push the fascia toward the impact bar.
-
Enlarge Access Hole:
- Enlarge the forward access hole or drill a 1” hole in the bottom of the passenger-side frame rail between the attachment holes for bolts and spacers.
- Paint any exposed metal to prevent corrosion.
-
Feed Bolts and Spacers:
- Use the pull wires to feed spacers and carriage bolts into position. Leave pull wires attached for alignment.
-
Adjust Heat Shield:
- Gently pull the heat shield away from the end panel to create space for the hitch's upright bar. Use masking tape to cover sharp edges on the shield.
-
Hang U-Bolt on Tow Hook:
- Attach the U-bolt to the tow hook as shown in the diagram.
-
Position Hitch:
- Raise the hitch into position at the tow hook. Maneuver the upright bar between the end panel and behind the heat shield.
- Attach using a flat washer, lock washer, and hex nut. Tighten fasteners slightly.
-
Secure Passenger-Side Bracket:
- Feed pull wires through the slots in the passenger-side bracket.
- Shift the bracket into position and pull fasteners through the bracket. Remove one pull wire at a time and install a conical washer and hex nut.
-
Install Bolt Through Spacer:
- Insert the 1/2”-13 bolt into the spacer. From behind the end panel, insert the bolt through the panel hole and the upright bar slot.
- Attach a conical washer and hex nut. Align the spacer as shown.
-
Tighten All Fasteners:
- Tighten fasteners to the following specifications:
- 3/8”-16 fasteners: 30 Lb.-Ft. (41 N*M)
- 7/16”-14 GR5 fasteners: 50 Lb.-Ft. (68 N*M)
- 1/2”-13 GR5 fasteners: 75 Lb.-Ft. (102 N*M)
- Tighten fasteners to the following specifications:
-
Reattach Components:
- Reinstall the fascia and push the heat shield back into its original position.

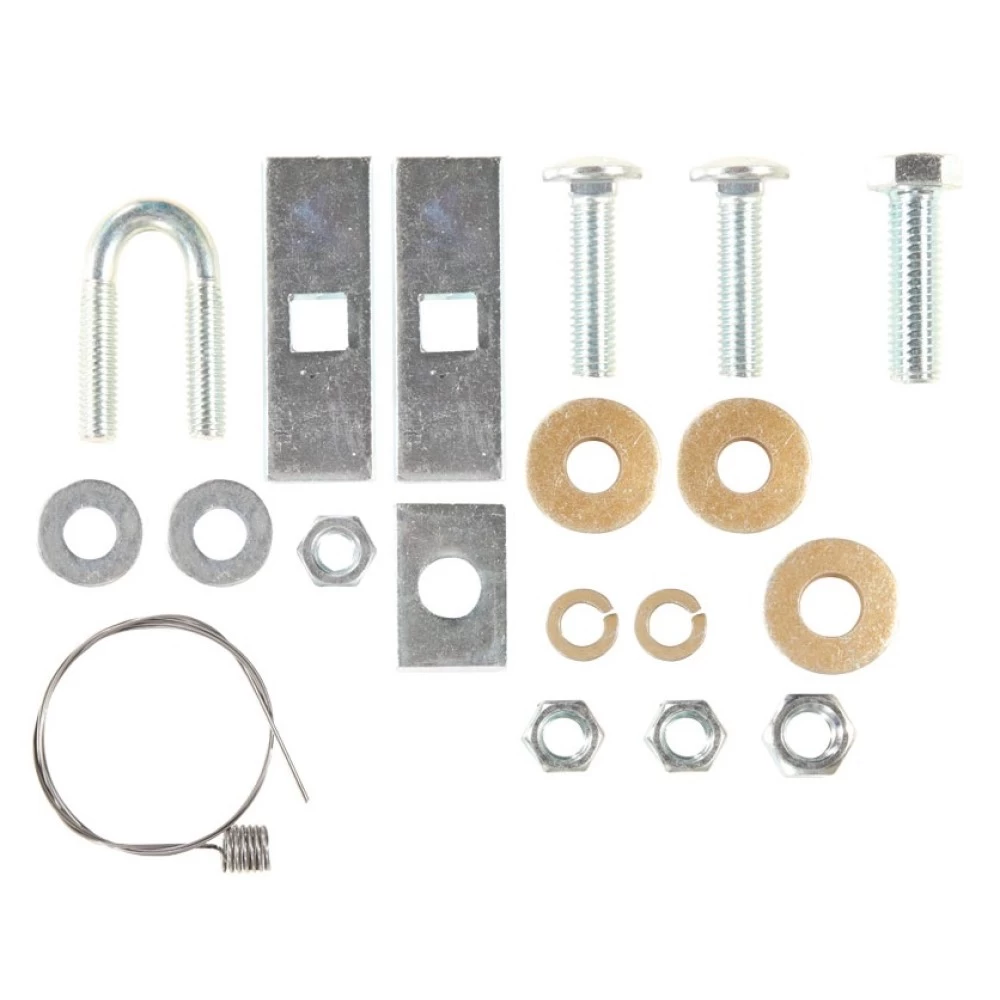

Hardware List:
- (1) U-Bolt: 3/8”-16
- (2) 3/8” Flat Washers
- (2) 3/8” Lock Washers
- (2) 3/8”-16 Hex Nuts
- (1) 1/2”-13 x 1.75” Bolt (GR5)
- (1) 1/2”-13 Hex Nut
- (1) 1/2” Conical Washer
- (2) 7/16”-14 x 1.75” Carriage Bolts (GR5)
- (2) 7/16” Conical Washers
- (2) 7/16”-14 Hex Nuts
- (2) 1/4” x 1” x 3” Spacers
- (1) 1/4” x 1” x 1.5” Spacer
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3592
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Installation Instructions
Part Numbers:
- 24874
- 60291
- 77262
Wiring Access Location:
- PC3, PC4
Tools Required:
- Pull Wires (provided)
- Masking Tape
- Small Screwdriver
- Paint
- Wrenches: 11/16", (2) 3/4"
- Drill Bits: 3/8” or 1” Hole Saw or Cutting Tool
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Fascia Tabs:
- Remove the two (2) plastic rivets fastening the fascia tabs to the trunk pan.
- Use a screwdriver to remove the rivet centers and then the remaining pieces. Retain rivets for reinstallation.
- Push the fascia toward the impact bar.
-
Enlarge Access Hole:
- Enlarge the forward access hole or drill a 1” hole in the bottom of the passenger-side frame rail between the attachment holes for bolts and spacers.
- Paint any exposed metal to prevent corrosion.
-
Feed Bolts and Spacers:
- Use the pull wires to feed spacers and carriage bolts into position. Leave pull wires attached for alignment.
-
Adjust Heat Shield:
- Gently pull the heat shield away from the end panel to create space for the hitch's upright bar. Use masking tape to cover sharp edges on the shield.
-
Hang U-Bolt on Tow Hook:
- Attach the U-bolt to the tow hook as shown in the diagram.
-
Position Hitch:
- Raise the hitch into position at the tow hook. Maneuver the upright bar between the end panel and behind the heat shield.
- Attach using a flat washer, lock washer, and hex nut. Tighten fasteners slightly.
-
Secure Passenger-Side Bracket:
- Feed pull wires through the slots in the passenger-side bracket.
- Shift the bracket into position and pull fasteners through the bracket. Remove one pull wire at a time and install a conical washer and hex nut.
-
Install Bolt Through Spacer:
- Insert the 1/2”-13 bolt into the spacer. From behind the end panel, insert the bolt through the panel hole and the upright bar slot.
- Attach a conical washer and hex nut. Align the spacer as shown.
-
Tighten All Fasteners:
- Tighten fasteners to the following specifications:
- 3/8”-16 fasteners: 30 Lb.-Ft. (41 N*M)
- 7/16”-14 GR5 fasteners: 50 Lb.-Ft. (68 N*M)
- 1/2”-13 GR5 fasteners: 75 Lb.-Ft. (102 N*M)
- Tighten fasteners to the following specifications:
-
Reattach Components:
- Reinstall the fascia and push the heat shield back into its original position.
Hardware List:
- (1) U-Bolt: 3/8”-16
- (2) 3/8” Flat Washers
- (2) 3/8” Lock Washers
- (2) 3/8”-16 Hex Nuts
- (1) 1/2”-13 x 1.75” Bolt (GR5)
- (1) 1/2”-13 Hex Nut
- (1) 1/2” Conical Washer
- (2) 7/16”-14 x 1.75” Carriage Bolts (GR5)
- (2) 7/16” Conical Washers
- (2) 7/16”-14 Hex Nuts
- (2) 1/4” x 1” x 3” Spacers
- (1) 1/4” x 1” x 1.5” Spacer
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3592
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Related Products
-150x150w.webp "Trailer Hitch Wiring Harness Kit For 06-17 Mazda 5 11-14 Mazda 2 07-15 Mazda CX-9 Plug & Play")
Stock: In Stock
Includes Everything Pictured:
Wiring Harness (Plug & Play)
Installation Instructions
Fits The Following Vehicles
2011 - 2014 &nb..
$63.72
Stock: In Stock
Easy Access Lock w/Sleeve for 1-1/4" & 2" Square Receivers
Includes Dust Cap
Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Hou..
$26.30
Stock: In Stock
Class I 1-1/4" Drawbar Kit, Drawbar (2000 lbs. w/3/4" Ball Hole 9-3/4" Length x 2-1/8" Rise x 2-3/4" Drop), Pin and Clip, Black
Boxed inclu..
$40.88
Stock: In Stock
Class I 1-1/4" Drawbar Kit, Drawbar (2000 lbs. w/3/4" Ball Hole 9-3/4" Length x 2-1/8" Rise x 2-3/4" Drop), Pin and Clip, Black
Boxed inclu..
$40.16
Stock: In Stock
Attaches to any 1-1/4" receiver
Rubber construction tightly seals tube opening
Pin or clips are not required, simply push the cover into your 1-1/..
$10.52
Stock: In Stock
Includes Everything Pictured:
Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
Installation Instructions
Fits The Followi..
$76.86
Stock: In Stock
Includes Everything Pictured:
Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
4-Flat Car End Tester w/ LED Display
Fits Th..
$83.96
Stock: In Stock
Receiver Lock, Dogbone Style, 5/8" for 2-1/2" Sq. Class V Receivers, Stainless Steel
Perfect for Class V hitches that have an outside width wider t..
$46.05
Stock: In Stock
Stainless Steel Combo Lock Set, 5/8" Dogbone Lock w/Sleeve for 1-1/4" and 2" Square Receivers and Coupler
Includes Dust Cap
Easy Access Models Fea..
$50.17
Stock: In Stock
5/8" Chrome Dogbone Lock w/ Chrome Coupler Lock
Stronger Break Resistance
Dual Self-locking Design
High Security Square Key Design
Includes Dust..
$47.02
Stock: In Stock
5/8" Chrome Bent Pin Lock
Stronger Break Resistance
Dual Self-locking Design
High Security Square Key Design
Includes Dust Cap
..
$30.05
Stock: In Stock
5/8" Chrome Dogbone Lock
Stronger Break Resistance
Dual Self-locking Design
High Security Square Key Design
Includes Dust Cap
..
$30.59
Stock: In Stock
Stainless Steel Dogbone Lock w/Sleeve for 1-1/4" & 2" Square Recievers
Includes Dust Cap
Easy Access Models Feature Side Key Entry, Sliding Dust ..
$38.27
Stock: In Stock
5/8" SS Dogbone Lock
Stronger Break Resistance
Dual Self-locking Design
High Security Square Key Design
Includes Dust Cap
..
$40.65
Stock: In Stock
Class V Barrel Style Towing Receiver Lock, 5/8 In. Diameter, 3-1/2 In. Span
The REESE Towpower class V barrel style (Dog bone), receiver lock is de..
$29.27
Stock: Pre-Order
LOCK PROFESSIONAL LIFE LONG 3"
The REESE Towpower class V barrel style (Dog bone), receiver lock is designed with a 4-in span for 3-in square tube ..
$33.79
Stock: In Stock
Easy Access II Bent Pin Towing Receiver Lock, 5/8 In. Diameter
The REESE Towpower easy access II towing receiver lock earned its named because of i..
$32.10
Stock: Pre-Order
Easy Access II Chrome Receiver Lock, Class V
Chrome design for improved appearance
3.5 In. span for Class III - V fit
Pick proof square key desig..
$29.62
Stock: In Stock
Class V Bent Pin Towing Receiver Lock, 5/8 In. Diameter, 3-1/2 In. Span
The REESE Towpower class V bent pin, receiver lock is designed with a 3-1/2..
$26.28
Stock: In Stock
Class V Barrel Style Towing Receiver Lock, 5/8 In. Diameter, 3-1/2 In. Span
The REESE Towpower class V barrel style (Dog bone), receiver lock is de..
$29.27
Stock: In Stock
Professional Towing Receiver Lock, 5/8 In., Chrome
REESE Towpower 5/8-in professional towing receiver locks are the most theft resistant locks in ..
$34.66
Stock: In Stock
Professional Towing Receiver Lock, 5/8 In., Stainless Steel
REESE Towpower 5/8-in professional towing receiver locks are the most theft resistant ..
$37.16
Stock: In Stock
LOCK DOGBONE RCVR KNURLED 5/8
The REESE Tactical class V barrel style (Dog bone), receiver lock is designed with a 3-1/2-in span for 2-1/2-in squar..
$29.45
Stock: In Stock
LOCK RECVR COUPLER & DUAL
The REESE Towpower combo locks include the brushed alumninum adjustable coupler lock and the easy access II dual bent p..
$40.07
Stock: In Stock
Easy Access II Dual Bent Pin Towing Receiver & Trailer Coupler Lock Combo
The REESE Towpower combo locks include the easy access II adjustable cou..
$46.47
Stock: In Stock
Receiver Lock, Barrel Style w/Bent Pin, 5/8" for 2-1/2" Sq. Receivers, 3-1/2" Span
Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lo..
$30.43
Stock: In Stock
Receiver Lock, Bent Pin, 1/2" for 1-1/4" Sq. Receivers & Fifth Wheel Base Rails
Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock ..
$25.25
Stock: In Stock
Receiver Lock, Bent Pin, 5/8" for 2" & 2-1/2" Sq. Receivers
Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 ..
$25.40
Stock: In Stock
Receiver Lock, 5/8" for 3" Sq. Class V Receivers, Sleeved to 3/4"
The Draw Tite 5/8-in diameter dogbone lock is primarily designed for towing and ..
$39.80
Stock: In Stock
Receiver Lock, Barrel Style w/Bent Pins, 1/2" for 1-1/4" Sq. Receivers & 5/8" for 2" Sq. Receivers
Easy Access Models Feature Side Key Entry, Slid..
$26.30
Stock: In Stock
Anti-Theft, Sleeved Receiver Hitch Pin with Lockable Swivel Latch & Brass Lock
REESE Towpower anti-theft, sleeved hitch pin with swivel latch is d..
$21.54
Stock: In Stock
Anti-Theft Towing 5/8 In. Hitch Pin with Swivel, Lockable Latch, and Brass Lock
REESE Towpower 5/8-in hitch pin with swivel latch is designed to s..
$21.97
Stock: In Stock
Easy Access Sleeved Receiver Lock with 360 Degree Rotating Head
The REESE Towpower easy access sleeved receiver lock and cable, earned its named b..
$38.27
-150x150.webp "Reese Trailer Hitch Lock 360 degree Rotating Head Tongue Tow Receiver 1/2\" and 5/8\" Pin For 2\" and 1-1/4\" Receivers")
Stock: In Stock
Easy Access II Dual Bent Pin Towing Receiver Lock, 1/2 In. and 5/8 In.
The REESE Towpower easy access II, dual bent pin towing receiver lock is de..
$31.08
Stock: In Stock
Professional Bent Pin, Towing Receiver Lock, 5/8 In., Chrome
Patented design eliminates weak points
Ball bearing lock system prevents theft even ..
$29.75
Stock: In Stock
Professional Towing Receiver Lock, 5/8 In., Chrome
Patented design eliminates weak points
Ball bearing lock system prevents theft even if lock is..
$29.92
Stock: In Stock
Towing Receiver Lock, Dual Bent Pin, 5/8 In. and 1/2 In.
This REESE Towpower bent pin hitch receiver lock with interchangeable pins is designed to..
$25.58
Stock: In Stock
Reese Trailer Hitch Lock Bent Pin Tongue Tow Receiver 1/2" For 1-1/4" Receivers and Fifth 5th Wheels
Towing Ball Mount Lock, 1/2 In.
REESE Towpower ball mount lock is designed to provide safety to the ball mount and trailer from theft. It features..
$21.45
Stock: In Stock
Towing Draw Bar Lock 5/8 In. Diameter
REESE Towpower anti-theft, locking hitch pin is designed to secure a ball mount in the hitch receiver. It fe..
$21.66
-150x150.webp "Reese Trailer Hitch Lock Black Nickel Dog Bone Style Tongue Tow Receiver 1/2\" and 5/8\" Pin For 2\" and 1-1/4\" Receivers")
Stock: In Stock
Elite Black Nickel Sleeved, Dogbone Receiver Lock
Keep your towing secure with this handsome black nickel receiver lock
Sleevd to fit both 1/2 an..
$26.35
-150x150.webp "Reese Trailer Hitch Lock Dog Bone Tongue Tow Receiver 1/2\" and 5/8\" Pin For 2\" and 1-1/4\" Receivers")
Stock: In Stock
Barrel Style Sleeved Towing Receiver Lock
This REESE Towpower barrel style (Dog bone), receiver lock with sleeve is designed to secure both 5/8-in..
$34.82
Stock: In Stock
Reese Trailer Hitch Lock Dog Bone Tongue Tow Receiver 5/8" Pin For 2" Receivers Push-Button Key Lock
Towing Receiver Lock, Dog Bone Style, 5/8 In.
REESE Towpower barrel or dog bone style receiver lock is designed to provide excellent protection fo..
$26.66
Stock: Pre-Order
Easy Access II Sleeved Towing Receiver Lock, 5/8 In. and 1/2 In.
The REESE Towpower easy access II, sleeved towing receiver lock is designed t..
$26.49
Stock: Pre-Order
Easy Access II Stainless Steel Class V Towing Receiver Lock
The REESE easy access stainless steel, class V receiver lock is designed to provide se..
$36.29
Stock: In Stock
Easy Access Sleeved Receiver Lock with 360 Degree Rotating Head
The REESE Towpower easy access receiver lock earned its named because of its 360..
$25.83
Stock: Pre-Order
Easy Access Stainless Steel Towing Receiver Lock, Sleeved, 5/8 In.
The REESE Towpower easy access stainless steel receiver lock features a convenie..
$31.08
Stock: In Stock
Elite Black Nickel Sleeved, Dogbone Receiver Lock
The REESE Towpower, elite black nickel, dogbone style receiver lock includes a sleek black nic..
$28.34
Stock: In Stock
Stainless Steel Sleeved Barrel-Style Receiver Lock
The REESE Towpower, stainless steel, barrel- style receiver lock includes a stainless steel sle..
$36.35
Stock: In Stock
Tow and Store Anti-Theft Lock Kit, Keyed Alike
REESE Towpower tow and store anti-theft lock kit includes the necessary locks to provide the comple..
$51.13
Stock: In Stock
Combo Lock Set, 5/8" for 2" Sq. Receiver and 3/4" for Accessory (Keyed Alike)
Dual dogbone pin receiver lock, for 5/8 In. receivers
3/4" In for A..
$47.64
Stock: In Stock
Professional Towing Receiver Lock, 5/8 In., Stainless Steel
Designed for marine use, Fulton brand receiver locks are time-tested and application-p..
$37.47
Stock: In Stock
Receiver Lock, Dead Bolt, 5/8" for 2" Sq. Receivers, Black Finish (Keyed Alike)
This keyed alike 1/2 inch receiver lock allows the user to purchas..
$83.64
Stock: In Stock
Clevis Ball Mount, 2" Sq. Hollow Shank, 11" Length, Rating 6,000/600 lbs. as Ball Mount w/1-1/4" Drop, Rating 6,000/600 lbs. as Clevis Mount w/3" Drop..
$95.29
Stock: In Stock
Dual-Ball Ball Mount, 2" Sq. Solid Shank, 8" Length, w/Black 2" & 2-5/16" Balls, Black
The Draw-Tite dual-ball ball mount features a 2 In. hitch b..
$91.49
Stock: In Stock
Dual Ball Ball Mount, 2" Sq. Solid Shank, 8" Length, w/Chrome 2" & 2-5/16" Balls, Black
Fits 2" square receiver tube opening..
$94.52
Stock: In Stock
Tri-Ball Ball Mount, 2" Sq. Hollow Shank w/Black 1-7/8", 2", & 2-5/16" Balls - Black
Fits 2" square receiver tube opening..
$79.89
Stock: In Stock
Tri-Ball Ball Mount, 2" Sq. Hollow Shank w/Chrome 1-7/8", 2", & 2-5/16" Balls - Black
Fits 2" square receiver tube opening..
$87.30
Stock: In Stock
Tri-Ball Ball Mount, 2" Sq. Solid Shank w/Black 1-7/8", 2", & 2-5/16" Balls, Black
Fits 2" square receiver tube opening
Draw-Tite Tri-Ball ball..
$88.32
Stock: In Stock
Tri-Ball Ball Mount, 2" Sq. Solid Shank w/Chrome 1-7/8", 2", & 2-5/16" Balls, Black
Fits 2" square receiver tube opening..
$105.35
Stock: Pre-Order
Tri-Ball Ball Mount, 2-1/2" Sq. Hollow Shank w/Black 1-7/8", 2", & 2-5/16" Balls, Black
The REESE Titan Class V Tri-Ball ball mount provides conve..
$84.74
Stock: In Stock
Towing Starter Kit, w/InterLock® (Hex) Feature Ball Mount 2" Sq. x 8-1/2"L x 2"D x 3/4"R, 6000 lbs. & 2" Hitch Ball w/Lock, Plastic Storage Case
I..
$90.66
Stock: Pre-Order
Fold down licence plate cover
..
$58.00
Stock: In Stock
Outboard Motor Lock
Keep your Outboard motor safe and secure with the FULTON Outboard Motor Lock
Heavy-duty barrel key lock mechanism for maxim..
$47.34
Stock: In Stock
Reducer Bushing 1" to 3/4"
Allows 3/4" or 1" shank hitch balls, used in ball mounts w/1" or 1-1/4" holes
REESE Towpower reducer bushing allows ..
$13.85
Stock: In Stock
Reducer Bushing, 1-1/4" to 1"
Allows 3/4" or 1" shank hitch balls, used in ball mounts w/1" or 1-1/4" holes
For over 55 years REESE Towpower ha..
$14.45
Stock: Pre-Order
Replacement Part, Super Titan, 3/4" Hitch Pin and Clip for 3" Sq. Receivers
Titan Heavy Duty hitch pin and clip is designed to secure a ball moun..
$54.34
Stock: In Stock
Solo Hitch Alignment System
Convenient one person hitch alignment system
Magnetic base for fast and easy location
Telescoping rods adjust up to ..
$43.38
Stock: Pre-Order
Fastener Kit for Ford Truck Applications
Replacement fastener kit for 3-piece Class III receiver hitches:
Draw-Tite #41504
Hidden Hitch #87480..
$40.89
Stock: In Stock
Fastener Kit for Receivers
Replacement fastener kit for:
Draw-Tite #36127
Draw-Tite #41115
Draw-Tite #41546
Draw-Tite #75191
Draw-Tite #7531..
$32.22
Stock: In Stock
1/2" Integral Pin & Clip for 1-1/4" Sq. Receivers - Zinc
1/2" Hitch pin with integrated swivel pin
Zinc plated
Limited 1 year warranty
..
$18.66
Stock: In Stock
5/8" Integral Pin & Clip for 2" Sq. Receivers - Stainless
5/8" Hitch pin with integrated swivel pin
Stainless steel construction
Limited 1 year ..
$25.49
Stock: In Stock
1/2" Hitch Pin for 1-1/4" Class I and Class II, Zinc
Packaged
1 Year Warranty
..
$16.48
Stock: In Stock
5/8" Grooved Style Hitch Pin and Clip for 2" Sq. Receivers
Packaged
1 Year Warrranty
..
$17.14
Stock: In Stock
5/8" Hole Style Hitch Pin and Clip for 2" Sq. Receivers
Heavy Duty
Packaged
1 Year Warranty
..
$17.14
Stock: Pre-Order
This Shank is desinged for use with the TX or NV2 Bike Carriers (#59400, #59403, #59508) from ROLA or the Eclipse (#63120 #63123), SportWing (#1370100..
$65.33
-150x150w.webp "Reese Repl. Part 16K 18K & 24K Signature Series Fifth Wheel Hitch Puck Plugs")
Stock: In Stock
Replacement Part, 16K, 18K & 24K Signature Series™ Fifth Wheel Puck Plugs..
$18.76
