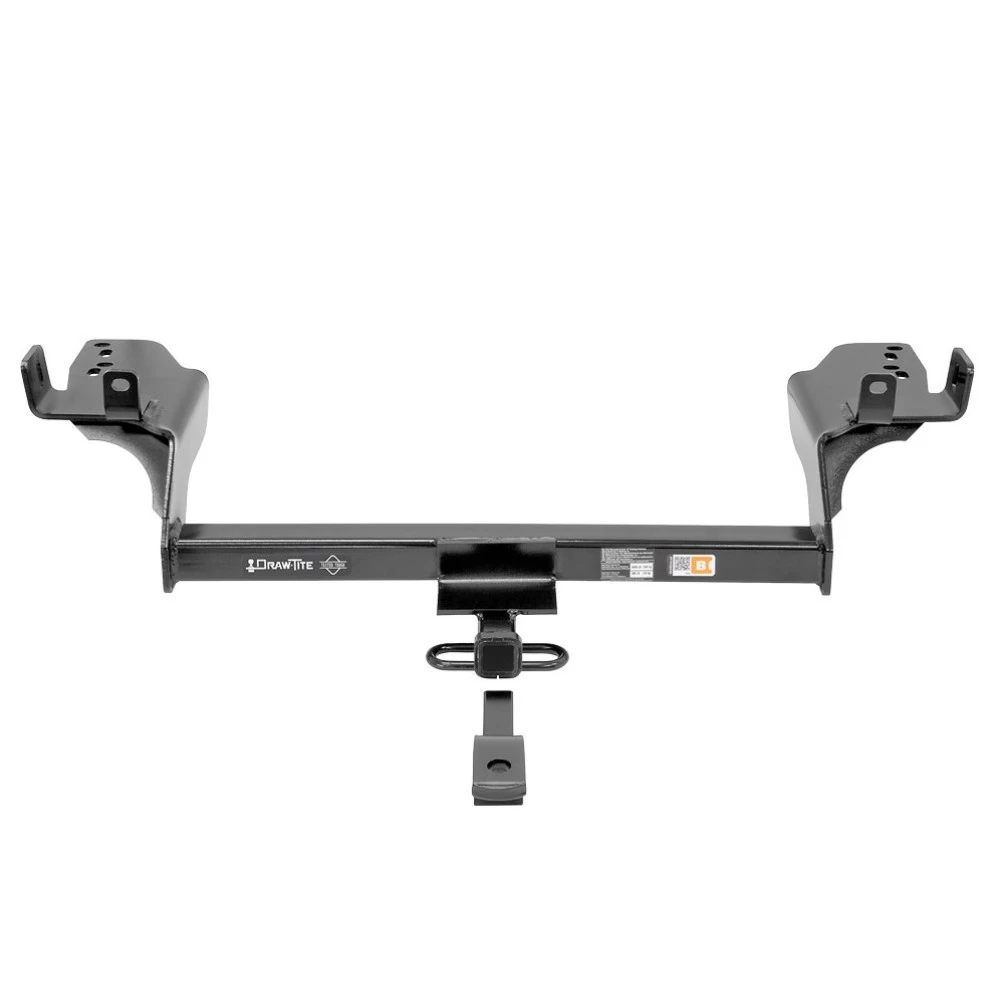

Trailer Tow Hitch For 13‑19 Ford Escape 1‑1/4" Towing Receiver w/ Draw Bar Kit
Model: 365290Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip

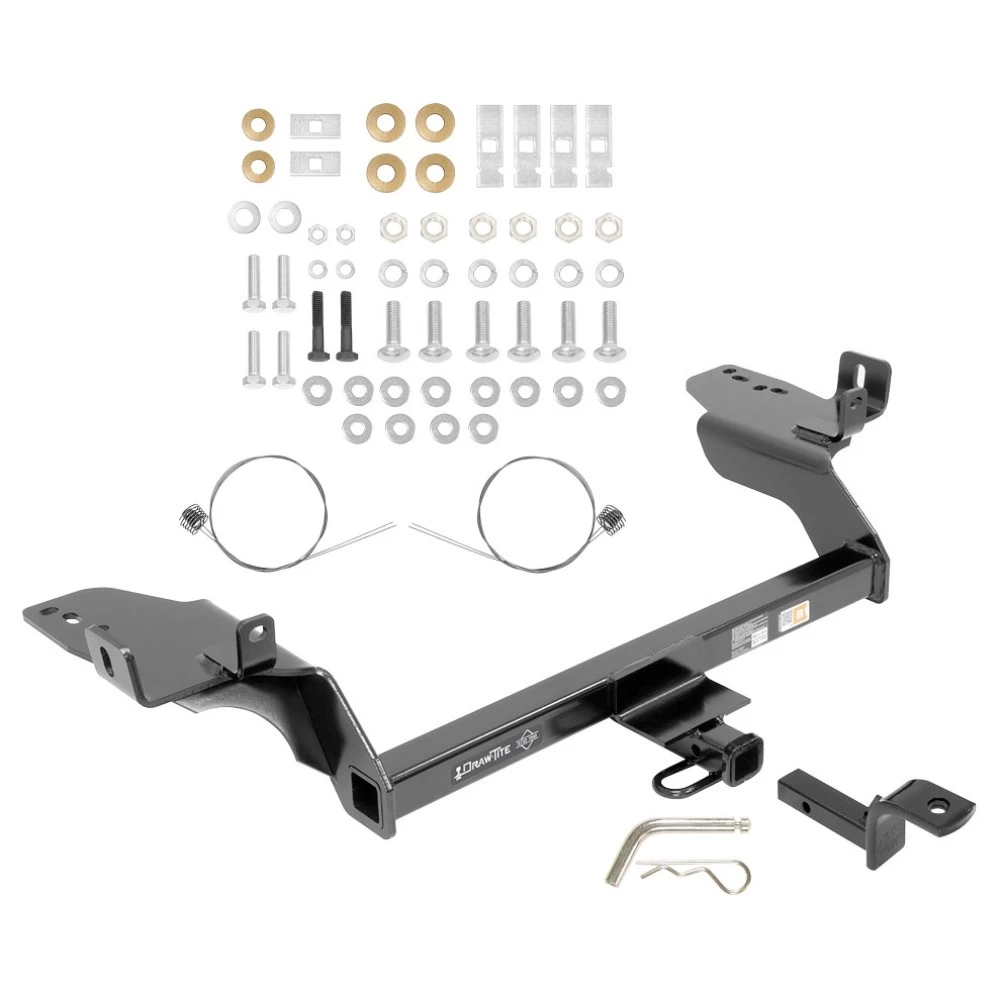

Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
2013 - 2019 Ford, Escape, All Styles
Trailer Hitch Specs:
| Part Number | 365290 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 13 14 15 16 17 18 19 2013 2014 2015 2016 2017 2018 2019
$250 82 $434.83 42% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$434.83 $250 82
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $62.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 365290
- UPC: 016118140309
- Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
2013 - 2019 Ford, Escape, All Styles
Trailer Hitch Specs:
| Part Number | 365290 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 13 14 15 16 17 18 19 2013 2014 2015 2016 2017 2018 2019
Get Expert Help
Trailer Tow Hitch For 13-19 Ford Escape 1-1/4" Towing Receiver w/ Draw Bar Kit Install Notes
Installation Instructions for Ford Escape
Part Numbers:
- 36529
- 90230
- 06156
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 10mm, 13mm, 11/16"
- Pull Wire (provided)
- Tin Snips
- File or Die Grinder
- Soapy Water or Lubricant
Step-by-Step Instructions:
-
Lower the Exhaust:
- Remove the fasteners on the exhaust hanger brackets on both sides of the frame.
- Remove the rubber isolator hangers forward of the suspension for additional room.
- Spray lubricant or soapy water on the metal hanger rods and rubber isolators to ease removal.
-
Trim the Heat Shield:
- On the driver side, remove the forward fastener and measure the area to trim.
- Use tin snips to trim the passenger-side heat shield as shown in Figures 2 and 3.
- Re-secure the driver-side heat shield using the original fastener after trimming.
-
Enlarge the Access Hole:
- Use a file or grinder to enlarge the access hole in the frame rail to allow insertion of the carriage bolts and spacers.
-
Insert Hardware into Frame Rails:
- Feed the pull wire (coiled end) into the hole inside the frame and pull it out through the modified access slot.
- Attach the fastener to the pull wire and pull it into position, leaving the pull wires attached.
- Repeat this procedure for all necessary fasteners (as shown in Figures 4 and 6).
-
Position the Hitch:
- Slide the hitch into position, starting with the driver side and then the passenger side, ensuring pull wires guide the bolts through the mounting slots.
-
Install Fasteners:
- Attach the horizontal 7/16" fasteners at the rear using flat washers, lock washers, and hex nuts to support the hitch.
- Install the M8-1.25 x 40mm bolts and 5/16" flat washers through the rear bracket tab of the hitch and into the end frame and bumper plate (as shown in Figure 8).
- Secure all other fasteners as shown.
-
Tighten Fasteners:
- Torque all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).
- Torque all M8 CL8.8 fasteners to 18 ft-lb (23 N*m).
- Torque all M8 CL10.9 fasteners to 27 ft-lb (37 N*m).
-
Reattach Exhaust:
- Reinstall the exhaust hanger brackets and rubber isolator hangers.
Torque Specifications:
- 7/16"-14 GR5 bolts: 50 ft-lb (68 N*m)
- M8 CL8.8 bolts: 18 ft-lb (23 N*m)
- M8 CL10.9 bolts: 27 ft-lb (37 N*m)
Hardware List:
- (6) Carriage Bolts, 7/16"-14 x 1.50" GR5
- (4) Hex Bolts, M8-1.25 x 30mm CL8.8
- (2) Hex Bolts, M8-1.25 x 40mm CL10.9
- (4) Spacers, 1/4" x 7/8" x 3"
- (2) Spacers, 3/16" x 1" x 2"
- (6) Flat Washers, 5/16"
- (6) Hex Nuts, 7/16"-14
- (4) Conical Washers, 7/16"
- (2) Conical Washers, 3/8"
- (6) Pull Wires, 7/16"
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
Additional Notes:
- Drawbar Kit: 36071 (sold separately)
- Fastener Kit: 36529F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Ford Escape
Part Numbers:
- 36529
- 90230
- 06156
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 10mm, 13mm, 11/16"
- Pull Wire (provided)
- Tin Snips
- File or Die Grinder
- Soapy Water or Lubricant
Step-by-Step Instructions:
-
Lower the Exhaust:
- Remove the fasteners on the exhaust hanger brackets on both sides of the frame.
- Remove the rubber isolator hangers forward of the suspension for additional room.
- Spray lubricant or soapy water on the metal hanger rods and rubber isolators to ease removal.
-
Trim the Heat Shield:
- On the driver side, remove the forward fastener and measure the area to trim.
- Use tin snips to trim the passenger-side heat shield as shown in Figures 2 and 3.
- Re-secure the driver-side heat shield using the original fastener after trimming.
-
Enlarge the Access Hole:
- Use a file or grinder to enlarge the access hole in the frame rail to allow insertion of the carriage bolts and spacers.
-
Insert Hardware into Frame Rails:
- Feed the pull wire (coiled end) into the hole inside the frame and pull it out through the modified access slot.
- Attach the fastener to the pull wire and pull it into position, leaving the pull wires attached.
- Repeat this procedure for all necessary fasteners (as shown in Figures 4 and 6).
-
Position the Hitch:
- Slide the hitch into position, starting with the driver side and then the passenger side, ensuring pull wires guide the bolts through the mounting slots.
-
Install Fasteners:
- Attach the horizontal 7/16" fasteners at the rear using flat washers, lock washers, and hex nuts to support the hitch.
- Install the M8-1.25 x 40mm bolts and 5/16" flat washers through the rear bracket tab of the hitch and into the end frame and bumper plate (as shown in Figure 8).
- Secure all other fasteners as shown.
-
Tighten Fasteners:
- Torque all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).
- Torque all M8 CL8.8 fasteners to 18 ft-lb (23 N*m).
- Torque all M8 CL10.9 fasteners to 27 ft-lb (37 N*m).
-
Reattach Exhaust:
- Reinstall the exhaust hanger brackets and rubber isolator hangers.
Torque Specifications:
- 7/16"-14 GR5 bolts: 50 ft-lb (68 N*m)
- M8 CL8.8 bolts: 18 ft-lb (23 N*m)
- M8 CL10.9 bolts: 27 ft-lb (37 N*m)
Hardware List:
- (6) Carriage Bolts, 7/16"-14 x 1.50" GR5
- (4) Hex Bolts, M8-1.25 x 30mm CL8.8
- (2) Hex Bolts, M8-1.25 x 40mm CL10.9
- (4) Spacers, 1/4" x 7/8" x 3"
- (2) Spacers, 3/16" x 1" x 2"
- (6) Flat Washers, 5/16"
- (6) Hex Nuts, 7/16"-14
- (4) Conical Washers, 7/16"
- (2) Conical Washers, 3/8"
- (6) Pull Wires, 7/16"
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
Additional Notes:
- Drawbar Kit: 36071 (sold separately)
- Fastener Kit: 36529F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
