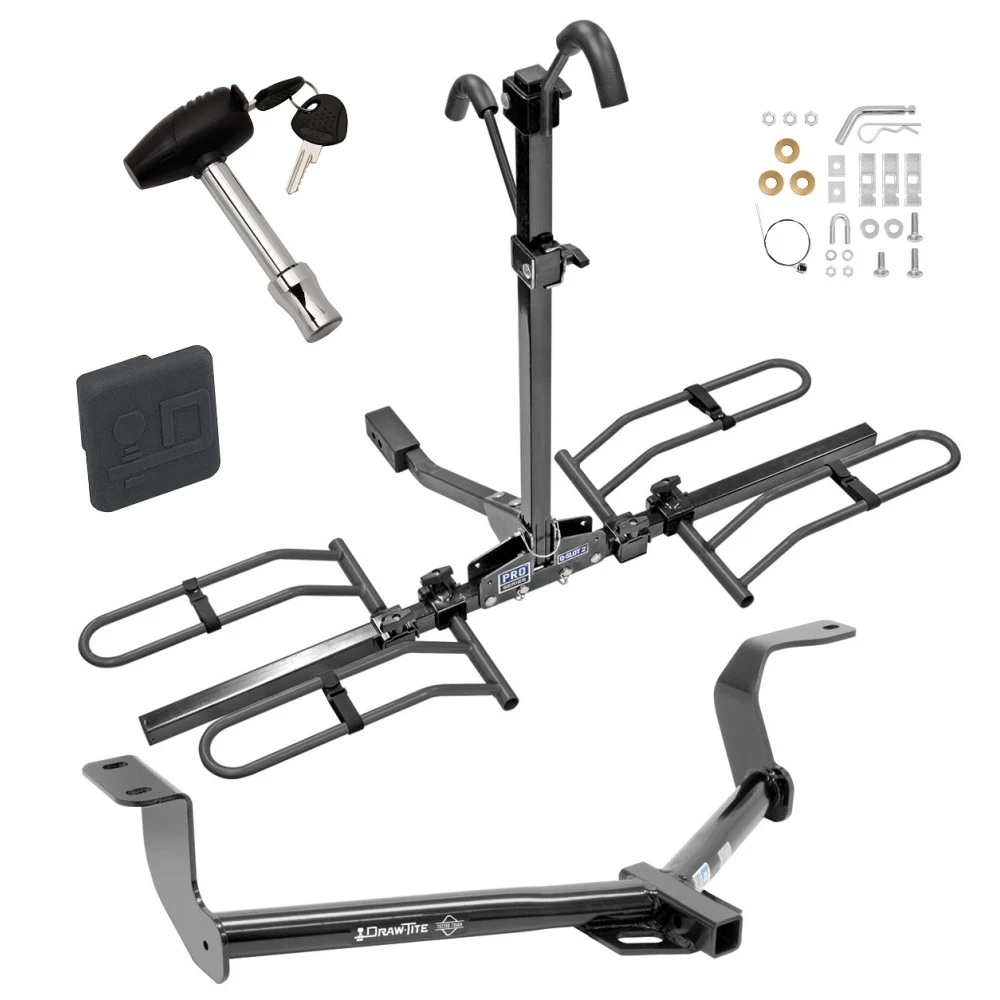

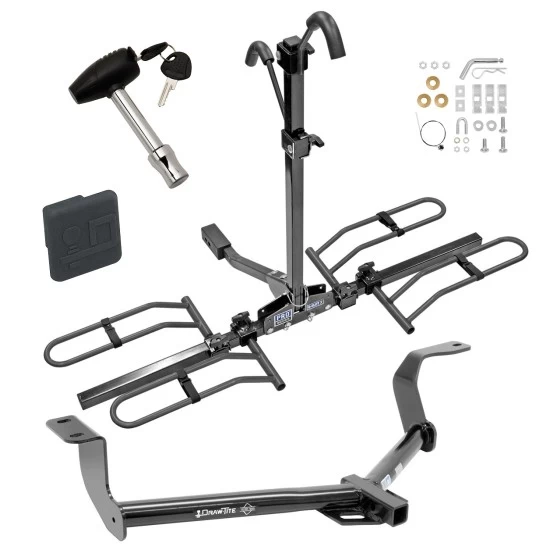

Trailer Tow Hitch For 15‑20 Honda Fit Platform Style 2 Bike Rack w/ Hitch Lock and Cover
Model: 24920 63134 580407 2211Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2015 - 2020 Honda, Fit, All Styles
Trailer Hitch Specs:
Security Lock Pin Specs:
Part Number | 580407 |
Fits | 2" and 1-7/8" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 2211 |
Fits | 1-1/4" Receiver |
Brand | Draw-Tite |
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
Warranty | 1 Year |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 15 16 17 18 19 20 2015 2016 2017 2018 2019 2020
$383 67 $616.00 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$616.00 $383 67
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $95.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24920 63134 580407 2211
- Includes: Class 1 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2015 - 2020 Honda, Fit, All Styles
Trailer Hitch Specs:
Security Lock Pin Specs:
Part Number | 580407 |
Fits | 2" and 1-7/8" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 2211 |
Fits | 1-1/4" Receiver |
Brand | Draw-Tite |
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
Warranty | 1 Year |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 15 16 17 18 19 20 2015 2016 2017 2018 2019 2020
Specification | |
Attachment Location | Rear |
Color | Black |
Drawbar Included | No |
Drilling Required | No |
Gross Towing Weight | 2,000 lbs. |
Hitch Class | I |
Material | Steel |
Maximum Tongue Weight | 200 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 1.25 in. |
Receiver Type | Round Tube |
Be the first to ask a question.
Get Expert Help
Trailer Tow Hitch For 15-20 Honda Fit Platform Style 2 Bike Rack w/ Hitch Lock and Cover Install Notes
Installation Instructions for Honda Fit
Part Numbers:
- 24920
- 60353
- 77307
Wiring Access Location:
- PC3, PC4
Tools Required:
- Pull wire
- Lubricant or soapy water
- Wrenches: 11/16"
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Exhaust:
- Detach the exhaust from the two rubber isolators. Use lubricant or soapy water to assist with removal.
-
Install Passenger-Side Fasteners:
- Use the reverse pull wire procedure to insert the shorter 7/16” carriage bolt and spacer into the passenger-side frame rail. Leave the pull wire attached.
-
Install Driver-Side Fasteners:
- Use the pull wire to install the forward bolt and spacer in the driver-side frame rail.
- Reverse pull wire the rearward bolt and spacer into position. Leave the pull wires attached.
-
Position Spacers and Hitch:
- Place spacers on the driver-side bracket and feed the pull wire through the appropriate slots on both sides.
- Raise the hitch into position and use conical washers to hold the carriage bolts in place.
-
Attach Fasteners:
- Remove the pull wires and secure the fasteners with hex nuts.
-
Install U-Bolt on Tow Hook:
- Wrap the U-bolt around the tow hook and secure it through the chain plate holes with flat washers, lock washers, and 3/8” nuts.
-
Tighten Fasteners:
- Torque all 7/16”-14 GR5 fasteners to 55 Lb.-Ft. (75 N*M).
- Torque all 3/8”-16 GR5 fasteners to 30 Lb.-Ft. (41 N*M).
-
Adjust Exhaust Hanger Spears:
- Bend the exhaust hanger spears downward by 1/2” for additional muffler clearance.
- Reattach the exhaust by securing the rubber isolators to the exhaust hanger spears.
Hardware List:
- (1) Carriage Bolt: 7/16”-14 x 1-1/4” GR5
- (2) Carriage Bolts: 7/16”-14 x 1-1/2” GR5
- (3) Spacers: 1/4” x 7/8” x 3.00”
- (2) Spacers: 1/4” x 1.00” x 1.50”
- (1) U-Bolt: 3/8”
- (2) Flat Washers: 3/8”
- (2) Lock Washers: 3/8”
- (3) Hex Nuts: 7/16”-14
- (2) Hex Nuts: 3/8”
- (3) Conical Toothed Washers: 7/16”
- (1) Pull Wire: 7/16”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Installation Instructions for Vehicle (All Models)
Part Numbers:
- 24920
- 60353
- 77307
Wiring Access Location:
- PC3, PC4
Tools Required:
- Pull wire
- Lubricant or soapy water
- Wrenches: 11/16"
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Exhaust:
- Detach the exhaust from the two rubber isolators. Use lubricant or soapy water to assist with removal.
-
Install Passenger-Side Fasteners:
- Use the reverse pull wire procedure to insert the shorter 7/16” carriage bolt and spacer into the passenger-side frame rail. Leave the pull wire attached.
-
Install Driver-Side Fasteners:
- Use the pull wire to install the forward bolt and spacer in the driver-side frame rail.
- Reverse pull wire the rearward bolt and spacer into position. Leave the pull wires attached.
-
Position Spacers and Hitch:
- Place spacers on the driver-side bracket and feed the pull wire through the appropriate slots on both sides.
- Raise the hitch into position and use conical washers to hold the carriage bolts in place.
-
Attach Fasteners:
- Remove the pull wires and secure the fasteners with hex nuts.
-
Install U-Bolt on Tow Hook:
- Wrap the U-bolt around the tow hook and secure it through the chain plate holes with flat washers, lock washers, and 3/8” nuts.
-
Tighten Fasteners:
- Torque all 7/16”-14 GR5 fasteners to 55 Lb.-Ft. (75 N*M).
- Torque all 3/8”-16 GR5 fasteners to 30 Lb.-Ft. (41 N*M).
-
Adjust Exhaust Hanger Spears:
- Bend the exhaust hanger spears downward by 1/2” for additional muffler clearance.
- Reattach the exhaust by securing the rubber isolators to the exhaust hanger spears.
Hardware List:
- (1) Carriage Bolt: 7/16”-14 x 1-1/4” GR5
- (2) Carriage Bolts: 7/16”-14 x 1-1/2” GR5
- (3) Spacers: 1/4” x 7/8” x 3.00”
- (2) Spacers: 1/4” x 1.00” x 1.50”
- (1) U-Bolt: 3/8”
- (2) Flat Washers: 3/8”
- (2) Lock Washers: 3/8”
- (3) Hex Nuts: 7/16”-14
- (2) Hex Nuts: 3/8”
- (3) Conical Toothed Washers: 7/16”
- (1) Pull Wire: 7/16”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
