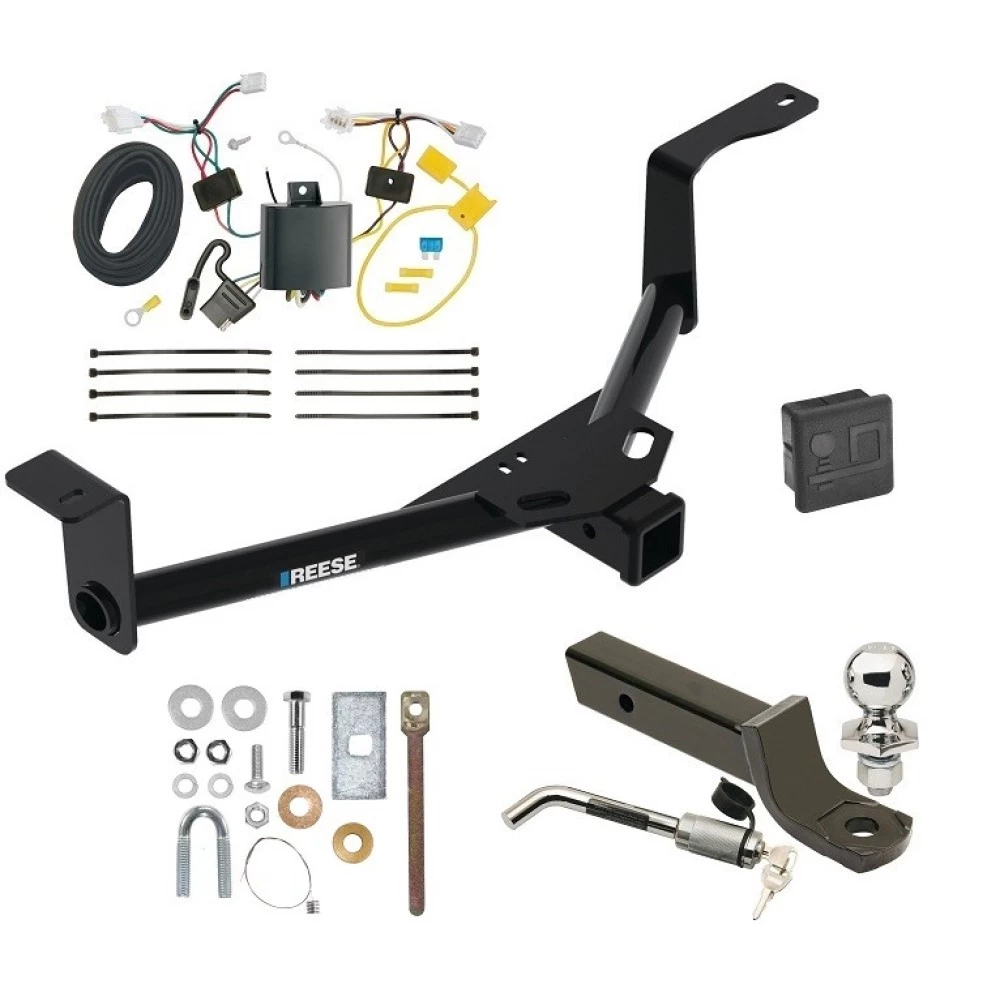

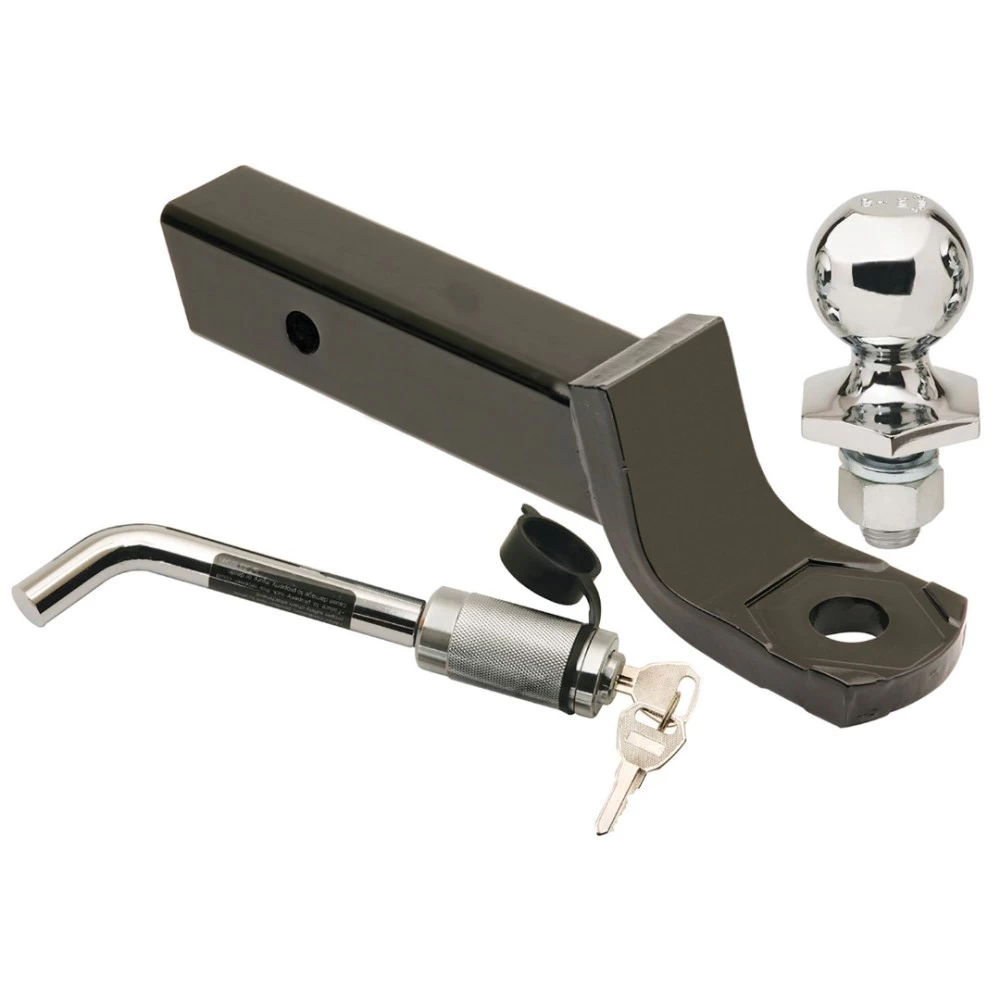

Installation Instructions for 2015-Current Honda HR-V

Part Numbers:

• 76601
• 84601
• 76601

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 11/16", 3/4"
• 6-inch Socket Extension
• Exhaust Removal Pliers
• Flat Head Screwdriver
• Pliers
• Marker
• Tape Measure
• Utility Knife

Step-by-Step Instructions:

1. Lower Exhaust:

   • Detach the exhaust from the two rubber isolators using exhaust removal pliers.
   • Spray lubricant on the isolators to ease removal.

2. Install Driver-Side Hardware:

   • Insert the 7/16" carriage bolt and spacer into the driver-side frame rail using the pull wire procedure.
   • Leave the pull wire attached at this time.

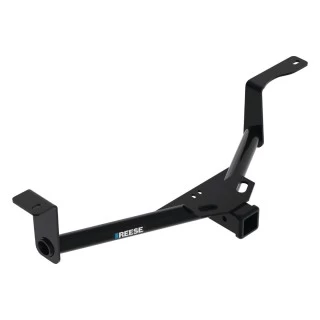

3. Raise Hitch:

   • Position the hitch under the vehicle, feeding the pull wire through the attachment slot on the driver-side of the hitch.

4. Secure Hitch with U-Bolt:

   • Hang the U-bolt around the tow hook and through the chain plate holes behind the receiver.
   • Install the 3/8" flat washers, lock washers, and hex nuts. Center the hitch on the vehicle.

5. Secure Driver-Side Bolt:

   • Feed the 7/16" conical washer over the pull wire to hold the bolt in place.
   • Remove the pull wire and attach the 7/16" hex nut.

6. Install Passenger-Side Handle Nut:

   • Bend approximately 1/2" of the handle nut downward using pliers for easier installation.
   • Insert the handle nut through the access hole in the passenger-side frame rail.
   • Align it with the attachment slot in the passenger-side hitch bracket.
   • Install the 1/2" hex bolt and conical washer (teeth side against the hitch) through the side bracket, frame rail, and into the handle nut.

7. Tighten Fasteners:

   • Tighten the fasteners to the following torque specifications:
     • 7/16"-14 fasteners: 50 ft-lbs (68 N*m)
     • 1/2"-13 fasteners: 50 ft-lbs (68 N*m)
     • 3/8"-16 fasteners: 30 ft-lbs (41 N*m)

8. Adjust Exhaust Clearance:

   • Bend the exhaust hanger spears downward by 1/2" to provide additional muffler clearance.
   • Reattach the exhaust by reconnecting the rubber isolators.

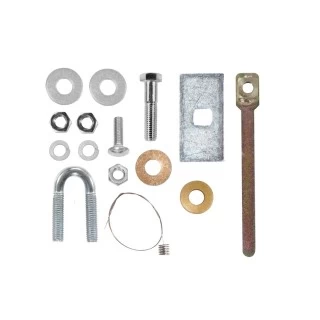

Hardware List:

• (1) Carriage Bolt 7/16"-14 x 1.50" GR5
• (1) Spacer 1/4" x 7/8" x 3"
• (1) Conical Washer 7/16"
• (1) Hex Nut 7/16"-14
• (1) Pull Wire 7/16"
• (1) Hex Bolt 1/2"-13 x 1.50" GR5
• (1) Handle Nut 1/2"-13
• (1) Conical Washer 1/2"
• (1) U-Bolt 3/8"-16
• (2) Flat Washers 3/8"
• (2) Lock Washers 3/8"
• (2) Hex Nuts 3/8"-16

Safety Notes:

• Always wear safety glasses during installation.
• Periodically check that all fasteners and the hitch ball are securely tightened.
• Replace any damaged hitch or ball immediately.
• Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
• Observe all safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Weight Carrying Capacity: 2,000 lbs (908 kg) trailer weight, 300 lbs (136 kg) tongue weight.
• Weight Distributing Capacity: Not applicable.
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Installation time for professional installers is approximately 35 minutes.
• For detailed photo instructions, scan the QR code provided in the manual or visit the website.

Installation Instructions for 2015-Current Honda HR-V

Part Numbers:

• 76601
• 84601
• 76601

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 11/16", 3/4"
• 6-inch Socket Extension
• Exhaust Removal Pliers
• Flat Head Screwdriver
• Pliers
• Marker
• Tape Measure
• Utility Knife

Step-by-Step Instructions:

1. Lower Exhaust:

• Detach the exhaust from the two rubber isolators using exhaust removal pliers.
• Spray lubricant on the isolators to ease removal.

2. Install Driver-Side Hardware:

• Insert the 7/16" carriage bolt and spacer into the driver-side frame rail using the pull wire procedure.
• Leave the pull wire attached at this time.

3. Raise Hitch:

• Position the hitch under the vehicle, feeding the pull wire through the attachment slot on the driver-side of the hitch.

4. Secure Hitch with U-Bolt:

• Hang the U-bolt around the tow hook and through the chain plate holes behind the receiver.
• Install the 3/8" flat washers, lock washers, and hex nuts.
• Center the hitch on the vehicle.

5. Secure Driver-Side Bolt:

• Feed the 7/16" conical washer over the pull wire to hold the bolt in place.
• Remove the pull wire and attach the 7/16" hex nut.

6. Install Passenger-Side Handle Nut:

• Bend approximately 1/2" of the handle nut downward using pliers for easier installation.
• Insert the handle nut through the access hole in the passenger-side frame rail.
• Align it with the attachment slot in the passenger-side hitch bracket.
• Install the 1/2" hex bolt and conical washer (teeth side against the hitch) through the side bracket, frame rail, and into the handle nut.

7. Tighten Fasteners:

• Tighten the fasteners to the following torque specifications:
  • 7/16"-14 fasteners: 50 ft-lbs (68 N*m)
  • 1/2"-13 fasteners: 50 ft-lbs (68 N*m)
  • 3/8"-16 fasteners: 30 ft-lbs (41 N*m)

8. Adjust Exhaust Clearance:

• Bend the exhaust hanger spears downward by 1/2" to provide additional muffler clearance.
• Reattach the exhaust by reconnecting the rubber isolators.

Hardware List:

• (1) Carriage Bolt 7/16"-14 x 1.50" GR5
• (1) Spacer 1/4" x 7/8" x 3"
• (1) Conical Washer 7/16"
• (1) Hex Nut 7/16"-14
• (1) Pull Wire 7/16"
• (1) Hex Bolt 1/2"-13 x 1.50" GR5
• (1) Handle Nut 1/2"-13
• (1) Conical Washer 1/2"
• (1) U-Bolt 3/8"-16
• (2) Flat Washers 3/8"
• (2) Lock Washers 3/8"
• (2) Hex Nuts 3/8"-16

Safety Notes:

• Always wear safety glasses during installation.
• Periodically check that all fasteners and the hitch are securely tightened.
• Replace any damaged hitch or ball immediately.
• Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
• Observe all safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Weight Carrying Capacity: 2,000 lbs (908 kg) trailer weight, 300 lbs (136 kg) tongue weight.
• Weight Distributing Capacity: Not applicable.
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
• Installation time for professional installers is approximately 35 minutes.
• For detailed photo instructions, scan the QR code provided in the manual or visit the website.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

This product is covered under a limited warranty. For complete warranty instructions, please download the full installation PDF.

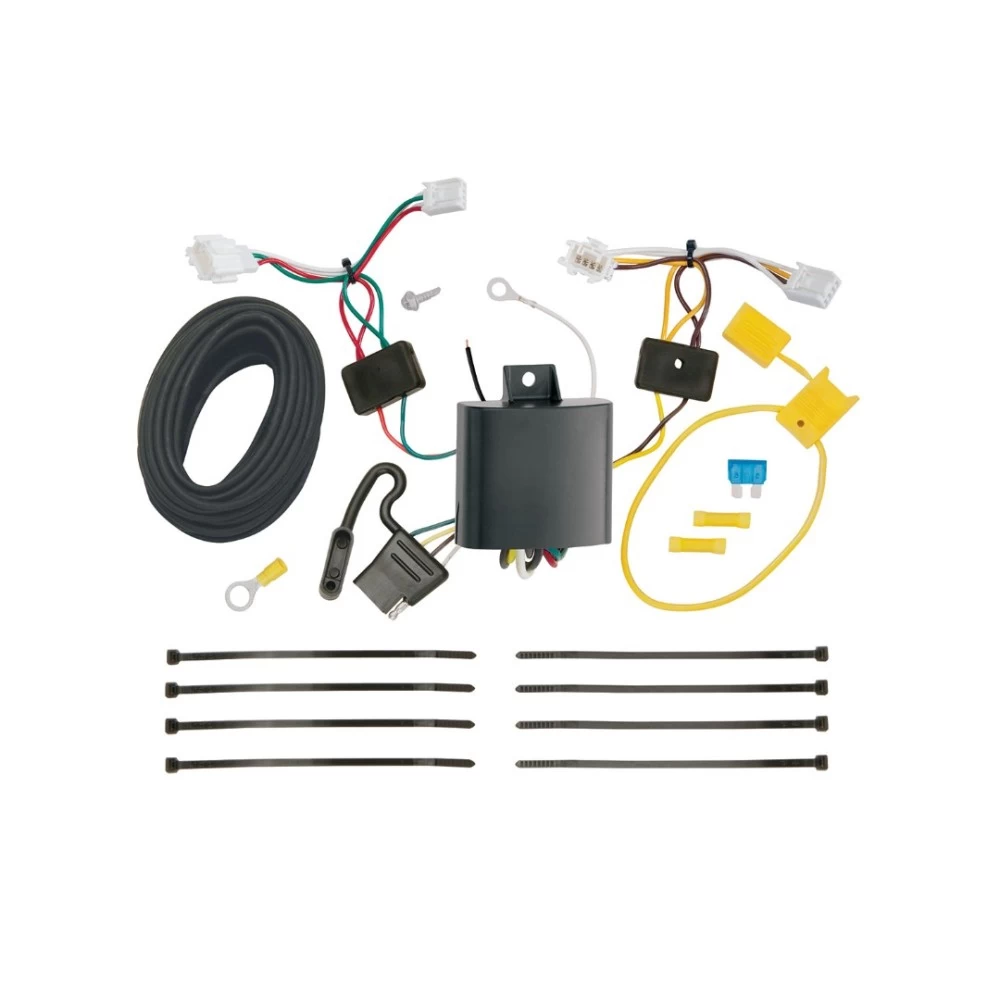

Installation Instructions for T-One® T-Connector for Honda HR-V

Part Numbers:

• 118673

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Vehicle:

   • Open the rear tailgate and remove the threshold, trunk floor panels, and trays.
   • Set aside all removed parts carefully to avoid damage.

2. Remove Interior Trim Panels:

   • Partially remove the lower interior trim panels on the driver’s side. Be cautious not to damage clips.

3. Locate Taillight Wiring Harness:

   • On the driver’s side, locate the taillight wiring harness with a connection point matching the ends of the T-Connector.
   • Separate the connector carefully, ensuring not to break the locking tabs. Clean all connector surfaces.

4. Connect the Driver-Side T-Connector:

   • Insert the T-One® T-Connector end with the yellow wire between the vehicle’s wiring connectors.
   • Ensure connectors are fully inserted and the locking tabs are secure.

5. Route and Connect the Passenger-Side T-Connector:

   • Route the T-One® T-Connector end with the green wire behind the panels and along the threshold to the passenger side.
   • Repeat steps 3 and 4 on the passenger side using the T-Connector with the green wire.

6. Ground the White Wire:

   • Locate a suitable grounding point on the driver’s side near the connectors.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind the surface before drilling to prevent damage or injury.

7. Mount the Black Box Module:

   • Locate a flat, out-of-the-way surface and mount the T-One® T-Connector’s black box to prevent damage or rattling.

8. Connect the Power Wire:

   • From inside the vehicle, connect the black 12-gauge wire to the black wire from the T-One® T-Connector’s black box using the supplied yellow butt connector.
   • Route the black wire through a grommet and along the exterior frame or existing wiring to the engine compartment.
   • Warning: Avoid routing near hot pipes, heat shields, fuel tanks, or other hazardous areas.

9. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder (provided).
   • Attach the ring terminal to the Positive (+) battery cable and connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.
   • Warning: Follow all warnings and cautions on the tow vehicle’s battery.

10. Secure the Wiring Harness:

    • Use the provided cable ties to secure the wiring harness, avoiding areas that may pinch, cut, or melt the wire.

11. Reassemble the Vehicle:

    • Reinstall the plastic trim panels, threshold, storage covers, and other components removed during installation.
    • Ensure no wires are pinched or damaged.

12. Store the 4-Flat Connector:

    • Store the 4-flat connector in the rear cargo area when not in use.

Specifications:

• Max. stop/turn light: 1 per side (4.2 amps)
• Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Honda HR-V

Part Numbers:

• 118673

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Vehicle:

   • Open the rear tailgate and remove the threshold, trunk floor panels, and trays.
   • Set aside all removed parts carefully to avoid damage.

2. Remove Interior Trim Panels:

   • Partially remove the lower interior trim panels on the driver’s side. Be cautious not to damage clips.

3. Locate Taillight Wiring Harness:

   • On the driver’s side, locate the taillight wiring harness with a connection point matching the ends of the T-Connector.
   • Separate the connector carefully, ensuring not to break the locking tabs. Clean all connector surfaces.

4. Connect the Driver-Side T-Connector:

   • Insert the T-One® T-Connector end with the yellow wire between the vehicle’s wiring connectors.
   • Ensure connectors are fully inserted and the locking tabs are secure.

5. Route and Connect the Passenger-Side T-Connector:

   • Route the T-One® T-Connector end with the green wire behind the panels and along the threshold to the passenger side.
   • Repeat steps 3 and 4 on the passenger side using the T-Connector with the green wire.

6. Ground the White Wire:

   • Locate a suitable grounding point on the driver’s side near the connectors.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind the surface before drilling to prevent damage or injury.

7. Mount the Black Box Module:

   • Locate a flat, out-of-the-way surface and mount the T-One® T-Connector’s black box to prevent damage or rattling.

8. Connect the Power Wire:

   • From inside the vehicle, connect the black 12-gauge wire to the black wire from the T-One® T-Connector’s black box using the supplied yellow butt connector.
   • Route the black wire through a grommet and along the exterior frame or existing wiring to the engine compartment.
   • Warning: Avoid routing near hot pipes, heat shields, fuel tanks, or other hazardous areas.

9. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder (provided).
   • Attach the ring terminal to the Positive (+) battery cable and connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.
   • Warning: Follow all warnings and cautions on the tow vehicle’s battery.

10. Secure the Wiring Harness:

    • Use the provided cable ties to secure the wiring harness, avoiding areas that may pinch, cut, or melt the wire.

11. Reassemble the Vehicle:

    • Reinstall the plastic trim panels, threshold, storage covers, and other components removed during installation.
    • Ensure no wires are pinched or damaged.

12. Store the 4-Flat Connector:

    • Store the 4-flat connector in the rear cargo area when not in use.

Specifications:

• Max. stop/turn light: 1 per side (4.2 amps)
• Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow safety precautions during installation.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:

For complete warranty instructions, please download the full installation PDF.
