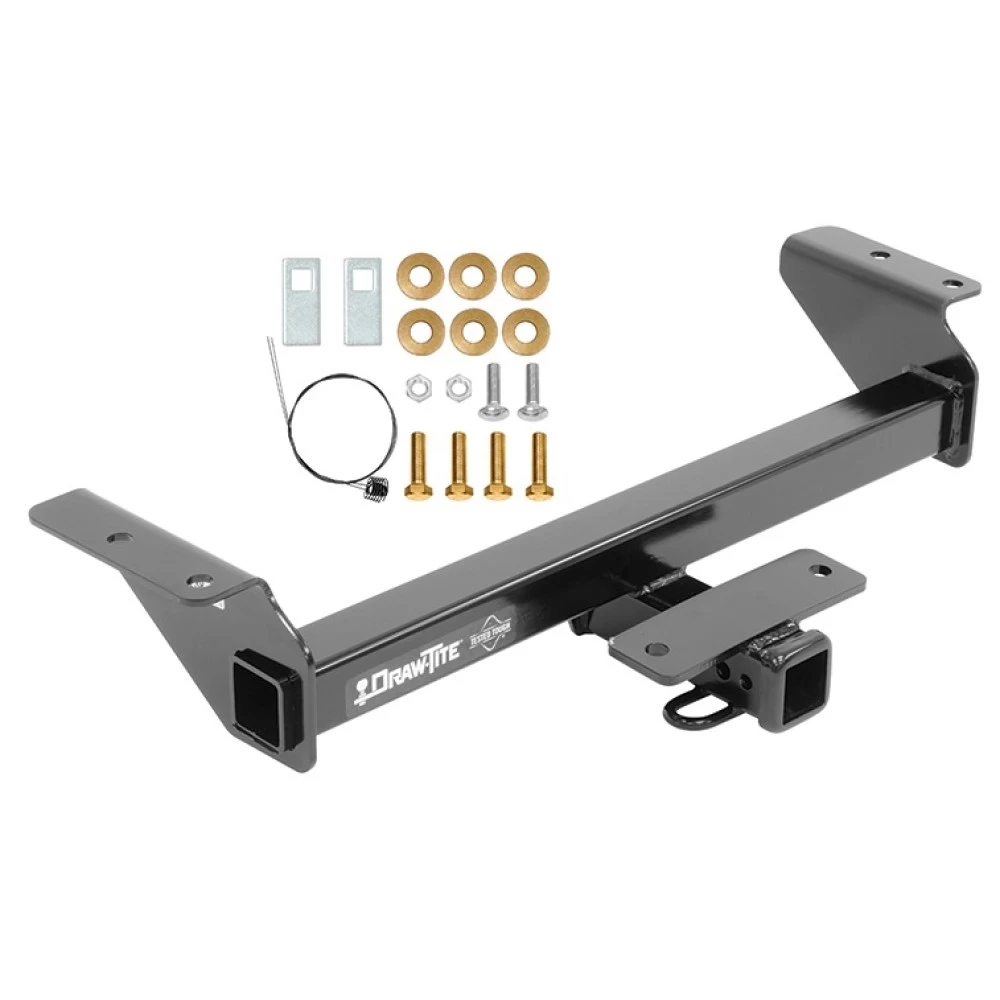

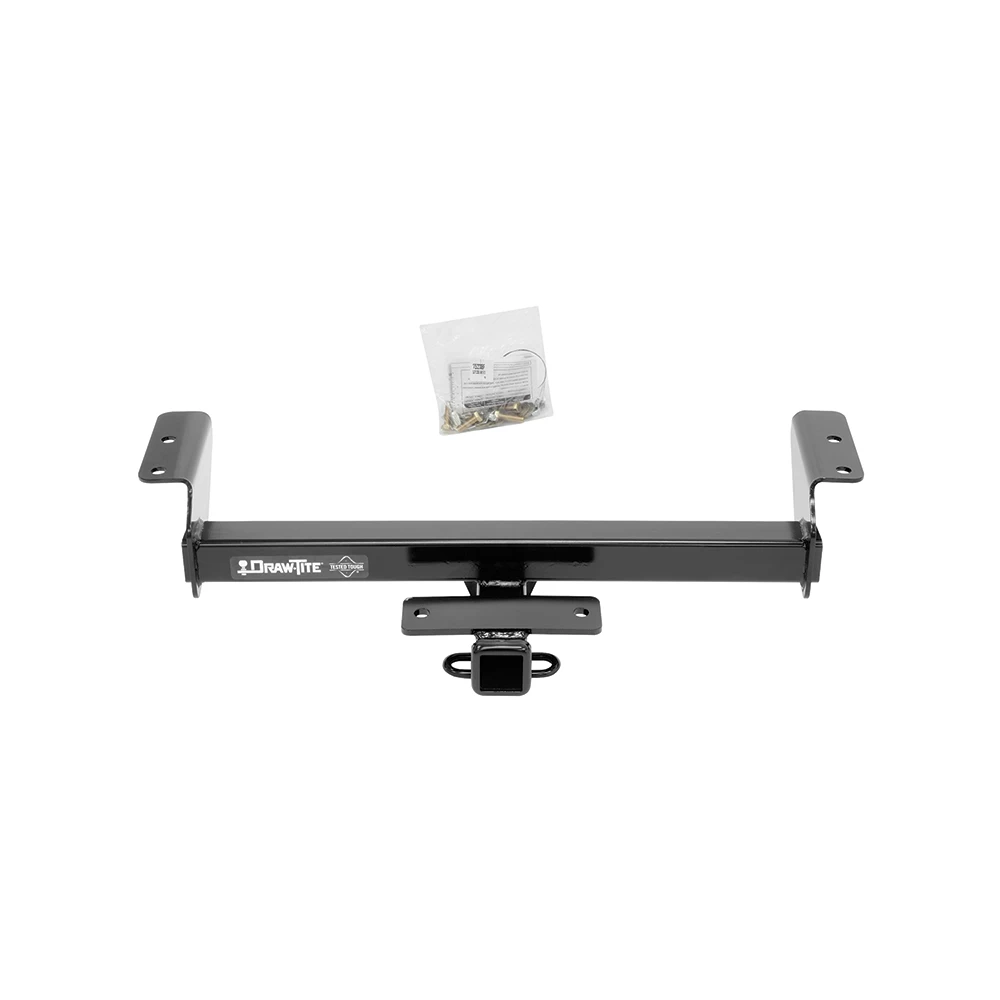

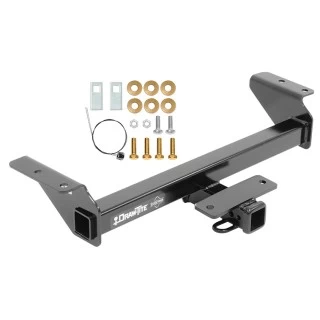

Trailer Tow Hitch For 16‑23 Toyota Tacoma Class 3 2" Towing Receiver
Model: 75238
2016 - 2023 Toyota, Tacoma, All Styles
Trailer Hitch Specs:
| Part Number | 75238 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 7,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 1,050 / 1,200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 16 17 18 19 20 21 22 23 2016 2017 2018 2019 2020 2021 2022 2023
$183 36 $286.36 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$286.36 $183 36
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $45.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75238
- UPC: 742512752380
- Includes: Class 4 Trailer Tow Hitch
Compatibility Chart
Description
2016 - 2023 Toyota, Tacoma, All Styles
Trailer Hitch Specs:
| Part Number | 75238 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 7,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 1,050 / 1,200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 16 17 18 19 20 21 22 23 2016 2017 2018 2019 2020 2021 2022 2023
Get Expert Help
Trailer Tow Hitch For 16-23 Toyota Tacoma Class 3 2" Towing Receiver Install Notes
Installation Instructions for Toyota Tacoma
Part Numbers:
- 75238
- 84238
Applications:
- 2016-Current Toyota Tacoma
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 19mm, 11/16"
- 6" Socket Extension
- M12x1.25 Tap (if necessary)
Installation Time:
- Approximately 20 minutes (for professional installers)
Step-by-Step Instructions:
-
Clean Weldnuts (if necessary):
- Use an M12x1.25 tap to clean the weldnuts at the ends of the frame rail on both sides (see Figure 2).
-
Install Hitch:
- Insert pull wires through the bumper beam side openings and use them to feed the carriage bolts and spacers into the bumper beam (see Figures 3 and 4). Leave the pull wires attached.
- Raise the hitch into position, feeding the carriage bolts through the top plate holes (see Figure 1).
- Loosely install M12 bolts and conical washers into the frame weldnuts.
- Loosely install nuts and conical washers on the carriage bolts.
-
Tighten Fasteners:
- Torque all M12 fasteners to 105 lb-ft (142 N·m).
- Torque all 7/16" fasteners to 50 lb-ft (68 N·m).
-
Check Installation:
- Ensure all fasteners are properly tightened.
- Inspect for any interference between the hitch and other components.

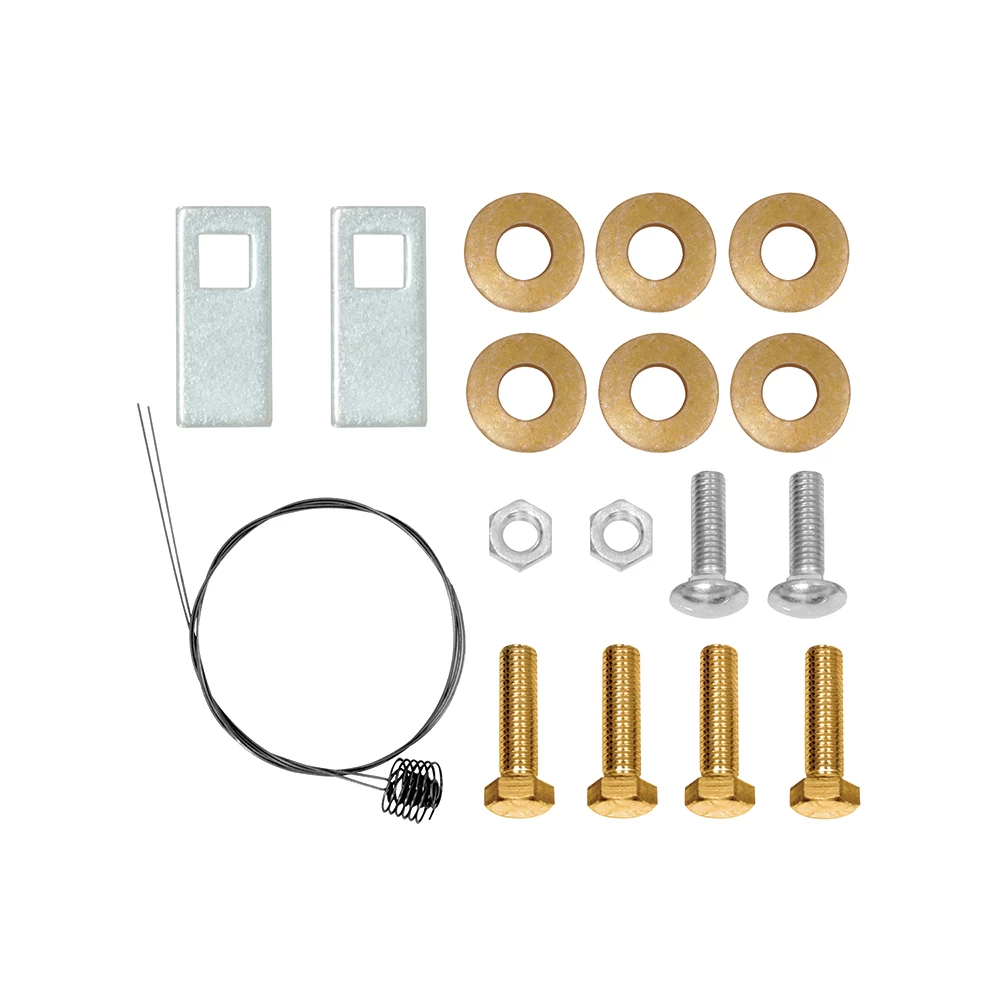

Hardware List:
- (4) M12 x 1.25 x 40mm CL10.9 Bolts
- (4) 1/2" Conical Washers
- (2) 7/16"-14 x 1.25 GR5 Carriage Bolts
- (2) 0.109 Spacers with Square Hole
- (2) 7/16" Pull Wires
- (2) 7/16" Conical Washers
- (2) 7/16"-14 GR2 Hex Nuts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying: Max Trailer Weight 7,000 lbs (3,178 kg), Max Tongue Weight 1,050 lbs (476 kg).
- Weight Distributing: Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 1,200 lbs (545 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Toyota Tacoma
Part Numbers:
- 75238
- 84238
Applications:
- 2016-Current Toyota Tacoma
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 19mm, 11/16"
- 6" Socket Extension
- M12x1.25 Tap (if necessary)
Installation Time:
- Approximately 20 minutes (for professional installers)
Step-by-Step Instructions:
-
Clean Weldnuts (if necessary):
- Use an M12x1.25 tap to clean the weldnuts at the ends of the frame rail on both sides (see Figure 2).
-
Install Hitch:
- Insert pull wires through the bumper beam side openings and use them to feed the carriage bolts and spacers into the bumper beam (see Figures 3 and 4). Leave the pull wires attached.
- Raise the hitch into position, feeding the carriage bolts through the top plate holes (see Figure 1).
- Loosely install M12 bolts and conical washers into the frame weldnuts.
- Loosely install nuts and conical washers on the carriage bolts.
-
Tighten Fasteners:
- Torque all M12 fasteners to 105 lb-ft (142 N·m).
- Torque all 7/16" fasteners to 50 lb-ft (68 N·m).
-
Check Installation:
- Ensure all fasteners are properly tightened.
- Inspect for any interference between the hitch and other components.
Hardware List:
- (4) M12 x 1.25 x 40mm CL10.9 Bolts
- (4) 1/2" Conical Washers
- (2) 7/16"-14 x 1.25 GR5 Carriage Bolts
- (2) 0.109 Spacers with Square Hole
- (2) 7/16" Pull Wires
- (2) 7/16" Conical Washers
- (2) 7/16"-14 GR2 Hex Nuts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying: Max Trailer Weight 7,000 lbs (3,178 kg), Max Tongue Weight 1,050 lbs (476 kg).
- Weight Distributing: Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 1,200 lbs (545 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
