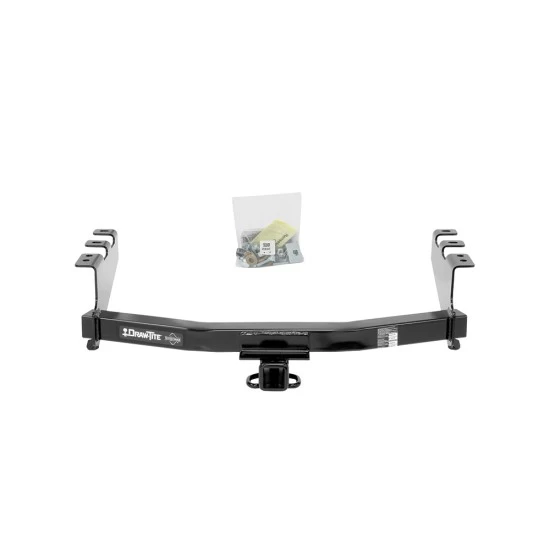

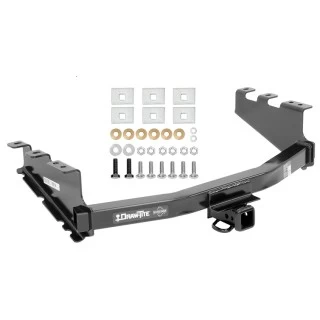

Trailer Tow Hitch For 14‑18 Chevy Silverado GMC Sierra 2019 Legacy and Limited 2" Receiver Class IV
Model: 760162014 - 2018 Chevrolet, Silverado 1500, All Styles
2014 - 2018 GMC, Sierra 1500, All Styles
2019 GMC, Sierra 1500, Legacy
2019 Chevrolet, Silverado 1500, Limited
Trailer Hitch Specs:
| Part Number | 76016 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 900/1000 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 14 15 16 17 18 19 2014 2015 2016 2017 2018 2019
$231 77 $361.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$361.95 $231 77
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $57.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76016
- UPC: 742512760163
- Includes: Class 4 Trailer Tow Hitch
Compatibility Chart
Description
2014 - 2018 Chevrolet, Silverado 1500, All Styles
2014 - 2018 GMC, Sierra 1500, All Styles
2019 GMC, Sierra 1500, Legacy
2019 Chevrolet, Silverado 1500, Limited
Trailer Hitch Specs:
| Part Number | 76016 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 900/1000 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 14 15 16 17 18 19 2014 2015 2016 2017 2018 2019
Get Expert Help
Trailer Tow Hitch For 14-18 Chevy Silverado GMC Sierra 2019 Legacy and Limited 2" Receiver Class IV Install Notes
Installation Instructions for GMC Sierra 1500 and Chevy Silverado 1500 (2014-Current)
Part Numbers:
- 76016
- 84016
- CQT76016
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 3/4”, 22mm
- 6” Socket Extension
Wiring Access Location:
- N/A
Step-by-Step Instructions:
-
Lower or Remove the Spare Tire:
- Lowering or removing the spare tire will provide easier access during the installation process.
-
Remove Existing M14 Bolts:
- Remove the factory-installed M14 bolts from the rear frame rail on each side of the vehicle.
- Return these bolts to the vehicle owner.
-
Install the Hitch:
- Raise the hitch into position.
- Insert one (1) supplied M14 bolt with a 9/16" lock washer and 9/16" flat washer into the rear-most weldnut on each side of the frame. Loosely secure the hitch.
-
Install Remaining Fasteners:
- Insert three (3) 1/2"-13 carriage bolts and three (3) 1/4" blocks inside each frame rail.
- Secure the hitch using three (3) 1/2" conical washers and three (3) 1/2"-13 hex nuts below the hitch on each side of the frame.
-
Tighten Fasteners:
- Torque all 1/2"-13 Grade 5 fasteners to 75 lb-ft (102 N·m).
- Torque all M14 CL10.9 fasteners to 148 lb-ft (201 N·m).
-
Re-Tighten or Re-Stow the Spare Tire:
- Reinstall the spare tire, ensuring that it is securely fastened.

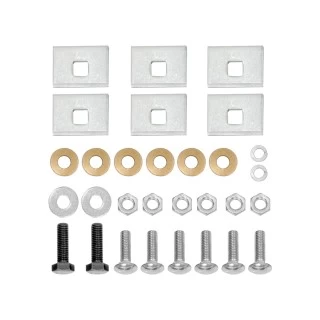

Hardware List:
- (6) 1/2"-13 x 1.75" Grade 5 Carriage Bolts
- (6) 1/4" x 1.5" x 2" Spacer Blocks
- (6) 1/2" Conical Toothed Washers
- (6) 1/2"-13 Grade 5 Hex Nuts
- (2) 9/16" Flat Washers
- (2) 9/16" Plated Lock Washers
- (2) M14 x 2.00 x 40mm CL10.9 Hex Bolts
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,722 kg), Max Tongue Weight 900 lbs (408 kg).
- Weight Distributing: Max Trailer Weight 10,000 lbs (4,536 kg), Max Tongue Weight 1,000 lbs (454 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 25 minutes for a professional installer.
- If you are uncomfortable performing this installation, consult a professional installer.
Installation Instructions for Vehicle (2014-Current)
Part Numbers:
- 76016
- 84016
- CQT76016
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 3/4”, 22mm
- 6” Socket Extension
Wiring Access Location:
- N/A
Step-by-Step Instructions:
-
Lower or Remove the Spare Tire:
- Lowering or removing the spare tire will provide easier access during the installation process.
-
Remove Existing M14 Bolts:
- Remove the factory-installed M14 bolts from the rear frame rail on each side of the vehicle.
- Return these bolts to the vehicle owner.
-
Install the Hitch:
- Raise the hitch into position.
- Insert one (1) supplied M14 bolt with a 9/16" lock washer and 9/16" flat washer into the rear-most weldnut on each side of the frame. Loosely secure the hitch.
-
Install Remaining Fasteners:
- Insert three (3) 1/2"-13 carriage bolts and three (3) 1/4" blocks inside each frame rail.
- Secure the hitch using three (3) 1/2" conical washers and three (3) 1/2"-13 hex nuts below the hitch on each side of the frame.
-
Tighten Fasteners:
- Torque all 1/2"-13 Grade 5 fasteners to 75 lb-ft (102 N·m).
- Torque all M14 CL10.9 fasteners to 148 lb-ft (201 N·m).
-
Re-Tighten or Re-Stow the Spare Tire:
- Reinstall the spare tire, ensuring that it is securely fastened.
Hardware List:
- (6) 1/2"-13 x 1.75" Grade 5 Carriage Bolts
- (6) 1/4" x 1.5" x 2" Spacer Blocks
- (6) 1/2" Conical Toothed Washers
- (6) 1/2"-13 Grade 5 Hex Nuts
- (2) 9/16" Flat Washers
- (2) 9/16" Plated Lock Washers
- (2) M14 x 2.00 x 40mm CL10.9 Hex Bolts
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,722 kg), Max Tongue Weight 900 lbs (408 kg).
- Weight Distributing: Max Trailer Weight 10,000 lbs (4,536 kg), Max Tongue Weight 1,000 lbs (454 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 25 minutes for a professional installer.
- If you are uncomfortable performing this installation, consult a professional installer.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
