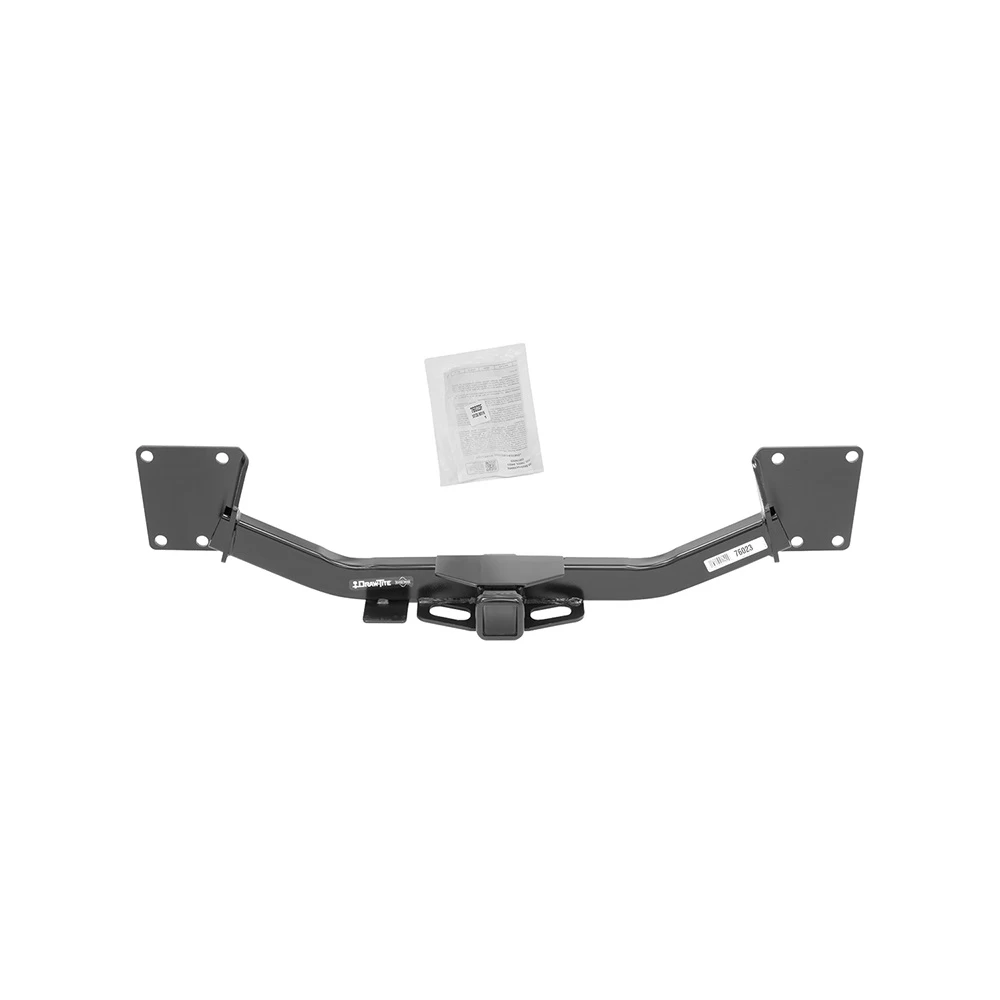

Trailer Tow Hitch For 17‑24 GMC Acadia Exc 17 Limited 2020 Cadillac XT6 19‑24 Chevy Blazer Class 3 2" Receiver w/ J‑Pin Anti‑Rattle Lock
Model: 76023 63201Custom Fit Trailer Hitch
Security J-Pin
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2017 - 2024 GMC, Acadia, Excluding 2017 Acadia Limited
2020 – 2020 Cadillac, XT6, All Styles
2019 - 2024 Chevrolet, Blazer, All Styles
Trailer Hitch Specs:
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 17 18 19 20 21 22 23 24 2017 2018 2019 2020 2021 2022 2023 2024
$247 30 $393.65 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$393.65 $247 30
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $61.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76023 63201

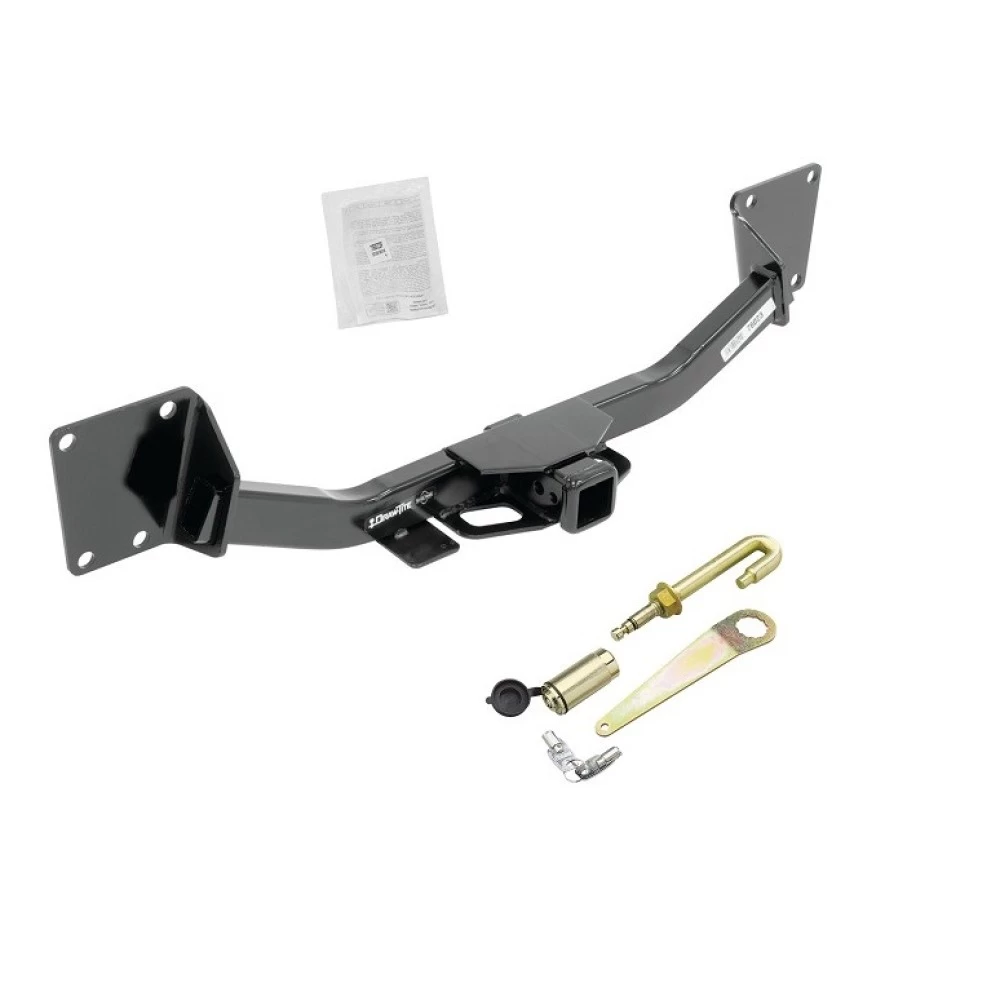

- Includes: Class 3 Trailer Tow Hitch, J-Pin Anti-Rattle Device
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Ball Mount Included | No |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 4,500 lbs. |
Gross Towing Weight w/ Weight Distribution Kit | 4,500 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 675 lbs. |
Maximum Tongue Weight w/ Weight Distribution Kit | 675 lbs. |
Mounting Hardware Included | No |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description
Custom Fit Trailer Hitch
Security J-Pin
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2017 - 2024 GMC, Acadia, Excluding 2017 Acadia Limited
2020 – 2020 Cadillac, XT6, All Styles
2019 - 2024 Chevrolet, Blazer, All Styles
Trailer Hitch Specs:
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 17 18 19 20 21 22 23 24 2017 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Tow Hitch For 17-24 GMC Acadia Exc 17 Limited 2020 Cadillac XT6 19-24 Chevy Blazer Class 3 2" Receiver w/ J-Pin Anti-Rattle Lock Install Notes
Installation Instructions for GMC Acadia (2017-Present) and Chevrolet Blazer (2019-Present)
Part Numbers:
- 76023
- 84023
- CQT76023
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Sockets: 7mm, 15mm
- T15 Torx Driver
- Plastic Trim Tools
- Utility Knife
- Marker
- Tape Measure
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
- Max Tongue Weight: 675 lbs (306 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
- Max Tongue Weight: 675 lbs (306 kg)
Step-by-Step Instructions:
1. Remove Fascia Door and Bottom Fascia Support Brackets:
- Use a 7mm socket to remove (2) bolts from the bottom fascia door.
- Use a 7mm socket to remove (3) bolts from the bottom fascia support brackets on each side. If present, unclip the electrical plug.
- Return the bottom fascia support brackets to the owner.
2. Remove Fascia:
- Open the trunk and use a T15 Torx driver and 7mm socket to remove (2) bolts as shown in the manual.
- Use a Phillips screwdriver and T15 Torx driver to remove (3) bolts from the mud flaps on each side.
- Remove (1) bolt from the bottom fascia and (1) bolt from the wheel well liner on each side using the T15 Torx driver.
- Gently pull off the upper wheel well body trim piece to access (2) bolts behind it. Use a 7mm socket to remove these bolts on both sides.
- Carefully pull the fascia free, detaching attachment straps and unplugging any wiring on the driver side.
- Set the fascia and straps aside for reinstallation.
3. Remove Bumper Beam and Exhaust Hanger:
- Use a 15mm socket to remove (2) flange nuts and (2) M10 bolts from the bumper beam on each side.
- Carefully remove the bumper beam and exhaust hanger while supporting the exhaust with a stand to prevent damage.
4. Install Hitch:
- Raise the hitch into position and hang it on the studs on the bumper end panel.
- Raise the bumper beam and exhaust hanger bracket to sandwich the hitch in place.
- Reuse the original fasteners to loosely attach the assembly.
5. Tighten Fasteners:
- Use a torque wrench to tighten all M10 fasteners to 53 lb-ft (72 N·m).
6. Reinstall Components:
- Reverse the steps to reinstall the fascia, mud flaps, and all other removed components.
7. Optional Fascia Door Trim:
- Mark and trim the fascia door to a size of 1.5” tall by 3.0” wide using a utility knife.
- Obtain customer approval before trimming the fascia door.
- Reinstall the trimmed fascia door.
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other panels to prevent water or exhaust entry.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and follow safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class III
- Compliance: This product meets safety standards per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.
Installation Instructions for Vehicle Models (2017-Present)
Part Numbers:
- 76023
- 84023
- CQT76023
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Sockets: 7mm, 15mm
- T15 Torx Driver
- Plastic Trim Tools
- Utility Knife
- Marker
- Tape Measure
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
- Max Tongue Weight: 675 lbs (306 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
- Max Tongue Weight: 675 lbs (306 kg)
Step-by-Step Instructions:
1. Remove Fascia Door and Bottom Fascia Support Brackets:
- Use a 7mm socket to remove (2) bolts from the bottom fascia door.
- Use a 7mm socket to remove (3) bolts from the bottom fascia support brackets on each side. If present, unclip the electrical plug.
- Return the bottom fascia support brackets to the owner.
2. Remove Fascia:
- Open the trunk and use a T15 Torx driver and 7mm socket to remove (2) bolts as shown in the manual.
- Use a Phillips screwdriver and T15 Torx driver to remove (3) bolts from the mud flaps on each side.
- Remove (1) bolt from the bottom fascia and (1) bolt from the wheel well liner on each side using the T15 Torx driver.
- Gently pull off the upper wheel well body trim piece to access (2) bolts behind it. Use a 7mm socket to remove these bolts on both sides.
- Carefully pull the fascia free, detaching attachment straps and unplugging any wiring on the driver side.
- Set the fascia and straps aside for reinstallation.
3. Remove Bumper Beam and Exhaust Hanger:
- Use a 15mm socket to remove (2) flange nuts and (2) M10 bolts from the bumper beam on each side.
- Carefully remove the bumper beam and exhaust hanger while supporting the exhaust with a stand to prevent damage.
4. Install Hitch:
- Raise the hitch into position and hang it on the studs on the bumper end panel.
- Raise the bumper beam and exhaust hanger bracket to sandwich the hitch in place.
- Reuse the original fasteners to loosely attach the assembly.
5. Tighten Fasteners:
- Use a torque wrench to tighten all M10 fasteners to 53 lb-ft (72 N·m).
6. Reinstall Components:
- Reverse the steps to reinstall the fascia, mud flaps, and all other removed components.
7. Optional Fascia Door Trim:
- Mark and trim the fascia door to a size of 1.5” tall by 3.0” wide using a utility knife.
- Obtain customer approval before trimming the fascia door.
- Reinstall the trimmed fascia door.
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other panels to prevent water or exhaust entry.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and follow safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class III
- Compliance: This product meets safety standards per V.E.S.C. Regulation V-5 and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
- Duration: 1-year limited warranty from the date of purchase.
- Coverage: Covers defects in materials and workmanship under normal use conditions.
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
