Installation Instructions for 2018-Current Nissan Kicks

Part Numbers:

• 76518
• 84518
• CQT76518

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10 mm, 13 mm, 11/16”, 15/16”
• Exhaust Removal Pliers
• Tape Measure
• Marker
• Die Grinder
• 6-inch Socket Extension
• Tin Snips

Step-by-Step Instructions:

1. Lower Muffler:

   • Using exhaust removal pliers, remove the two rearmost rubber exhaust hangers.
   • Spray lubricant on the hangers to ease removal.
   • Ensure the exhaust is properly supported before removing it from the hangers to prevent damage.

2. Remove Heat Shield:

   • Use a 15/16” socket to remove the four metal fasteners holding the heat shield in place.
   • Remove the heat shield and trim it as indicated in Figure 2 of the manual.
   • Note: Dimensions are approximate; confirm fit before trimming.

3. Lower Carbon Canister:

   • Remove the rearmost M8 bolt from the carbon canister on the driver side using a 10 mm socket. Allow the canister to hang.
   • If present, remove the frame rail plug to access the rear mounting point on the driver side.

4. Enlarge Attachment Holes:

   • Using a die grinder, enlarge the forward attachment holes on the driver and passenger side frame rails to insert the carriage block and bolt (see Figure 3).

5. Install Carriage Bolts and Spacers:

   • Use pull wires to install spacer blocks and carriage bolts into the rearward and forward attachment holes through the enlarged holes on both sides (see Figures 4 and 5).
   • Leave the pull wires attached for alignment during hitch installation.

6. Reinstall Heat Shield:

   • Reinstall the trimmed heat shield using the original fasteners.

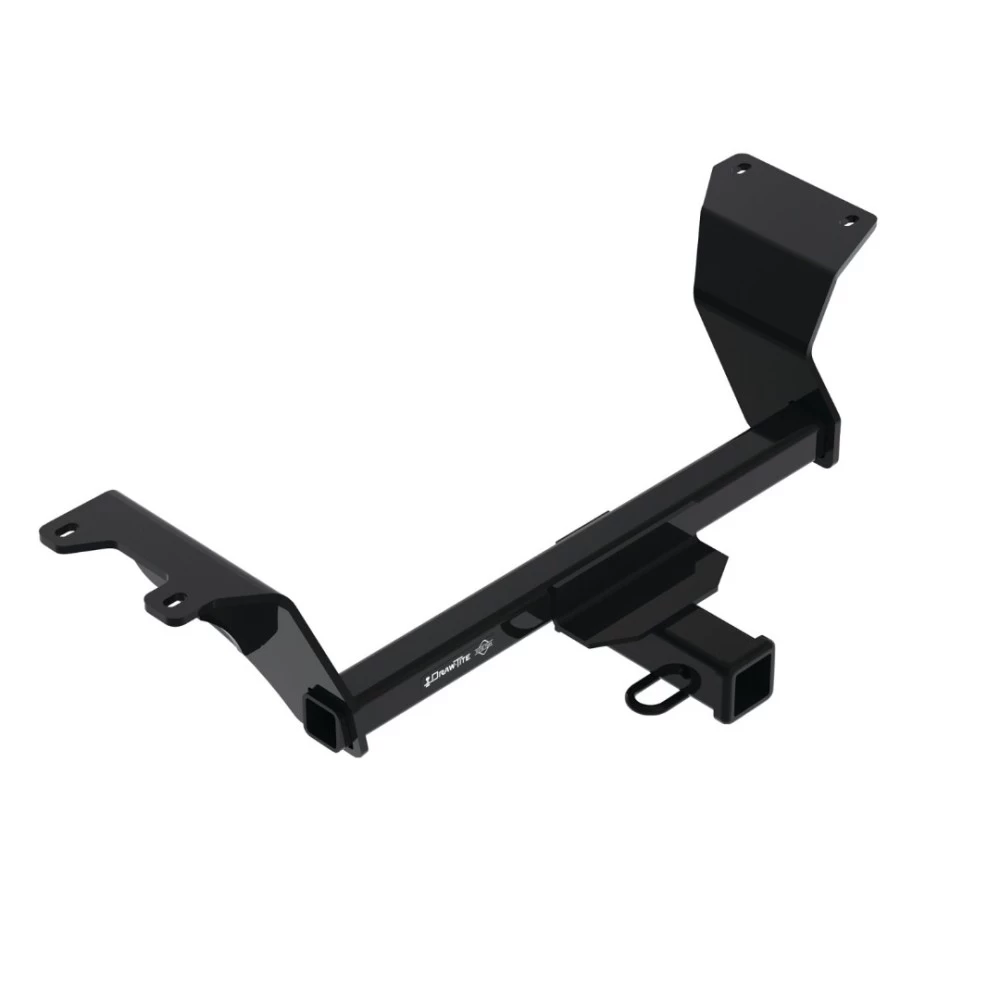

7. Install Hitch:

   • Raise the hitch into position and align the slots with the attachment holes.
   • Install conical washers (teeth side toward hitch) and hex nuts onto the bolts and hand-tighten them.

8. Center Hitch:

   • Center the hitch on the vehicle as close as possible.

9. Tighten Fasteners:

   • Using a torque wrench, tighten all 7/16”-14 fasteners to 50 ft-lbs (68 N*m).

10. Reinstall Carbon Canister:

    • Reinstall the black carbon canister removed in Step 3 using the original M8 bolt.

11. Reinstall Exhaust:

    • Reattach the exhaust to the rubber hangers in its original position.

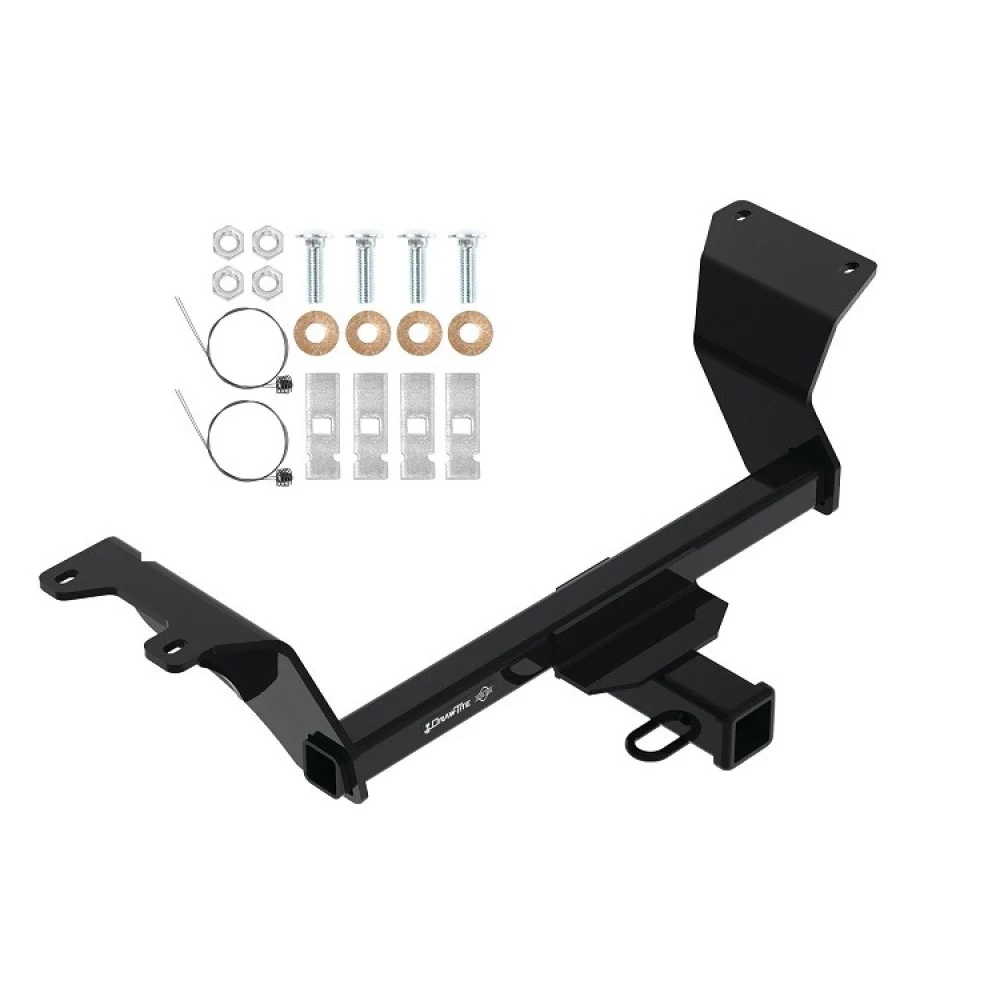

Hardware List:

• (4) Carriage Bolt 7/16”-14 x 1.50” GR5
• (4) Spacer 0.25” x 0.875” x 3.00”
• (4) Conical Washer 7/16”
• (4) Hex Nut 7/16”-14 GR2
• (4) Pull Wire 7/16”

Safety Notes:

• Always wear safety glasses during installation.
• Periodically check the hitch to ensure all fasteners and the ball are securely tightened.
• Replace any damaged hitch or ball immediately.
• Do not cut or modify the hitch.
• Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.

Specifications:

• Weight Carrying Capacity: 2,000 lbs (907 kg) trailer weight, 300 lbs (136 kg) tongue weight.
• Weight Distributing Capacity: Not applicable.
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Installation time for professional installers is approximately 45 minutes.
• For detailed photo instructions, scan the QR code provided in the manual or visit the website.

Installation Instructions for 2018-Current Nissan Kicks

Part Numbers:

• 76518
• 84518
• CQT76518

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10 mm, 13 mm, 11/16”, 15/16”
• Exhaust Removal Pliers
• Tape Measure
• Marker
• Die Grinder
• 6-inch Socket Extension
• Tin Snips

Step-by-Step Instructions:

1. Lower Muffler:

• Using exhaust removal pliers, remove the two rearmost rubber exhaust hangers.
• Spray lubricant on the hangers to ease removal.
• Ensure the exhaust is properly supported before removing it from the hangers to prevent damage.

2. Remove Heat Shield:

• Use a 15/16” socket to remove the four metal fasteners holding the heat shield in place.
• Remove the heat shield and trim it as indicated in Figure 2 of the manual.
• Note: Dimensions are approximate; confirm fit before trimming.

3. Lower Carbon Canister:

• Remove the rearmost M8 bolt from the carbon canister on the driver side using a 10 mm socket. Allow the canister to hang.
• If present, remove the frame rail plug to access the rear mounting point on the driver side.

4. Enlarge Attachment Holes:

• Using a die grinder, enlarge the forward attachment holes on the driver and passenger side frame rails to insert the carriage block and bolt (see Figure 3).

5. Install Carriage Bolts and Spacers:

• Use pull wires to install spacer blocks and carriage bolts into the rearward and forward attachment holes through the enlarged holes on both sides (see Figures 4 and 5).
• Leave the pull wires attached for alignment during hitch installation.

6. Reinstall Heat Shield:

• Reinstall the trimmed heat shield using the original fasteners.

7. Install Hitch:

• Raise the hitch into position and align the slots with the attachment holes.
• Install conical washers (teeth side toward hitch) and hex nuts onto the bolts and hand-tighten them.

8. Center Hitch:

• Center the hitch on the vehicle as close as possible.

9. Tighten Fasteners:

• Using a torque wrench, tighten all 7/16”-14 fasteners to 50 ft-lbs (68 N*m).

10. Reinstall Carbon Canister:

• Reinstall the black carbon canister removed in Step 3 using the original M8 bolt.

11. Reinstall Exhaust:

• Reattach the exhaust to the rubber hangers in its original position.

Hardware List:

• (4) Carriage Bolt 7/16”-14 x 1.50” GR5
• (4) Spacer 0.25” x 0.875” x 3.00”
• (4) Conical Washer 7/16”
• (4) Hex Nut 7/16”-14 GR2
• (4) Pull Wire 7/16”

Safety Notes:

• Always wear safety glasses during installation.
• Periodically check the hitch to ensure all fasteners and the ball are securely tightened.
• Replace any damaged hitch or ball immediately.
• Do not cut or modify the hitch.
• Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.

Specifications:

• Weight Carrying Capacity: 2,000 lbs (907 kg) trailer weight, 300 lbs (136 kg) tongue weight.
• Weight Distributing Capacity: Not applicable.
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Installation time for professional installers is approximately 45 minutes.
• For detailed photo instructions, scan the QR code provided in the manual or visit the website.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
