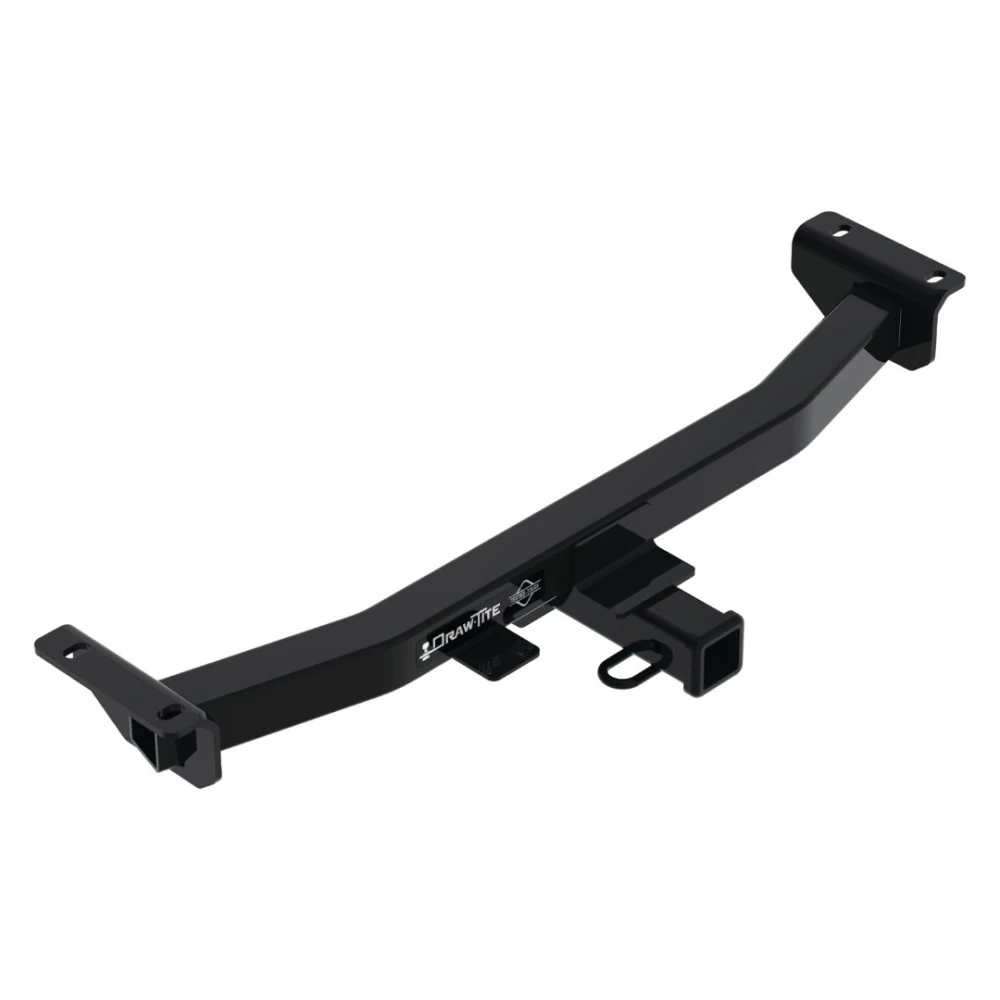

Trailer Tow Hitch For 19‑23 Ford Ranger Class 4 2" Receiver Draw‑Tite
Model: 765832019 - 2023 Ford, Ranger, All Styles
Trailer Hitch Specs:
Partial list of fitment years: 19 20 21 22 23 2019 2020 2021 2022 2023
$180 20 $272.60 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$272.60 $180 20
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $45.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76583
- Includes: Class 4 Trailer Tow Hitch
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Ball Mount Included | No |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 7,500 lbs |
Gross Towing Weight w/ Weight Distribution Kit | 8,000 lbs |
Hitch Class | IV |
Material | Steel |
Maximum Tongue Weight | 1,125 lbs. |
Maximum Tongue Weight w/ Weight Distribution Kit | 1,200 lbs |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description
2019 - 2023 Ford, Ranger, All Styles
Trailer Hitch Specs:
Partial list of fitment years: 19 20 21 22 23 2019 2020 2021 2022 2023
Get Expert Help
Trailer Tow Hitch For 19-23 Ford Ranger Class 4 2" Receiver Draw-Tite Install Notes
Installation Instructions for Ford Ranger (2019-Present)
Part Numbers:
- 76583
- 84583
- CQT76583
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- C-Clamps
- 6" Socket Extension
- Sockets: 21mm
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 7,500 lbs (3,401 kg)
- Max Tongue Weight: 1,125 lbs (510 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 8,000 lbs (3,628 kg)
- Max Tongue Weight: 1,200 lbs (544 kg)
Installation Time:
- Estimated: 30 minutes
Step-by-Step Instructions:
1. Lower Spare Tire:
- Follow the vehicle owner’s manual to lower the spare tire.
2. Secure Bumper Tabs:
- Use C-Clamps to secure the bumper tabs to the matching tabs directly above on both sides. This prevents the bumper from moving when removing the factory M16 fasteners.
3. Remove Factory Bolts:
- Use a 21mm socket to remove (4) M16 bolts securing the bumper brackets to the vehicle frame.
4. Install Hitch:
- Raise the hitch into position, aligning the attachment holes in the hitch with the holes in the bumper bracket and frame rail.
- Reinstall the factory M16 bolts on each side.
5. Tighten Fasteners:
- Torque all M16 fasteners to 146 lb-ft (195 N·m).
6. Reinstall Spare Tire:
- Raise the spare tire back into position.
Safety Notes:
- Regularly inspect all fasteners to ensure the hitch and ball mount are securely attached.
- If the hitch is removed, plug all holes in the trunk pan or other panels to prevent water or exhaust fume entry.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe safety precautions when working beneath a vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class III
- Compliance: This product meets safety specifications and requirements as per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always adhere to the vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.
Installation Instructions for Ford Ranger (2019-Present)
Part Numbers:
- 76583
- 84583
- CQT76583
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- C-Clamps
- 6" Socket Extension
- Sockets: 21mm
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 7,500 lbs (3,401 kg)
- Max Tongue Weight: 1,125 lbs (510 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 8,000 lbs (3,628 kg)
- Max Tongue Weight: 1,200 lbs (544 kg)
Installation Time:
- Estimated: 30 minutes
Step-by-Step Instructions:
1. Lower Spare Tire:
- Follow the vehicle owner’s manual to lower the spare tire.
2. Secure Bumper Tabs:
- Use C-Clamps to secure the bumper tabs to the matching tabs directly above on both sides. This prevents the bumper from moving when removing the factory M16 fasteners.
3. Remove Factory Bolts:
- Use a 21mm socket to remove (4) M16 bolts securing the bumper brackets to the vehicle frame.
4. Install Hitch:
- Raise the hitch into position, aligning the attachment holes in the hitch with the holes in the bumper bracket and frame rail.
- Reinstall the factory M16 bolts on each side.
5. Tighten Fasteners:
- Torque all M16 fasteners to 146 lb-ft (195 N·m).
6. Reinstall Spare Tire:
- Raise the spare tire back into position.
Safety Notes:
- Regularly inspect all fasteners to ensure the hitch and ball mount are securely attached.
- If the hitch is removed, plug all holes in the trunk pan or other panels to prevent water or exhaust fume entry.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe safety precautions when working beneath a vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class III
- Compliance: This product meets safety specifications and requirements as per V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This product is covered under a limited warranty. For complete warranty instructions, please download the full installation PDF.
