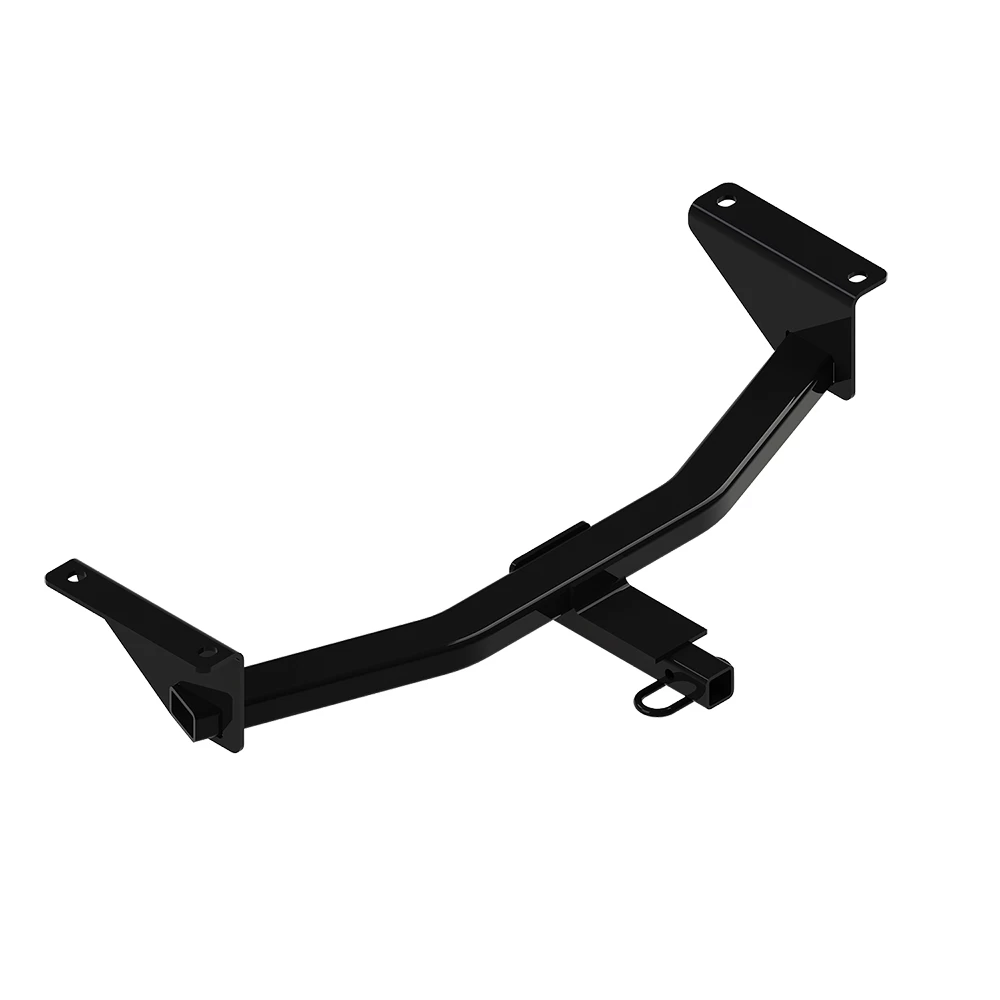

Trailer Tow Hitch For 19‑24 Mazda 3 Sedan Class 1 1‑1/4" Towing Receiver
Model: 779822019 - 2024 Mazda, 3, Sedan
Trailer Hitch Specs:
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 19 20 21 22 23 24 2019 2020 2021 2022 2023 2024
$187 79 $293.24 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$293.24 $187 79
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $46.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese Towpower
- Model: 77982
- UPC: 016118154535
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
2018 - 2025 | Jeep | Wrangler JL | All Models |
Specification | |
Attachment Location | Rear |
Color | Black |
Drawbar Included | No |
Drilling Required | No |
Gross Towing Weight | 2,000 lbs. |
Hitch Class | I |
Material | Steel |
Maximum Tongue Weight | 200 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 1.25 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description
2019 - 2024 Mazda, 3, Sedan
Trailer Hitch Specs:
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 19 20 21 22 23 24 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Tow Hitch For 19-24 Mazda 3 Sedan Class 1 1-1/4" Towing Receiver Install Notes
Installation Instructions for Mazda 3 (2019-Current)
Part Numbers:
- 24982
- 77982
- CQT24982
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 11/16"
- 6" Socket Extension
- Die Grinder
- Phillips Screwdriver
- Flat Head Screwdriver
Step-by-Step Instructions:
-
Remove Bottom Appearance Panel:
- Using Phillips and flat head screwdrivers, remove 7 screws and 2 rivets from the bottom appearance panel.
- Return the panel to the vehicle owner.
-
Remove Bottom Bracket Attachment:
- Using a 10mm socket, remove 1 screw from the bottom bracket attachment on each side.
- Press the bracket inward to release it from the plastic tab attached to the frame rails.
- Return the brackets to the vehicle owner.
-
Enlarge Access Hole:
- Use a die grinder to enlarge the access hole to a 1-inch diameter on each side.
-
Install Hitch:
- Feed the 7/16" carriage bolt and spacer through the access hole using pull wires, leaving the wires attached.
- Raise the hitch into position and feed the pull wires through the hitch bracket slot.
- Remove the pull wires and loosely install conical washers (teeth side against hitch) and hex nuts.
-
Tighten Fasteners:
- Torque all 7/16" fasteners to 50 ft-lb (68 N*m) using a torque wrench.
Hardware List:
- (4) Carriage Bolt, 7/16"-14 x 1.75, GR5
- (4) Spacer, 0.875 x 2.00 x 0.109 (Part No. 1204-020)
- (4) Conical Washer, 7/16" (Part No. 01292007)
- (4) Hex Nut, 7/16"-14 GR2
- (4) Pull Wire, 7/16" (Part No. 5481)
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
- Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
Specifications:
- Installation Time: 30 minutes
- Max Gross Trailer Weight: 2,000 lb (908 kg)
- Max Tongue Weight: 200 lb (90.8 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
Installation Instructions for Vehicle (2019-Current)
Part Numbers:
- 24982
- 77982
- CQT24982
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 11/16"
- 6" Socket Extension
- Die Grinder
- Phillips Screwdriver
- Flat Head Screwdriver
Step-by-Step Instructions:
-
Remove Bottom Appearance Panel:
- Using Phillips and flat head screwdrivers, remove 7 screws and 2 rivets from the bottom appearance panel.
- Return the panel to the vehicle owner.
-
Remove Bottom Bracket Attachment:
- Using a 10mm socket, remove 1 screw from the bottom bracket attachment on each side.
- Press the bracket inward to release it from the plastic tab attached to the frame rails.
- Return the brackets to the vehicle owner.
-
Enlarge Access Hole:
- Use a die grinder to enlarge the access hole to a 1-inch diameter on each side.
-
Install Hitch:
- Feed the 7/16" carriage bolt and spacer through the access hole using pull wires, leaving the wires attached.
- Raise the hitch into position and feed the pull wires through the hitch bracket slot.
- Remove the pull wires and loosely install conical washers (teeth side against hitch) and hex nuts.
-
Tighten Fasteners:
- Torque all 7/16" fasteners to 50 ft-lb (68 N*m) using a torque wrench.
Hardware List:
- (4) Carriage Bolt, 7/16"-14 x 1.75, GR5
- (4) Spacer, 0.875 x 2.00 x 0.109 (Part No. 1204-020)
- (4) Conical Washer, 7/16" (Part No. 01292007)
- (4) Hex Nut, 7/16"-14 GR2
- (4) Pull Wire, 7/16" (Part No. 5481)
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
- Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
Specifications:
- Installation Time: 30 minutes
- Max Gross Trailer Weight: 2,000 lb (908 kg)
- Max Tongue Weight: 200 lb (90.8 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
Additional Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
- For complete warranty instructions, please download the full installation PDF.
