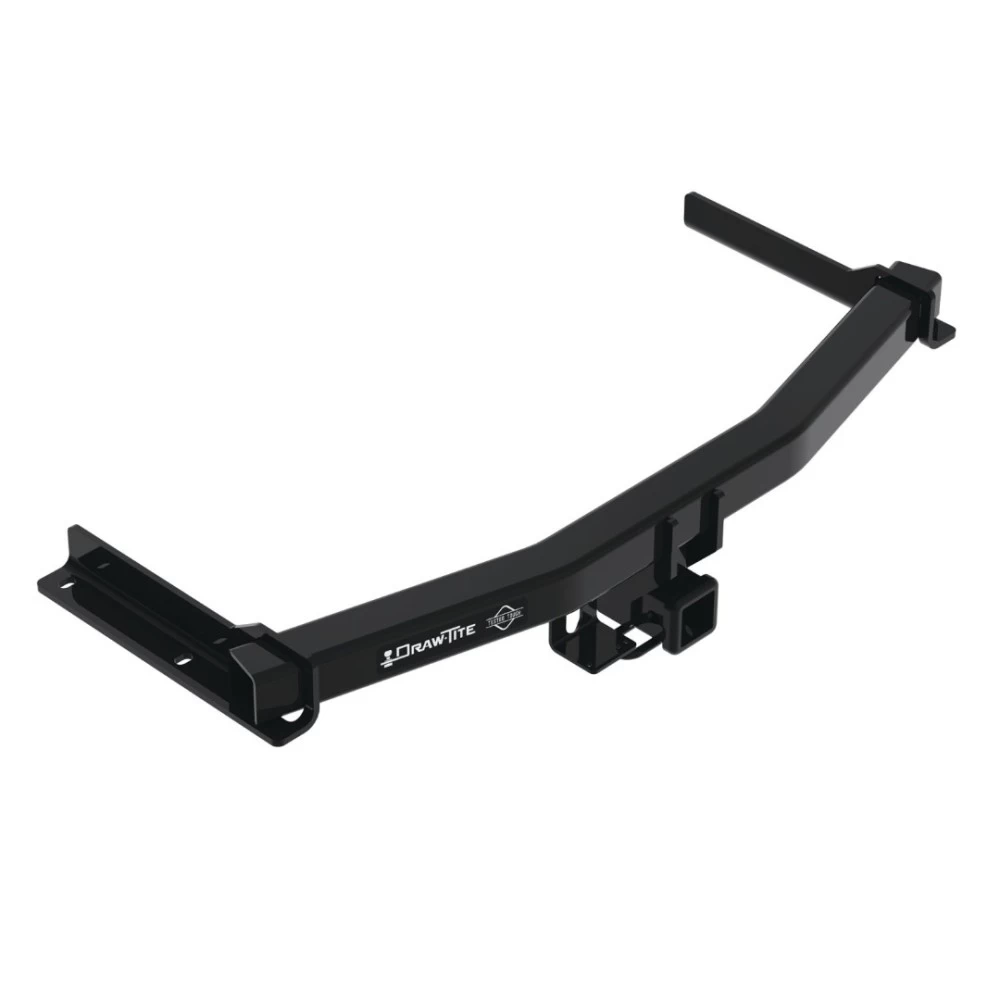

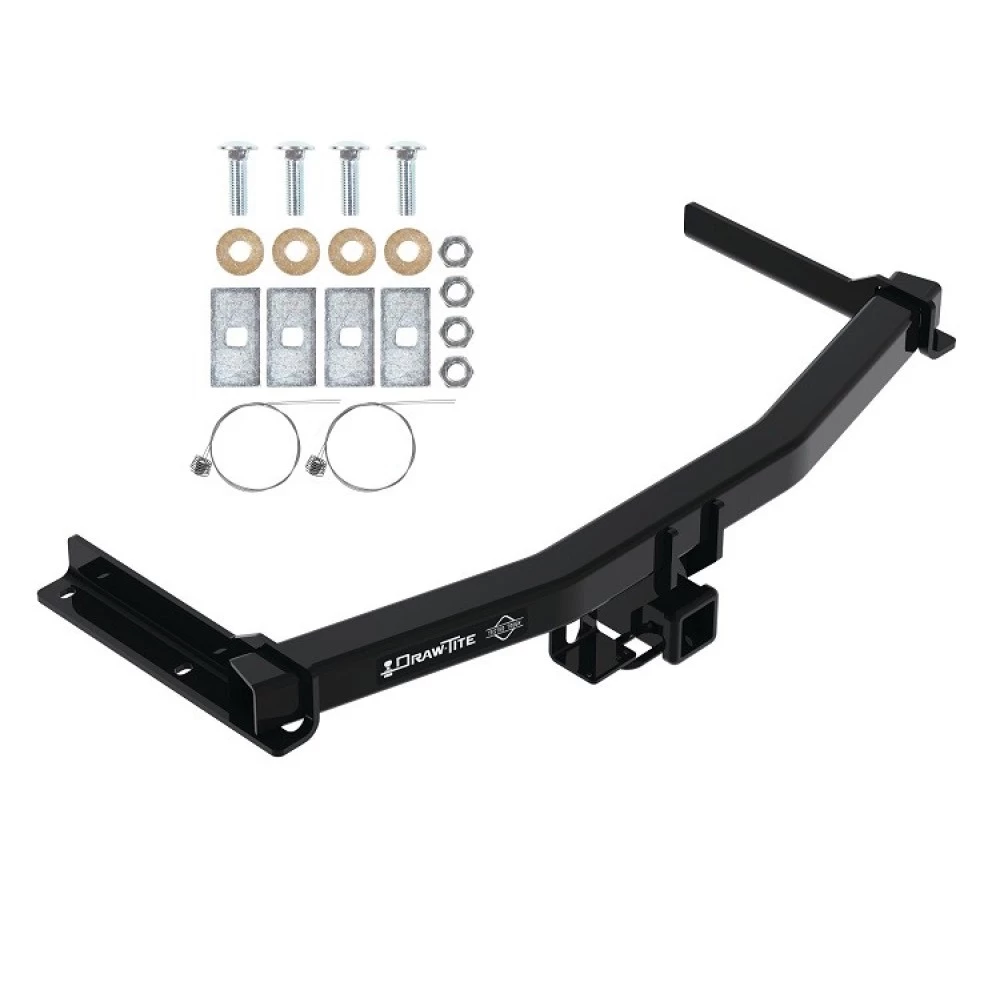

Trailer Tow Hitch For 20-24 Cadillac XT6 2" Towing Receiver Class 3

Trailer Tow Hitch For 20‑24 Cadillac XT6 2" Towing Receiver Class 3

Model: 76499

This Hitch Fits The Following Vehicles:

2020 - 2024 Cadillac, XT6, All Styles

Trailer Hitch Specs:

Part Number	76499
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	4,500 lbs
Max GTW w/ weight distribution	4,500 lbs
Max Tongue Weight	675/675 lbs
Warranty	Lifetime
Installation Instructions

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 20 21 22 23 24 2020 2021 2022 2023 2024

See Full Description

$266 ⁹³ $377.98 29% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$377.98 $266 ⁹³

Pay in 4 interest-free installments of $66.50 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $66.50 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 76499
Includes: Class 3 Trailer Tow Hitch

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	4,500 lbs.
Gross Towing Weight w/ Weight Distribution Kit	4,500 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	675 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	675 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Be the first to ask a question.

File	Size
76499 sa hw.jpg	59.76KB	Download

Description

This Hitch Fits The Following Vehicles:

2020 - 2024 Cadillac, XT6, All Styles

Trailer Hitch Specs:

Part Number	76499
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	4,500 lbs
Max GTW w/ weight distribution	4,500 lbs
Max Tongue Weight	675/675 lbs
Warranty	Lifetime
Installation Instructions

Questions or Comments? Call 702-374-8999

Tags: 76499 , 2020 , 2021 , 2022 , 2023 , 2024 , 20 , 21 , 22 , 23 , 24 , Cadillac , XT6 , Draw-Tite , Trailer , Tow , Hitch , Receiver , Bar , Frame

Get Expert Help

Trailer Tow Hitch For 20-24 Cadillac XT6 2" Towing Receiver Class 3 Install Notes

Installation Instructions for 2020-Current Cadillac XT6

Part Numbers:

76499
84499
CQT76499

Tools Required:

Ratchet
Torque Wrench
Safety Glasses
Sockets: 7 mm, 15 mm, 3/4"
Plastic Trim Tools
T15 Torx, T20 Torx
Masking Tape

Step-by-Step Instructions:

Remove Hitch Access Panel:
- Use a T15 Torx bit to remove screws from the lower edge of the hitch access panel.
Remove Fascia:
- Open the tailgate and remove the taillight cover by unscrewing with a T15 Torx bit, one screw per side.
- Apply masking tape around the wheel well and taillight areas to prevent scratching the vehicle.
- Remove screws connecting the fascia to the wheel well liner using a T15 Torx bit.
- Remove the screw at the bottom of the fascia near the wheel well liner with a T15 Torx bit.
- Starting at the bottom, pull off the wheel well trim using trim tools. Remove the screw behind the trim that secures the fascia to the vehicle body with a 7 mm socket.
- Remove screws at the bottom of the fascia near the hitch access panel using a 7 mm socket.
- Gently pull off the fascia starting from the wheel well area. Disconnect any electrical connectors and set the fascia aside.
Remove Bumper and Lower Exhaust:
- Use a 15 mm socket to remove M10 nuts from the top bumper attachments, two per side. Set the nuts aside for reuse.
- Remove M10 bolts from the bottom bumper attachments using a 15 mm socket, two per side.
- Lower the exhaust for clearance, ensuring the system is supported to avoid damage. Return the bumper to the vehicle owner.
Install Hitch:
- Raise the hitch into position and align the slots with the attachment holes in the vehicle frame.
- Use the provided pull wires to install the carriage bolts and spacers into the frame.
- Install conical washers (teeth side toward hitch) and hex nuts onto the carriage bolts.
Reinstall Exhaust Hangers:
- Reattach the exhaust hangers and bolts removed earlier. Optionally, reinstall the nuts from the vehicle bumper or return them to the vehicle owner.
Torque Fasteners:
- Tighten all 1/2"-13 GR5 fasteners to 75 ft-lbs (102 Nm).
- Tighten all M10 fasteners to 38 ft-lbs (52 Nm).
Reinstall Fascia:
- Reverse the process from Step 2 to reinstall the fascia. Ensure all electrical plugs are reconnected.
- Replace the hitch access panel when the hitch is not in use.

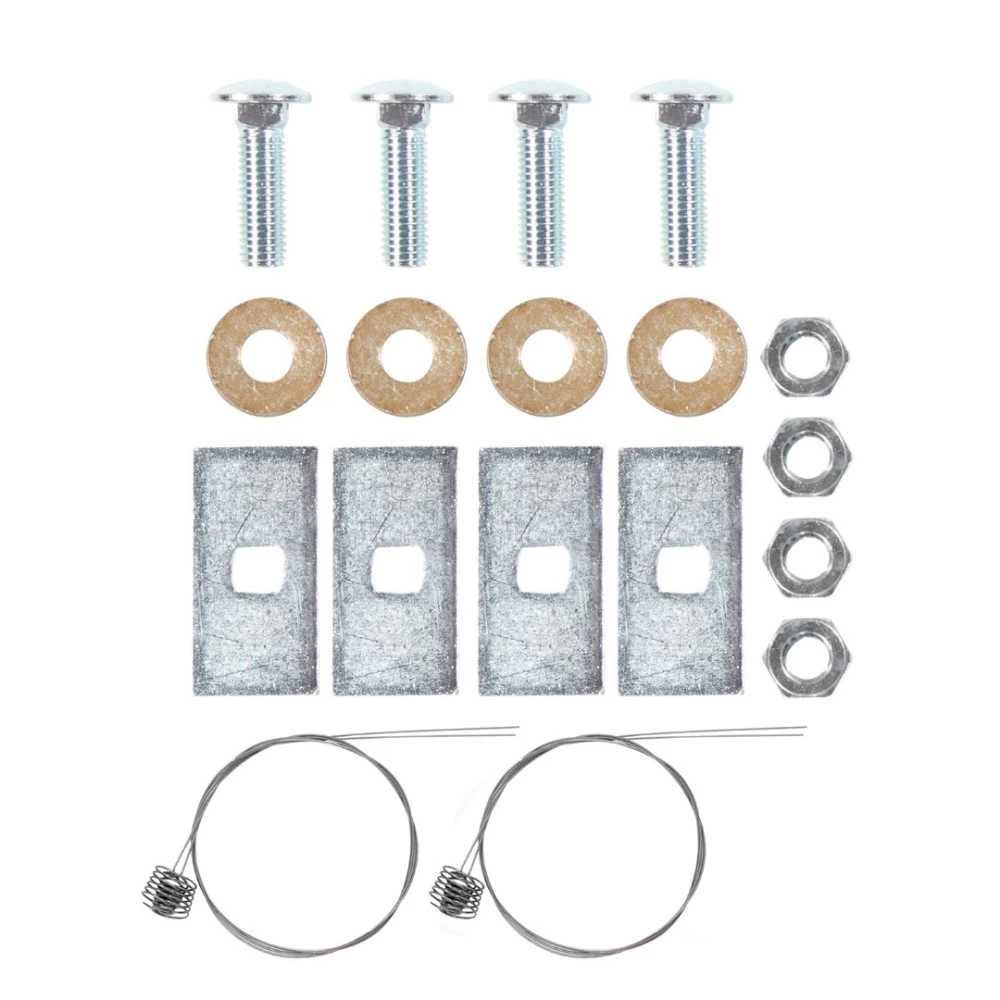

Hardware List:

(4) Carriage Bolt 1/2”-13 x 1 1/2” GR5
(4) Spacer 1/4” x 1” x 2”
(4) Conical Washer 1/2”
(4) Hex Nut 1/2”-13 GR5
(4) Fish Wire 1/2”

Safety Notes:

Always wear safety glasses during installation.
Periodically check the hitch to ensure all fasteners and the ball are securely tightened.
Replace any damaged hitch or ball immediately.
Do not cut or modify the hitch.
Observe safety precautions when working beneath the vehicle.

Specifications:

Weight Carrying Capacity: 4,500 lbs (2,041 kg) trailer weight, 675 lbs (306 kg) tongue weight.
Weight Distributing Capacity: 4,500 lbs (2,041 kg) trailer weight, 675 lbs (306 kg).
Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

Installation time for professional installers is approximately 75 minutes.
For detailed photo instructions, scan the QR code provided in the manual or visit the website.
