Trailer Tow Hitch For 96‑07 Chrysler Town & Country Dodge Caravan without Stow & Go Seats w/Draw Bar Kit

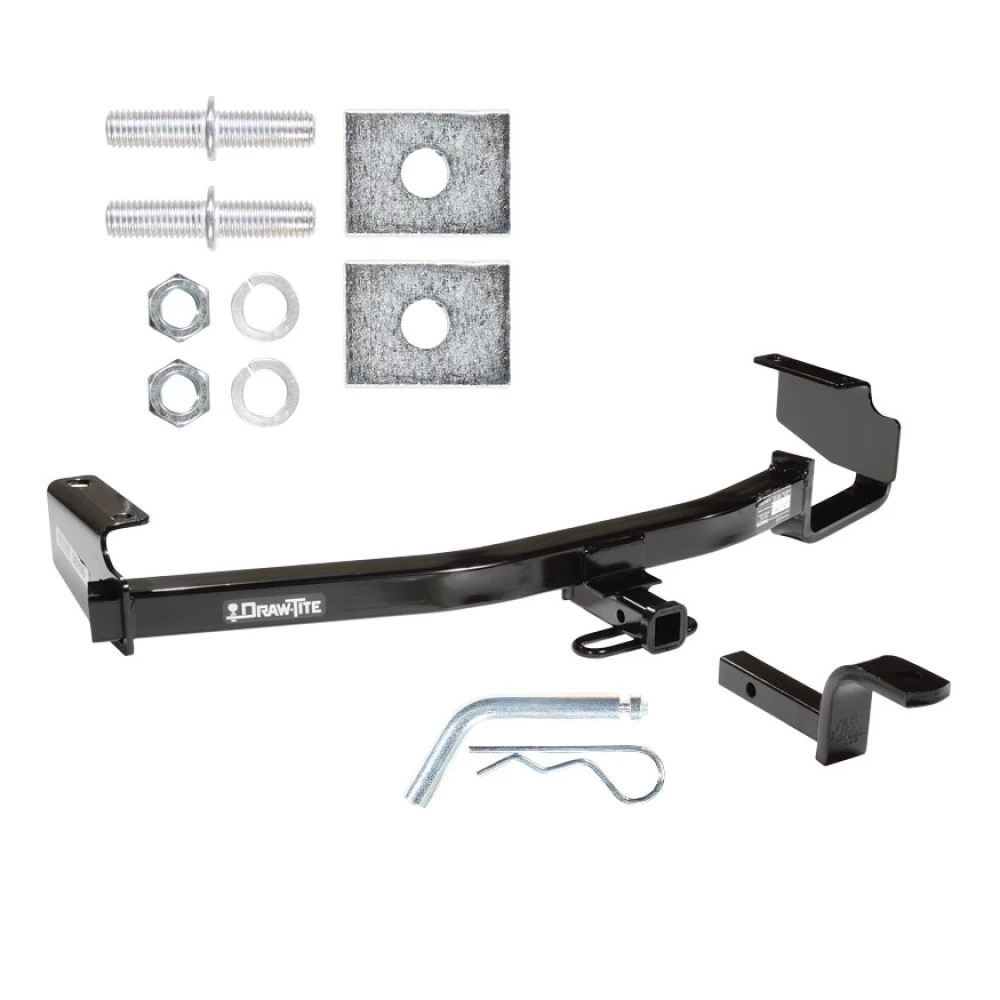

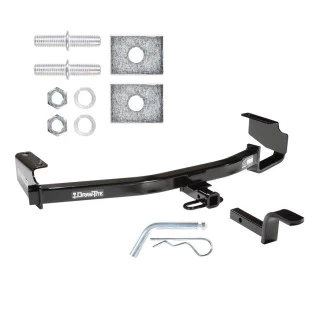

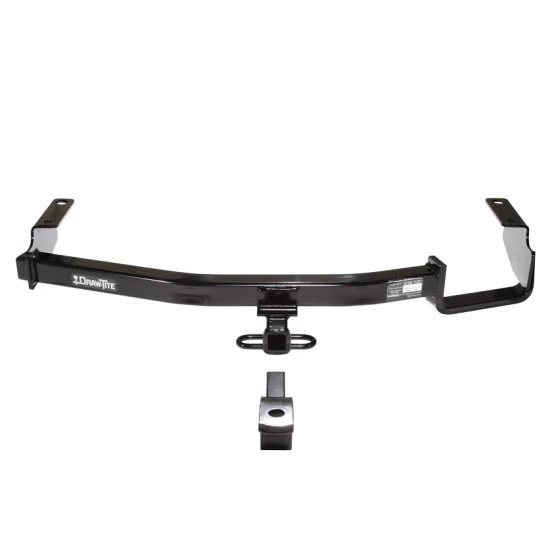

Model: 362960Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
1996 - 2003 Chrysler, Town & Country, All Styles
1996 - 2003 Dodge, Caravan, All Styles
1996 - 2003 Dodge, Grand Caravan, All Styles
1996 - 2000 Plymouth, Grand Voyager, All Styles
1996 - 2000 Plymouth, Voyager, All Styles
2001 - 2003 Chrysler, Voyager, All Styles
2004 - 2007 Chrysler, Town & Country, Except w/Stow & Go Seats
2004 - 2007 Dodge, Caravan, Except w/Stow & Go Seats
2004 - 2007 Dodge, Grand Caravan, Except w/Stow & Go Seats
Trailer Hitch Specs:
| Part Number | 362960 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 96 97 98 99 00 01 02 03 04 05 06 07 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007
$192 16 $343.21 44% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$343.21 $192 16
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $48.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 362960
- UPC: 016118139020
- Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount
Compatibility Chart
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
1996 - 2003 Chrysler, Town & Country, All Styles
1996 - 2003 Dodge, Caravan, All Styles
1996 - 2003 Dodge, Grand Caravan, All Styles
1996 - 2000 Plymouth, Grand Voyager, All Styles
1996 - 2000 Plymouth, Voyager, All Styles
2001 - 2003 Chrysler, Voyager, All Styles
2004 - 2007 Chrysler, Town & Country, Except w/Stow & Go Seats
2004 - 2007 Dodge, Caravan, Except w/Stow & Go Seats
2004 - 2007 Dodge, Grand Caravan, Except w/Stow & Go Seats
Trailer Hitch Specs:
| Part Number | 362960 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 96 97 98 99 00 01 02 03 04 05 06 07 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007
Get Expert Help
Trailer Tow Hitch For 96-07 Chrysler Town & Country Dodge Caravan without Stow & Go Seats w/Draw Bar Kit Install Notes
Installation Instructions for Chrysler Town & Country, Chrysler Voyager, Dodge Caravan, Plymouth Voyager
Part Numbers:
- 06369
- 36296
- 90165
- 39602 (U-Haul)
Wiring Access Location:
- SUV1
- SUV2
Tools Required:
- Wrenches: 18 mm, 19 mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Front Bumper Bolts:
- Remove the front bumper bolts on both sides of the vehicle.
-
Install M12 x 1.75 Studs:
- Install the M12 x 1.75 studs into the holes where the front bumper bolts were removed. Tighten by hand until seated. Final tightening will occur when the nuts are secured later.
-
Remove Rear Bumper Bolts:
- Remove the rear bumper bolts.
-
Position and Secure Hitch:
- Place the hitch into position as shown in the instructions.
- Install the remaining fasteners into the existing weldnuts on the frame.
-
Tighten Fasteners:
- Tighten all M12 x 1.75 fasteners to 75 ft-lbs (102 N*m) using a torque wrench.

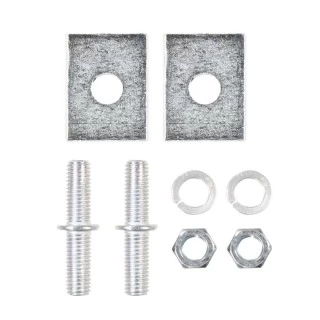

Hardware List:
- (2) Stud – M12 x 1.75
- (2) Spacer – 3/16 x 1-1/2 x 2
- (2) Lock Washer – 1/2"
- (2) Hex Nut – M12 x 1.75
Safety Notes:
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- Plug all holes in the trunk pan or other body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Observe all safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying Capacity: 3,500 lbs (1,589 kg) trailer weight, 300 lbs (136 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Drawbar must be used in the rise position only.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Compatible with all models of Chrysler Town & Country, Chrysler Voyager, Dodge Caravan, and Plymouth Voyager (2WD, 4WD, short and long wheelbase).
- Installation time for professional installers is approximately 30 minutes.
- For more detailed instructions, refer to the QR code or manual provided.
Installation Instructions for Chrysler Town & Country, Chrysler Voyager, Dodge Caravan, Plymouth Voyager
Part Numbers:
- 06369
- 36296
- 90165
- 39602 (U-Haul)
Wiring Access Location:
- SUV1
- SUV2
Tools Required:
- Wrenches: 18 mm, 19 mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Front Bumper Bolts:
- Remove the front bumper bolts on both sides of the vehicle.
-
Install M12 x 1.75 Studs:
- Install the M12 x 1.75 studs into the holes where the front bumper bolts were removed. Tighten by hand until seated. Final tightening will occur when the nuts are secured later.
-
Remove Rear Bumper Bolts:
- Remove the rear bumper bolts.
-
Position and Secure Hitch:
- Place the hitch into position as shown in the instructions.
- Install the remaining fasteners into the existing weldnuts on the frame.
-
Tighten Fasteners:
- Tighten all M12 x 1.75 fasteners to 75 ft-lbs (102 N*m) using a torque wrench.
Hardware List:
- (2) Stud – M12 x 1.75
- (2) Spacer – 3/16 x 1-1/2 x 2
- (2) Lock Washer – 1/2"
- (2) Hex Nut – M12 x 1.75
Safety Notes:
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- Plug all holes in the trunk pan or other body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Observe all safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying Capacity: 3,500 lbs (1,589 kg) trailer weight, 300 lbs (136 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Drawbar must be used in the rise position only.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Compatible with all models of Chrysler Town & Country, Chrysler Voyager, Dodge Caravan, and Plymouth Voyager (2WD, 4WD, short and long wheelbase).
- Installation time for professional installers is approximately 30 minutes.
- For more detailed instructions, refer to the QR code or manual provided.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
