Trailer Tow Hitch Hardware Fastener Kit For 07‑09 Saturn Aura 08‑12 Chevy Malibu & Malibu LTZ Receiver
Model: HWKIT2(36479F)2007 - 2009 Saturn, Aura, All Styles
2008 - 2012 Chevrolet, Malibu, All Styles including LTZ
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 36479 90194 06658 36327
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 12 2007 2008 2009 2010 2011 2012
$46 55 $59.81 22% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$59.81 $46 55
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $11.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT2(36479F)
- Includes: Hardware Kit for Class 2 Trailer Tow Hitch
Compatibility Chart
Description
2007 - 2009 Saturn, Aura, All Styles
2008 - 2012 Chevrolet, Malibu, All Styles including LTZ
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 36479 90194 06658 36327
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 12 2007 2008 2009 2010 2011 2012
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 07-09 Saturn Aura 08-12 Chevy Malibu & Malibu LTZ Receiver Install Notes
Installation Instructions for Saturn Aura and Chevrolet Malibu
Part Numbers:
- 36479
- 90194
- 06658
- 36327 (U-Haul)
Wiring Access Location:
- PC1, PC2
Tools Required:
- Wrenches: 11/16", 3/4"
- Drill Bits: 1/2", 3/8"
- Pull Wires (Provided)
Step-by-Step Instructions:
For Vehicles Without Existing Holes:
-
Position Hitch:
- Raise the hitch into position and align it over the bumper attachment bolt.
- Ensure the bracket sits flat against the frame rail.
-
Drill Holes:
- Mark and center punch the hole locations using the hitch as a template.
- Drill two 3/8" holes through the end panel. Remove burrs.
-
Install Hardware:
- Tape spacers into position behind the end panel.
- Feed pull wires through the spacers and attach carriage bolts.
- Pull reinforcement plates and carriage bolts into position.
-
Secure Hitch:
- Install conical washers and nuts onto the carriage bolts.
- Tighten all fasteners according to torque specifications.
For Vehicles With Existing Holes:
-
Prepare Hardware:
- Tape spacers into position.
- Feed pull wires through the spacers, attach carriage bolts, and pull into place.
-
Install Hitch:
- Raise the hitch into position.
- Secure with conical washers and nuts.
-
Drill Frame Holes:
- Drill two 1/2" holes through the frame rail using the hitch as a guide.
-
Install Frame Hardware:
- Feed pull wires through the hitch bracket and frame rail.
- Attach spacers and carriage bolts to the pull wires and pull into position.
- Secure with lock washers and nuts.
-
Torque Fasteners:
- Tighten all 3/8"-16 GR5 fasteners to 30 ft-lbs (47 N*m).
- Tighten all 1/2"-13 GR5 fasteners to 75 ft-lbs (102 N*m).

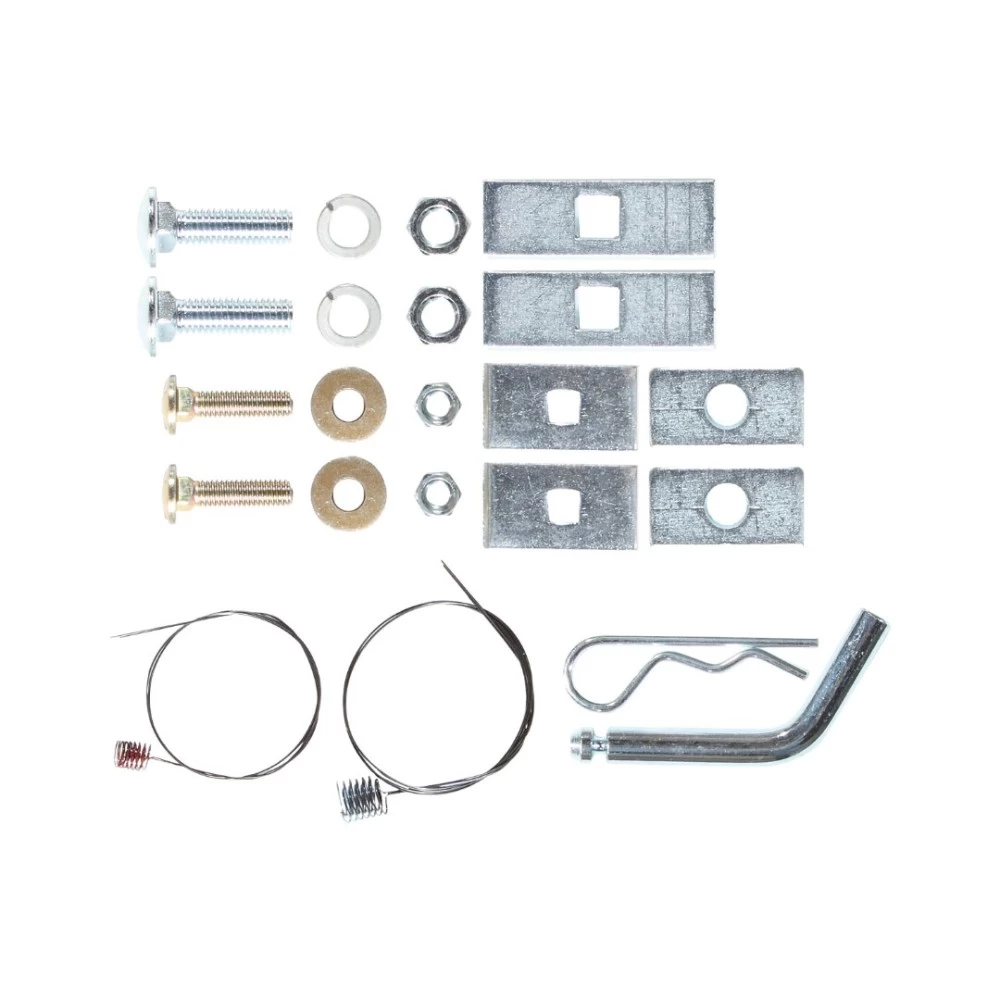

Hardware List:
- (2) Carriage Bolt 3/8"-16 x 1.50" GR5
- (2) Carriage Bolt 1/2"-13 x 1.75" GR5
- (2) Spacer 1/4" x 1" x 2" (Square Hole)
- (2) Spacer 1/4" x 1" x 3" (Square Hole)
- (2) Conical Washer 3/8"
- (2) Conical Washer 1/2"
- (2) Lock Washer 1/2"
- (2) Nut 3/8"-16
- (2) Nut 1/2"-13
Safety Notes:
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying Capacity: 3,500 lbs (1,589 kg) trailer weight, 300 lbs (136 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Drawbar must be used in the rise position only.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 30 minutes.
- For more detailed instructions, refer to the QR code or manual provided.
Installation Instructions for Saturn Aura and Chevrolet Malibu
Part Numbers:
- 36479
- 90194
- 06658
- 36327 (U-Haul)
Wiring Access Location:
- PC1, PC2
Tools Required:
- Wrenches: 11/16", 3/4"
- Drill Bits: 1/2", 3/8"
- Pull Wires (Provided)
Step-by-Step Instructions:
For Vehicles Without Existing Holes:
-
Position Hitch:
- Raise the hitch into position and align it over the bumper attachment bolt.
- Ensure the bracket sits flat against the frame rail.
-
Drill Holes:
- Mark and center punch the hole locations using the hitch as a template.
- Drill two 3/8" holes through the end panel. Remove burrs.
-
Install Hardware:
- Tape spacers into position behind the end panel.
- Feed pull wires through the spacers and attach carriage bolts.
- Pull reinforcement plates and carriage bolts into position.
-
Secure Hitch:
- Install conical washers and nuts onto the carriage bolts.
- Tighten all fasteners according to torque specifications.
For Vehicles With Existing Holes:
-
Prepare Hardware:
- Tape spacers into position.
- Feed pull wires through the spacers, attach carriage bolts, and pull into place.
-
Install Hitch:
- Raise the hitch into position.
- Secure with conical washers and nuts.
-
Drill Frame Holes:
- Drill two 1/2" holes through the frame rail using the hitch as a guide.
-
Install Frame Hardware:
- Feed pull wires through the hitch bracket and frame rail.
- Attach spacers and carriage bolts to the pull wires and pull into position.
- Secure with lock washers and nuts.
-
Torque Fasteners:
- Tighten all 3/8"-16 GR5 fasteners to 30 ft-lbs (47 N*m).
- Tighten all 1/2"-13 GR5 fasteners to 75 ft-lbs (102 N*m).
Hardware List:
- (2) Carriage Bolt 3/8"-16 x 1.50" GR5
- (2) Carriage Bolt 1/2"-13 x 1.75" GR5
- (2) Spacer 1/4" x 1" x 2" (Square Hole)
- (2) Spacer 1/4" x 1" x 3" (Square Hole)
- (2) Conical Washer 3/8"
- (2) Conical Washer 1/2"
- (2) Lock Washer 1/2"
- (2) Nut 3/8"-16
- (2) Nut 1/2"-13
Safety Notes:
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying Capacity: 3,500 lbs (1,589 kg) trailer weight, 300 lbs (136 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Drawbar must be used in the rise position only.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 30 minutes.
- For more detailed instructions, refer to the QR code or manual provided.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
