Trailer Tow Hitch Hardware Fastener Kit For 13‑22 Acura ILX ( 06‑11 CSX Canada ONLY ) 1‑1/4" Receiver
Model: HWKIT1(24861F)2006 - 2011 Acura, CSX, (Canada Only)
2013 - 2022 Acura, ILX, Except Hybrid
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24861 60277 77247 24888
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022
$39 59 $44.64 11% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$44.64 $39 59
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $9.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT1(24861F)
- Includes: Hardware Kit for Class 1 Trailer Tow Hitch
Compatibility Chart
Description
2006 - 2011 Acura, CSX, (Canada Only)
2013 - 2022 Acura, ILX, Except Hybrid
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24861 60277 77247 24888
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 13-22 Acura ILX ( 06-11 CSX Canada ONLY ) 1-1/4" Receiver Install Notes
Installation Instructions for Acura CSX and Acura ILX
Part Numbers:
- 24861
- 60277
- 77247
- 24888 (U-Haul)
Wiring Access Location:
- CSX: PC3, PC4
- ILX: PC1, PC2
Tools Required:
- Small Screwdriver
- Tape
- Utility Knife
- Tape Measure
- Marking Pencil
- Wrenches: 3/4”, 7/8”, 10mm
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions for Acura CSX:
-
Lower Exhaust:
- Remove the tailpipe tangs from the rubber exhaust hanger at the rear of the vehicle.
-
Remove Heat Shield:
- On the passenger side, remove the four (4) bolts securing the exhaust heat shield. Retain the bolts for reinstallation.
-
Remove Plastic Shroud:
- On the driver’s side, remove the plastic rivet and nut holding the plastic shroud to the frame rail. Retain these for reinstallation.
-
Position Hitch:
- Raise the hitch into position with the frame bracket flanges between the frame rail and the plastic shroud (driver’s side) and between the frame rail and the exhaust heat shield (passenger side).
- Ensure the tailpipe tangs are above the hitch bar.
-
Install Handle Nuts and Fasteners:
- Insert the 1/2”-13 handle nuts through the large holes in the vehicle frame rails and secure the hitch using the provided bolts and conical washers.
-
Attach Tow Hook Fastener:
- Insert the 1/2”-13 x 2-1/4” bolt and toothed washer through the slot in the hitch, the vehicle tow hook, and back through the hitch. Secure with a toothed washer and locknut.
-
Adjust and Tighten Hitch:
- Pull the hitch rearward as far as possible to allow muffler clearance with the hitch bar on the passenger side. Tighten all fasteners to the torque specifications.
-
Reinstall Components:
- Reinstall the trimmed heat shield, reattach the exhaust, and replace the plastic rivet and nut holding the driver-side shroud.
Step-by-Step Instructions for Acura ILX:
-
Remove Appearance Panel:
- Detach the appearance panel by removing four (4) plastic rivets and three (3) bolts. Return the panel to the owner.
-
Trim and Reinstall Heat Shield:
- Remove the heat shield bolts and trim the shield as necessary. Reinstall the trimmed heat shield.
-
Install Handle Nuts:
- Insert 1/2”-13 handle nuts into the frame rails through the large holes, bending the handles as required.
-
Position Hitch:
- Starting on the passenger side, slide the hitch over the exhaust tailpipe and into position. Avoid scratching the fascia.
-
Install Fasteners:
- Secure the hitch using the provided bolts and conical washers. Attach the tow hook bolt and fasteners as described for the CSX.
-
Tighten All Fasteners:
- Pull the hitch rearward and torque all fasteners to the specified values.
-
Reinstall Components:
- Replace the trimmed heat shield.
Torque Specifications:
- Tighten 1/2”-13 x 1-1/4” hex bolts to 50 Lb.-Ft. (68 N*M).
- Tighten 1/2”-13 x 2-1/4” hex bolt to 75 Lb.-Ft. (102 N*M).
Hardware List:

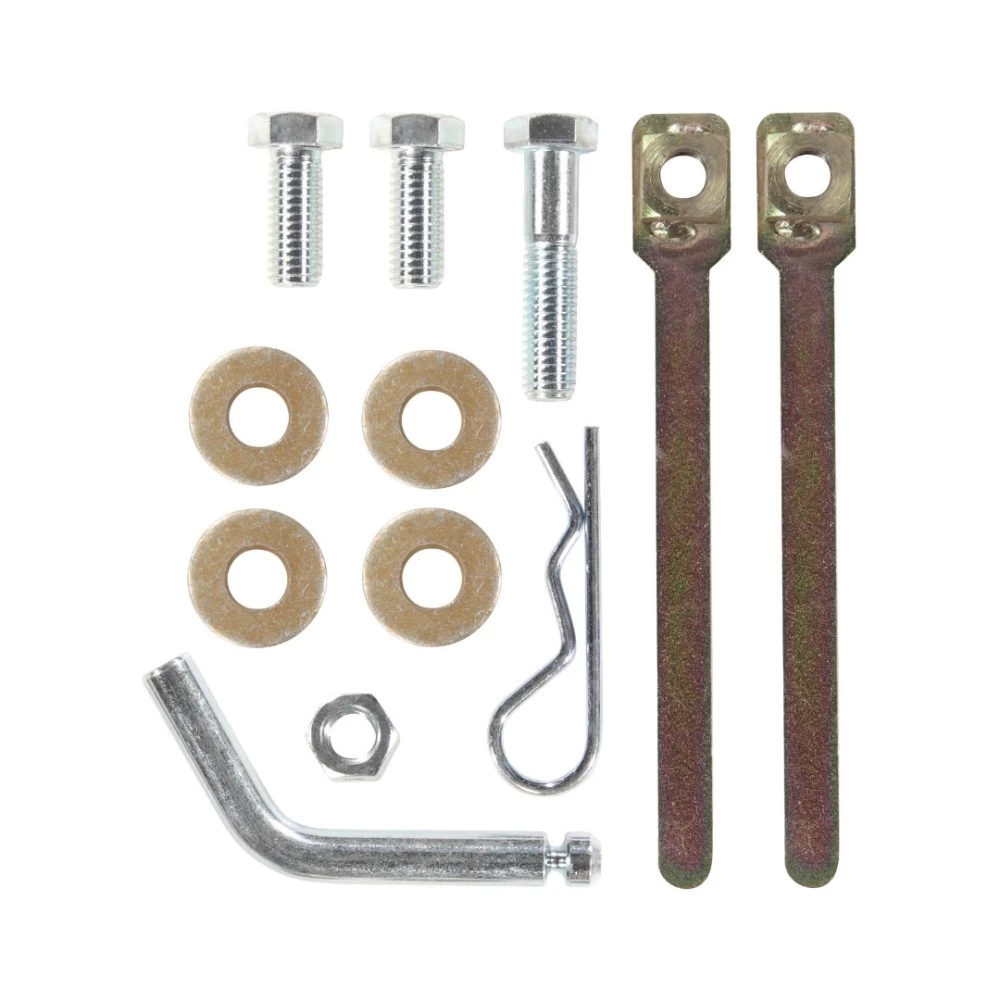

- (2) 1/2”-13 x 1-1/4” Hex Bolts (GR5)
- (1) 1/2”-13 x 2-1/4” Hex Bolt (GR5)
- (4) 1/2” Conical Toothed Washers
- (1) 1/2”-13 Lock Nut
- (2) 1/2”-13 Handle Nuts
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Heat shield trimming may be required for some models.
Installation Instructions
Part Numbers:
- 24861
- 60277
- 77247
- 24888 (U-Haul)
Wiring Access Location:
- CSX: PC3, PC4
- ILX: PC1, PC2
Tools Required:
- Small Screwdriver
- Tape
- Utility Knife
- Tape Measure
- Marking Pencil
- Wrenches: 3/4”, 7/8”, 10mm
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions for Acura CSX:
-
Lower Exhaust:
- Remove the tailpipe tangs from the rubber exhaust hanger at the rear of the vehicle.
-
Remove Heat Shield:
- On the passenger side, remove the four (4) bolts securing the exhaust heat shield. Retain the bolts for reinstallation.
-
Remove Plastic Shroud:
- On the driver’s side, remove the plastic rivet and nut holding the plastic shroud to the frame rail. Retain these for reinstallation.
-
Position Hitch:
- Raise the hitch into position with the frame bracket flanges between the frame rail and the plastic shroud (driver’s side) and between the frame rail and the exhaust heat shield (passenger side).
- Ensure the tailpipe tangs are above the hitch bar.
-
Install Handle Nuts and Fasteners:
- Insert the 1/2”-13 handle nuts through the large holes in the vehicle frame rails and secure the hitch using the provided bolts and conical washers.
-
Attach Tow Hook Fastener:
- Insert the 1/2”-13 x 2-1/4” bolt and toothed washer through the slot in the hitch, the vehicle tow hook, and back through the hitch. Secure with a toothed washer and locknut.
-
Adjust and Tighten Hitch:
- Pull the hitch rearward as far as possible to allow muffler clearance with the hitch bar on the passenger side. Tighten all fasteners to the torque specifications.
-
Reinstall Components:
- Reinstall the trimmed heat shield, reattach the exhaust, and replace the plastic rivet and nut holding the driver-side shroud.
Step-by-Step Instructions for Acura ILX:
-
Remove Appearance Panel:
- Detach the appearance panel by removing four (4) plastic rivets and three (3) bolts. Return the panel to the owner.
-
Trim and Reinstall Heat Shield:
- Remove the heat shield bolts and trim the shield as necessary. Reinstall the trimmed heat shield.
-
Install Handle Nuts:
- Insert 1/2”-13 handle nuts into the frame rails through the large holes, bending the handles as required.
-
Position Hitch:
- Starting on the passenger side, slide the hitch over the exhaust tailpipe and into position. Avoid scratching the fascia.
-
Install Fasteners:
- Secure the hitch using the provided bolts and conical washers. Attach the tow hook bolt and fasteners as described for the CSX.
-
Tighten All Fasteners:
- Pull the hitch rearward and torque all fasteners to the specified values.
-
Reinstall Components:
- Replace the trimmed heat shield.
Torque Specifications:
- Tighten 1/2”-13 x 1-1/4” hex bolts to 50 Lb.-Ft. (68 N*M).
- Tighten 1/2”-13 x 2-1/4” hex bolt to 75 Lb.-Ft. (102 N*M).
Hardware List:
- (2) 1/2”-13 x 1-1/4” Hex Bolts (GR5)
- (1) 1/2”-13 x 2-1/4” Hex Bolt (GR5)
- (4) 1/2” Conical Toothed Washers
- (1) 1/2”-13 Lock Nut
- (2) 1/2”-13 Handle Nuts
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Heat shield trimming may be required for some models.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
