Trailer Tow Hitch Hardware Fastener Kit For 99‑03 Lexus RX300 01‑03 Toyota Highlander 2" Receiver
Model: HWKIT3(41541F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
1999 - 2003 Lexus, RX300, All Styles
2001 - 2003 Toyota, Highlander, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 41541 78229
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 1999 200 2001 2002 2003
$56 48 $89.21 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$89.21 $56 48
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT3(41541F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
1999 - 2003 Lexus, RX300, All Styles
2001 - 2003 Toyota, Highlander, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 41541 78229
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 1999 200 2001 2002 2003
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 99-03 Lexus RX300 01-03 Toyota Highlander 2" Receiver Install Notes
Installation Instructions for Lexus RX300 and Toyota Highlander
Part Numbers:
- 41541
- 78229 (U-Haul)
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 14 mm, 17 mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Tow Hooks:
- Remove the tow hooks from the frame rails and return them to the vehicle owner.
-
Remove Plastic Caps:
- Remove the plastic caps from the forward attaching holes in the frame rails.
-
Position Hitch:
- Raise the hitch into position and align it with the existing weldnuts in the frame rails.
-
Install Fasteners:
- Secure the hitch using the provided M10 x 1.25 x 30 mm CL10.9 hex bolts and conical toothed washers (teeth side against the hitch).
- Tighten all M10 x 1.25 CL10.9 fasteners to 42 lb-ft (57 N*m) using a torque wrench.

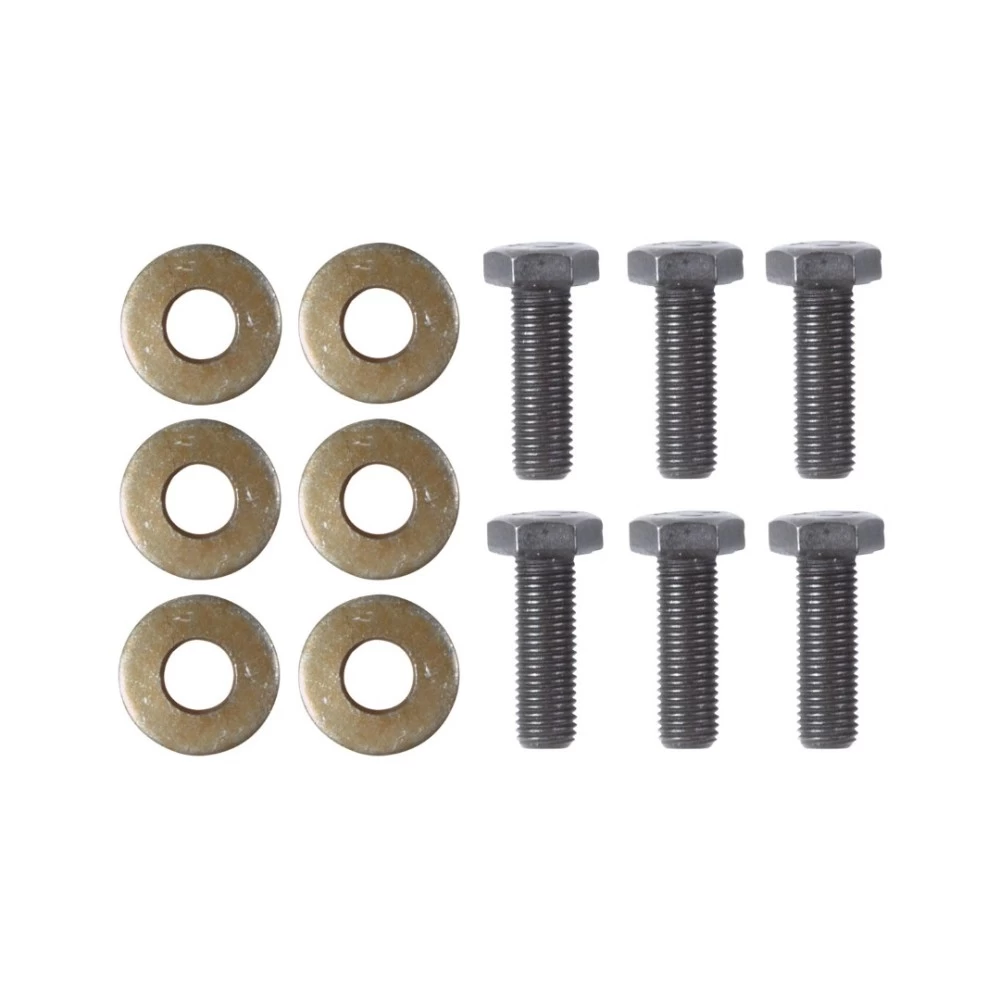

Hardware List:
- (6) Hex Bolt M10 x 1.25 x 30 mm CL10.9
- (6) Conical Toothed Washer 3/8"
Specifications:
- Weight Carrying Capacity:
- Max Trailer Weight: 3,500 lbs (1,589 kg)
- Max Tongue Weight: 350 lbs (159 kg)
- Weight Distributing Capacity:
- Not applicable. Do not use with spring bars.
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Compliance:
This product complies with safety specifications and requirements for connecting devices and towing systems in the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 20 minutes.
- For more information, refer to the detailed instructions in the manual.
Installation Instructions for SUVs
Part Numbers:
- 41541
- 78229 (U-Haul)
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 14 mm, 17 mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Tow Hooks:
- Remove the tow hooks from the frame rails and return them to the vehicle owner.
-
Remove Plastic Caps:
- Remove the plastic caps from the forward attaching holes in the frame rails.
-
Position Hitch:
- Raise the hitch into position and align it with the existing weldnuts in the frame rails.
-
Install Fasteners:
- Secure the hitch using the provided M10 x 1.25 x 30 mm CL10.9 hex bolts and conical toothed washers (teeth side against the hitch).
- Tighten all M10 x 1.25 CL10.9 fasteners to 42 lb-ft (57 N*m) using a torque wrench.
Hardware List:
- (6) Hex Bolt M10 x 1.25 x 30 mm CL10.9
- (6) Conical Toothed Washer 3/8"
Specifications:
- Weight Carrying Capacity:
- Max Trailer Weight: 3,500 lbs (1,589 kg)
- Max Tongue Weight: 350 lbs (159 kg)
- Weight Distributing Capacity:
- Not applicable. Do not use with spring bars.
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Compliance:
This product complies with safety specifications and requirements for connecting devices and towing systems in the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 20 minutes.
- For more information, refer to the detailed instructions in the manual.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
