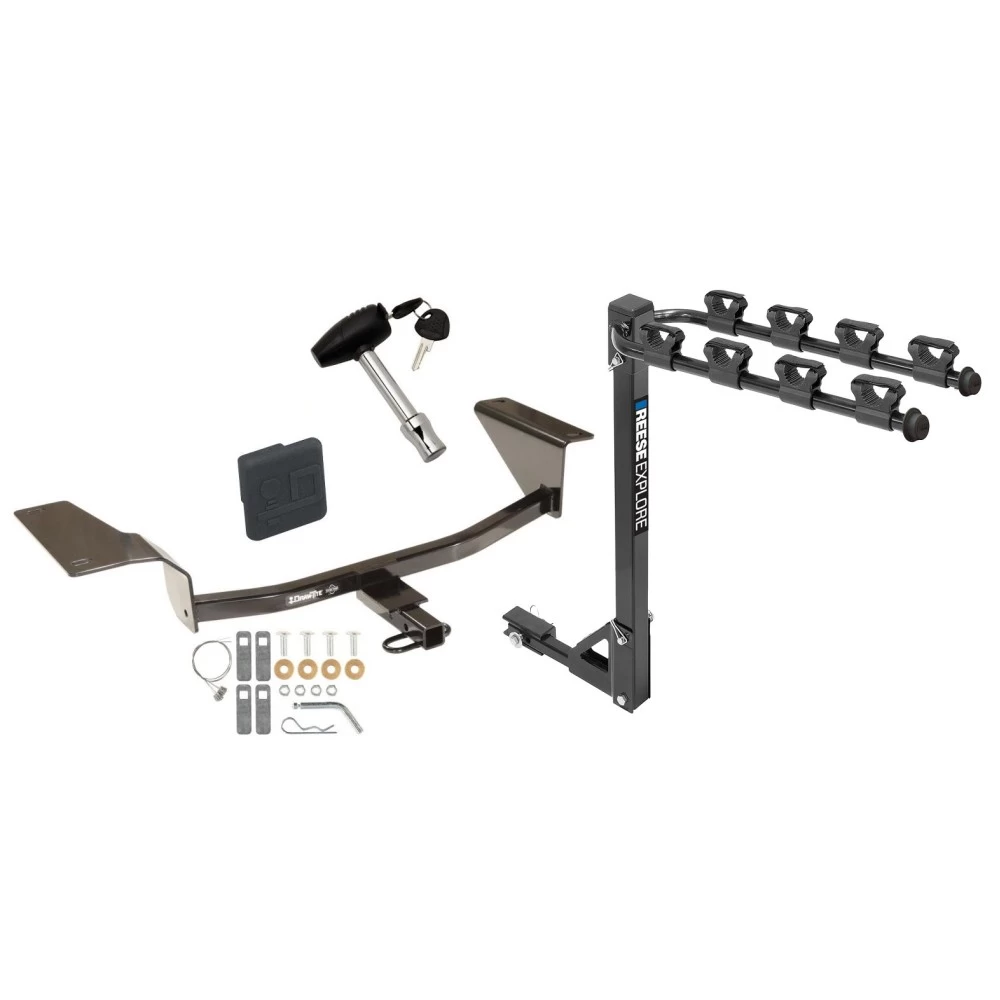

Trailer Tow Hitch w/ 4 Bike Rack For 11‑15 Chevy Cruze 16‑18 Limited 12‑19 Buick Verano Exc Turbo or Dual Exhaust tilt away adult or child arms fold down carrier w/ Lock and Cover
Model: 24882 1393100G 580407 2211Custom Fit Trailer Hitch
4 Bike Carrier
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2011 - 2015 Chevrolet, Cruze, All Styles
2012 - 2019 Buick, Verano, Except Turbo or w/Dual Exhaust
2016- 2018 Chevrolet, Cruze, Limited Only (Old Body Style)

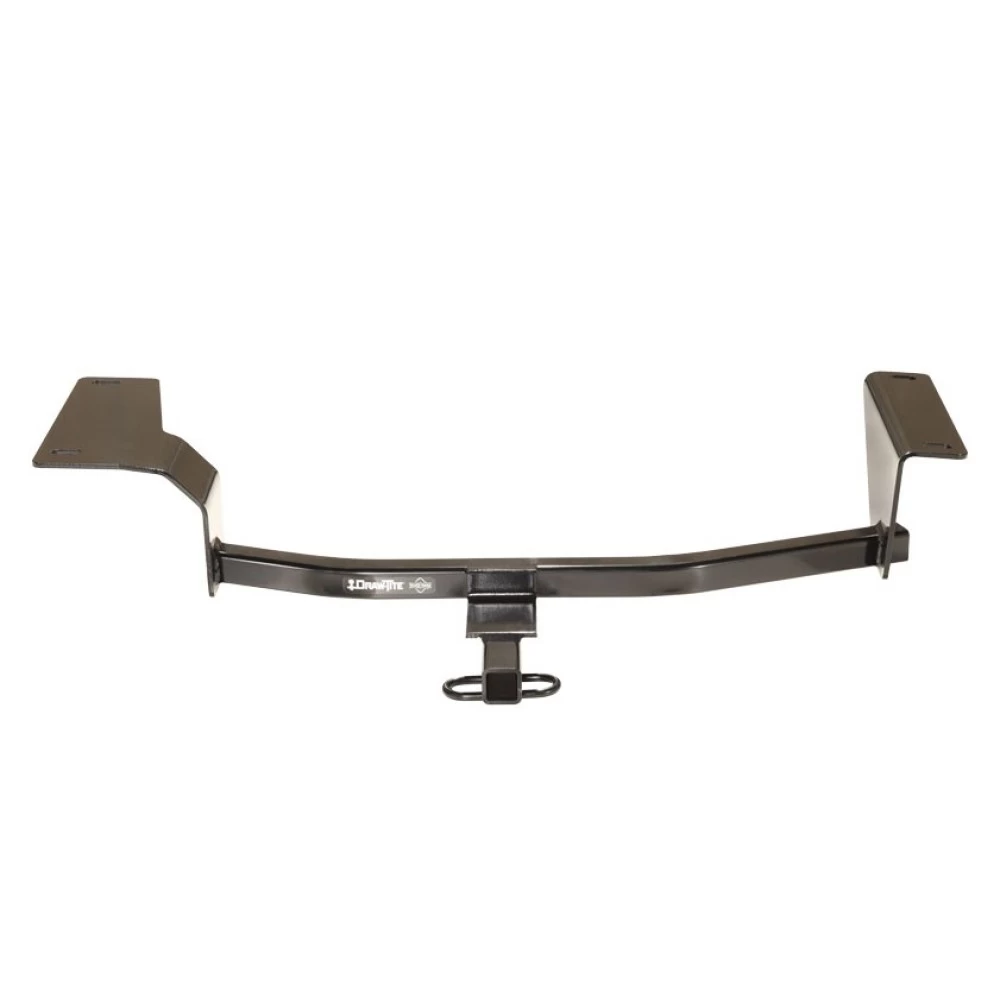

Trailer Hitch Specs:
| Part Number | 24882 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
| Part Number | 1393100G |
| Brand | Reese |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 120 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 28 lbs. |
| Warranty | 90 Day |
| Installation Instructions | |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-1-4" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 2211 |
| Fits | 1-1/4" Receiver |
| Brand | Draw-Tite |
| Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 11 12 13 14 15 16 17 18 19 2011 2012 2013 2014 2015 2016 2017 2018 2019
$341 66 $545.95 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$545.95 $341 66
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $85.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24882 1393100G 580407 2211
- Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Custom Fit Trailer Hitch
4 Bike Carrier
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2011 - 2015 Chevrolet, Cruze, All Styles
2012 - 2019 Buick, Verano, Except Turbo or w/Dual Exhaust
2016- 2018 Chevrolet, Cruze, Limited Only (Old Body Style)
Trailer Hitch Specs:
| Part Number | 24882 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
| Part Number | 1393100G |
| Brand | Reese |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 120 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 28 lbs. |
| Warranty | 90 Day |
| Installation Instructions | |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-1-4" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 2211 |
| Fits | 1-1/4" Receiver |
| Brand | Draw-Tite |
| Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 11 12 13 14 15 16 17 18 19 2011 2012 2013 2014 2015 2016 2017 2018 2019
Get Expert Help
Trailer Tow Hitch w/ 4 Bike Rack For 11-15 Chevy Cruze 16-18 Limited 12-19 Buick Verano Exc Turbo or Dual Exhaust tilt away adult or child arms fold down carrier w/ Lock and Cover Install Notes
Installation Instructions for Chevrolet Cruze and Buick Verano
Note: The Buick Verano requires modifications to the heat shield for proper installation.
Part Numbers:
- 24882
- 60299
- 77269
Wiring Access Location:
- Chevrolet Cruze: PC3, PC4
- Buick Verano: PC1, PC2
Tools Required:
- Pliers
- Lubricant
- Wrenches/Sockets: 13mm, 11/16”
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Exhaust System:
- On the Buick Verano, remove the bolt securing the exhaust hanger using a 13mm wrench.
- Spray lubricant on the metal hanger rod and rubber isolator for easier removal.
-
Modify Heat Shield (Buick Verano Only):
- Remove three (3) speed nuts from the heat shield using a screwdriver or pliers: two at the rear and one forward of the muffler.
- Either lower the heat shield or trim it to access the attachment holes in the frame rail.
-
Install Carriage Bolts and Blocks:
- Use the pull wires provided to fish carriage bolts and spacers through the access holes in the frame rail to the attachment points. Leave pull wires attached.
- For the Buick Verano, perform this step after trimming or lowering the heat shield.
-
Position Hitch:
- Raise the hitch into position over the exhaust. For the Buick Verano, slide the hitch into place from the rear of the vehicle.
- Sandwich the heat shield between the hitch and frame rail on the Buick Verano. Feed the pull wires through the slots in the hitch brackets.
-
Secure Fasteners:
- Push the hitch against the frame rails and remove the pull wires.
- Attach conical toothed washers and hex nuts to the bolts. Be careful not to push the fasteners back into the frame rail.
- Center the hitch on the vehicle.
-
Tighten Fasteners:
- Torque all 7/16”-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M).
-
Reinstall Components:
- Reattach the exhaust hanger and reinstall the heat shield if it was lowered.

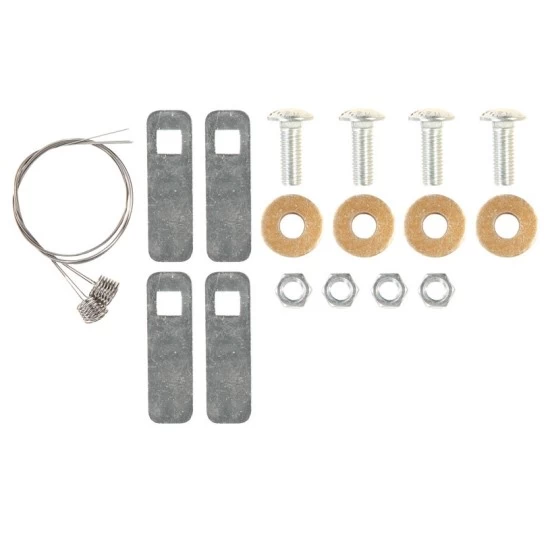

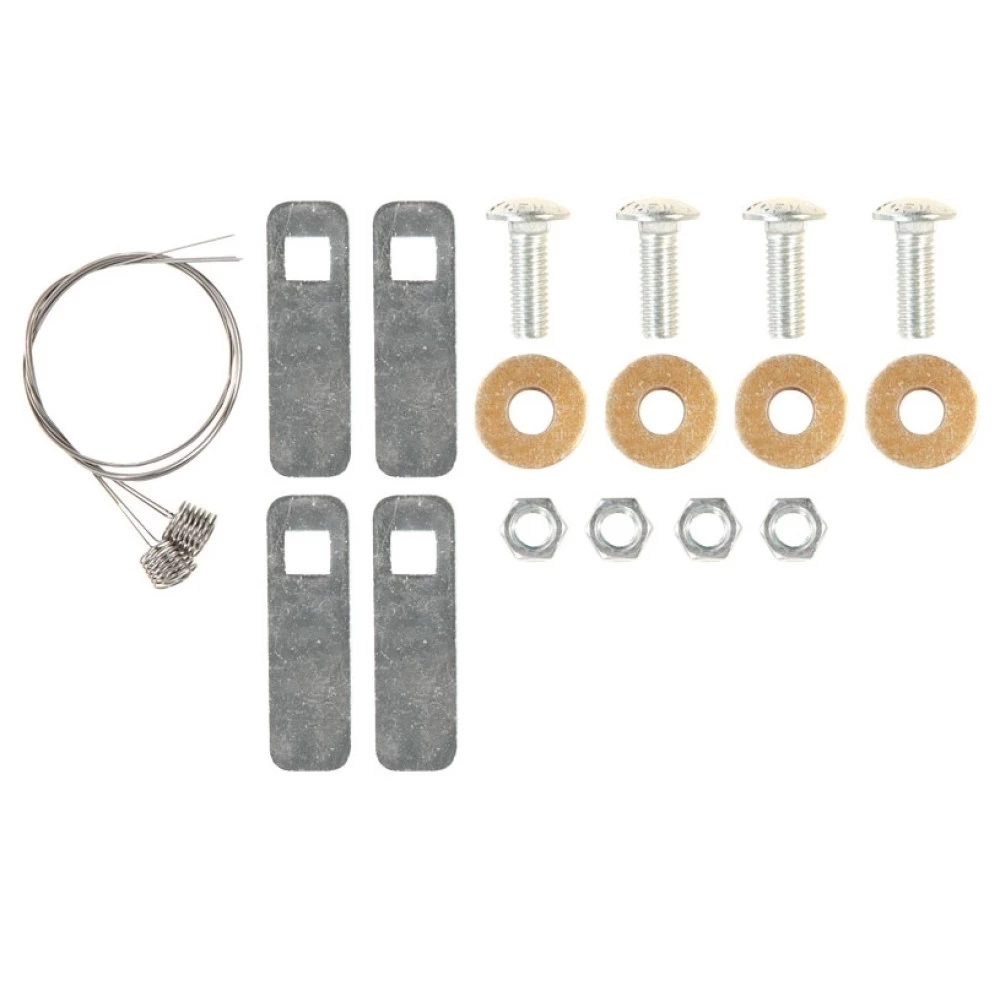

Hardware List:
- (4) Carriage Bolts: 7/16”-14 x 1.25” GR5
- (4) Spacers: 0.125 x 0.900 x 3.00
- (4) Conical Toothed Washers: 7/16”
- (4) Hex Nuts: 7/16”-14
- (4) Pull Wires: 7/16”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Buick Verano requires heat shield adjustments for proper installation.
Installation Instructions
Part Numbers:
- 24882
- 60299
- 77269
Wiring Access Location:
- Chevrolet Cruze: PC3, PC4
- Buick Verano: PC1, PC2
Tools Required:
- Pliers
- Lubricant
- Wrenches/Sockets: 13mm, 11/16”
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Exhaust System:
- On the Buick Verano, remove the bolt securing the exhaust hanger using a 13mm wrench.
- Spray lubricant on the metal hanger rod and rubber isolator for easier removal.
-
Modify Heat Shield (Buick Verano Only):
- Remove three (3) speed nuts from the heat shield using a screwdriver or pliers: two at the rear and one forward of the muffler.
- Either lower the heat shield or trim it to access the attachment holes in the frame rail.
-
Install Carriage Bolts and Blocks:
- Use the pull wires provided to fish carriage bolts and spacers through the access holes in the frame rail to the attachment points. Leave pull wires attached.
- For the Buick Verano, perform this step after trimming or lowering the heat shield.
-
Position Hitch:
- Raise the hitch into position over the exhaust. For the Buick Verano, slide the hitch into place from the rear of the vehicle.
- Sandwich the heat shield between the hitch and frame rail on the Buick Verano. Feed the pull wires through the slots in the hitch brackets.
-
Secure Fasteners:
- Push the hitch against the frame rails and remove the pull wires.
- Attach conical toothed washers and hex nuts to the bolts. Be careful not to push the fasteners back into the frame rail.
- Center the hitch on the vehicle.
-
Tighten Fasteners:
- Torque all 7/16”-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M).
-
Reinstall Components:
- Reattach the exhaust hanger and reinstall the heat shield if it was lowered.
Hardware List:
- (4) Carriage Bolts: 7/16”-14 x 1.25” GR5
- (4) Spacers: 0.125 x 0.900 x 3.00
- (4) Conical Toothed Washers: 7/16”
- (4) Hex Nuts: 7/16”-14
- (4) Pull Wires: 7/16”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Buick Verano requires heat shield adjustments for proper installation.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
