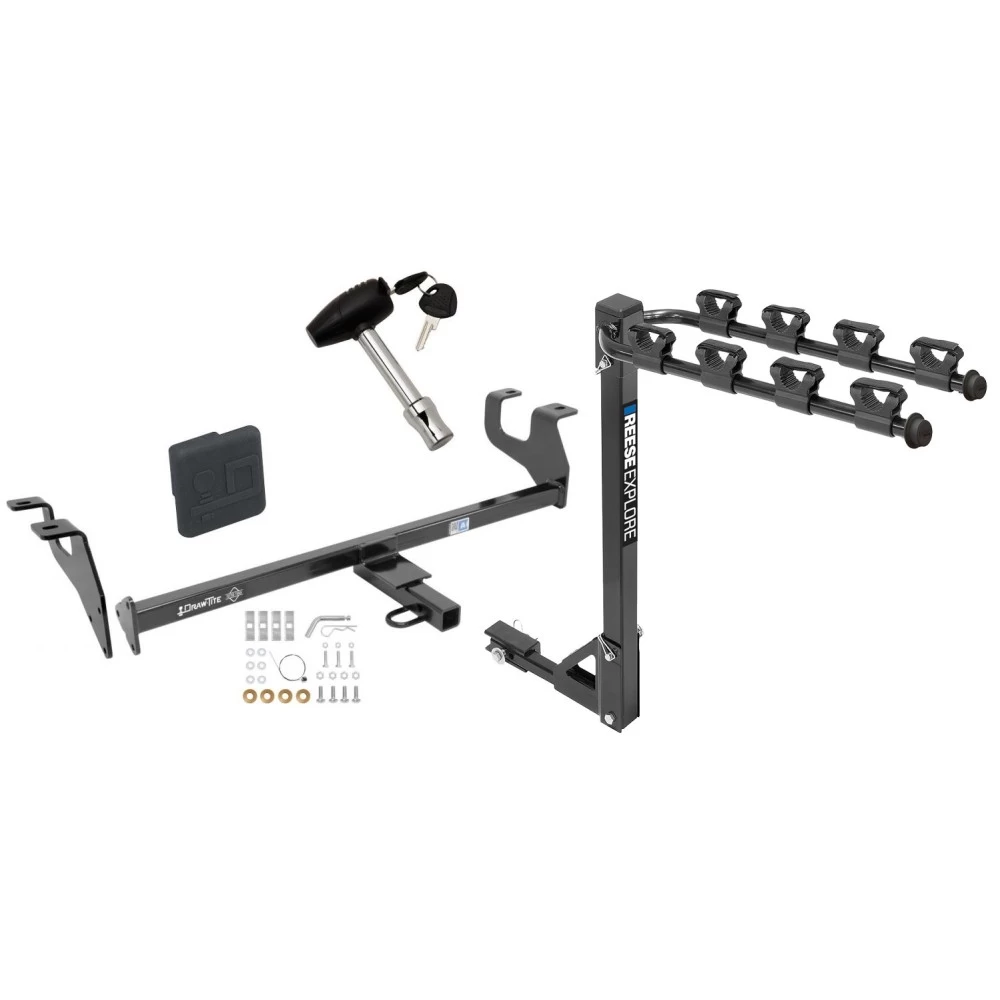

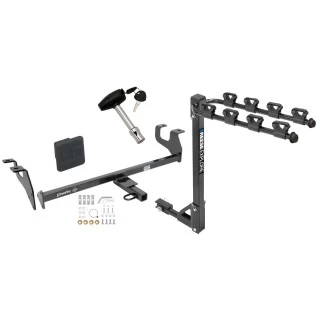

Trailer Tow Hitch w/ 4 Bike Rack For 15‑18 Chrysler 200 4 Dr. Sedan tilt away adult or child arms fold down carrier w/ Lock and Cover
Model: 24919 1393100G 580407 2211Custom Fit Trailer Hitch
4 Bike Carrier
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2015 - 2018 Chrysler, 200, 4 Dr. Sedan
Trailer Hitch Specs:
Bike Rack Specs:
Security Lock Pin Specs:
Part Number | 580407 |
Fits | 2" and 1-1-4" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 2211 |
Fits | 1-1/4" Receiver |
Brand | Draw-Tite |
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 15 16 17 18 2015 2016 2017 2018
$341 67 $545.95 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$545.95 $341 67
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $85.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24919 1393100G 580407 2211
- Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Custom Fit Trailer Hitch
4 Bike Carrier
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2015 - 2018 Chrysler, 200, 4 Dr. Sedan
Trailer Hitch Specs:
Bike Rack Specs:
Security Lock Pin Specs:
Part Number | 580407 |
Fits | 2" and 1-1-4" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 2211 |
Fits | 1-1/4" Receiver |
Brand | Draw-Tite |
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 15 16 17 18 2015 2016 2017 2018

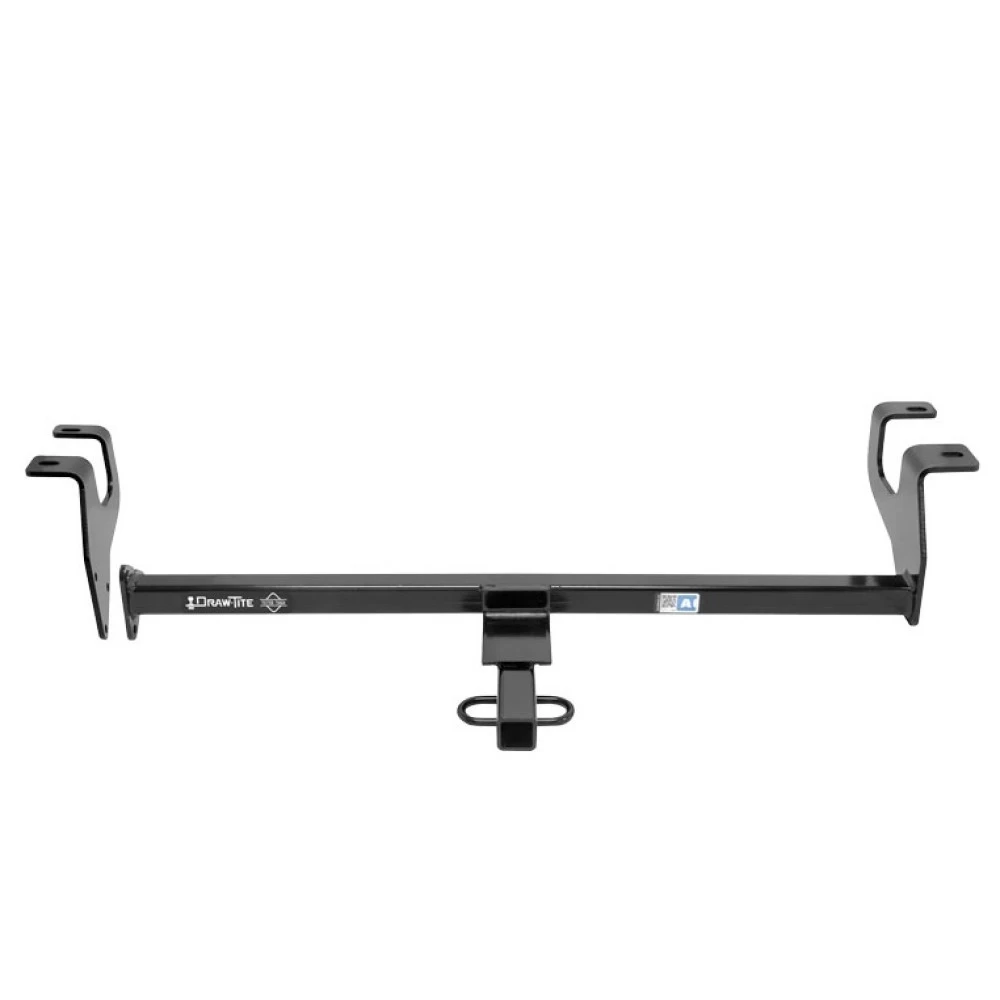

Specification | |
Attachment Location | Rear |
Color | Black |
Drawbar Included | No |
Drilling Required | No |
Gross Towing Weight | 2,000 lbs. |
Hitch Class | I |
Material | Steel |
Maximum Tongue Weight | 200 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 1.25 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Get Expert Help
Trailer Tow Hitch w/ 4 Bike Rack For 15-18 Chrysler 200 4 Dr. Sedan tilt away adult or child arms fold down carrier w/ Lock and Cover Install Notes
Installation Instructions for Chrysler 200
Part Numbers:
- 24919
- 60352
- 77306
- 24481 UH (U-Haul, sold separately)
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 11/16", 9/16", 8mm
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Covers and Bolts:
- Use an 8mm wrench to remove the bolts and plastic covers from the underside of the vehicle on both sides.
-
Remove Frame Rail Plugs:
- Remove the square rubber plugs from the underside of both frame rails.
-
Insert Carriage Bolts:
- Using the square access hole and supplied bolt leader, insert the 7/16" carriage bolts and spacer blocks into the frame rails as shown in Figure 1.
-
Install Driver-Side Bracket:
- Raise the driver-side bracket into place and attach with 7/16" conical washers and nuts. Finger tighten.
-
Position Hitch:
- Raise the hitch into position and secure it using 7/16" conical washers and nuts. Finger tighten.
-
Install Remaining Fasteners:
- For the driver-side bracket and hitch, install the 3/8" bolts (bolt heads facing toward the tailpipe) along with flat washers and lock nuts through the holes.
-
Tighten All Fasteners:
- Use a torque wrench to tighten fasteners to the following specifications:
- 7/16”-14 GR5 fasteners: 50 Lb.-Ft. (68 N*M)
- 3/8”-16 GR5 fasteners: 30 Lb.-Ft. (41 N*M)
- Use a torque wrench to tighten fasteners to the following specifications:
-
Reinstall Components:
- Reinstall the square plug removed from the frame rail.
- Reinstall the plastic covers. On single exhaust models, trim the plastic cover on the passenger side before reinstalling (refer to Figure 3).

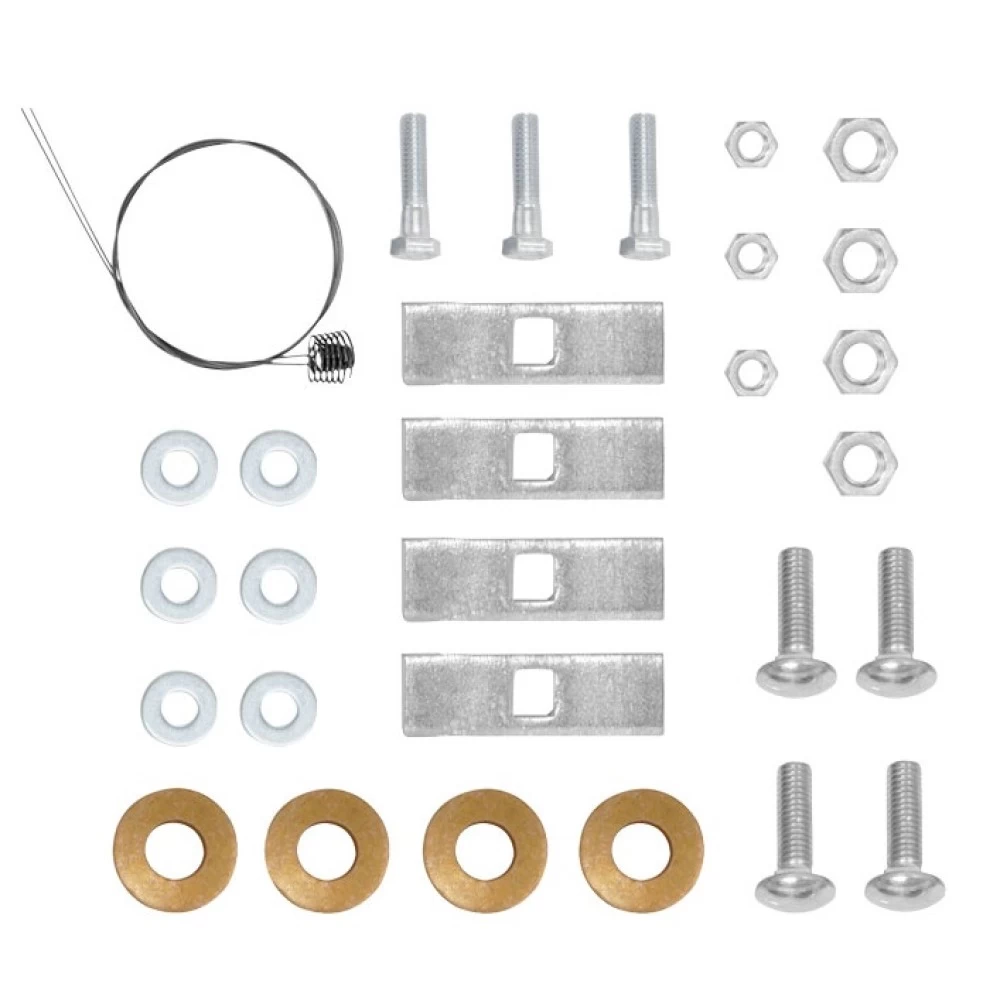

Hardware List:
- (4) Carriage Bolts: 7/16”-14 x 1.75” GR5
- (4) Spacer Blocks: 1.00” x 3.00” x 0.250”
- (4) Conical Washers: 7/16”
- (4) Hex Nuts: 7/16”-14
- (3) Bolts: 3/8”-16 x 1.50” GR5
- (6) Flat Washers: 5/16”
- (3) Lock Nuts: 3/8”-16
- (4) Bolt Leaders: 7/16”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Trim underbody shields as necessary for single exhaust models to allow proper hitch fitment.
Installation Instructions for Vehicle (All Models)
Part Numbers:
- 24919
- 60352
- 77306
- 24481 UH (sold separately)
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 11/16", 9/16", 8mm
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Covers and Bolts:
- Use an 8mm wrench to remove the bolts and plastic covers from the underside of the vehicle on both sides.
-
Remove Frame Rail Plugs:
- Remove the square rubber plugs from the underside of both frame rails.
-
Insert Carriage Bolts:
- Using the square access hole and supplied bolt leader, insert the 7/16" carriage bolts and spacer blocks into the frame rails as shown in Figure 1.
-
Install Driver-Side Bracket:
- Raise the driver-side bracket into place and attach with 7/16" conical washers and nuts. Finger tighten.
-
Position Hitch:
- Raise the hitch into position and secure it using 7/16" conical washers and nuts. Finger tighten.
-
Install Remaining Fasteners:
- For the driver-side bracket and hitch, install the 3/8" bolts (bolt heads facing toward the tailpipe) along with flat washers and lock nuts through the holes.
-
Tighten All Fasteners:
- Use a torque wrench to tighten fasteners to the following specifications:
- 7/16”-14 GR5 fasteners: 50 Lb.-Ft. (68 N*M)
- 3/8”-16 GR5 fasteners: 30 Lb.-Ft. (41 N*M)
- Use a torque wrench to tighten fasteners to the following specifications:
-
Reinstall Components:
- Reinstall the square plug removed from the frame rail.
- Reinstall the plastic covers. On single exhaust models, trim the plastic cover on the passenger side before reinstalling (refer to Figure 3).
Hardware List:
- (4) Carriage Bolts: 7/16”-14 x 1.75” GR5
- (4) Spacer Blocks: 1.00” x 3.00” x 0.250”
- (4) Conical Washers: 7/16”
- (4) Hex Nuts: 7/16”-14
- (3) Bolts: 3/8”-16 x 1.50” GR5
- (6) Flat Washers: 5/16”
- (3) Lock Nuts: 3/8”-16
- (4) Bolt Leaders: 7/16”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Trim underbody shields as necessary for single exhaust models to allow proper hitch fitment.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
