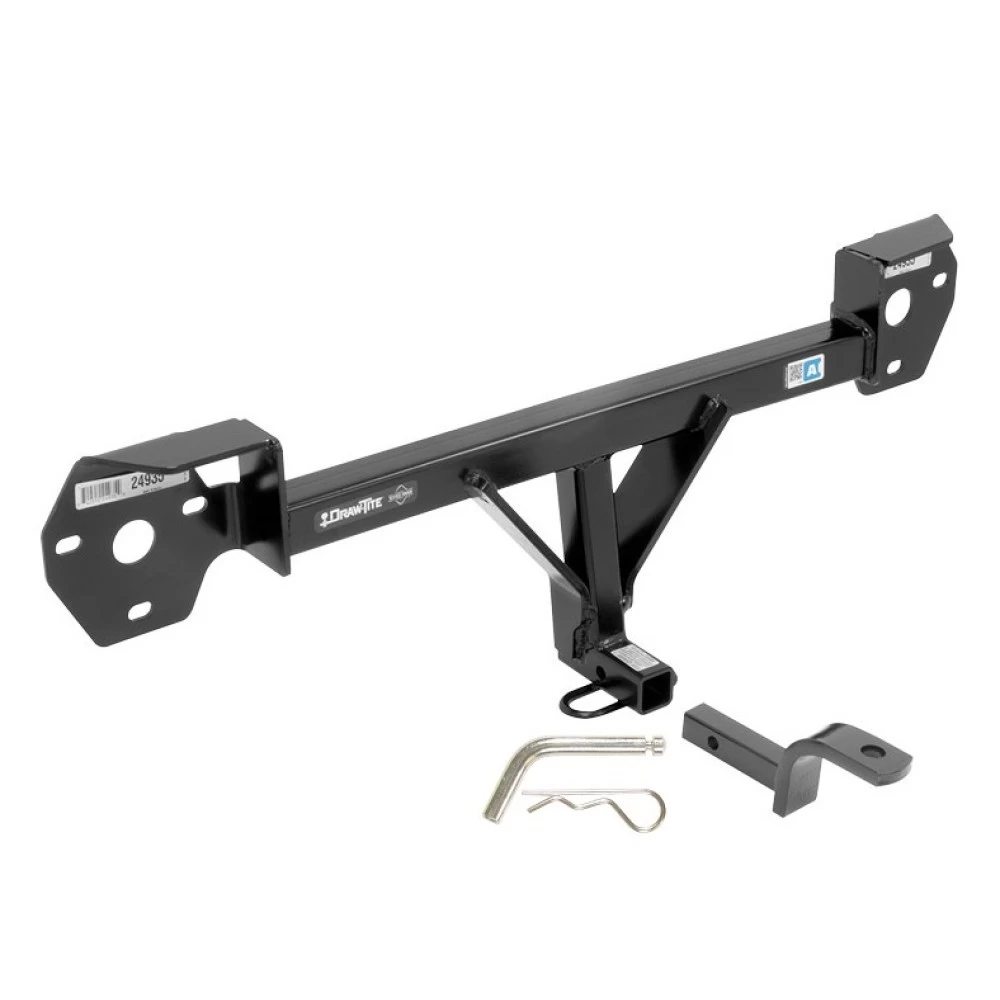

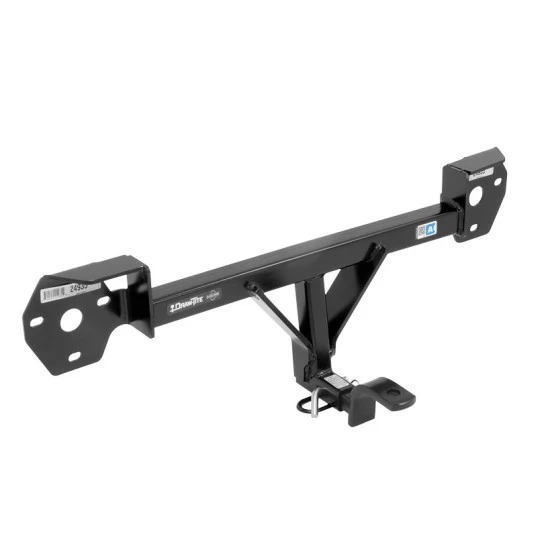

Installation Instructions for Scion FR-S and Subaru BRZ (2013-Present)

Part Numbers:

• 24935
• 60373
• 77322
• CQT24935

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• Sockets: 8mm, 15mm
• 6" Socket Extension
• Universal Joint Socket
• Phillips Screwdriver

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 2,000 lbs (907 kg)
  • Max Tongue Weight: 200 lbs (91 kg)
• Weight Distributing:
  • Not Applicable

Installation Time:

• Estimated: 75 minutes

Step-by-Step Instructions:

1. Remove Rivets and Screws:

• Remove (3) rivets underneath the vehicle and (2) rivets in the wheel wells on each side.

2. Remove Taillight Screws:

• Open the tailgate and use a Phillips screwdriver to remove (1) screw below each taillight.

3. Remove Trunk Rivets:

• Inside the trunk, remove (2) rivets on each side to access the taillight fasteners.

4. Remove Taillights:

• Disconnect the taillight wiring and use an 8mm socket to remove (4) flange nuts from each taillight. Gently remove the taillights.

5. Detach Bumper Cover:

• Pull the sides of the bumper cover away from the vehicle until they detach. Disconnect the wiring harness and set the bumper cover aside.

6. Remove Bumper:

• Use a 15mm socket to remove (4) bolts and (2) nuts securing the bumper. Set the bumper aside.

7. Install Hitch:

• Raise the hitch into position, placing it between the vehicle frame and the bumper. Loosely reinstall the factory bolts.

8. Tighten Fasteners:

• Use a torque wrench to tighten all 10mm fasteners to 42 lb-ft (57 N·m).

9. Reinstall Components:

• Reinstall the bumper cover, wiring harness, and taillights in reverse order.

Safety Notes:

• Regularly check the hitch and all fasteners to ensure secure attachment.
• If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water or exhaust fume entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and observe safety precautions when working beneath a vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class I
• Compliance: This product meets safety specifications and requirements as per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always adhere to the vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.

Installation Instructions for Scion FR-S and Subaru BRZ (2013-Present)

Part Numbers:

• 24935
• 60373
• 77322
• CQT24935

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• Sockets: 8mm, 15mm
• 6" Socket Extension
• Universal Joint Socket
• Phillips Screwdriver

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 2,000 lbs (907 kg)
  • Max Tongue Weight: 200 lbs (91 kg)
• Weight Distributing:
  • Not Applicable

Installation Time:

• Estimated: 75 minutes

Step-by-Step Instructions:

1. Remove Rivets and Screws:

• Remove (3) rivets underneath the vehicle and (2) rivets in the wheel wells on each side.

2. Remove Taillight Screws:

• Open the tailgate and use a Phillips screwdriver to remove (1) screw below each taillight.

3. Remove Trunk Rivets:

• Inside the trunk, remove (2) rivets on each side to access the taillight fasteners.

4. Remove Taillights:

• Disconnect the taillight wiring and use an 8mm socket to remove (4) flange nuts from each taillight. Gently remove the taillights.

5. Detach Bumper Cover:

• Pull the sides of the bumper cover away from the vehicle until they detach. Disconnect the wiring harness and set the bumper cover aside.

6. Remove Bumper:

• Use a 15mm socket to remove (4) bolts and (2) nuts securing the bumper. Set the bumper aside.

7. Install Hitch:

• Raise the hitch into position, placing it between the vehicle frame and the bumper. Loosely reinstall the factory bolts.

8. Tighten Fasteners:

• Use a torque wrench to tighten all 10mm fasteners to 42 lb-ft (57 N·m).

9. Reinstall Components:

• Reinstall the bumper cover, wiring harness, and taillights in reverse order.

Safety Notes:

• Regularly check the hitch and all fasteners to ensure secure attachment.
• If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water or exhaust fume entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and observe safety precautions when working beneath a vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class I
• Compliance: This product meets safety specifications and requirements as per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always adhere to the vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
