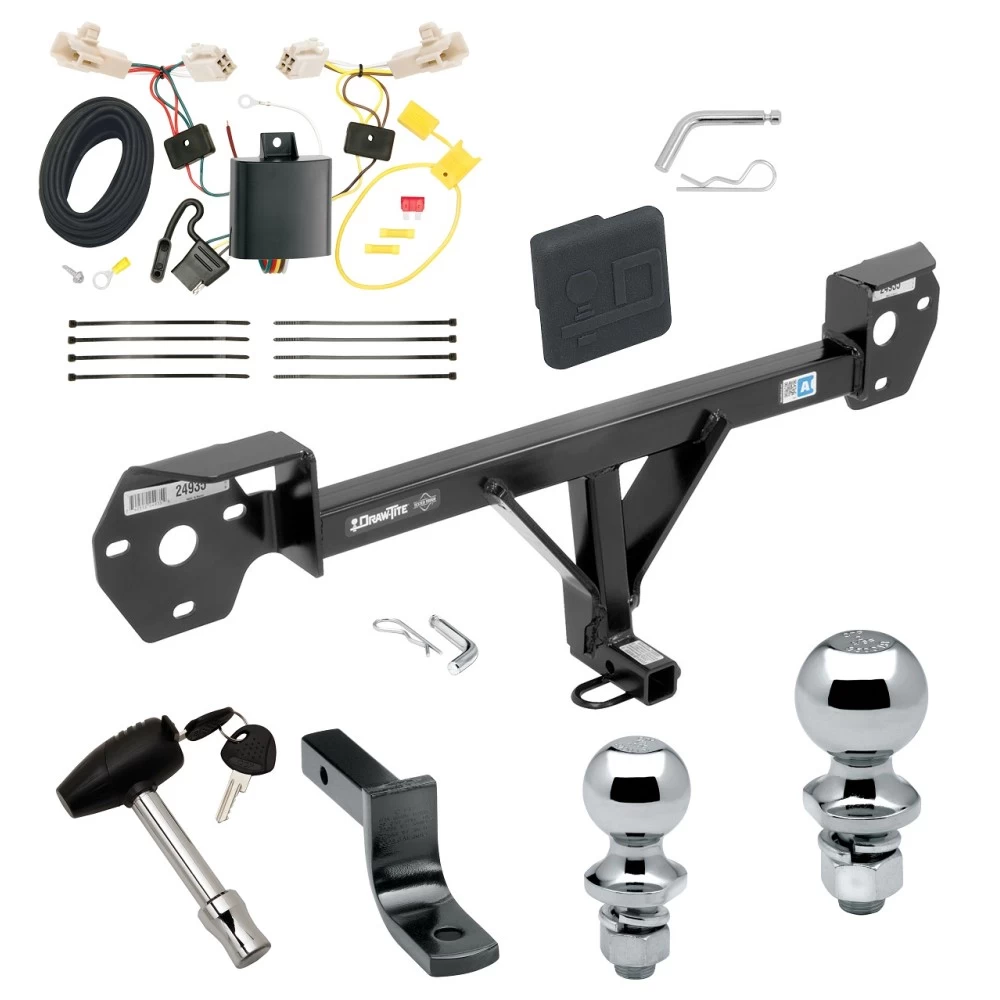

Trailer Tow Hitch For 13‑21 Subaru BRZ 13‑16 Scion FR‑S Deluxe Package Wiring 2" and 1‑7/8" Ball and Lock
Model: 249350 118629 63820 63810 580407 2211Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
1-7/8" and 2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2013 - 2016 Scion, FR-S, All Styles
2013 - 2021 Subaru, BRZ, All Styles
Trailer Hitch Specs:
| Part Number | 249350 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:

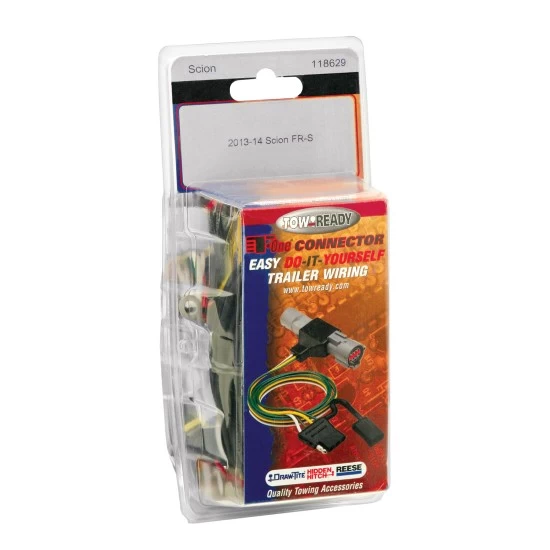

| Part Number | 118629 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Hitch Ball Specs:
| Part Number | 63820 |
| Brand | Draw-Tite |
| Size | 2" x 3/4" x 1-1/2" |
| Towing Capacity | 3,500 lbs. GTW |
| Material | Chrome |
| Torque | Torque to 160 ft. lbs |
| Shank Diameter | 3/4" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63810 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 3/4" x 1-1/2" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 3/4" |
| Warranty | Lifetime |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 2211 |
| Fits | 1-1/4" Receiver |
| Brand | Draw-Tite |
| Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
13 14 15 16 17 18 19 20 21 2013 2014 2015 2016 2017 2018 2019 2020 2021
$326 82 $531.88 39% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$531.88 $326 82
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $81.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 249350 118629 63820 63810 580407 2211
- Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
1-7/8" and 2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2013 - 2016 Scion, FR-S, All Styles
2013 - 2021 Subaru, BRZ, All Styles
Trailer Hitch Specs:
| Part Number | 249350 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118629 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Hitch Ball Specs:
| Part Number | 63820 |
| Brand | Draw-Tite |
| Size | 2" x 3/4" x 1-1/2" |
| Towing Capacity | 3,500 lbs. GTW |
| Material | Chrome |
| Torque | Torque to 160 ft. lbs |
| Shank Diameter | 3/4" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63810 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 3/4" x 1-1/2" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 3/4" |
| Warranty | Lifetime |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 2211 |
| Fits | 1-1/4" Receiver |
| Brand | Draw-Tite |
| Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
13 14 15 16 17 18 19 20 21 2013 2014 2015 2016 2017 2018 2019 2020 2021
Get Expert Help
Trailer Tow Hitch For 13-21 Subaru BRZ 13-16 Scion FR-S Deluxe Package Wiring 2" and 1-7/8" Ball and Lock Install Notes
Installation Instructions for Scion FR-S and Subaru BRZ (2013-Present)
Part Numbers:
- 24935
- 60373
- 77322
- CQT24935
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Sockets: 8mm, 15mm
- 6" Socket Extension
- Universal Joint Socket
- Phillips Screwdriver
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 2,000 lbs (907 kg)
- Max Tongue Weight: 200 lbs (91 kg)
- Weight Distributing:
- Not Applicable
Installation Time:
- Estimated: 75 minutes
Step-by-Step Instructions:
1. Remove Rivets and Screws:
- Remove (3) rivets underneath the vehicle and (2) rivets in the wheel wells on each side.
2. Remove Taillight Screws:
- Open the tailgate and use a Phillips screwdriver to remove (1) screw below each taillight.
3. Remove Trunk Rivets:
- Inside the trunk, remove (2) rivets on each side to access the taillight fasteners.
4. Remove Taillights:
- Disconnect the taillight wiring and use an 8mm socket to remove (4) flange nuts from each taillight. Gently remove the taillights.
5. Detach Bumper Cover:
- Pull the sides of the bumper cover away from the vehicle until they detach. Disconnect the wiring harness and set the bumper cover aside.
6. Remove Bumper:
- Use a 15mm socket to remove (4) bolts and (2) nuts securing the bumper. Set the bumper aside.
7. Install Hitch:
- Raise the hitch into position, placing it between the vehicle frame and the bumper. Loosely reinstall the factory bolts.
8. Tighten Fasteners:
- Use a torque wrench to tighten all 10mm fasteners to 42 lb-ft (57 N·m).
9. Reinstall Components:
- Reinstall the bumper cover, wiring harness, and taillights in reverse order.
Safety Notes:
- Regularly check the hitch and all fasteners to ensure secure attachment.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water or exhaust fume entry.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe safety precautions when working beneath a vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class I
- Compliance: This product meets safety specifications and requirements as per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always adhere to the vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.
Installation Instructions for Scion FR-S and Subaru BRZ (2013-Present)
Part Numbers:
- 24935
- 60373
- 77322
- CQT24935
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Sockets: 8mm, 15mm
- 6" Socket Extension
- Universal Joint Socket
- Phillips Screwdriver
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 2,000 lbs (907 kg)
- Max Tongue Weight: 200 lbs (91 kg)
- Weight Distributing:
- Not Applicable
Installation Time:
- Estimated: 75 minutes
Step-by-Step Instructions:
1. Remove Rivets and Screws:
- Remove (3) rivets underneath the vehicle and (2) rivets in the wheel wells on each side.
2. Remove Taillight Screws:
- Open the tailgate and use a Phillips screwdriver to remove (1) screw below each taillight.
3. Remove Trunk Rivets:
- Inside the trunk, remove (2) rivets on each side to access the taillight fasteners.
4. Remove Taillights:
- Disconnect the taillight wiring and use an 8mm socket to remove (4) flange nuts from each taillight. Gently remove the taillights.
5. Detach Bumper Cover:
- Pull the sides of the bumper cover away from the vehicle until they detach. Disconnect the wiring harness and set the bumper cover aside.
6. Remove Bumper:
- Use a 15mm socket to remove (4) bolts and (2) nuts securing the bumper. Set the bumper aside.
7. Install Hitch:
- Raise the hitch into position, placing it between the vehicle frame and the bumper. Loosely reinstall the factory bolts.
8. Tighten Fasteners:
- Use a torque wrench to tighten all 10mm fasteners to 42 lb-ft (57 N·m).
9. Reinstall Components:
- Reinstall the bumper cover, wiring harness, and taillights in reverse order.
Safety Notes:
- Regularly check the hitch and all fasteners to ensure secure attachment.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water or exhaust fume entry.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe safety precautions when working beneath a vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class I
- Compliance: This product meets safety specifications and requirements as per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always adhere to the vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Installation Instructions for T-Connector Adapter for Scion FR-S
Part Numbers:
- 118629
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open the Trunk:
- Remove the threshold panel.
- Partially remove the corner felt trunk liner on both sides to expose the vehicle’s taillight wiring harness.
-
Locate the Taillight Wiring Harness:
- On both sides of the vehicle, locate the taillight wiring harness connection points.
- Separate the connectors carefully, ensuring not to break the locking tabs.
- Ensure all connector surfaces are clean and free of dirt.
-
Install the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the driver’s side wiring connectors.
- Lock the connectors securely into place.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector containing the green wire below the threshold cover to the passenger-side taillight housing.
- Repeat Step 3 to connect the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
Caution:
- Verify the area behind the surface before drilling to avoid damage or injury.
-
Mount the Black Box:
- Mount the T-Connector black box on the driver’s side using the provided double-sided tape.
-
Connect the Power Wire:
- Inside the vehicle, connect the black 12-gauge wire to the red wire from the T-Connector black box using the supplied yellow butt connector.
- Route the black wire through a grommet and along the vehicle’s exterior frame to the battery in the engine compartment.
Warning:
- Avoid routing near hot pipes, heat shields, fuel tanks, or areas where the wire could be pinched or damaged.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Attach the yellow fuse holder to the positive (+) battery cable using the provided ring terminal.
- Connect the black wire to the fuse holder using the yellow butt connector.
- Insert the 10-amp fuse into the fuse holder.
-
Reconnect the Battery:
- Reconnect the vehicle’s negative (-) battery cable.
Warning:
- Ensure all connections are complete. Test the installation with a test light or trailer.
-
Secure the Wiring:
- Use the provided cable ties to secure the T-Connector harness, avoiding areas that may pinch, cut, or melt the wire.
-
Reassemble the Vehicle:
- Replace the plastic trim panels, threshold, storage covers, floor covering, and any other items removed during installation, ensuring no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the trunk area when not in use.
Specifications:
- Max. stop/turn light: 2.1 amps per side
- Max. tail lights: 5.6 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings.
- Always wear safety glasses and follow all safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
- Store these instructions for future reference.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118629
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open the Trunk:
- Remove the threshold panel.
- Partially remove the corner felt trunk liner on both sides to expose the vehicle’s taillight wiring harness.
-
Locate the Taillight Wiring Harness:
- On both sides of the vehicle, locate the taillight wiring harness connection points.
- Separate the connectors carefully, ensuring not to break the locking tabs.
- Ensure all connector surfaces are clean and free of dirt.
-
Install the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the driver’s side wiring connectors.
- Lock the connectors securely into place.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector containing the green wire below the threshold cover to the passenger-side taillight housing.
- Repeat Step 3 to connect the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
Caution:
- Verify the area behind the surface before drilling to avoid damage or injury.
-
Mount the Black Box:
- Mount the T-Connector black box on the driver’s side using the provided double-sided tape.
-
Connect the Power Wire:
- Inside the vehicle, connect the black 12-gauge wire to the red wire from the T-Connector black box using the supplied yellow butt connector.
- Route the black wire through a grommet and along the vehicle’s exterior frame to the battery in the engine compartment.
Warning:
- Avoid routing near hot pipes, heat shields, fuel tanks, or areas where the wire could be pinched or damaged.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Attach the yellow fuse holder to the positive (+) battery cable using the provided ring terminal.
- Connect the black wire to the fuse holder using the yellow butt connector.
- Insert the 10-amp fuse into the fuse holder.
-
Reconnect the Battery:
- Reconnect the vehicle’s negative (-) battery cable.
Warning:
- Ensure all connections are complete. Test the installation with a test light or trailer.
-
Secure the Wiring:
- Use the provided cable ties to secure the T-Connector harness, avoiding areas that may pinch, cut, or melt the wire.
-
Reassemble the Vehicle:
- Replace the plastic trim panels, threshold, storage covers, floor covering, and any other items removed during installation, ensuring no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the trunk area when not in use.
Specifications:
- Max. stop/turn light: 2.1 amps per side
- Max. tail lights: 5.6 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings.
- Always wear safety glasses and follow all safety precautions during installation.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance: Our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
- Store these instructions for future reference.
Related Products
-250x250.webp "Reese Trailer Hitch Lock 360 degree Rotating Head Tongue Tow Receiver 1/2\" and 5/8\" Pin For 2\" and 1-1/4\" Receivers")
-250x250.webp "Reese Trailer Hitch Lock Black Nickel Dog Bone Style Tongue Tow Receiver 1/2\" and 5/8\" Pin For 2\" and 1-1/4\" Receivers")
-250x250.webp "Reese Trailer Hitch Lock Dog Bone Tongue Tow Receiver 1/2\" and 5/8\" Pin For 2\" and 1-1/4\" Receivers")
-250x250w.webp "Reese Repl. Part 16K 18K & 24K Signature Series Fifth Wheel Hitch Puck Plugs")
