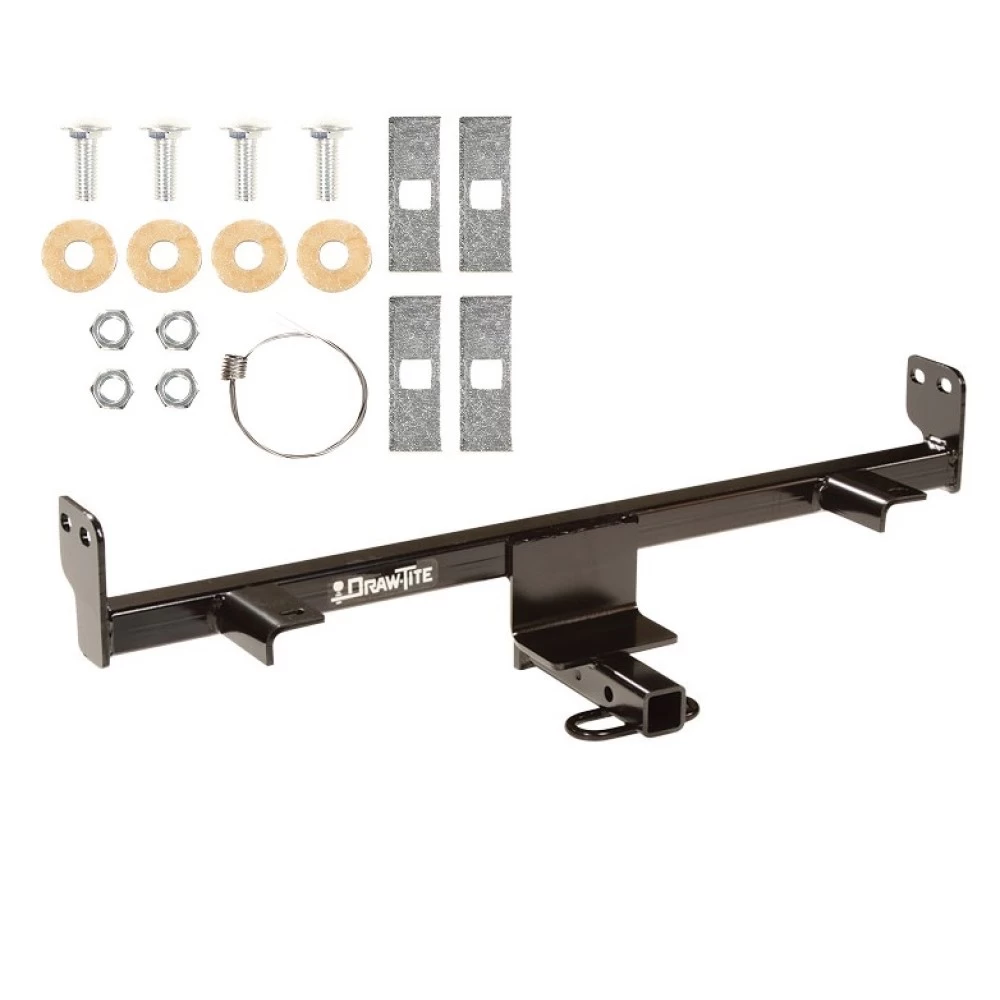

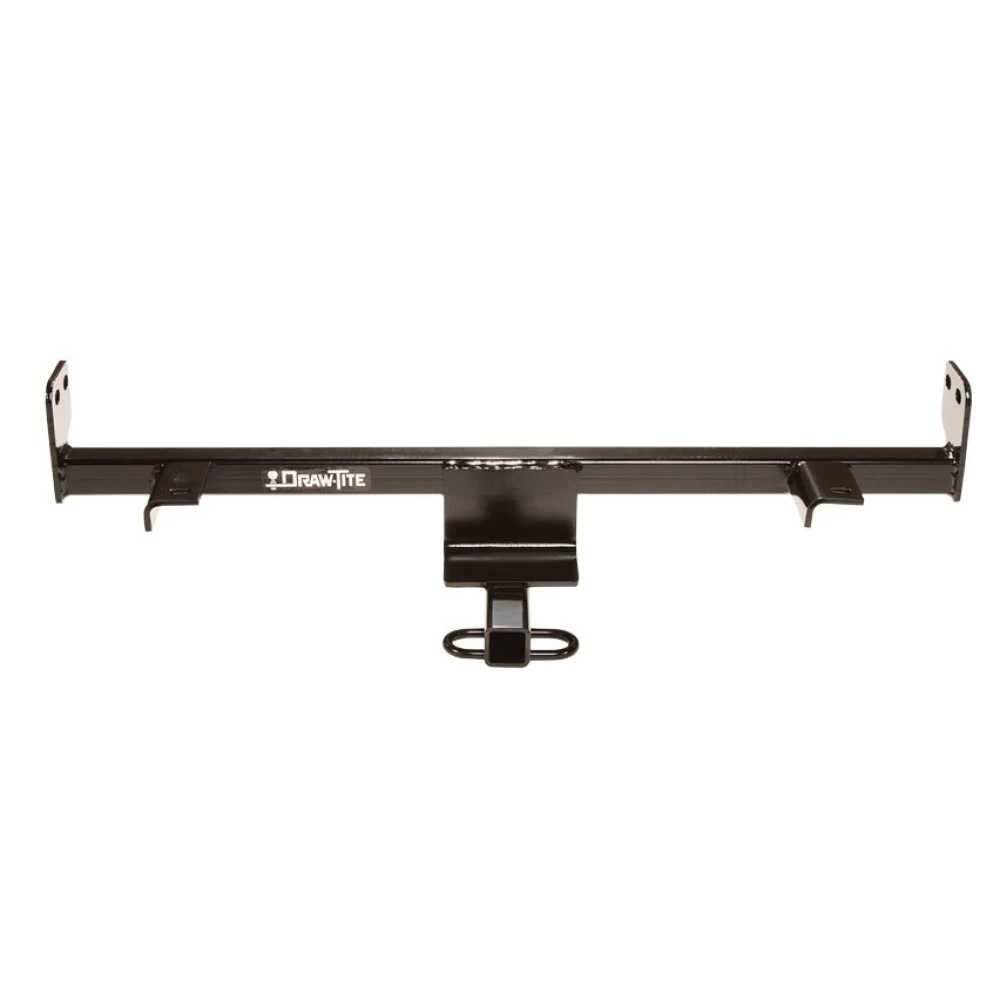

Trailer Tow Hitch For 04‑09 Mazda 3 1‑1/4" Towing Receiver Class 1
Model: 248162004 - 2005 Mazda, 3, 4 Dr. Sedan, Except w/Grand Touring LED Taillights
2004 - 2005 Mazda, 3, 5 Dr. Hatchback, Except w/Grand Touring LED Taillights
2006 - 2009 Mazda, 3, All Styles
Trailer Hitch Specs:
| Part Number | 24816 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 04 05 06 07 08 09 2004 2005 2006 2007 2008 2009
$203 94 $307.00 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$307.00 $203 94
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $50.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24816
- UPC: 742512248166
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Description
2004 - 2005 Mazda, 3, 4 Dr. Sedan, Except w/Grand Touring LED Taillights
2004 - 2005 Mazda, 3, 5 Dr. Hatchback, Except w/Grand Touring LED Taillights
2006 - 2009 Mazda, 3, All Styles
Trailer Hitch Specs:
| Part Number | 24816 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 04 05 06 07 08 09 2004 2005 2006 2007 2008 2009
Get Expert Help
Trailer Tow Hitch For 04-09 Mazda 3 1-1/4" Towing Receiver Class 1 Install Notes
Installation Instructions for Mazda 3 (Including Speed 3)
Part Numbers:
- 77188
- 60201
- 24816
Wiring Access Location:
- PC3, PC4
Tools Required:
- Flat Blade Screwdriver
- Fishwire (Provided)
- Drill Bits: 1/2”
- Wrenches: 11/16”
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (91 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Enlarge Attachment Holes:
- Use a 1/2” drill bit to enlarge the four existing attachment holes.
-
Remove Plastic Rivets:
- Use a flat blade screwdriver to remove and retain the two (2) plastic push rivets that attach the lower fascia supports to the vehicle.
-
Fishwire Carriage Bolts:
- Thread the fishwire through the carriage bolts and blocks.
- Pull the bolts and blocks through the ends of the bumper as shown in Figure 1.
-
Position Hitch:
- Place the hitch in position as shown in Figure 2.
-
Fishwire Additional Fasteners:
- Use the fishwire method to guide additional carriage bolts and blocks through the ends of the bumper mounts as shown in Figure 2.
-
Secure Fasteners:
- Install and tighten all fasteners as per the hardware list.
-
Reattach Plastic Rivets:
- Replace the plastic rivets removed in Step 2.
-
Tighten All Fasteners:
- Torque all 7/16”-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M) using a torque wrench.

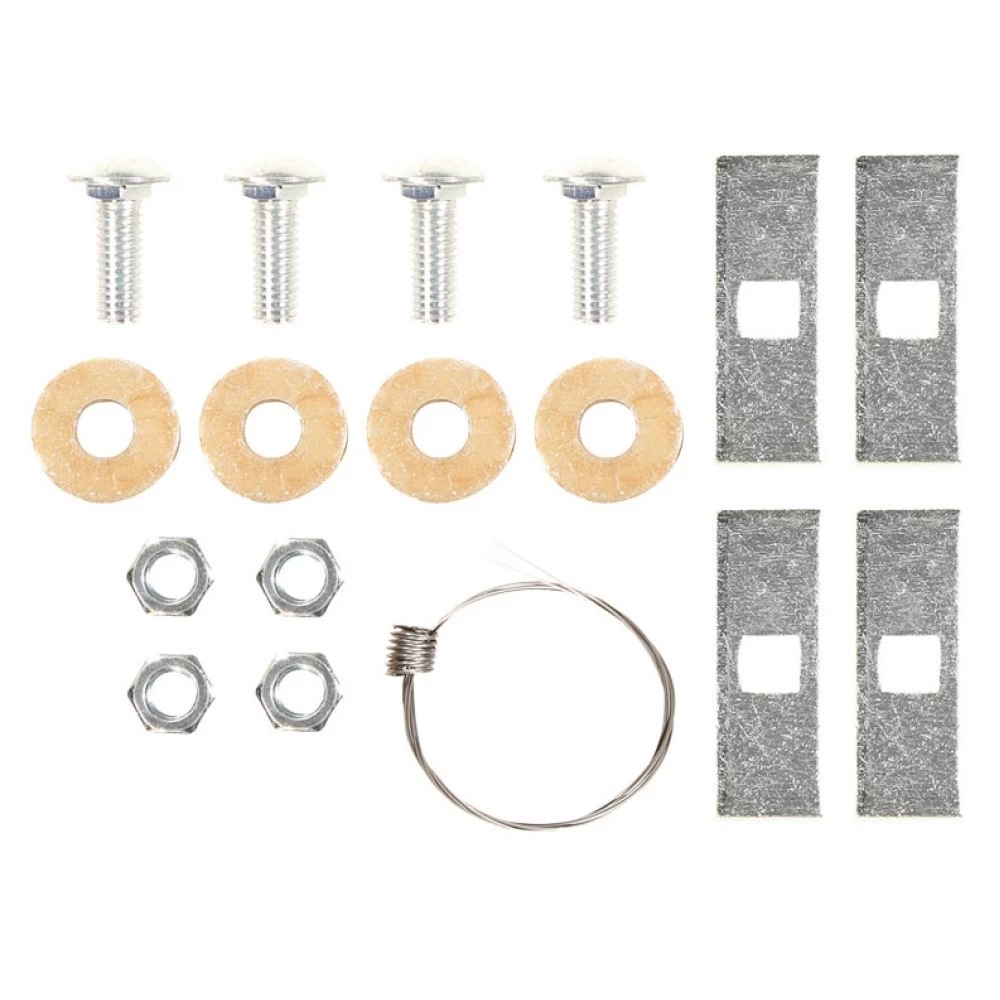

Hardware List:
- (4) Carriage Bolts: 7/16”-14 x 1-1/4” GR5
- (4) Hex Nuts: 7/16”-14
- (4) Blocks: 1/4” x 1” x 3”
- (4) Conical Toothed Washers
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3592
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- For specific models, use the slot indicated for 4-door or 5-door models and Speed 3 as shown in Figure 3.
Installation Instructions
Part Numbers:
- 77188
- 60201
- 24816
Wiring Access Location:
- PC3, PC4
Tools Required:
- Flat Blade Screwdriver
- Fishwire (Provided)
- Drill Bits: 1/2”
- Wrenches: 11/16”
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (91 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Enlarge Attachment Holes:
- Use a 1/2” drill bit to enlarge the four existing attachment holes.
-
Remove Plastic Rivets:
- Use a flat blade screwdriver to remove and retain the two (2) plastic push rivets that attach the lower fascia supports to the vehicle.
-
Fishwire Carriage Bolts:
- Thread the fishwire through the carriage bolts and blocks.
- Pull the bolts and blocks through the ends of the bumper as shown in Figure 1.
-
Position Hitch:
- Place the hitch in position as shown in Figure 2.
-
Fishwire Additional Fasteners:
- Use the fishwire method to guide additional carriage bolts and blocks through the ends of the bumper mounts as shown in Figure 2.
-
Secure Fasteners:
- Install and tighten all fasteners as per the hardware list.
-
Reattach Plastic Rivets:
- Replace the plastic rivets removed in Step 2.
-
Tighten All Fasteners:
- Torque all 7/16”-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M) using a torque wrench.
Hardware List:
- (4) Carriage Bolts: 7/16”-14 x 1-1/4” GR5
- (4) Hex Nuts: 7/16”-14
- (4) Blocks: 1/4” x 1” x 3”
- (4) Conical Toothed Washers
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3592
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- For specific models, use the slot indicated for 4-door or 5-door models and Speed 3 as shown in Figure 3.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
