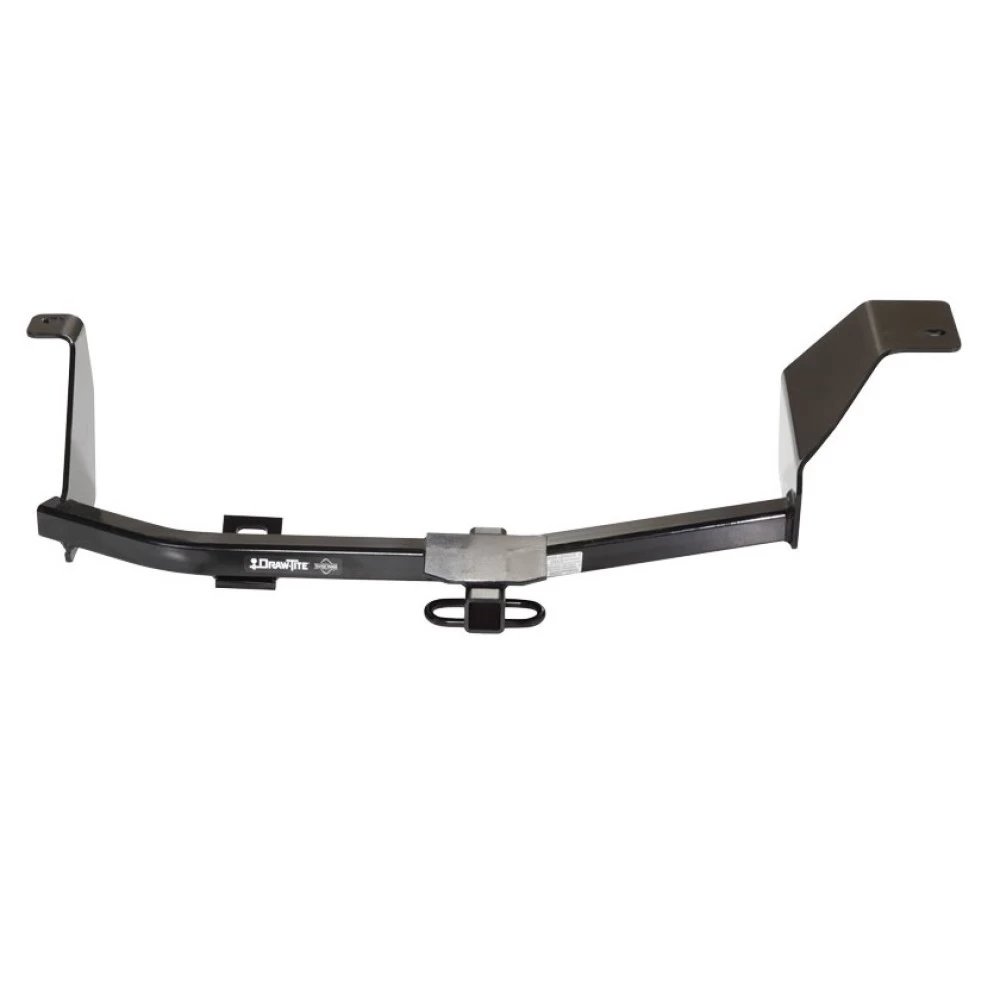

Trailer Tow Hitch For 12‑21 Nissan Versa Sedan 1‑1/4" Towing Receiver Class 1
Model: 248872012 - 2021 Nissan, Versa, 4 Dr. Sedan
Trailer Hitch Specs:
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 12 13 14 15 16 17 18 19 20 21 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021
$205 36 $320.73 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$320.73 $205 36
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $51.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24887
- UPC: 742512248876
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
2012 - 2021 Nissan, Versa, 4 Dr. Sedan
Trailer Hitch Specs:
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 12 13 14 15 16 17 18 19 20 21 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021
Specification | |
Attachment Location | Rear |
Color | Black |
Drawbar Included | No |
Drilling Required | Yes |
Gross Towing Weight | 2,000 lbs. |
Hitch Class | I |
Material | Steel |
Maximum Tongue Weight | 200 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 1.25 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Get Expert Help
Trailer Tow Hitch For 12-21 Nissan Versa Sedan 1-1/4" Towing Receiver Class 1 Install Notes
Installation Instructions for Nissan Versa Sedan
Part Numbers:
- 24887
- 60304
- 77275
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Pull Wire (included)
- Galvanic Isolators (provided)
- Lubricant or Soapy Water
- Tin Snips
- Wrenches/Sockets: M10, 11/16", 3/4"
- Drill Bits: 1/4"
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Exhaust:
- Detach the exhaust from the rubber isolator. Spray lubricant or soapy water on the metal hanger rod and rubber isolator for easier removal.
-
Remove Rearward Bolt:
- Remove the M6 bolt holding the heat shield in place. Return the bolt to the owner.
-
Trim Heat Shield:
- Use tin snips to trim the heat shield to allow access to the frame rail hole on the passenger side.
-
Prepare Frame Rails:
- Enlarge the holes on both frame rails as needed to allow the hitch brackets to sit flush. Scrape off undercoating and caulking from the bottom of the frame rails.
-
Install Passenger-Side Carriage Bolts:
- Use the reverse pull wire procedure to insert the 7/16” carriage bolt and block through the passenger-side frame rail hole. Leave the pull wire attached.
-
Install Tie-Down Hook Bolt:
- Insert the 1/2” carriage bolt and spacer through the tie-down hook on the driver’s side.
-
Apply Galvanic Isolators:
- Attach the galvanic isolators to the passenger-side hitch bracket as shown in the instructions.
-
Position Hitch:
- Feed pull wires through the hitch bracket slots and raise the hitch into position. Loosely install the 1/2” carriage bolt on the tie-down hook.
-
Secure Passenger-Side Bracket:
- Feed the pull wires through the passenger-side hitch bracket slots. Remove the pull wires and install fasteners as shown. Ensure the heat shield is sandwiched between the hitch and frame rail on the passenger side.
-
Center Hitch:
- Adjust and center the hitch on the vehicle.
-
Tighten Fasteners:
- Torque all 7/16”-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M).
- Torque all 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
-
Reinstall Exhaust:
- Reattach the exhaust to the rubber isolator.

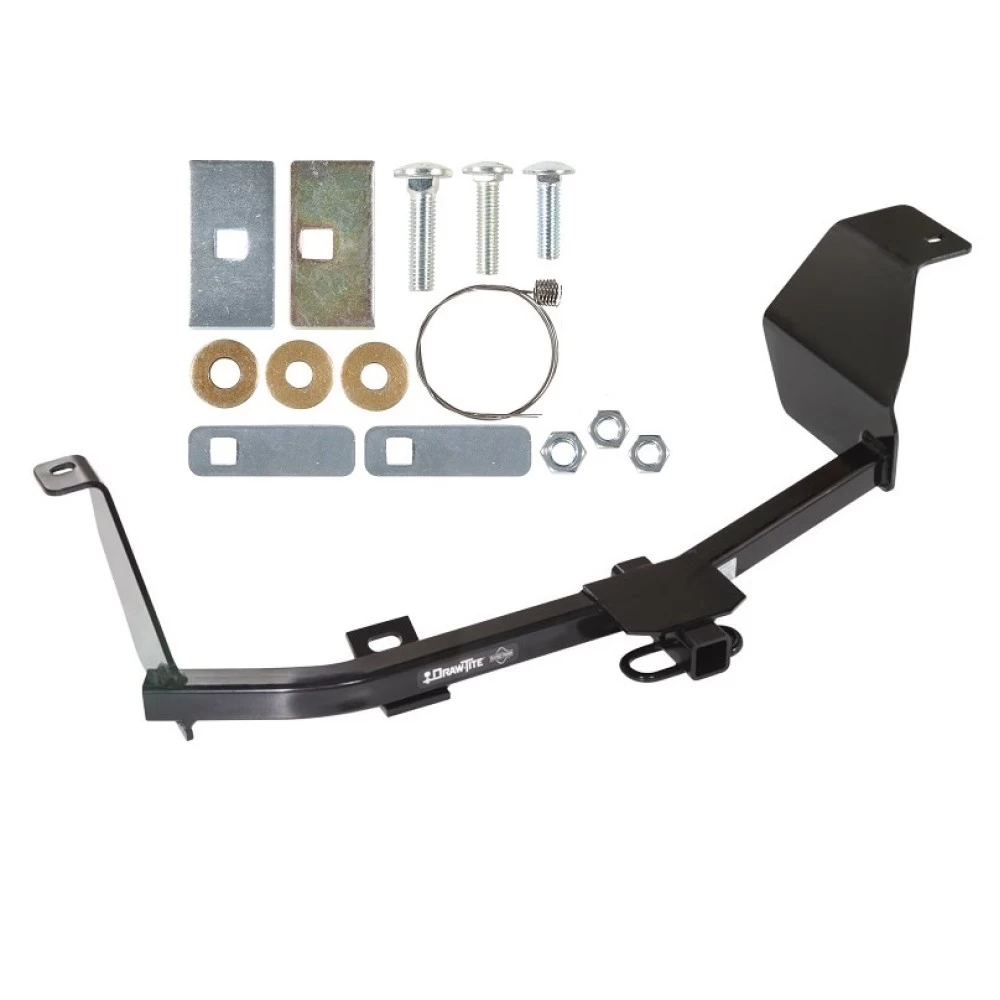

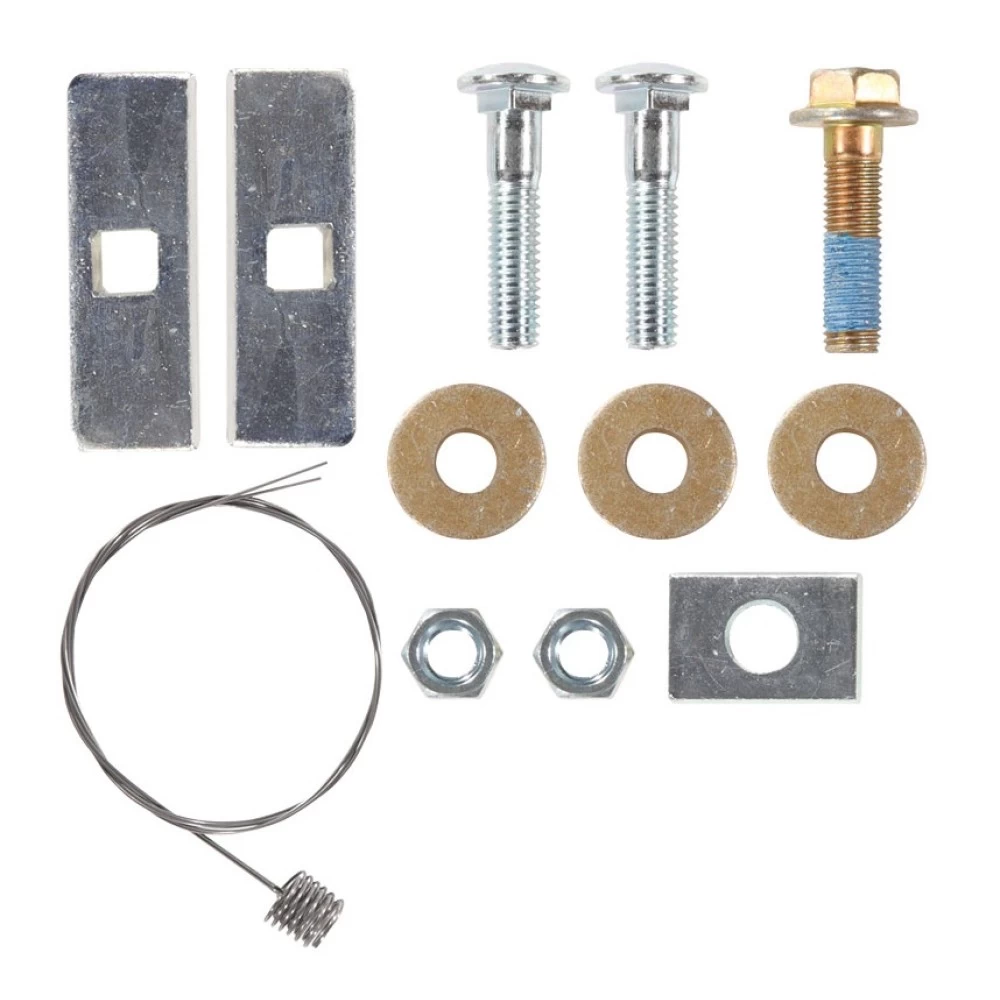

Hardware List:
- (1) Carriage Bolt: 1/2”-13 x 2.00” GR5
- (1) Carriage Bolt: 7/16”-14 x 1.75” GR5
- (1) Carriage Bolt: 7/16”-14 x 1.50” GR5
- (1) Spacer: 1/4” x 1.50” x 3.00”
- (1) Spacer: 1/4” x 1.50” x 2.00”
- (2) Spacers: 1/8” x 0.90” x 3.00”
- (1) Conical Washer: 1/2”
- (2) Conical Washers: 7/16”
- (1) Hex Nut: 1/2”-13
- (2) Hex Nuts: 7/16”-14
- (1) Pull Wire: 7/16”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3592
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Installation Instructions for Vehicle (All Models)
Part Numbers:
- 24887
- 60304
- 77275
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Pull Wire (included)
- Galvanic Isolators (provided)
- Lubricant or Soapy Water
- Tin Snips
- Wrenches/Sockets: M10, 11/16", 3/4"
- Drill Bits: 1/4"
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Exhaust:
- Detach the exhaust from the rubber isolator. Spray lubricant or soapy water on the metal hanger rod and rubber isolator for easier removal.
-
Remove Rearward Bolt:
- Remove the M6 bolt holding the heat shield in place. Return the bolt to the owner.
-
Trim Heat Shield:
- Use tin snips to trim the heat shield to allow access to the frame rail hole on the passenger side.
-
Prepare Frame Rails:
- Enlarge the holes on both frame rails as needed to allow the hitch brackets to sit flush. Scrape off undercoating and caulking from the bottom of the frame rails.
-
Install Passenger-Side Carriage Bolts:
- Use the reverse pull wire procedure to insert the 7/16” carriage bolt and block through the passenger-side frame rail hole. Leave the pull wire attached.
-
Install Tie-Down Hook Bolt:
- Insert the 1/2” carriage bolt and spacer through the tie-down hook on the driver’s side.
-
Apply Galvanic Isolators:
- Attach the galvanic isolators to the passenger-side hitch bracket as shown in the instructions.
-
Position Hitch:
- Feed pull wires through the hitch bracket slots and raise the hitch into position. Loosely install the 1/2” carriage bolt on the tie-down hook.
-
Secure Passenger-Side Bracket:
- Feed the pull wires through the passenger-side hitch bracket slots. Remove the pull wires and install fasteners as shown. Ensure the heat shield is sandwiched between the hitch and frame rail on the passenger side.
-
Center Hitch:
- Adjust and center the hitch on the vehicle.
-
Tighten Fasteners:
- Torque all 7/16”-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M).
- Torque all 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
-
Reinstall Exhaust:
- Reattach the exhaust to the rubber isolator.
Hardware List:
- (1) Carriage Bolt: 1/2”-13 x 2.00” GR5
- (1) Carriage Bolt: 7/16”-14 x 1.75” GR5
- (1) Carriage Bolt: 7/16”-14 x 1.50” GR5
- (1) Spacer: 1/4” x 1.50” x 3.00”
- (1) Spacer: 1/4” x 1.50” x 2.00”
- (2) Spacers: 1/8” x 0.90” x 3.00”
- (1) Conical Washer: 1/2”
- (2) Conical Washers: 7/16”
- (1) Hex Nut: 1/2”-13
- (2) Hex Nuts: 7/16”-14
- (1) Pull Wire: 7/16”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3592
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Use silicone sealant around frame access holes to prevent water entry.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
