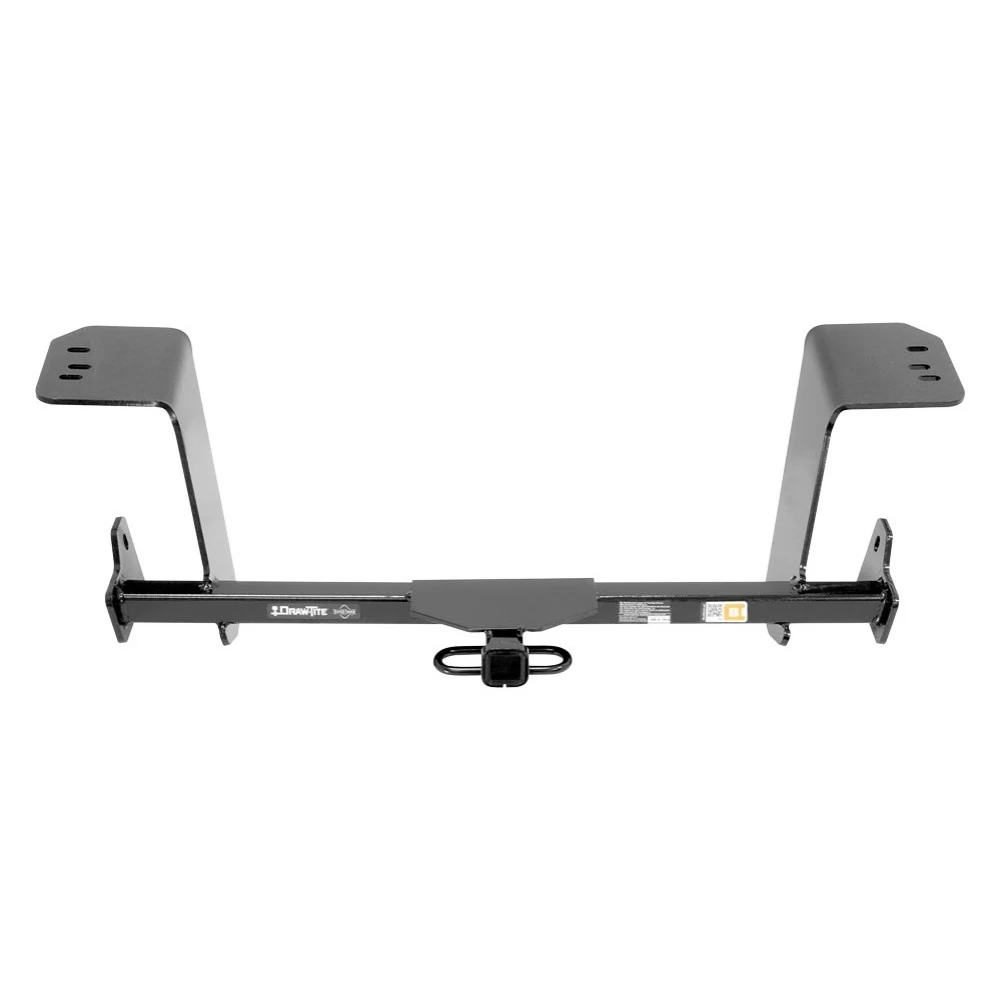

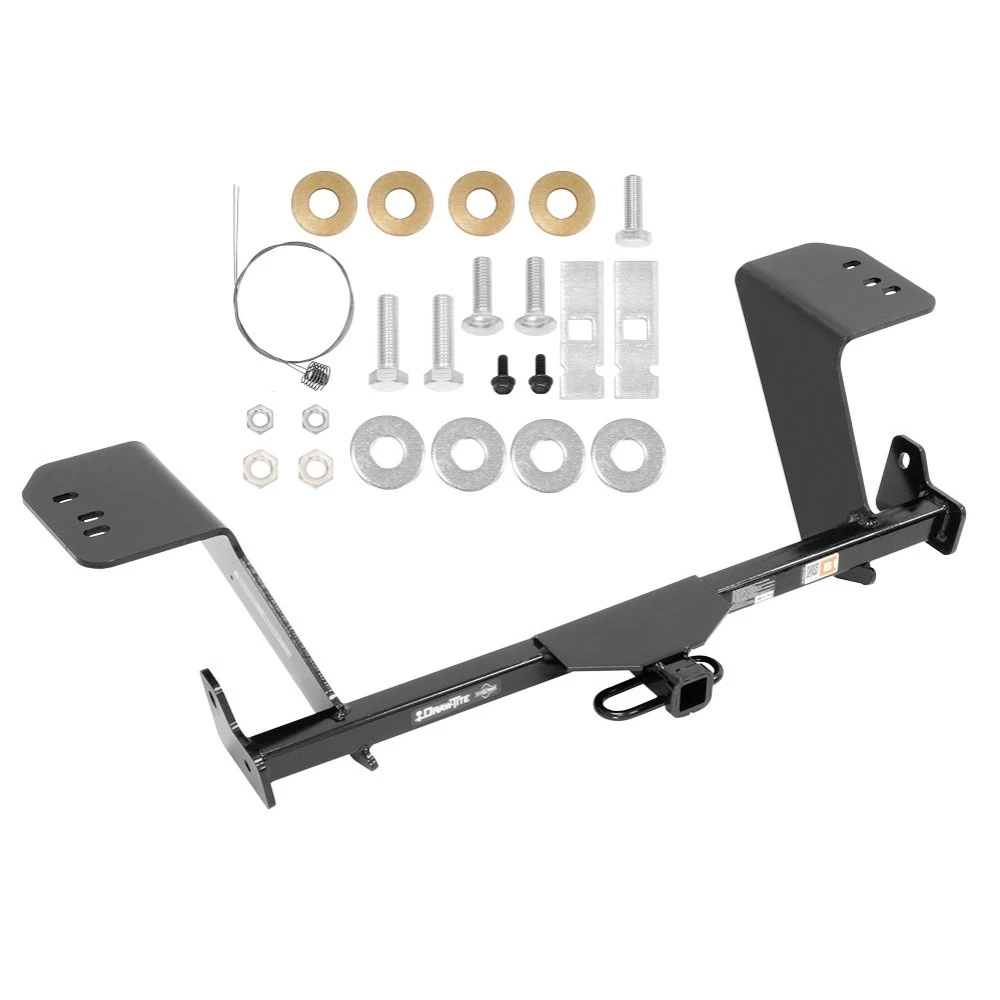

Trailer Tow Hitch For 13‑18 Lexus ES350 Except Hybrid 1‑1/4" Receiver Class 2
Model: 36530
2013 - 2018 Lexus, ES350, Except Hybrid
Trailer Hitch Specs:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 13 14 15 16 17 18 2013 2014 2015 2016 2017 2018
$205 38 $320.73 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$320.73 $205 38
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $51.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 36530
- UPC: 742512365306
- Includes: Class 2 Trailer Tow Hitch
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Color | Black |
Drawbar Included | No |
Drilling Required | Yes |
Gross Towing Weight | 3,500 lbs. |
Hitch Class | II |
Material | Steel |
Maximum Tongue Weight | 300 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 1.25 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description
2013 - 2018 Lexus, ES350, Except Hybrid
Trailer Hitch Specs:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 13 14 15 16 17 18 2013 2014 2015 2016 2017 2018
Get Expert Help
Trailer Tow Hitch For 13-18 Lexus ES350 Except Hybrid 1-1/4" Receiver Class 2 Install Notes
Installation Instructions for Lexus ES350 (Excluding Hybrid Models)
Part Numbers:
- 36530
- 90227
- 06154
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 10mm, 12mm, 13mm, 14mm, 17mm, 11/16", 3/4"
- Pull Wires (provided)
- Tin Snips
- Lubricant or Soapy Water
- Drill with 1/4" and 1" Bits
Step-by-Step Instructions:
-
Lower Exhaust:
- Detach the exhaust system at the rubber isolators in 4 locations.
- Spray lubricant on the metal hanger rod and rubber isolator to ease removal.
- Support the exhaust system.
- Lower the exhaust further by removing the hanger behind the passenger-side muffler and the next hanger using a 12mm socket.
-
Loosen Exhaust Hangers:
- Loosen the exhaust at the hanger brackets using a 14mm socket (3 locations on each side).
-
Remove Heat Shields:
- Remove the heat shields and set them aside for reinstallation.
-
Test Fit Hitch:
- Temporarily raise the hitch into position over the exhaust.
- Loosely install the 1/2" fasteners to the vehicle hanger brackets.
- Use the additional 1/2" flat washers as needed to account for vehicle variance.
- Push the forward brackets into place against the bottom of the vehicle frame.
- If the forward hole (on both sides) does not align with an existing frame hole, mark the hole location using the hitch as a template.
-
Drill Holes:
- Lower the hitch and drill a 1/4" pilot hole and a 1" access hole as needed.
- Mark and drill the heat shield for the 7/16" carriage bolt.
-
Fishwire Hardware:
- Insert the carriage bolts and blocks into the frame rail using the provided pull wires (see Figure 2).
- Leave pull wires attached.
-
Reinstall Hitch:
- Raise the hitch back into position and loosely install the 1/2" fasteners to the vehicle hanger brackets.
- Feed the pull wires through the hitch brackets and install the remaining fasteners.
-
Reinstall Heat Shields:
- Reinstall the heat shields removed in Step 3.
-
Tighten Fasteners:
- Torque all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).
- Torque all 1/2"-13 GR5 fasteners to 75 ft-lb (102 N*m).
Hardware List:
- (2) Hex Bolt, 1/2"-13 x 1.75" GR5
- (2) Carriage Bolt, 7/16"-14 x 1.50" GR5
- (2) Spacer Blocks, 1" x 2"
- (4) Flat Washers, 1/2"
- (2) Conical Washers, 7/16"
- (2) Conical Washers, 1/2"
- (2) Hex Nut, 7/16"-14
- (2) Hex Nut, 1/2"-13
- (2) Hex Bolt, M6 x 1.00 x 16mm (for heat shields)
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
Additional Notes:
- Drawbar Kit: 36071 (sold separately)
- Fastener Kit: 36530F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Lexus ES350 (Excluding Hybrid Models)
Part Numbers:
- 36530
- 90227
- 06154
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 10mm, 12mm, 13mm, 14mm, 17mm, 11/16", 3/4"
- Pull Wires (provided)
- Tin Snips
- Lubricant or Soapy Water
- Drill with 1/4" and 1" Bits
Step-by-Step Instructions:
-
Lower Exhaust:
- Detach the exhaust system at the rubber isolators in 4 locations.
- Spray lubricant on the metal hanger rod and rubber isolator to ease removal.
- Support the exhaust system.
- Lower the exhaust further by removing the hanger behind the passenger-side muffler and the next hanger using a 12mm socket.
-
Loosen Exhaust Hangers:
- Loosen the exhaust at the hanger brackets using a 14mm socket (3 locations on each side).
-
Remove Heat Shields:
- Remove the heat shields and set them aside for reinstallation.
-
Test Fit Hitch:
- Temporarily raise the hitch into position over the exhaust.
- Loosely install the 1/2" fasteners to the vehicle hanger brackets.
- Use the additional 1/2" flat washers as needed to account for vehicle variance.
- Push the forward brackets into place against the bottom of the vehicle frame.
- If the forward hole (on both sides) does not align with an existing frame hole, mark the hole location using the hitch as a template.
-
Drill Holes:
- Lower the hitch and drill a 1/4" pilot hole and a 1" access hole as needed.
- Mark and drill the heat shield for the 7/16" carriage bolt.
-
Fishwire Hardware:
- Insert the carriage bolts and blocks into the frame rail using the provided pull wires (see Figure 2).
- Leave pull wires attached.
-
Reinstall Hitch:
- Raise the hitch back into position and loosely install the 1/2" fasteners to the vehicle hanger brackets.
- Feed the pull wires through the hitch brackets and install the remaining fasteners.
-
Reinstall Heat Shields:
- Reinstall the heat shields removed in Step 3.
-
Tighten Fasteners:
- Torque all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).
- Torque all 1/2"-13 GR5 fasteners to 75 ft-lb (102 N*m).
Hardware List:
- (2) Hex Bolt, 1/2"-13 x 1.75" GR5
- (2) Carriage Bolt, 7/16"-14 x 1.50" GR5
- (2) Spacer Blocks, 1" x 2"
- (4) Flat Washers, 1/2"
- (2) Conical Washers, 7/16"
- (2) Conical Washers, 1/2"
- (2) Hex Nut, 7/16"-14
- (2) Hex Nut, 1/2"-13
- (2) Hex Bolt, M6 x 1.00 x 16mm (for heat shields)
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
Additional Notes:
- Drawbar Kit: 36071 (sold separately)
- Fastener Kit: 36530F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
