Reese Trailer Tow Hitch For 20‑24 Ford Escape Except Hybrid 1‑1/4" Receiver Class 2
Model: 061952020 - 2024 Ford, Escape, Except Hybrid
Trailer Hitch Specs:
Partial list of fitment years: 20 21 22 23 24 2020 2021 2022 2023 2024
$225 91 $352.79 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$352.79 $225 91
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $56.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 06195

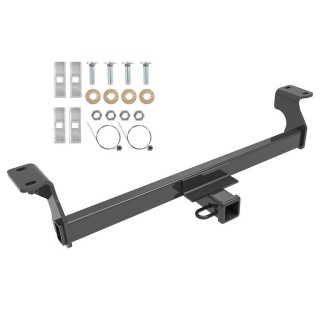

- Includes: Class 2 Trailer Tow Hitch
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Color | Black |
Drawbar Included | No |
Drilling Required | No |
Gross Towing Weight | 3,500 lbs. |
Hitch Class | II |
Material | Steel |
Maximum Tongue Weight | 350 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 1.25 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
File | Size | |
---|---|---|
Trailer Hitch Instructions | 1.24MB | Download |
Description
2020 - 2024 Ford, Escape, Except Hybrid
Trailer Hitch Specs:
Partial list of fitment years: 20 21 22 23 24 2020 2021 2022 2023 2024
Get Expert Help
Reese Trailer Tow Hitch For 20-24 Ford Escape Except Hybrid 1-1/4" Receiver Class 2 Install Notes
Installation Instructions for Ford Escape (2020-Current)
Part Numbers:
- 36110
- 06195
- CQT36110
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 7/16"
- Exhaust Removal Pliers
- Die Grinder
- 6" Socket Extension
Step-by-Step Instructions:
-
Lower Vehicle Exhaust:
- Using an exhaust hanger removal tool, lower the muffler by removing the rearmost rubber hangers on the driver and passenger sides.
- Ensure the exhaust is supported before removing the hangers.
- Apply a spray lubricant or soapy water to ease the removal of rubber hangers from the metal pins.
-
Install Hitch:
- Using the supplied pull wires, insert the 7/16" carriage bolts and spacers into the vehicle frame through the access hole.
- Leave the pull wires attached for alignment.
- Raise the hitch into position and align the holes in the hitch bracket with the carriage bolts installed.
- Guide the pull wire ends through the holes in the hitch bracket and remove the pull wires.
- Install the conical washers (teeth side toward the hitch) and hex nuts.
-
Tighten Fasteners:
- Torque all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).
-
Reinstall Exhaust:
- Raise the exhaust back into position and reattach the rubber hangers.
Hardware List:
- (4) Carriage Bolt, 7/16"-14 x 1 1/2" GR5
- (4) Spacer, 3/16" x 1" x 2" (Part #: 3837)
- (4) Conical Washer, 7/16" (Part #: 01292007)
- (4) Hex Nut, 7/16"-14 GR2
- (4) Pull Wire, 7/16"-14 (Part #: 5481)
Safety Notes:
- Always wear safety glasses during installation.
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 specifications.
Specifications:
- Installation Time: 30 minutes
- Max Gross Trailer Weight: 3,500 lb (1,587 kg)
- Max Tongue Weight: 350 lb (158 kg)
- Weight Distributing: Not applicable
Installation Instructions for Ford Escape (2020-Current)
Part Numbers:
- 36110
- 06195
- CQT36110
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 7/16"
- Exhaust Removal Pliers
- Die Grinder
- 6" Socket Extension
Step-by-Step Instructions:
-
Lower Vehicle Exhaust:
- Using an exhaust hanger removal tool, lower the muffler by removing the rearmost rubber hangers on the driver and passenger sides.
- Ensure the exhaust is supported before removing the hangers.
- Apply a spray lubricant or soapy water to ease the removal of rubber hangers from the metal pins.
-
Install Hitch:
- Using the supplied pull wires, insert the 7/16" carriage bolts and spacers into the vehicle frame through the access hole.
- Leave the pull wires attached for alignment.
- Raise the hitch into position and align the holes in the hitch bracket with the carriage bolts installed.
- Guide the pull wire ends through the holes in the hitch bracket and remove the pull wires.
- Install the conical washers (teeth side toward the hitch) and hex nuts.
-
Tighten Fasteners:
- Torque all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).
-
Reinstall Exhaust:
- Raise the exhaust back into position and reattach the rubber hangers.
Hardware List:
- (4) Carriage Bolt, 7/16"-14 x 1 1/2" GR5
- (4) Spacer, 3/16" x 1" x 2"
- (4) Conical Washer, 7/16"
- (4) Hex Nut, 7/16"-14 GR2
- (4) Pull Wire, 7/16"-14
Safety Notes:
- Always wear safety glasses during installation.
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 specifications.
Specifications:
- Installation Time: 30 minutes
- Max Gross Trailer Weight: 3,500 lb (1,587 kg)
- Max Tongue Weight: 350 lb (158 kg)
- Weight Distributing: Not applicable
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
