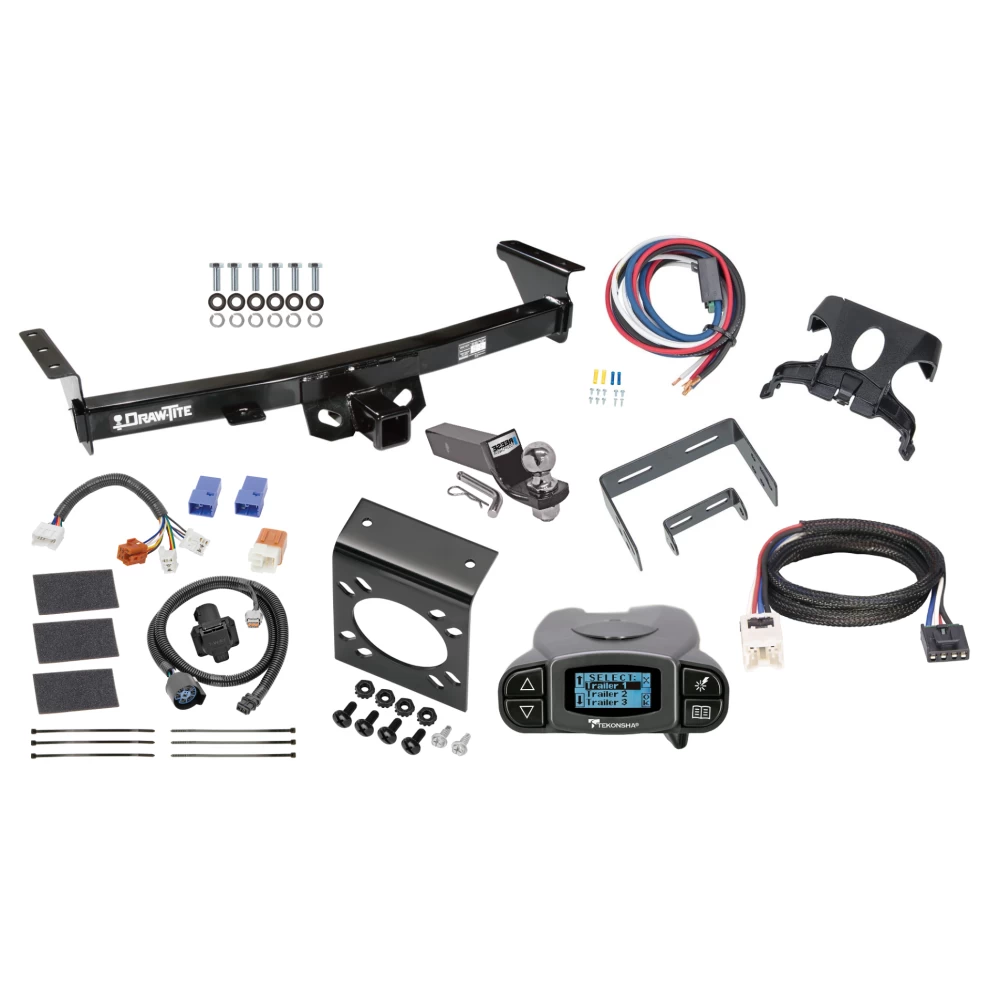

Installation Instructions for Nissan Frontier and Suzuki Equator

Part Numbers:

• 75282
• 44526
• 87539
• 75990 (U-Haul)

Applications:

• Nissan Frontier
• Suzuki Equator

Tools Required:

• Wrenches: 19mm
• Drill Bits: None

Wiring Access Location:

• PU3

Step-by-Step Instructions:

1. Raise Hitch Into Position:

   • Lift the hitch into place, aligning it with the existing weldnuts in the frame rail.

2. Install Fasteners:

   • Secure the hitch using the provided hardware:
     • Insert and tighten six (6) M12 x 1.25 x 35mm bolts with flat washers and lock washers.

3. Tighten Fasteners:

   • Use a torque wrench to tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).

Hardware List:

• (6) M12 x 1.25 x 35mm Hex Bolts
• (6) 1/2" Flat Washers
• (6) 1/2" Lock Washers

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow all safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Distributing: Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 800 lbs (363 kg).
  • Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 750 lbs (341 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

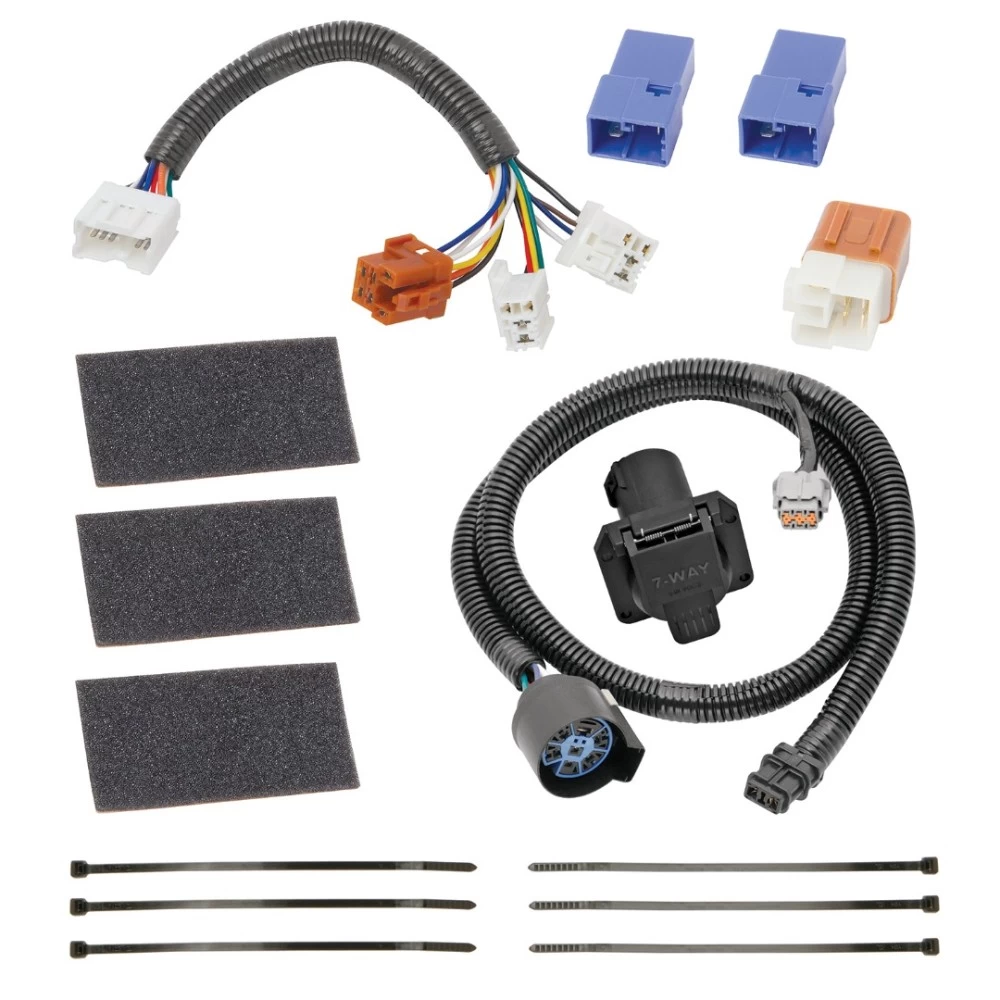

Installation Instructions for T-One® T-Connector for Nissan Pathfinder, Xterra, Frontier, and Equator

Part Numbers:

• 118266

Tools Required:

• Test Probe
• Trim Panel Puller

Step-by-Step Instructions:

Jumper Harness Installation:

1. Insert Relays:

   • Insert the relays (included) into the relay and fuse harness.
   • Note: Using relays other than those provided can result in malfunction or damage to the vehicle or trailer.

2. Locate the Vehicle's 12-Pin Jumper Plug:

   • Find the jumper plug inside the vehicle cabin, on the passenger side, behind the kick panel.

3. Remove the Passenger Side Kick Panel:

   • Use a trim panel puller to temporarily remove the passenger side floor sill by pulling upwards and then toward the rear of the vehicle.
   • Remove the kick panel to access the 12-pin jumper plug.

4. Connect the Jumper Harness:

   • Insert the jumper harness into the vehicle’s 12-pin connector and lock it in place.
   • Secure the jumper harness using the provided cable ties and foam tape to prevent damage or rattling.

5. Reinstall Panels:

   • Replace the passenger side kick panel and floor sill to their original positions.

Tow Plug Harness Installation:

1. Locate the Vehicle Tow Plugs:

   • Underneath the vehicle, locate the tow plugs near the driver’s side rear tire.
   • Remove the protective caps from the tow plugs.

2. Connect the T-Connector:

   • Attach the T-Connector to the vehicle’s mating connector.
   • Ensure connectors are fully inserted with locking tabs in place.

3. Install the 7-Way Socket:

   • Plug the 7-way socket (provided) into the Trailer Tow Harness.
   • Mount the 7-way socket in an accessible location using a bracket or electrical box (not included).
   • Secure the remainder of the T-Connector harness with the provided cable ties.

4. Test the Installation:

   • Verify all connections are complete.
   • Test the installation using a test light or trailer.
   • Warning: Overloading circuits can cause fires. Do not exceed the following ratings:
     • Max. stop/turn light: 10 amps
     • Max. tail lights: 10 amps
     • Max. backup: 10 amps
     • Max. power circuit: 20 amps
     • Max. trailer brakes: 3 axles/6 brakes (18 amps)

Safety Notes:

• Follow all vehicle warnings and installation instructions.
• Always wear safety glasses and use appropriate precautions during installation.

Manufacturer Notes:

• Store these instructions for future reference.
• Refer to the vehicle owner’s manual for additional details.

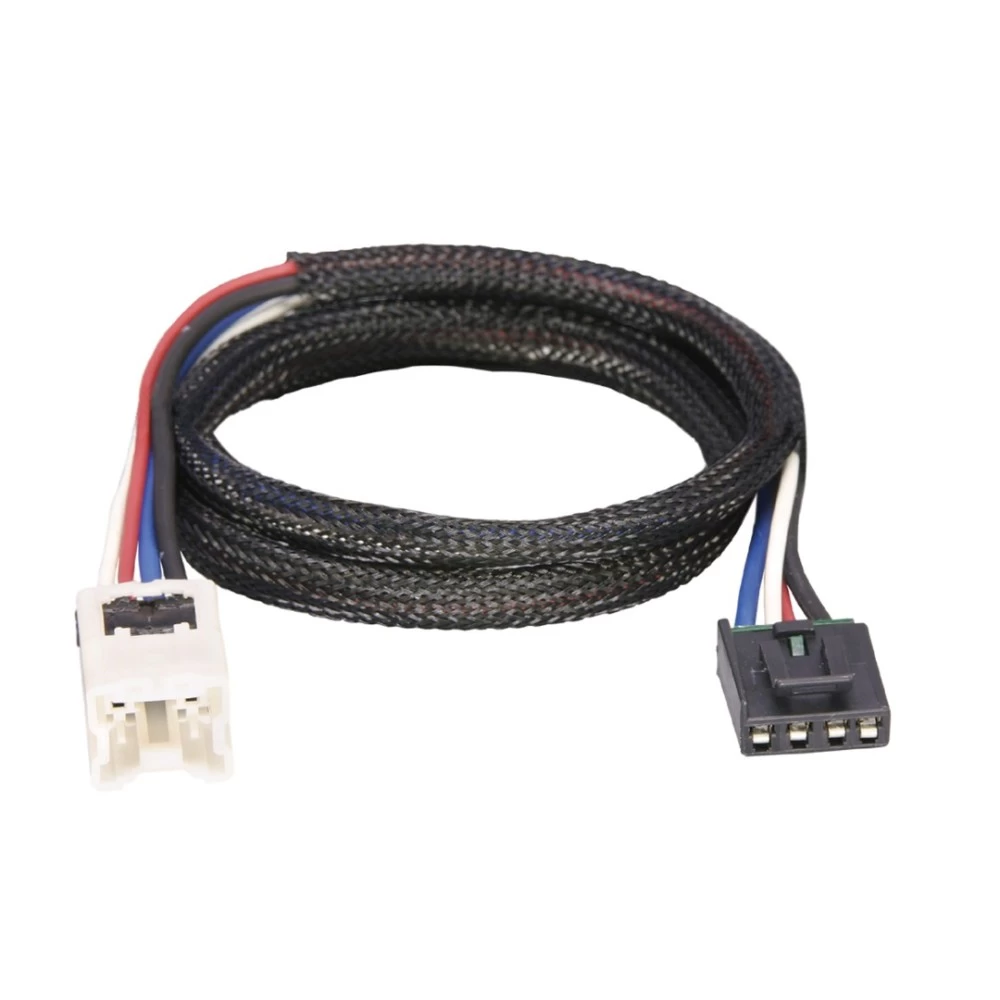

Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 305000

Tools Required:

• None

Step-by-Step Instructions:

Step 1: Locate the Vehicle’s Brake Control Harness

1. The electric brake control harness is located:
   • Underneath and to the left of the steering column.
   • It is typically taped to another harness near the emergency brake pedal.
2. Identify the 6-pin connector that matches the plug on the adapter.

Step 2: Plug in the Brake Control Adapter

1. Plug the brake control adapter into the vehicle’s 6-pin electric brake control harness connector.
2. Follow the brake control manufacturer’s installation instructions for:
   • Wiring the adapter to the brake controller, and
   • Mounting the brake controller securely.

Step 3: Finalize the Installation

1. Complete the installation per the brake control manufacturer’s instructions.
2. Mount the brake controller as directed.
3. Perform all test procedures as outlined by the brake controller manufacturer to confirm proper operation.

Notes:

• Vehicles Without an OEM Trailer Tow Package:
  • Additional fuses and relays may be required to complete the output and battery feed circuits.
  • Refer to the vehicle owner’s manual for fuse and relay locations.

Safety Warnings:

1. Overloading Circuits May Cause Fires:
   • DO NOT exceed the lower of:
     • The vehicle manufacturer’s towing rating, or
     • Maximum Capacity: 3 axles / 6 brakes (18 amps).
2. Carefully read the vehicle owner’s manual and the brake controller instruction sheet for further details.

Wiring Overview:

• Fused Battery Feed: Supplies power to the brake controller.
• Stop Lamp Switch (Input): Provides braking signal from the vehicle.
• Trailer Brake Controller (Output): Sends braking signals to the trailer brakes.
• Ground: Ensures proper grounding for the system.

Final Notes:

• Periodically inspect all connections and wires for signs of damage or wear.
• Ensure the system operates correctly before towing.

End of Instructions

Installation and Operation Instructions for the P3 Electronic Brake Control

Specifications:

• Supports 2, 4, 6, and 8 brake applications.
• Utilizes proportional braking with an inertial sensor.

Tools Required:

• Drill with a 1/8" bit.
• Screwdriver or nut driver.
• Wire crimp tool.
• Probe-type circuit tester.

Safety Notes:

1. Avoid mounting or activating RF-generating devices (e.g., cell phones) within 12 inches of the brake control.
2. Always adhere to the vehicle's Gross Combined Weight Rating (GCWR).
3. Do not use the Boost feature during icy or slippery road conditions.
4. Disconnect the trailer plug before testing a breakaway switch to prevent damage.

Hardware List:

• P3 Brake Control Unit.
• Mounting bracket.
• Wiring harness.
• #8 x 3/8" self-tapping screws.

Installation Instructions:

Mounting the Brake Control:

1. Traditional Bracket Mount:

   • Secure the bracket to a solid surface using the provided screws.
   • Attach the brake control unit and adjust to the desired angle.
   • Tighten screws securely.

2. Under Dash Pocket Mount:

   • Secure the small metal bracket with screws to a flat surface.
   • Attach the T-slot mount to the metal bracket and insert the brake control.

Wiring the Brake Control:

• Option 1: Use the included pigtail wiring harness for a generic installation.
• Option 2: Use an OEM-specific wiring harness compatible with the vehicle's tow package.
• Wire Functions:
  • Black: Positive power (+12V).
  • White: Vehicle ground.
  • Red: Cold side of brake pedal switch.
  • Blue: Trailer brakes output.

Setting Up the Control:

1. Connect the trailer to the vehicle.
2. Use the Menu/Options button to access the setup screen.
3. Select the brake type:
   • Electric: For electric brakes.
   • Hydraulic: For electric over hydraulic braking systems.
4. Adjust the power output to ensure effective braking without wheel lock-up.

Boost Feature:

• Provides enhanced braking sensitivity.
• Available in three levels:
  • B1: Light braking boost.
  • B2: Moderate braking boost.
  • B3: Aggressive braking boost.
• Recommended for heavier trailers or varying load conditions.

Reverse Mode:

• Cancel Boost and Hold features for 3 minutes by pressing and holding the Boost button for 5 seconds while holding the brake pedal.

Troubleshooting Guide:

Maintenance:

• Inspect connections and wiring regularly for damage or wear.
• Adjust trailer brakes after the first 200 miles of use and every 3,000 miles thereafter.
• Clean the brake control unit periodically to maintain optimal performance.

Warranty Information:

• Limited Lifetime Warranty:
  • Covers defects in materials and workmanship under normal use.
  • Excludes damage caused by misuse, improper installation, or external factors.
• Attention: For complete warranty instructions, please download the full installation PDF.
