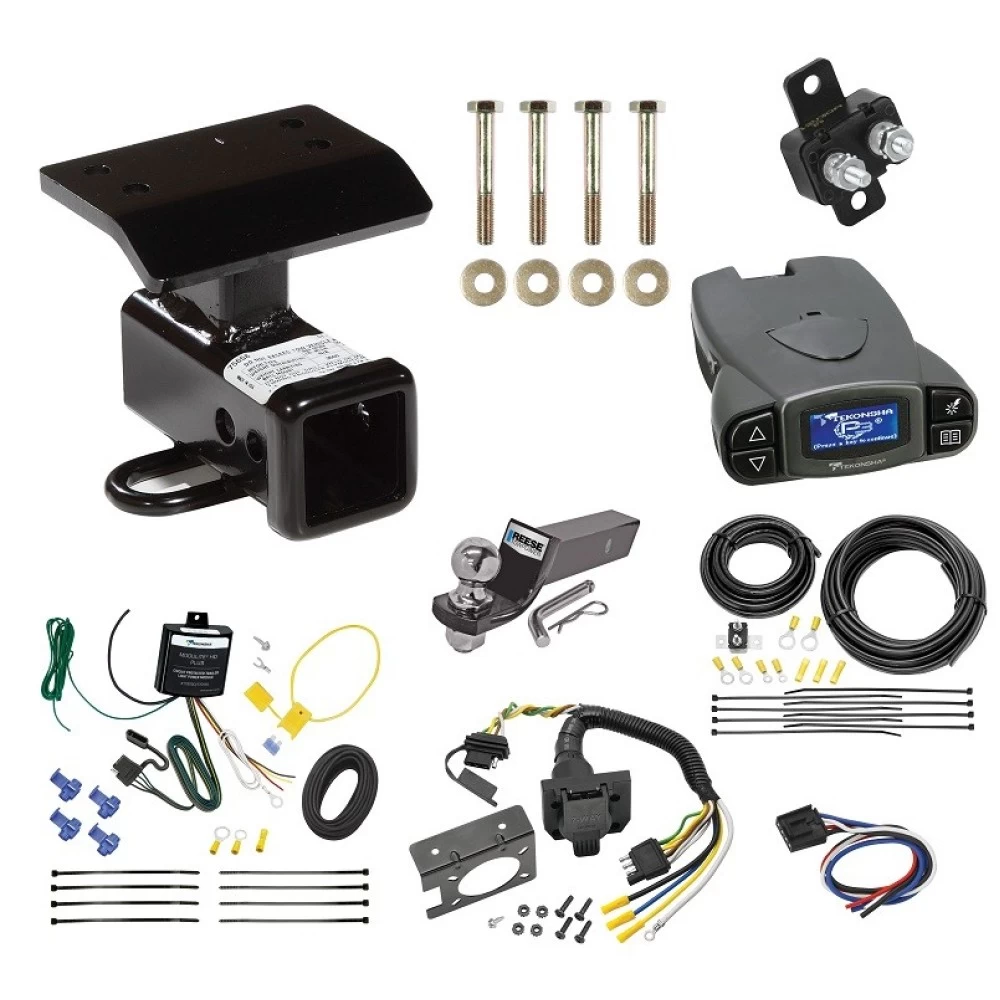

Trailer Hitch Tow Package Prodigy P3 Brake Control For 09‑11 Volkswagen Tiguan w/ 7‑Way RV Wiring 2" Drop Mount 2" Ball Class 3 2" Receiver Draw‑Tite Tekonsha
Model: 75658 85343 20506 7012a 119191 21536 901952009 - 2011 Volkswagen, Tiguan, All Styles
Trailer Hitch Specs:
Includes all necessary parts required to completely install all brake controls. No other parts are necessary. This Kit Retains use of 4-Flat Connector while also giving you a 7-Way RV Plug
Each Wiring Kit includes:
- Plug and Play T-One Wiring Harness Connector
- 4-Way to 7-Way adapter w/ mounting bracket and screws
- Wiring Kit for 6 to 8 Brake Control Systems
- Includes 25 ft. 12-2 Duplex Wire
- (2) 30 Amp Circuit Breakers
- Attaching Terminals and Ring Connectors
Part Numbers | 119191 85343 20506 7012A |
Brand | Reese |
Warranty | 1 Year |
T-One Wiring Installation |
![]() |
4-Way to 7-Way Adapter Installation |
![]() |
Brake Control Wiring Installation |
![]() |
The REESE Towpower starter kit provides you with everything you need to tow. Included is a ball mount with pre-torqued hitch ball, and a pin & clip. Place the draw bar in the hitch receiver tube, and secure with the pin and clip, and you're ready to go.
Ball Mount Specs:
Part Number | 21536 |
Brand |
Reese Towpower |
Finish | Black Powder Coat |
Towing Capacity |
6000 lbs |
Tongue Weight Capacity | 600 lbs |
Fits | 2" Reciever |
Shank Length | 9" |
Drop |
2" |
Rise |
3/4" |
Warranty | 1 Year |
P3 the industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
- 5 storable setting options for pulling different trailers or preferences of multiple drivers.
- A distinct, easy-to-read LCD display with multiple screen color options.
- Up-Front controls provide easy access to all P3 features.
- Easy to understand diagnostics show output current, battery, brake, and output voltage.
- A flashing red warning system alerts user to No Trailer Brake situations.
- Select Electric over Hydraulic or Electric trailer brake mode.
- Screen information display in English, French or Spanish.
- The Original Boost feature allows for different levels of customized braking.
- Compact, dash-hugging design.
Brake Control Specs:
Part Number | 90195 |
Brand | Tekonsha |
Type | Proportional |
Axles | 1 to 4 axle trailers |
Warranty | Lifetime |
Installation Instructions | ![]() |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 09 10 11 2009 2010 2011
$524 55 $737.58 29% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$737.58 $524 55
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $131.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75658 85343 20506 7012a 119191 21536 90195
- Includes: Class 3 Trailer Tow Hitch, ModuLite HD Plus Protector w/Integrated Circuit & Overload Protection Trailer Light Power Module & Installation Kit, Wiring Adapter, Trailer Brake Controller Installation Kit, Circuit Breaker, Trailer Tow Hitch Ball Mount Starter Kit, Prodigy P3 Proportional Brake Controller for Trailers with 1-4 Axles
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Ball Mount Included | Yes |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 3,500 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 350 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description
2009 - 2011 Volkswagen, Tiguan, All Styles
Trailer Hitch Specs:
Includes all necessary parts required to completely install all brake controls. No other parts are necessary. This Kit Retains use of 4-Flat Connector while also giving you a 7-Way RV Plug
Each Wiring Kit includes:
- Plug and Play T-One Wiring Harness Connector
- 4-Way to 7-Way adapter w/ mounting bracket and screws
- Wiring Kit for 6 to 8 Brake Control Systems
- Includes 25 ft. 12-2 Duplex Wire
- (2) 30 Amp Circuit Breakers
- Attaching Terminals and Ring Connectors
Part Numbers | 119191 85343 20506 7012A |
Brand | Reese |
Warranty | 1 Year |
T-One Wiring Installation |
![]() |
4-Way to 7-Way Adapter Installation |
![]() |
Brake Control Wiring Installation |
![]() |
The REESE Towpower starter kit provides you with everything you need to tow. Included is a ball mount with pre-torqued hitch ball, and a pin & clip. Place the draw bar in the hitch receiver tube, and secure with the pin and clip, and you're ready to go.
Ball Mount Specs:
Part Number | 21536 |
Brand |
Reese Towpower |
Finish | Black Powder Coat |
Towing Capacity |
6000 lbs |
Tongue Weight Capacity | 600 lbs |
Fits | 2" Reciever |
Shank Length | 9" |
Drop |
2" |
Rise |
3/4" |
Warranty | 1 Year |
P3 the industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
- 5 storable setting options for pulling different trailers or preferences of multiple drivers.
- A distinct, easy-to-read LCD display with multiple screen color options.
- Up-Front controls provide easy access to all P3 features.
- Easy to understand diagnostics show output current, battery, brake, and output voltage.
- A flashing red warning system alerts user to No Trailer Brake situations.
- Select Electric over Hydraulic or Electric trailer brake mode.
- Screen information display in English, French or Spanish.
- The Original Boost feature allows for different levels of customized braking.
- Compact, dash-hugging design.
Brake Control Specs:
Part Number | 90195 |
Brand | Tekonsha |
Type | Proportional |
Axles | 1 to 4 axle trailers |
Warranty | Lifetime |
Installation Instructions | ![]() |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 09 10 11 2009 2010 2011
Get Expert Help
Trailer Hitch Tow Package Prodigy P3 Brake Control For 09-11 Volkswagen Tiguan w/ 7-Way RV Wiring 2" Drop Mount 2" Ball Class 3 2" Receiver Draw-Tite Tekonsha Install Notes

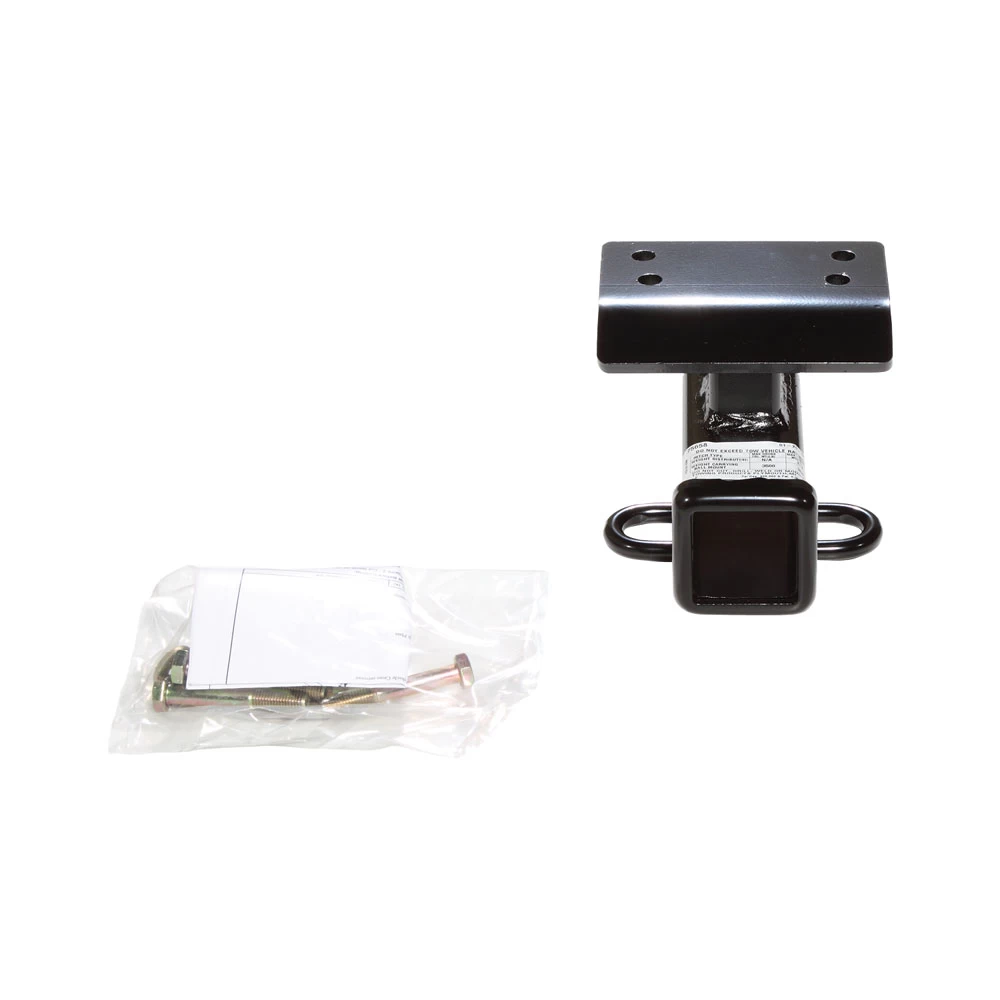

Installation Instructions for Volkswagen Tiguan
Part Numbers:
- 44611
- 75658
- 87600
Tools Required:
- Utility Knife
- Wrench: 17mm
- Drill Bits: None
Wiring Access Location:
- PC1, PC2
Step-by-Step Instructions:
-
Prepare the Fascia for Installation:
- Locate the existing grooved area on the bottom of the fascia as shown in Figure 2.
- Cut the fascia to provide access to the mounting holes in the vehicle cross member.
- Note: Obtain the vehicle owner's approval before cutting.
-
Position the Hitch:
- Raise the hitch into position, aligning the holes in the hitch top plate with the holes in the vehicle cross member.
-
Install Fasteners:
- Secure the hitch using four (4) M10 x 1.50 x 70mm hex bolts and four (4) 3/8” conical toothed washers.
-
Torque Fasteners:
- Tighten all M10 CL8.8 fasteners to 38 lb-ft (52 N·m) using a torque wrench.

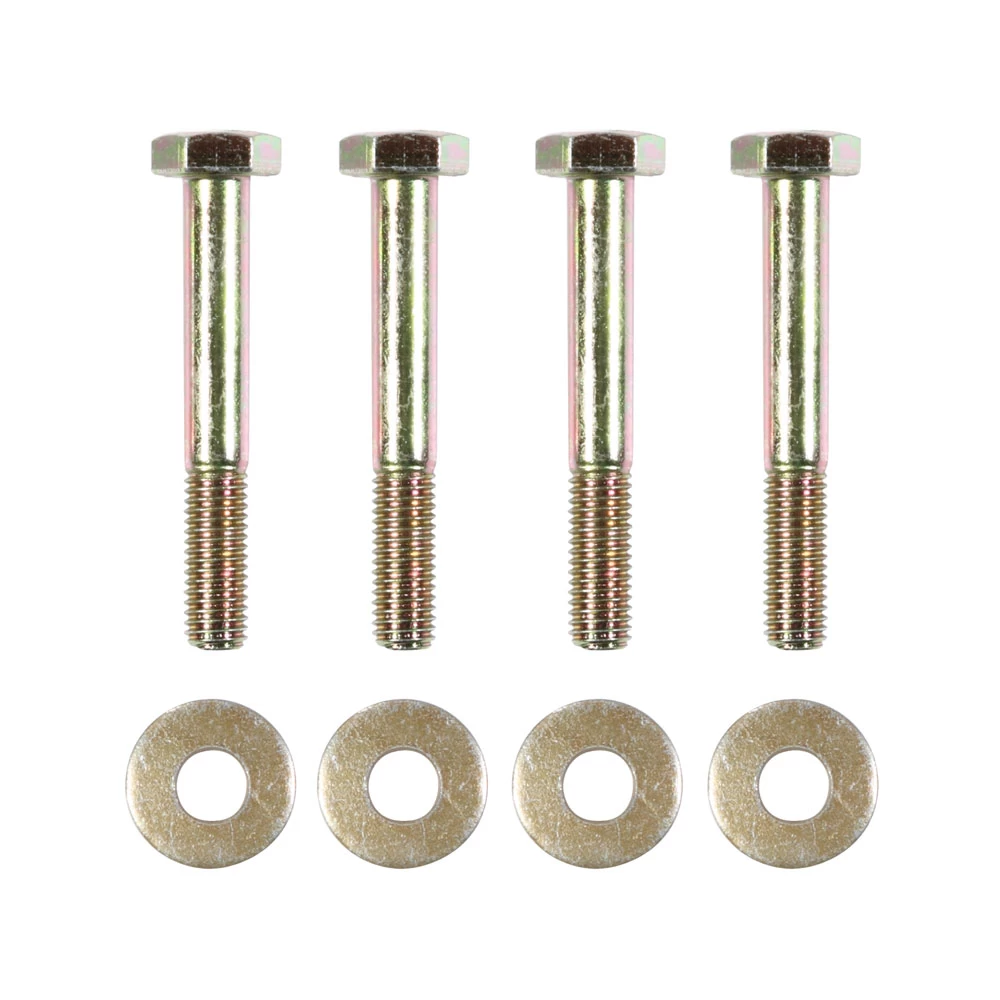

Hardware List:
- (4) M10 x 1.50 x 70mm CL8.8 Hex Bolts
- (4) 3/8” Conical Toothed Washers
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Not for use with spring bars.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Fascia trimming is required for this installation. Ensure the cut is precise and approved by the vehicle owner beforehand.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 119191
Wiring Access Location:
- Near the rear of the vehicle, behind the bumper, or as indicated for vehicle-specific configurations.
Tools Required:
- Drill with a 3/32" drill bit.
- Phillips head #2 screwdriver.
- Wire cutters, wire strippers/crimpers.
- Tester or volt meter.
- Socket and ratchet set.
- Double-sided tape (provided).
Step-by-Step Instructions:
Installation of the Module:
-
Determine the mounting location for the module.
- Use the provided double-sided tape to secure the module.
- Ensure the epoxy side of the module faces downward to prevent water buildup.
-
Connect the module’s black wire to a 12-gauge (or larger) power wire using a yellow butt connector.
-
Locate a suitable grounding point near the module:
- Drill a 3/32" hole if necessary and secure the white wire using the provided eyelet and self-tapping screw.
- Clean the grounding area of dirt and rustproofing.
Caution: Verify what is behind the surface before drilling to avoid damage or injury.
Routing Power to the Battery:
-
Route the power wire to the vehicle’s positive battery terminal:
- Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
- Do not insert the 15-amp fuse yet.
Caution: Ensure the module is connected to a constant power source. Avoid using power sources that are interrupted when the vehicle is off.
Finalizing Installation:
-
Secure the wiring harness with the provided cable ties to prevent damage or rattling.
- Avoid areas where wires may be pinched, cut, or melted.
-
Reconnect the vehicle’s negative (-) battery cable.
-
Insert the 15-amp fuse into the fuse holder and close the cap.
-
Test the installation with a test light or trailer to verify functionality.
- Test each function independently and in combination.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps).
- Max. tail lights: (7.5 amps).
Hardware List:
- T-Connector adapter.
- 15-amp fuse.
- Fuse holder.
- Eyelet and self-tapping screw.
- Double-sided tape.
- Cable ties.
Safety Notes:
- Handle all components with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
Manufacturer Notes:
- Read and follow all vehicle warnings and installation instructions.
- Use a test light or trailer to confirm proper installation.
- Consult the vehicle owner’s manual for additional details.
Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
- 10mm Socket & Ratchet or Wrench
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Cable Ties
Part 1: Install the 4-Way to 7-Way Adapter
Step-by-Step Instructions:
-
Mount the Adapter:
- Choose a suitable mounting point on the vehicle, typically near the hitch.
- Use the provided bracket and screws to secure the adapter.
-
Connect the 4-Flat Plug:
- Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
- This connection enables tail lights, left turn, and right turn signals.
-
Ground the Adapter:
- Locate a clean, solid grounding point near the adapter.
- Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.
-
Leave Additional Wires Disconnected:
- The following wires will remain disconnected until Part 2:
- Black Wire: Power from the battery.
- Blue Wire: Brake control output.
- Yellow Wire: Reverse light (optional; leave disconnected unless needed).
- The following wires will remain disconnected until Part 2:
-
Test Initial Connection:
- Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).
Part 2: Install Brake Control Wiring
Step-by-Step Instructions:
-
Mount Circuit Breakers:
- Install two 30A circuit breakers on the firewall or another suitable location near the battery.
- Use self-tapping screws to mount them securely.
-
Route Power Wires:
- Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
- Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
- Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).
-
Install the Brake Controller:
- Mount the brake controller under the dash on a firm surface.
- Use the following connections:
- Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
- Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
- White Wire: Connect to a solid ground point on the vehicle body.
- Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).
-
Optional: Connect Reverse Light Circuit:
- If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.
-
Reconnect the Battery:
- Reattach the negative battery cable and ensure all connections are secure.
- Insert the fuses into both circuit breakers.
-
Secure All Wires:
- Use cable ties to secure all loose wires and prevent damage or rattling.
-
Test the System:
- Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
- If applicable, test the reverse light circuit.
Notes:
- Most installations will only require connecting the black and blue wires from the 7-way adapter.
- Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
- Always adhere to safety guidelines and verify all connections before use.
Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
Installation and Operation Instructions for the P3 Electronic Brake Control
Specifications:
- Supports 2, 4, 6, and 8 brake applications.
- Utilizes proportional braking with an inertial sensor.
Tools Required:
- Drill with a 1/8" bit.
- Screwdriver or nut driver.
- Wire crimp tool.
- Probe-type circuit tester.
Safety Notes:
- Avoid mounting or activating RF-generating devices (e.g., cell phones) within 12 inches of the brake control.
- Always adhere to the vehicle's Gross Combined Weight Rating (GCWR).
- Do not use the Boost feature during icy or slippery road conditions.
- Disconnect the trailer plug before testing a breakaway switch to prevent damage.
Hardware List:
- P3 Brake Control Unit.
- Mounting bracket.
- Wiring harness.
- #8 x 3/8" self-tapping screws.
Installation Instructions:
Mounting the Brake Control:
-
Traditional Bracket Mount:
- Secure the bracket to a solid surface using the provided screws.
- Attach the brake control unit and adjust to the desired angle.
- Tighten screws securely.
-
Under Dash Pocket Mount:
- Secure the small metal bracket with screws to a flat surface.
- Attach the T-slot mount to the metal bracket and insert the brake control.
Wiring the Brake Control:
- Option 1: Use the included pigtail wiring harness for a generic installation.
- Option 2: Use an OEM-specific wiring harness compatible with the vehicle's tow package.
- Wire Functions:
- Black: Positive power (+12V).
- White: Vehicle ground.
- Red: Cold side of brake pedal switch.
- Blue: Trailer brakes output.
Setting Up the Control:
- Connect the trailer to the vehicle.
- Use the Menu/Options button to access the setup screen.
- Select the brake type:
- Electric: For electric brakes.
- Hydraulic: For electric over hydraulic braking systems.
- Adjust the power output to ensure effective braking without wheel lock-up.
Boost Feature:
- Provides enhanced braking sensitivity.
- Available in three levels:
- B1: Light braking boost.
- B2: Moderate braking boost.
- B3: Aggressive braking boost.
- Recommended for heavier trailers or varying load conditions.
Reverse Mode:
- Cancel Boost and Hold features for 3 minutes by pressing and holding the Boost button for 5 seconds while holding the brake pedal.
Troubleshooting Guide:
Problem | Possible Cause | Solution |
---|---|---|
No trailer brakes | Poor ground or power loss | Check power and ground connections. |
Brakes lock up | Power too high | Reduce the power setting. |
Open Ground Warning | Loose ground connection | Inspect and secure ground wire. |
Overload Warning | Excessive brake current | Inspect trailer brake wiring. |
Output Shorted | Wiring short in circuit | Inspect the blue wire for damage. |
Maintenance:
- Inspect connections and wiring regularly for damage or wear.
- Adjust trailer brakes after the first 200 miles of use and every 3,000 miles thereafter.
- Clean the brake control unit periodically to maintain optimal performance.
Warranty Information:
- Limited Lifetime Warranty:
- Covers defects in materials and workmanship under normal use.
- Excludes damage caused by misuse, improper installation, or external factors.
- Attention: For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
