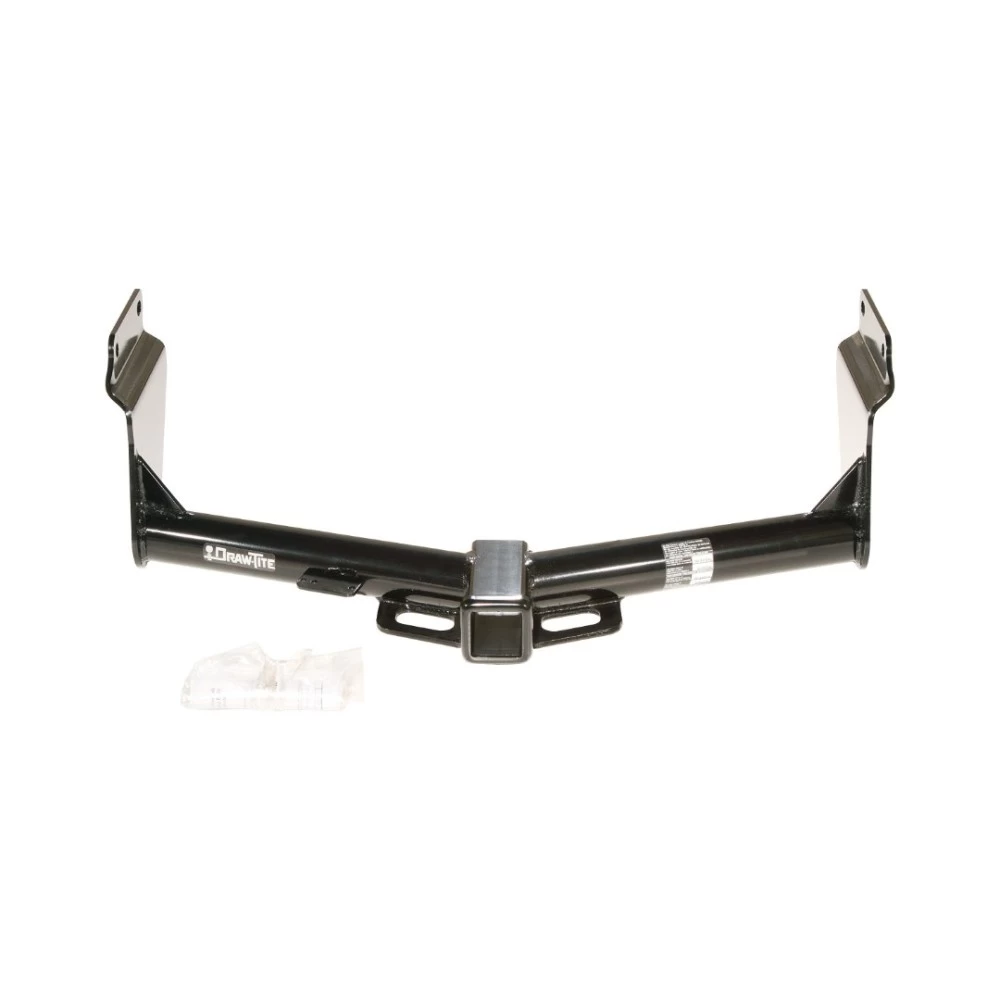

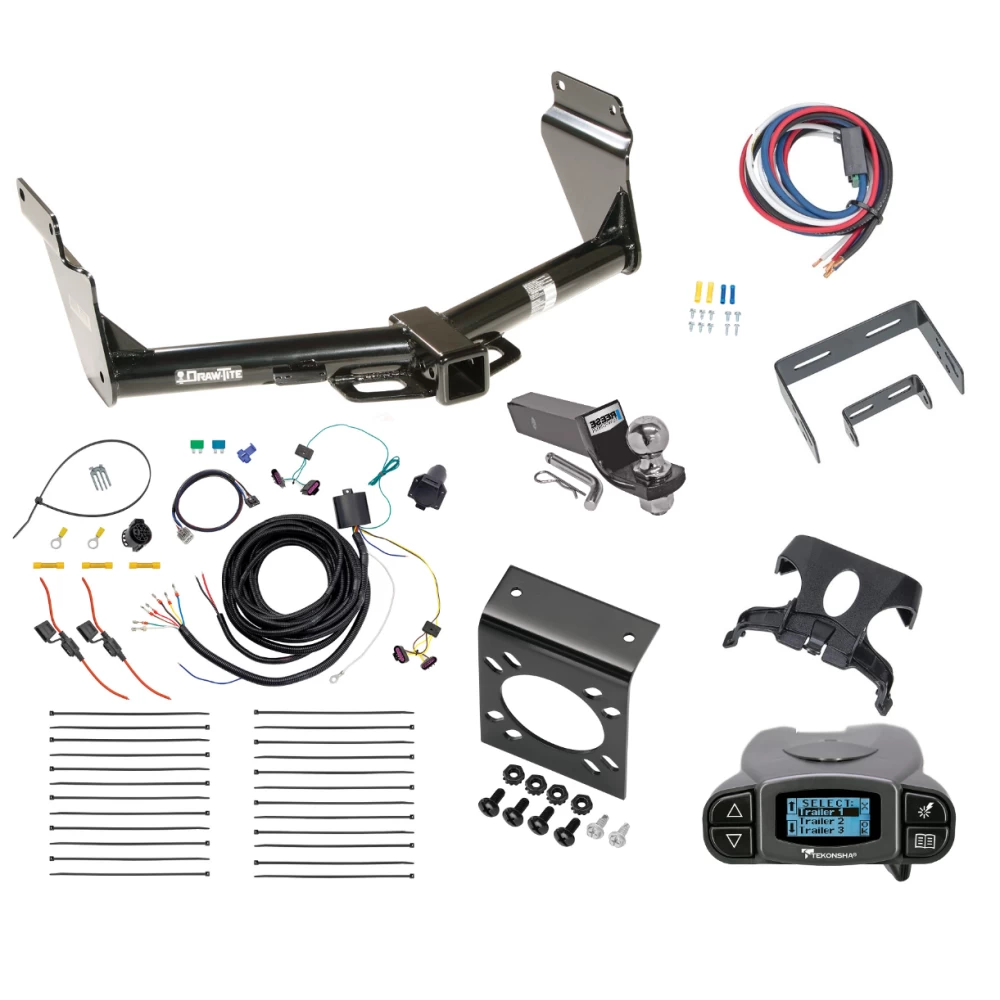

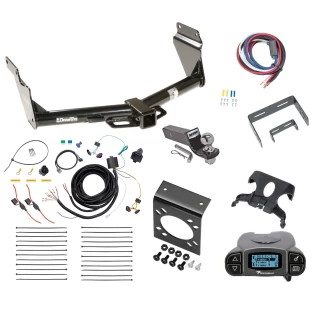

Installation Instructions for Dodge Durango and Jeep Grand Cherokee (Diesel)

Part Numbers:

• 75713
• 87608
• 44662

Tools Required:

• Wrenches: 21mm, 13mm
• Torque Wrench

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 6,000 lbs (2,724 kg)
  • Max Tongue Weight: 900 lbs (408 kg)
• Weight Distributing:
  • Max Gross Trailer Weight: 7,500 lbs (3,405 kg)
  • Max Tongue Weight: 900 lbs (408 kg)

Step-by-Step Instructions:

1. Lower Spare Tire (All Models):

• If a spare tire is present, lower it to provide access to the hitch installation area.

2. Remove Existing Fasteners:

• Remove (4) M14 bolts from the frame rails. Do not clean the threads. Retain the bolts for reinstallation.

3. Install Hitch:

• Standard Installation: Raise the hitch into position, aligning it with the existing bolt holes on the frame.
• Diesel Models: Lower the DEF (Diesel Exhaust Fluid) tank to access the passenger-side bolts:
  • Unclip the electrical connection on the passenger side and slide the clips off the rear stud posts.
  • Using a 13mm socket, remove (2) rear stud posts and (2) forward hex bolts from the DEF tank.
  • Support the DEF tank, which may weigh up to 100 lbs. Do not remove the filler pipe from the tank.
  • Slightly lower the tank to provide access to the bolt holes.

4. Attach Fasteners:

• Reinstall the previously removed M14 bolts through the hitch and into the existing weldnuts on the frame rails.
• Torque all M14 fasteners to 115 lb-ft (156 N·m).

5. Reinstall Components:

• Spare Tire: Raise the spare tire back into its original position.
• Diesel Models: Reinstall the DEF tank and reconnect all electrical components:
  • Torque the DEF tank studs to 21 lb-ft (28 N·m).
  • Torque the DEF tank hex bolts to 24 lb-ft (33 N·m).

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust entry.
• Replace any damaged hitch or ball immediately.
• Always wear eye protection and follow safety precautions when working beneath a vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class III
• Compliance: This product meets safety specifications and requirements as per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always adhere to the towing vehicle manufacturer’s rating or the hitch’s maximum load rating, whichever is lower.

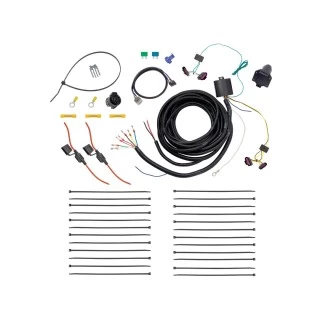

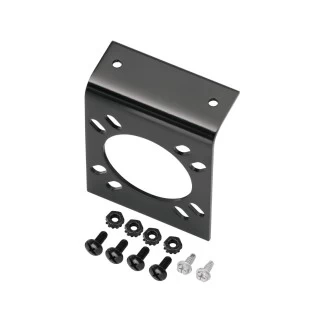

Installation Instructions for 7-Way T-One® T-Connector Kit

Part Numbers:

• 22113

Tools Required:

• Trim Panel Puller
• Ratchet
• Phillips Head Screwdriver
• 10mm & 13mm Sockets
• Wire Strippers/Crimpers
• Test Probe or Voltmeter
• Heat Gun

Step-by-Step Instructions:

1. Prepare the Vehicle:

   • Disconnect and isolate the vehicle’s negative battery terminal.
   • Locate the positive post underneath the hood, on the passenger side.
   • Open the rear lift gate and use a trim panel puller to remove the rear combination lights. Set aside the lights.

2. Access Rear Cargo Area:

   • Remove the rear cargo door threshold, cargo tray, and partially remove the driver’s side cargo side panel to access the body harness connection point.

3. Connect Driver-Side T-Connector:

   • From underneath the vehicle, route the ModuLite® and the T-One® Connector with yellow/brown wires to the driver-side rear combination light pocket.
   • Connect the T-One® Connector to the vehicle wiring connector, ensuring it locks into place.
   • Route the ground wire to the chassis ground point and secure the ring terminal.

4. Mount the ModuLite® Box:

   • Use the provided double-sided tape or cable ties to mount the ModuLite® box in a secure location near the driver-side rear combination light pocket.

5. Route Passenger-Side T-Connector:

   • Route the T-One® Connector with green/blue wires behind the rear bumper fascia to the passenger side.
   • Connect the passenger-side T-One® Connector to the vehicle’s wiring connector.

6. Install Body Harness:

   • Starting from the driver’s side, route the body harness with red/black/blue wires forward.
   • Route the red/black wires to the positive post underneath the hood, and the 12-gauge blue wire to the vehicle body harness connection point.

7. Connect to Battery:

   • Use the provided 30-amp fuse holder, butt connector, and ring terminal to connect the black wire to the battery.
   • Use the 15-amp fuse holder, butt connector, and ring terminal to connect the red wire to the battery.

8. Complete Connections:

   • Route the brake control harness to the appropriate connector under the dash, following the brake control manufacturer’s instructions.
   • Mount the brake controller as directed.

9. Secure the Harness:

   • Use the provided cable ties to secure the wiring harness, avoiding areas that could pinch, cut, or melt the wires.

10. Reconnect the Battery:

    • Reconnect the negative battery cable.

11. Reinstall Components:

    • Replace the combination lights, panels, and grommets. Seal any altered grommets with silicone.

12. Test the Installation:

    • Test the system with a test light or trailer to confirm proper functionality.

Specifications:

• Max. stop/turn/backup light: 2 per side (4.2 amps)
• Max. tail lights: 7.5 amps
• Max. 7-Way 12V power: 30 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed product ratings or manufacturer specifications.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual for additional details.
• Store these instructions for future reference.

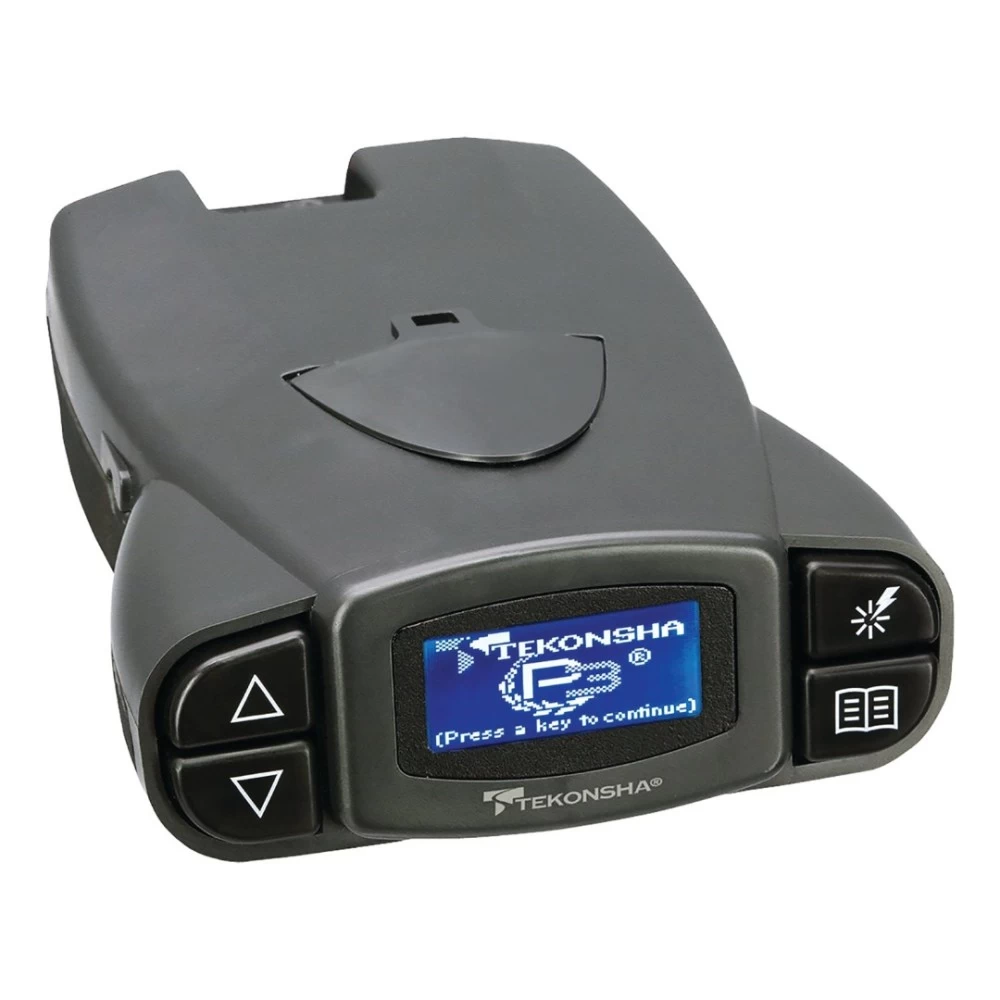

Installation and Operation Instructions for the P3 Electronic Brake Control

Specifications:

• Supports 2, 4, 6, and 8 brake applications.
• Utilizes proportional braking with an inertial sensor.

Tools Required:

• Drill with a 1/8" bit.
• Screwdriver or nut driver.
• Wire crimp tool.
• Probe-type circuit tester.

Safety Notes:

1. Avoid mounting or activating RF-generating devices (e.g., cell phones) within 12 inches of the brake control.
2. Always adhere to the vehicle's Gross Combined Weight Rating (GCWR).
3. Do not use the Boost feature during icy or slippery road conditions.
4. Disconnect the trailer plug before testing a breakaway switch to prevent damage.

Hardware List:

• P3 Brake Control Unit.
• Mounting bracket.
• Wiring harness.
• #8 x 3/8" self-tapping screws.

Installation Instructions:

Mounting the Brake Control:

1. Traditional Bracket Mount:

   • Secure the bracket to a solid surface using the provided screws.
   • Attach the brake control unit and adjust to the desired angle.
   • Tighten screws securely.

2. Under Dash Pocket Mount:

   • Secure the small metal bracket with screws to a flat surface.
   • Attach the T-slot mount to the metal bracket and insert the brake control.

Wiring the Brake Control:

• Option 1: Use the included pigtail wiring harness for a generic installation.
• Option 2: Use an OEM-specific wiring harness compatible with the vehicle's tow package.
• Wire Functions:
  • Black: Positive power (+12V).
  • White: Vehicle ground.
  • Red: Cold side of brake pedal switch.
  • Blue: Trailer brakes output.

Setting Up the Control:

1. Connect the trailer to the vehicle.
2. Use the Menu/Options button to access the setup screen.
3. Select the brake type:
   • Electric: For electric brakes.
   • Hydraulic: For electric over hydraulic braking systems.
4. Adjust the power output to ensure effective braking without wheel lock-up.

Boost Feature:

• Provides enhanced braking sensitivity.
• Available in three levels:
  • B1: Light braking boost.
  • B2: Moderate braking boost.
  • B3: Aggressive braking boost.
• Recommended for heavier trailers or varying load conditions.

Reverse Mode:

• Cancel Boost and Hold features for 3 minutes by pressing and holding the Boost button for 5 seconds while holding the brake pedal.

Troubleshooting Guide:

Maintenance:

• Inspect connections and wiring regularly for damage or wear.
• Adjust trailer brakes after the first 200 miles of use and every 3,000 miles thereafter.
• Clean the brake control unit periodically to maintain optimal performance.

Warranty Information:

• Limited Lifetime Warranty:
  • Covers defects in materials and workmanship under normal use.
  • Excludes damage caused by misuse, improper installation, or external factors.
• Attention: For complete warranty instructions, please download the full installation PDF.
