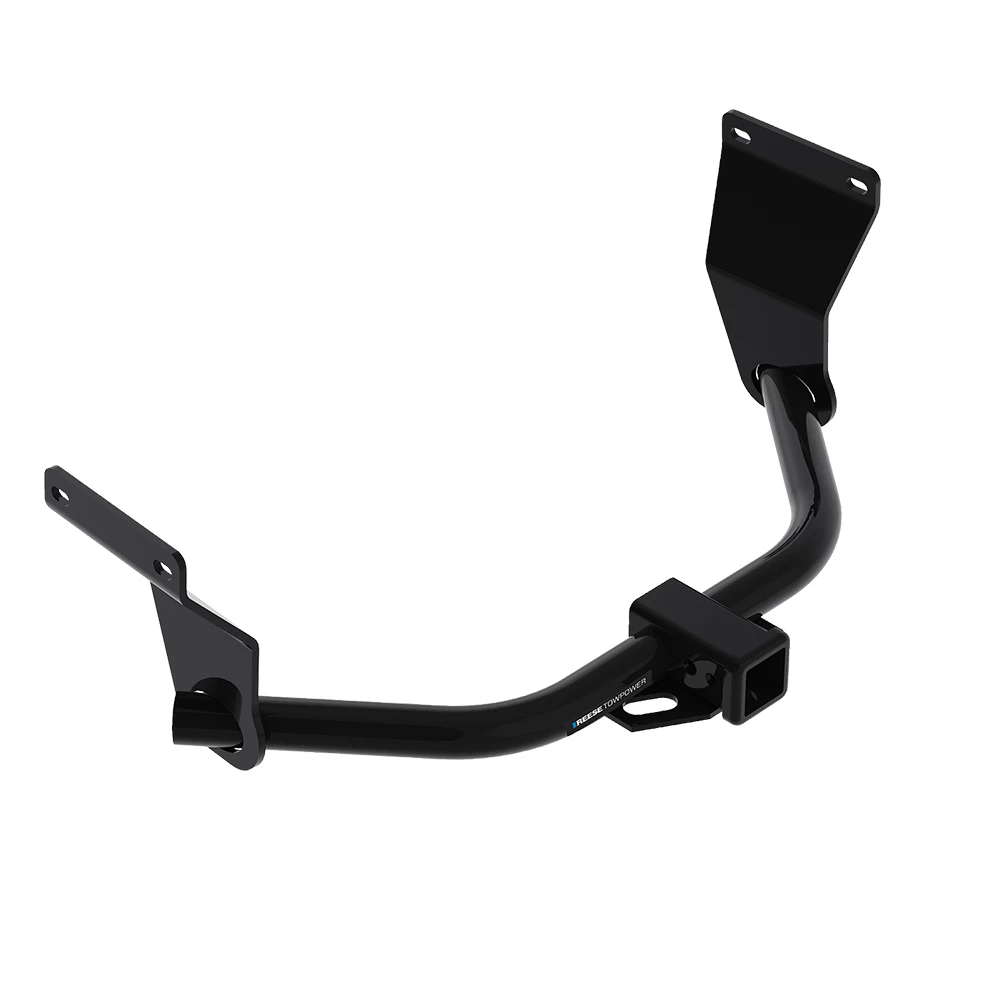

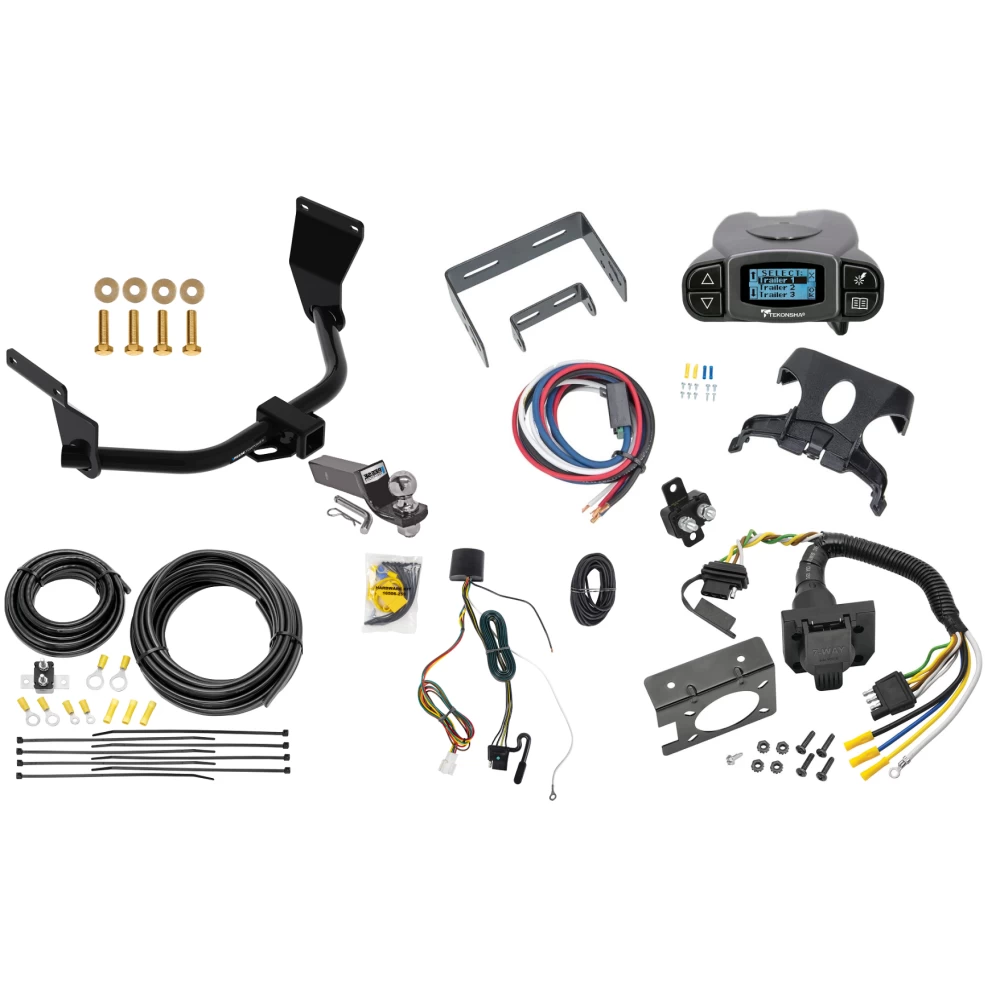

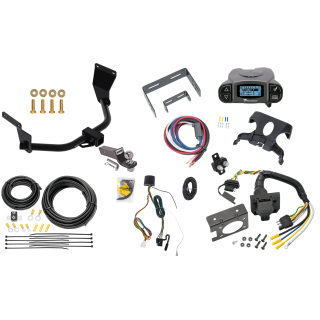

Installation Instructions for Trailer Hitch #76268

Part Numbers:

• 76268
• 84268
• CQT76268

Applications:

• Make and Models: Acura RDX
• Years: For the most accurate application information, consult the product manual or the manufacturer's website.

Wiring Access Location:

• Not Applicable

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 19 mm
• 6" Socket Extension
• Exhaust Removal Pliers
• Pry Bar

Step-by-Step Instructions:

1. Lower the Spare Tire:

• Locate the spare tire lowering mechanism and tools (refer to the vehicle owner’s manual).
• Carefully lower the spare tire and set it aside.

2. Lower the Exhaust:

• Use exhaust removal pliers or a pry bar to remove the rubber exhaust hangers in front of and behind the muffler.
• Note: Use a support or jack stand to hold the exhaust in place to prevent damage.

3. Install the Hitch:

• Inspect the weldnuts in the vehicle frame for debris or rust. Clean as necessary.
• Raise the hitch into position, aligning the attachment holes with the weldnuts in the frame rails.
• Secure the hitch using the provided M12 bolts and conical washers (ensure the teeth of the washers face the hitch).

4. Torque the Fasteners:

• Using a torque wrench, tighten all M12 bolts to 42 lb-ft (57 N·m).

5. Reinstall the Exhaust and Spare Tire:

• Reattach the exhaust to its rubber hangers.
• Raise and secure the spare tire back into position.

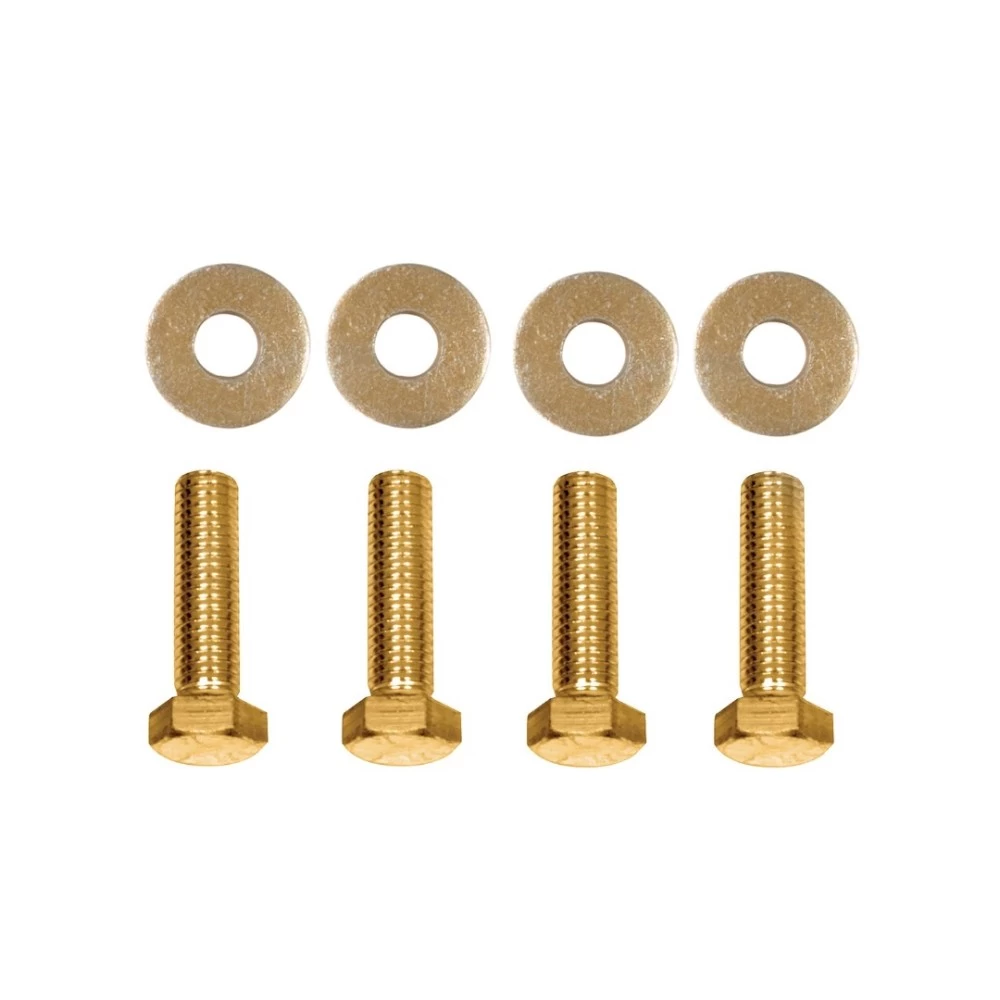

Hardware List:

• 4 × Hex Bolts (M12 × 1.25 × 40 mm, CL10.9)
• 4 × Conical Washers (1/2", Part #01292008)

Safety Notes:

• Always wear safety glasses during installation.
• Inspect the hitch regularly to ensure all fasteners and hitch ball connections are secure.
• If the hitch is removed, plug any holes in the vehicle's body to prevent water or exhaust intrusion.
• Replace damaged components, such as the hitch or ball, immediately.
• Never use a torch to cut access or mounting holes.

Specifications:

• Max Gross Trailer Weight (Weight Carrying): 3,500 lbs (1,589 kg)
• Max Tongue Weight (Weight Carrying): 350 lbs (159 kg)
• Weight Distribution: Not Applicable
• Installation Time: Approximately 30 minutes

This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.

Technical Support:

For additional guidance or technical assistance, please visit www.trailerjacks.com or contact our support team at 877-869-6690.

Attention: This is a summary of the installation procedure. For complete installation instructions, including detailed diagrams and additional guidance, please download the full installation PDF.

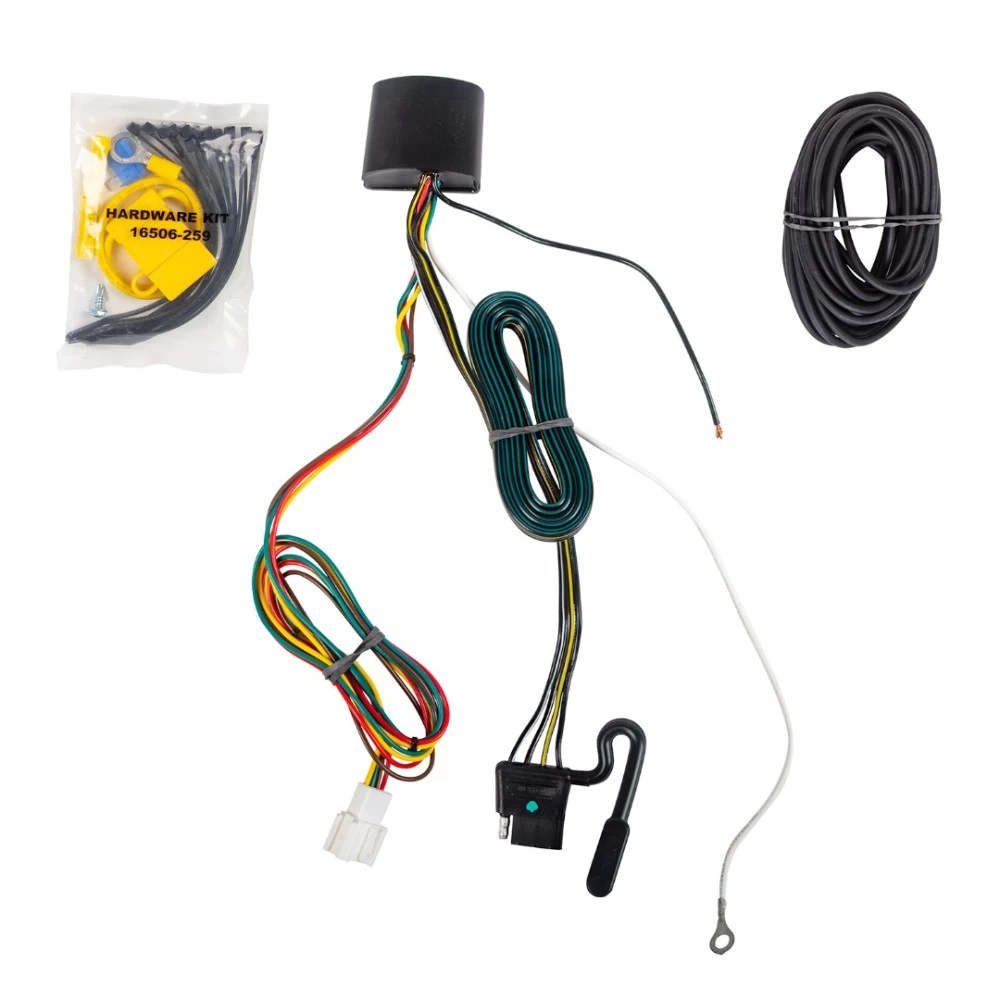

Installation Instructions for T-One® T-Connector for Acura RDX

Part Numbers:

• 118804

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Vehicle:

   • Open the rear hatch and temporarily remove the rear threshold plate, privacy screen, storage covers, and floor covering.
   • Open the rear door and fold the rear seat forward.
   • Carefully remove the lower interior trim panels on the driver’s side to expose the wiring harness. Set aside all removed items safely.

2. Locate the Vehicle’s 8-Pin Connector:

   • Locate the vehicle’s 8-pin connector behind the rear interior trim panel on the driver’s side.
   • Insert the 8-pin Tow-Plug Adapter into the vehicle’s connector and lock it securely into place.

3. Ground the White Wire:

   • Option 1: Locate an existing ground stud on the driver’s side. Loosen the bolt, place the screw eyelet on the stud, and retighten the bolt. Ensure all other ground connections are secure.
   • Option 2: Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember. Clean the area of dirt and rustproofing. Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution: Verify what is behind the surface before drilling to avoid damage or injury. Do not drill into any exposed surfaces.

4. Connect the Power Wire:

   • Locate the black 12-gauge power wire from the T-Connector box on the driver’s side.
   • Attach the provided black wire and route it along the vehicle’s exterior frame or follow existing wiring to the engine compartment, avoiding hot pipes, heat shields, or areas that may pinch or break the wire.

5. Connect to the Vehicle Battery:

   • Disconnect the Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder. Attach the ring terminal to the Positive (+) battery cable and secure it.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.

   Warning: Follow all warnings printed on the tow vehicle’s battery.

6. Reconnect the Battery and Test:

   • Reconnect the Negative (-) battery cable and insert the 15-amp fuse into the fuse holder.
   • Test the installation with a test light or trailer to verify functionality.

7. Secure the Wiring Harness:

   • Use the provided cable ties to secure the remainder of the T-One® T-Connector harness to prevent damage or rattling. Avoid areas that may pinch, cut, or melt the wires.

8. Store the 4-Flat Connector:

   • Store the 4-flat connector in the rear cargo area when not in use.
   • When in use, pull the connector through the rear door and close the door carefully, ensuring not to pinch the harness in the door latch.

9. Reassemble the Vehicle:

   • Reinstall the plastic trim panels, threshold plate, storage covers, and any other components removed during installation.
   • Ensure no wires are pinched or damaged during reassembly.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the stated product ratings.
• Always wear safety glasses and follow safety precautions during installation.
• Refer to the vehicle owner’s manual and instruction sheet for additional details.

Manufacturer Notes:

• Store these instructions for future reference.
• Always read and follow all warnings and instructions printed on the vehicle’s battery and included with the purchase.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

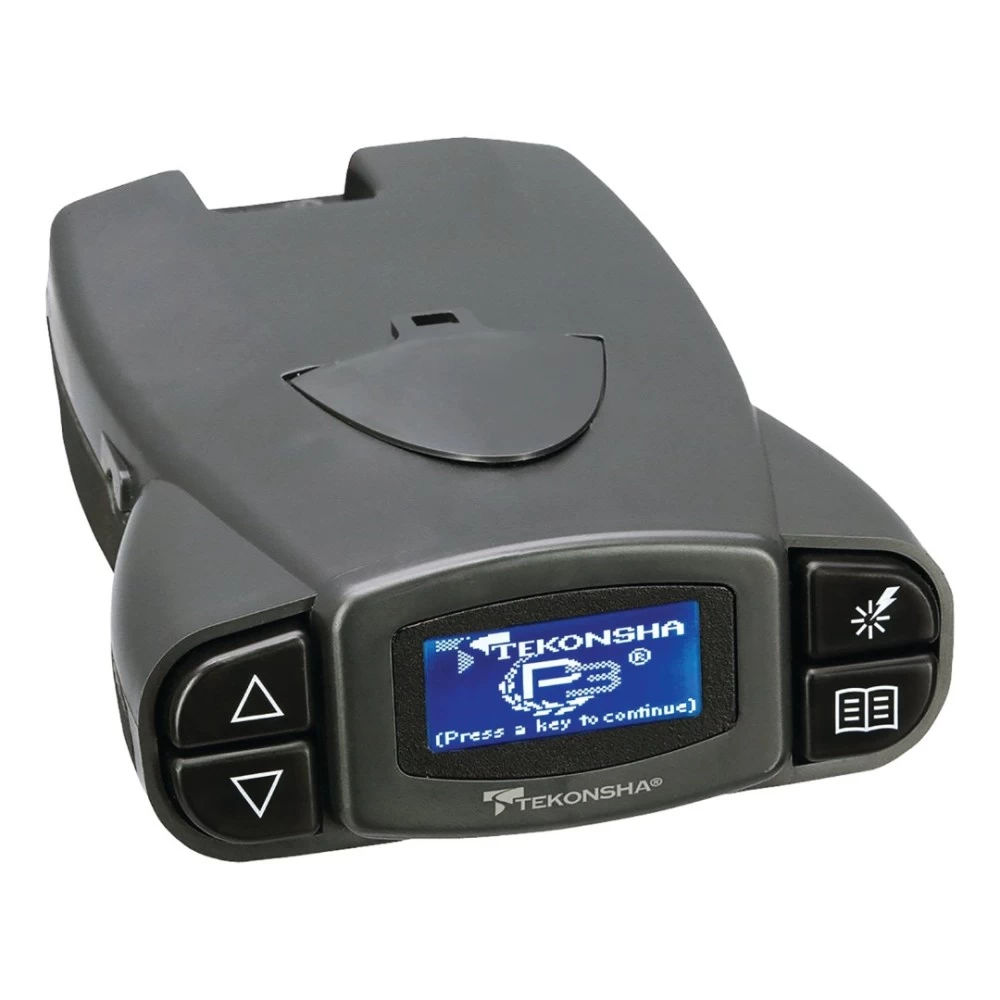

Installation and Operation Instructions for the P3 Electronic Brake Control

Specifications:

• Supports 2, 4, 6, and 8 brake applications.
• Utilizes proportional braking with an inertial sensor.

Tools Required:

• Drill with a 1/8" bit.
• Screwdriver or nut driver.
• Wire crimp tool.
• Probe-type circuit tester.

Safety Notes:

1. Avoid mounting or activating RF-generating devices (e.g., cell phones) within 12 inches of the brake control.
2. Always adhere to the vehicle's Gross Combined Weight Rating (GCWR).
3. Do not use the Boost feature during icy or slippery road conditions.
4. Disconnect the trailer plug before testing a breakaway switch to prevent damage.

Hardware List:

• P3 Brake Control Unit.
• Mounting bracket.
• Wiring harness.
• #8 x 3/8" self-tapping screws.

Installation Instructions:

Mounting the Brake Control:

1. Traditional Bracket Mount:

   • Secure the bracket to a solid surface using the provided screws.
   • Attach the brake control unit and adjust to the desired angle.
   • Tighten screws securely.

2. Under Dash Pocket Mount:

   • Secure the small metal bracket with screws to a flat surface.
   • Attach the T-slot mount to the metal bracket and insert the brake control.

Wiring the Brake Control:

• Option 1: Use the included pigtail wiring harness for a generic installation.
• Option 2: Use an OEM-specific wiring harness compatible with the vehicle's tow package.
• Wire Functions:
  • Black: Positive power (+12V).
  • White: Vehicle ground.
  • Red: Cold side of brake pedal switch.
  • Blue: Trailer brakes output.

Setting Up the Control:

1. Connect the trailer to the vehicle.
2. Use the Menu/Options button to access the setup screen.
3. Select the brake type:
   • Electric: For electric brakes.
   • Hydraulic: For electric over hydraulic braking systems.
4. Adjust the power output to ensure effective braking without wheel lock-up.

Boost Feature:

• Provides enhanced braking sensitivity.
• Available in three levels:
  • B1: Light braking boost.
  • B2: Moderate braking boost.
  • B3: Aggressive braking boost.
• Recommended for heavier trailers or varying load conditions.

Reverse Mode:

• Cancel Boost and Hold features for 3 minutes by pressing and holding the Boost button for 5 seconds while holding the brake pedal.

Troubleshooting Guide:

Maintenance:

• Inspect connections and wiring regularly for damage or wear.
• Adjust trailer brakes after the first 200 miles of use and every 3,000 miles thereafter.
• Clean the brake control unit periodically to maintain optimal performance.

Warranty Information:

• Limited Lifetime Warranty:
  • Covers defects in materials and workmanship under normal use.
  • Excludes damage caused by misuse, improper installation, or external factors.
• Attention: For complete warranty instructions, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
