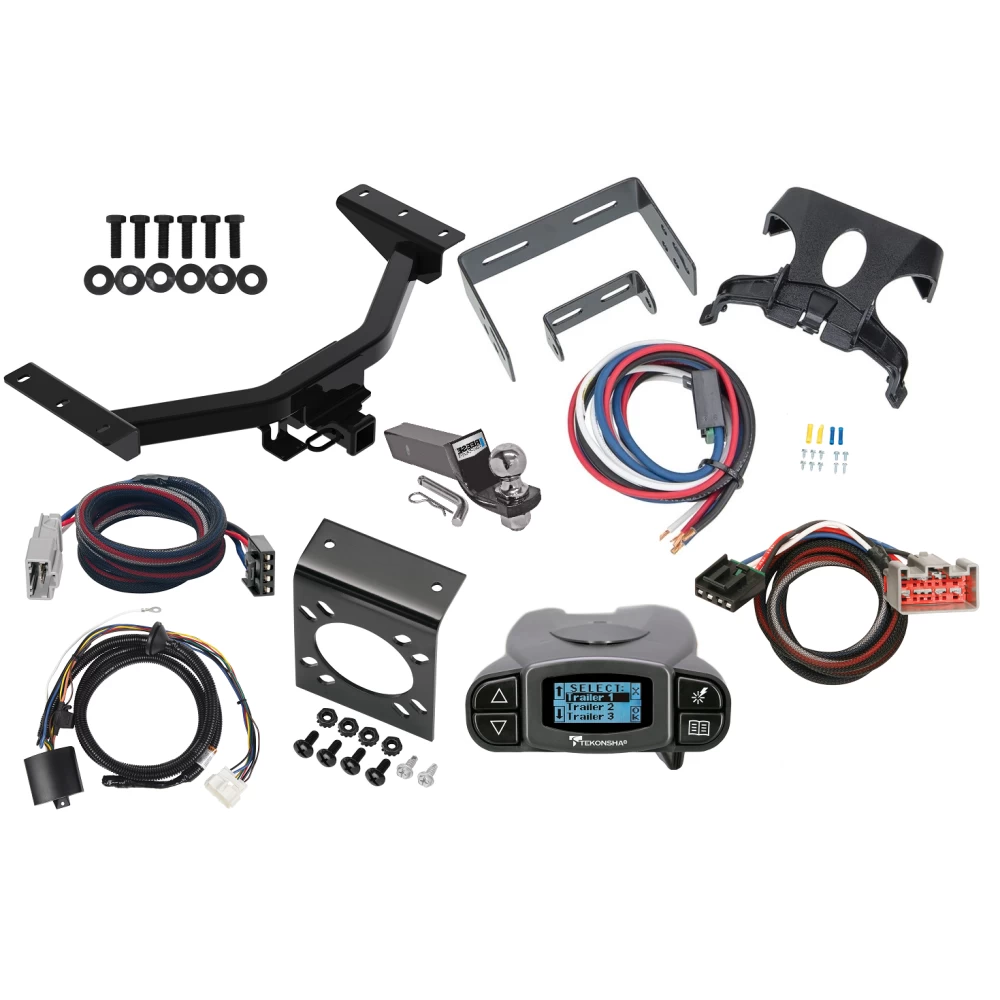

Trailer Hitch Tow Package Prodigy P3 Brake Control For 19‑24 Honda Passport w/ 7‑Way RV Wiring 2" Drop Mount 2" Ball Class 4 2" Receiver Reese Tekonsha
Model: 84290 118291 20212 21536 3070 90195This heavy duty kit is for those planning on towing a large trailer with electric brakes. This All-in-One bundle takes care of everything. No more searching and stressing out over what parts you need. This package includes the most sought after brake control on the market Tekonsha Prodigy P3. Being industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
2019 - 2024 Honda, Passport, All Styles
Trailer Hitch Specs:

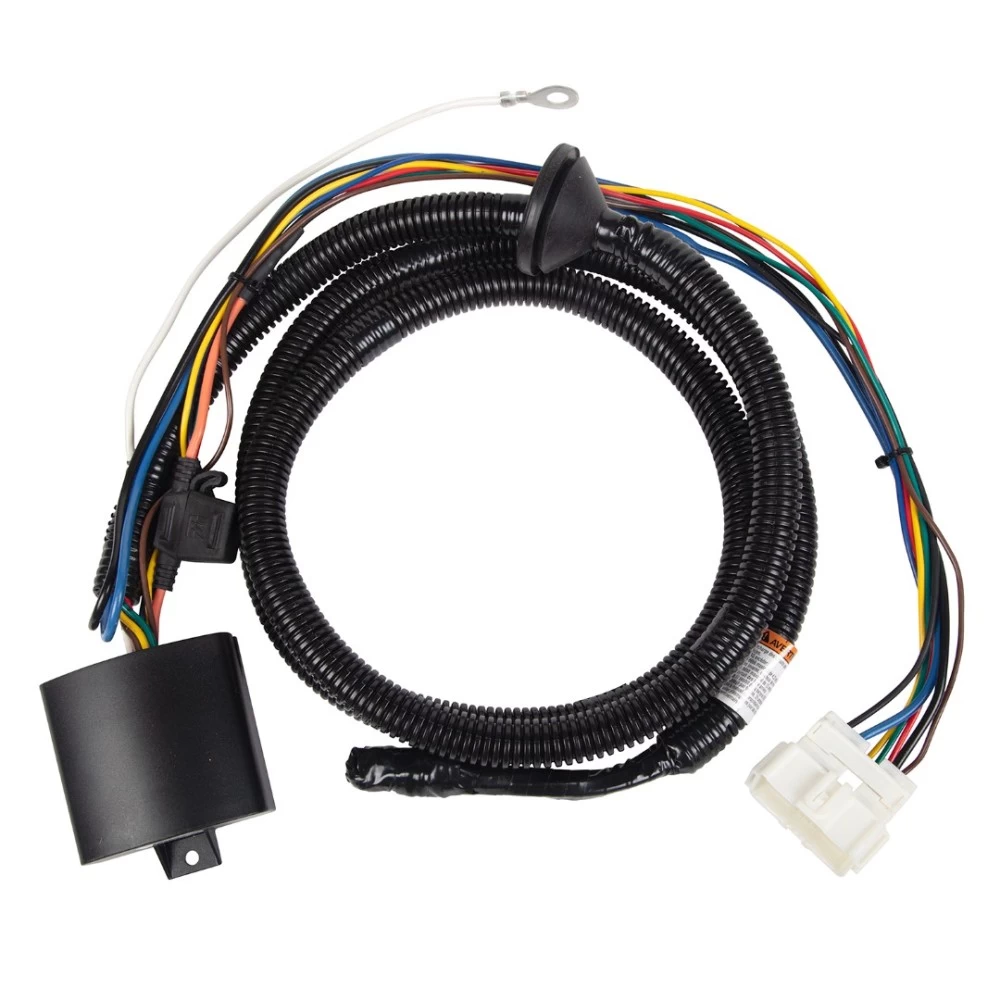

Wiring Kit Specs
Part Number | 118291 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |

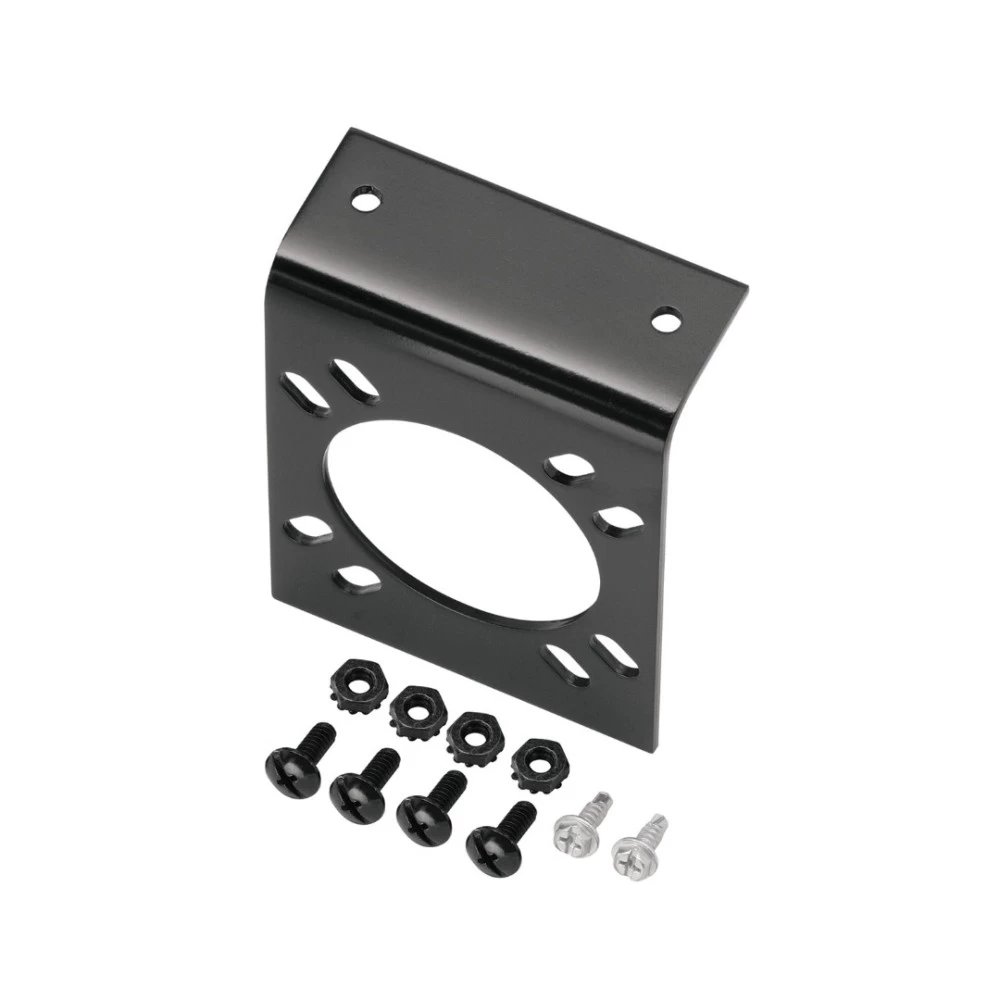

7-Way Mount Bracket
Part Number | 20212 |
Fits | 7-Way Flat Pin Connectors |
Brand | Tow Ready |
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
Warranty | 1 Year |
The REESE Towpower starter kit provides you with everything you need to tow. Included is a ball mount with pre-torqued hitch ball, and a pin & clip. Place the draw bar in the hitch receiver tube, and secure with the pin and clip, and you're ready to go.

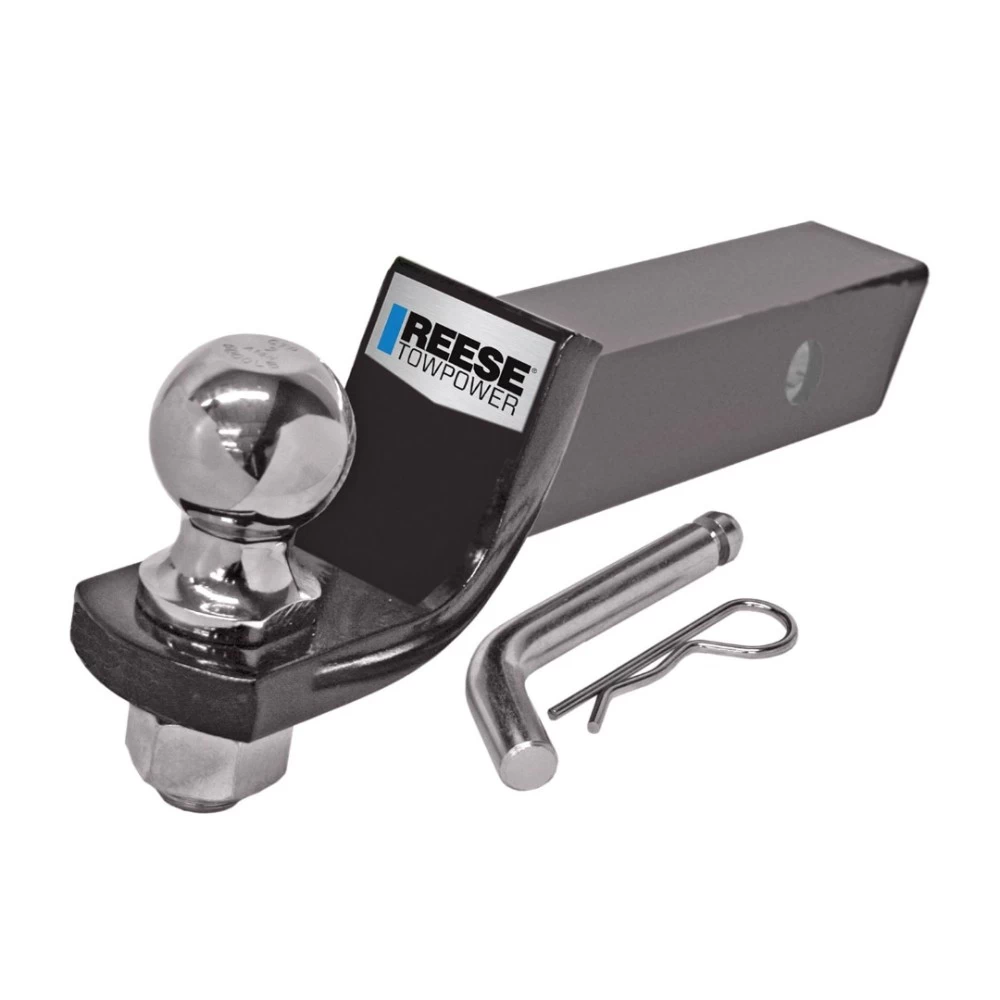

Ball Mount Specs:
Part Number | 21536 |
Brand |
Reese Towpower |
Finish | Black Powder Coat |
Towing Capacity |
6000 lbs |
Tongue Weight Capacity | 600 lbs |
Fits | 2" Reciever |
Shank Length | 9" |
Drop |
2" |
Rise |
3/4" |
Warranty | 1 Year |

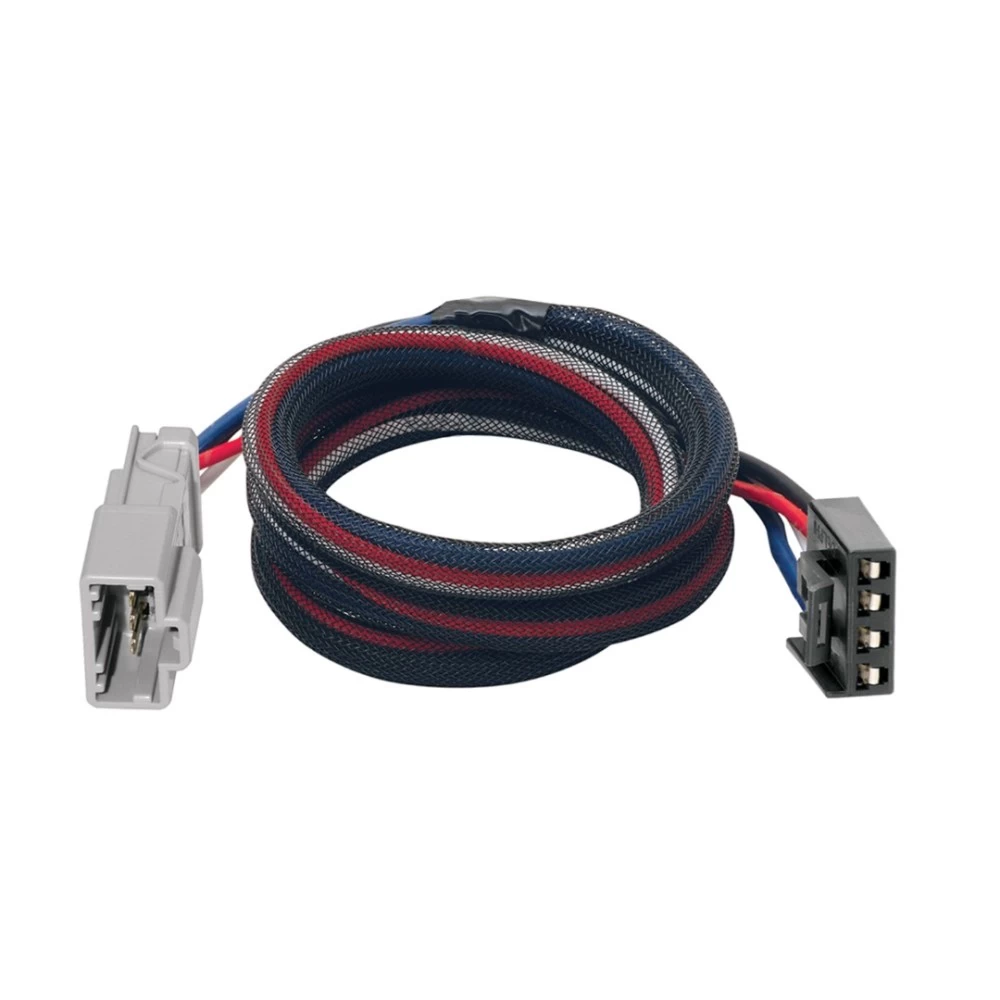

2-Plug Wiring Adapter Specs:
Part Number | 3070 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |

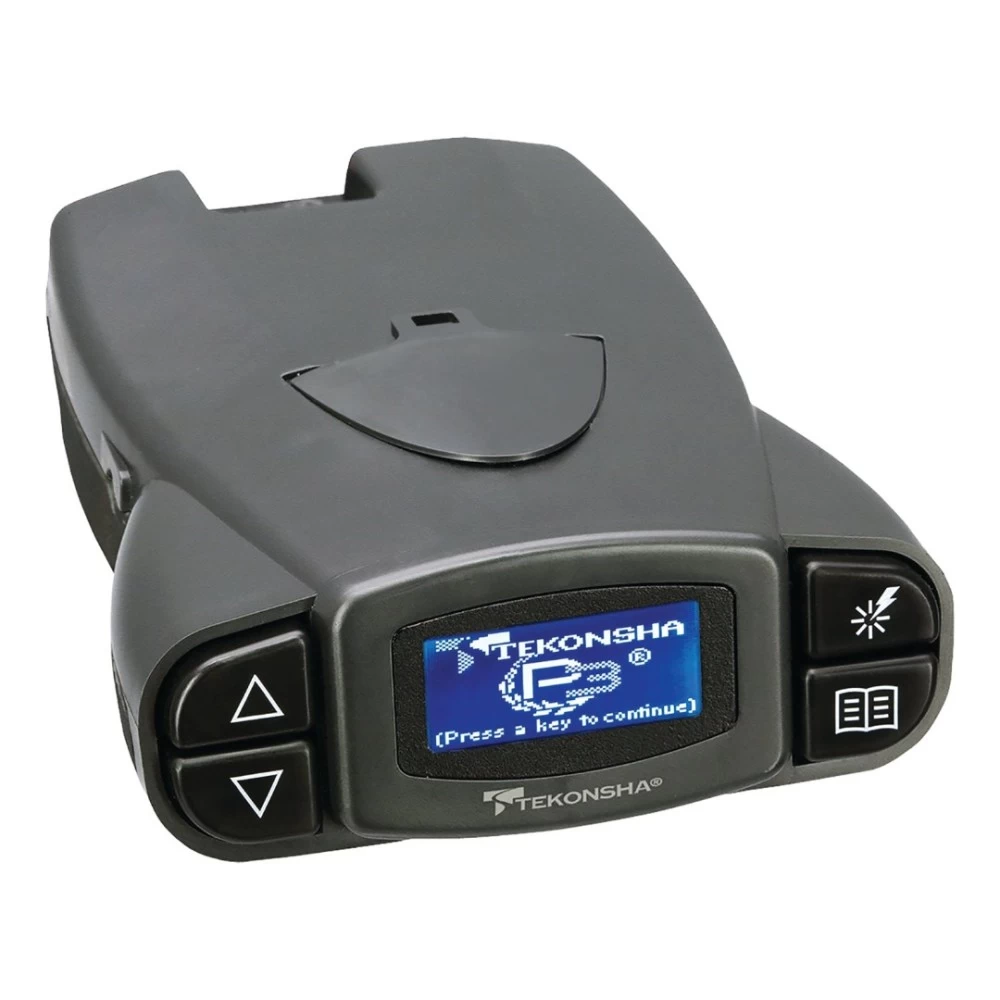

P3 the industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
- 5 storable setting options for pulling different trailers or preferences of multiple drivers.
- A distinct, easy-to-read LCD display with multiple screen color options.
- Up-Front controls provide easy access to all P3 features.
- Easy to understand diagnostics show output current, battery, brake, and output voltage.
- A flashing red warning system alerts user to No Trailer Brake situations.
- Select Electric over Hydraulic or Electric trailer brake mode.
- Screen information display in English, French or Spanish.
- The Original Boost feature allows for different levels of customized braking.
- Compact, dash-hugging design.
Brake Control Specs:
Part Number | 90195 |
Brand | Tekonsha |
Type | Proportional |
Axles | 1 to 4 axle trailers |
Warranty | Lifetime |
Installation Instructions | ![]() |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 19 20 21 22 23 24 2019 2020 2021 2022 2023 2024
$569 92 $872.73 35% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$872.73 $569 92
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $142.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese Towpower
- Model: 84290 118291 20212 21536 3070 90195
- Includes: Class 4 Trailer Tow Hitch, Tow Custom Harness, Trailer Brake Controller Custom Harness, Prodigy P3 Proportional Brake Controller for Trailers with 1-4 Axles, Mounting Bracket, Trailer Tow Hitch Ball Mount Starter Kit
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
2019 - 2025 | Honda | Passport | All Models |
This heavy duty kit is for those planning on towing a large trailer with electric brakes. This All-in-One bundle takes care of everything. No more searching and stressing out over what parts you need. This package includes the most sought after brake control on the market Tekonsha Prodigy P3. Being industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
2019 - 2024 Honda, Passport, All Styles
Trailer Hitch Specs:
Wiring Kit Specs
Part Number | 118291 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
7-Way Mount Bracket
Part Number | 20212 |
Fits | 7-Way Flat Pin Connectors |
Brand | Tow Ready |
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
Warranty | 1 Year |
The REESE Towpower starter kit provides you with everything you need to tow. Included is a ball mount with pre-torqued hitch ball, and a pin & clip. Place the draw bar in the hitch receiver tube, and secure with the pin and clip, and you're ready to go.
Ball Mount Specs:
Part Number | 21536 |
Brand |
Reese Towpower |
Finish | Black Powder Coat |
Towing Capacity |
6000 lbs |
Tongue Weight Capacity | 600 lbs |
Fits | 2" Reciever |
Shank Length | 9" |
Drop |
2" |
Rise |
3/4" |
Warranty | 1 Year |
2-Plug Wiring Adapter Specs:
Part Number | 3070 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
P3 the industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
- 5 storable setting options for pulling different trailers or preferences of multiple drivers.
- A distinct, easy-to-read LCD display with multiple screen color options.
- Up-Front controls provide easy access to all P3 features.
- Easy to understand diagnostics show output current, battery, brake, and output voltage.
- A flashing red warning system alerts user to No Trailer Brake situations.
- Select Electric over Hydraulic or Electric trailer brake mode.
- Screen information display in English, French or Spanish.
- The Original Boost feature allows for different levels of customized braking.
- Compact, dash-hugging design.
Brake Control Specs:
Part Number | 90195 |
Brand | Tekonsha |
Type | Proportional |
Axles | 1 to 4 axle trailers |
Warranty | Lifetime |
Installation Instructions | ![]() |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 19 20 21 22 23 24 2019 2020 2021 2022 2023 2024
Specification | |
Attachment Location | Rear |
Ball Mount Included | Yes |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 6,000 lbs. |
Gross Towing Weight w/ Weight Distribution Kit | 8,000 lbs. |
Hitch Class | IV |
Material | Steel |
Maximum Tongue Weight | 900 lbs. |
Maximum Tongue Weight w/ Weight Distribution Kit | 900 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Get Expert Help
Trailer Hitch Tow Package Prodigy P3 Brake Control For 19-24 Honda Passport w/ 7-Way RV Wiring 2" Drop Mount 2" Ball Class 4 2" Receiver Reese Tekonsha Install Notes
Installation Instructions for 2019-Current Honda Passport
Part Numbers:
- 76290
- 84290
- CQT76290
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- 21 mm Socket
- 6-inch Socket Extension
- M14x1.5 Tap
Step-by-Step Instructions:
-
Clean Weldnuts:
- Remove any stickers or plugs covering the weldnuts on the frame rails (both sides).
- Ensure weldnuts are free of rust and debris. Use an M14x1.5 tap if necessary.
-
Install Hitch:
- Raise the hitch into position and align the holes in the hitch bracket with the frame rail weldnuts.
- Loosely install the supplied M14 bolts and conical washers.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M14 fasteners to 89 ft-lbs (121 Nm).
Hardware List:
- (6) Bolt M14x1.5x45 CL10.9
- (6) Conical Washer 5/8"
Safety Notes:
- Always wear safety glasses during installation.
- Ensure proper torque to keep the hitch securely mounted.
- Check hitch and fasteners regularly for proper tightness.
- Damaged hitch or ball should be removed and replaced.
- Never cut attachment holes with a torch.
- Observe all safety precautions when working under the vehicle.
Specifications:
- Weight Carrying Capacity: 6,000 lbs (2,724 kg) trailer weight, 900 lbs (409 kg) tongue weight.
- Weight Distributing Capacity: 8,000 lbs (3,632 kg) trailer weight, 900 lbs (409 kg) tongue weight.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Installation Instructions for T-One® T-Connector for Honda Passport
Part Numbers:
- 118291
Tools Required:
- Trim Panel Remover
- 10mm & 8mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Wire Cutters
- Philips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Prepare the Cargo Area:
- Open the vehicle’s rear tailgate.
- Temporarily remove all floor coverings and cargo trays from the rear cargo area.
-
Locate the Tow Plug Connector:
- On the driver’s side, remove the cargo bin and cargo hooks using an 8mm socket, Phillips screwdriver, and side panel tools to locate the mating tow plug connector.
-
Connect the T-One® T-Connector:
- Insert the T-One® T-Connector harness into the vehicle’s Tow-Plug harness and lock it into place.
- Ensure all connector surfaces are clean and free of dirt. Be careful not to damage the locking tabs and confirm connectors are fully inserted with locking tabs secured.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
- Caution: Verify the surface before drilling to avoid damage or injury. Do not drill into the vehicle floor or bed.
-
Mount the Black Box Module:
- Locate a flat, out-of-the-way surface and mount the T-One® T-Connector’s black box module to prevent damage or rattling.
-
Route the 7-Way Harness:
- Remove the existing plug and route the 7-Way harness end with the terminals behind the trim panel to the grommet area.
- Route the 7-Way harness through the grommet hole and seat the grommet inside.
- Continue routing the 7-Way harness to the center of the vehicle.
-
Secure the Harness:
- Use the provided cable ties to secure the remainder of the harness, avoiding areas that could pinch, cut, or melt the wire.
-
Install the 7-Way Socket:
- Determine the mounting location for the 7-Way socket.
- Route the harness containing the 7 wires along the inside of the bumper toward the mounting location.
- Insert terminals into the provided black round connector, which mates with the provided 7-Way socket.
- Plug the 7-way socket into the Trailer Tow Harness and mount it in an accessible location using a bracket or electrical box (not included).
-
Install Fuses:
- Open the vehicle hood and locate the fuse box on the driver’s side near the rear of the firewall.
- Insert the following fuses (included) into these positions:
- 30A for Trailer Main (Position #2)
- 20A for Trailer E-Brake (Position #3)
- 20A for Trl Charge (Position #11)
-
Test the Installation:
- Verify all connections are complete for proper T-One® T-Connector functionality.
- Test the installation using a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the ignition key.
-
Reinstall Components:
- Replace all removed panels, thresholds, covers, and floor items, ensuring no wires are pinched or cut.
Warning:
- Overloading circuits can cause fires. Do not exceed stated product ratings.
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
Safety Notes:
- Always wear safety glasses and use proper precautions during installation.
- Avoid routing wires near areas that may damage the harness.
- Follow the vehicle warnings and installation instructions carefully.
Manufacturer Notes:
- Store these instructions for future reference.
- Refer to the vehicle owner’s manual for additional details.
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Numbers:
- 307000
Wiring Access Location:
- Under dash, left of the steering column, near the brake pedal
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the vehicle brake control harness connector
- Find the electric brake control harness under the dash, to the left of the steering column.
- The harness will be taped to another harness near the brake pedal and will have a 4-pin connector that mates with the adapter.
Step 2: Connect the brake control adapter
- Plug the brake control adapter into the vehicle’s electric brake control harness connector.
- Follow the brake control manufacturer’s installation instructions.
Step 3: Complete installation and mount the brake control unit
- Complete the installation as directed in the brake control manufacturer’s instructions.
- Mount the brake control unit and perform the test procedures to ensure functionality.
Safety Notes:
- Vehicles not equipped with an OEM trailer tow package may require fuses and relays to complete output and battery feed circuits (sold separately).
- Consult the vehicle owner’s manual for fuse and relay locations.
- Do not exceed the lower of the towing manufacturer’s rating or the following limits:
- Maximum 3 axles: 6 brakes (18 amps).
- Overloading circuits can cause fires.
- Always wear safety glasses and follow all safety precautions during installation.
Additional Information:
- Always ensure the adapter is securely connected to the mating receptacle on the brake control before attaching to the vehicle harness.
Installation and Operation Instructions for the P3 Electronic Brake Control
Specifications:
- Supports 2, 4, 6, and 8 brake applications.
- Utilizes proportional braking with an inertial sensor.
Tools Required:
- Drill with a 1/8" bit.
- Screwdriver or nut driver.
- Wire crimp tool.
- Probe-type circuit tester.
Safety Notes:
- Avoid mounting or activating RF-generating devices (e.g., cell phones) within 12 inches of the brake control.
- Always adhere to the vehicle's Gross Combined Weight Rating (GCWR).
- Do not use the Boost feature during icy or slippery road conditions.
- Disconnect the trailer plug before testing a breakaway switch to prevent damage.
Hardware List:
- P3 Brake Control Unit.
- Mounting bracket.
- Wiring harness.
- #8 x 3/8" self-tapping screws.
Installation Instructions:
Mounting the Brake Control:
-
Traditional Bracket Mount:
- Secure the bracket to a solid surface using the provided screws.
- Attach the brake control unit and adjust to the desired angle.
- Tighten screws securely.
-
Under Dash Pocket Mount:
- Secure the small metal bracket with screws to a flat surface.
- Attach the T-slot mount to the metal bracket and insert the brake control.
Wiring the Brake Control:
- Option 1: Use the included pigtail wiring harness for a generic installation.
- Option 2: Use an OEM-specific wiring harness compatible with the vehicle's tow package.
- Wire Functions:
- Black: Positive power (+12V).
- White: Vehicle ground.
- Red: Cold side of brake pedal switch.
- Blue: Trailer brakes output.
Setting Up the Control:
- Connect the trailer to the vehicle.
- Use the Menu/Options button to access the setup screen.
- Select the brake type:
- Electric: For electric brakes.
- Hydraulic: For electric over hydraulic braking systems.
- Adjust the power output to ensure effective braking without wheel lock-up.
Boost Feature:
- Provides enhanced braking sensitivity.
- Available in three levels:
- B1: Light braking boost.
- B2: Moderate braking boost.
- B3: Aggressive braking boost.
- Recommended for heavier trailers or varying load conditions.
Reverse Mode:
- Cancel Boost and Hold features for 3 minutes by pressing and holding the Boost button for 5 seconds while holding the brake pedal.
Troubleshooting Guide:
Problem | Possible Cause | Solution |
---|---|---|
No trailer brakes | Poor ground or power loss | Check power and ground connections. |
Brakes lock up | Power too high | Reduce the power setting. |
Open Ground Warning | Loose ground connection | Inspect and secure ground wire. |
Overload Warning | Excessive brake current | Inspect trailer brake wiring. |
Output Shorted | Wiring short in circuit | Inspect the blue wire for damage. |
Maintenance:
- Inspect connections and wiring regularly for damage or wear.
- Adjust trailer brakes after the first 200 miles of use and every 3,000 miles thereafter.
- Clean the brake control unit periodically to maintain optimal performance.
Warranty Information:
- Limited Lifetime Warranty:
- Covers defects in materials and workmanship under normal use.
- Excludes damage caused by misuse, improper installation, or external factors.
- Attention: For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
