Installation Instructions for Scion tC

Part Numbers:

• 24827
• 60213
• 77199

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 17mm, 11/16”
• Drill Bits: 3/8”

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Remove Tie-Down Brackets (if present):

   • Detach the tie-down brackets from the vehicle frame rail.
   • Return the brackets and bolts to the vehicle owner.

2. Remove Plastic Rivets:

   • Remove the two plastic rivets securing the fascia tabs to the vehicle.
   • Use a screwdriver to remove the center of each rivet.

3. Enlarge Access Holes:

   • Enlarge the access holes in the passenger-side frame rail only to accommodate the spacer. Refer to Figure 2 for guidance.

4. Fishwire Carriage Bolts and Spacers:

   • Insert the pull wire through the enlarged hole, attach a spacer and carriage bolt, and feed them one at a time into the frame rail. Leave the pull wire attached.

5. Paint Exposed Metal:

   • Apply paint to any exposed metal surfaces to prevent corrosion.

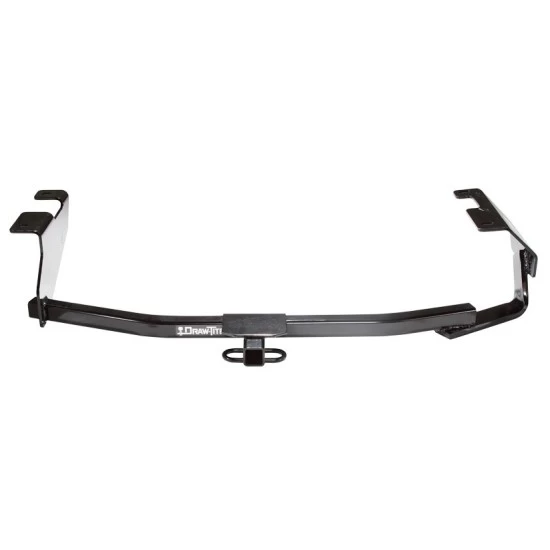

6. Position Hitch:

   • Raise the hitch into position.
   • Feed the pull wires through the adjacent holes in the hitch, remove the pull wires, and install conical washers and nuts finger-tight only.
   • Ensure fasteners are not pushed back into the frame rail.

7. Center and Secure Hitch:

   • Verify the hitch is centered on the vehicle.
   • Torque all fasteners to the specified values:
     • M10 CL8.8 bolts: 59 Lb.-Ft. (80 N*M)
     • 7/16”-14 GR5 bolts: 50 Lb.-Ft. (68 N*M)

8. Reinstall Plastic Rivets:

   • Replace the plastic rivets removed from the fascia tabs in Step 2.

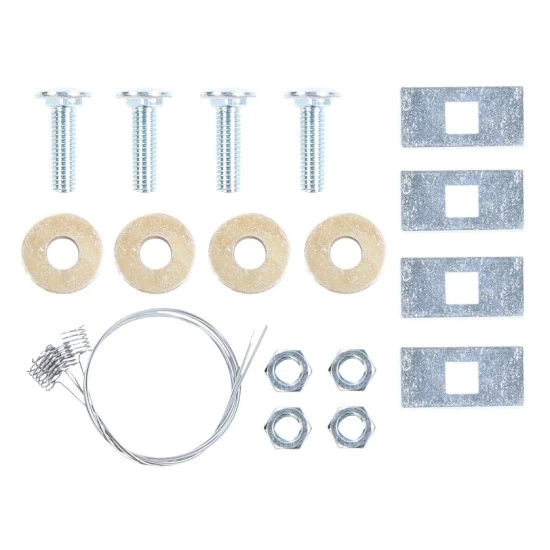

Hardware List:

• (2) Carriage Bolts: 7/16”-14 x 1.75” GR5
• (2) Hex Nuts: 7/16”-14
• (2) Spacers
• (2) Hex Bolts: M10 x 1.25 x 30mm CL8.8
• (4) Conical Washers: 7/16”
• (2) Pull Wires: 7/16”

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working beneath the vehicle.
• Do not use a torch to cut access or attachment holes.

Drawbar:

• Drawbar Kit: 3593
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.
• Do not exceed the manufacturer’s recommended towing capacity.

Installation Instructions

Part Numbers:

• 24827
• 60213
• 77199

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 17mm, 11/16”
• Drill Bits: 3/8”

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Remove Tie-Down Brackets (if present):

   • Detach the tie-down brackets from the vehicle frame rail.
   • Return the brackets and bolts to the vehicle owner.

2. Remove Plastic Rivets:

   • Remove the two plastic rivets securing the fascia tabs to the vehicle.
   • Use a screwdriver to remove the center of each rivet.

3. Enlarge Access Holes:

   • Enlarge the access holes in the passenger-side frame rail only to accommodate the spacer. Refer to Figure 2 for guidance.

4. Fishwire Carriage Bolts and Spacers:

   • Insert the pull wire through the enlarged hole, attach a spacer and carriage bolt, and feed them one at a time into the frame rail. Leave the pull wire attached.

5. Paint Exposed Metal:

   • Apply paint to any exposed metal surfaces to prevent corrosion.

6. Position Hitch:

   • Raise the hitch into position.
   • Feed the pull wires through the adjacent holes in the hitch, remove the pull wires, and install conical washers and nuts finger-tight only.
   • Ensure fasteners are not pushed back into the frame rail.

7. Center and Secure Hitch:

   • Verify the hitch is centered on the vehicle.
   • Torque all fasteners to the specified values:
     • M10 CL8.8 bolts: 59 Lb.-Ft. (80 N*M)
     • 7/16”-14 GR5 bolts: 50 Lb.-Ft. (68 N*M)

8. Reinstall Plastic Rivets:

   • Replace the plastic rivets removed from the fascia tabs in Step 2.

Hardware List:

• (2) Carriage Bolts: 7/16”-14 x 1.75” GR5
• (2) Hex Nuts: 7/16”-14
• (2) Spacers
• (2) Hex Bolts: M10 x 1.25 x 30mm CL8.8
• (4) Conical Washers: 7/16”
• (2) Pull Wires: 7/16”

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working beneath the vehicle.
• Do not use a torch to cut access or attachment holes.

Drawbar:

• Drawbar Kit: 3593
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.
• Do not exceed the manufacturer’s recommended towing capacity.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
