Trailer Tow Hitch w/ 4 Bike Rack For 07‑08 Honda Fit tilt away adult or child arms fold down carrier w/ Lock and Cover
Model: 24776 1393100G 580407 2211Custom Fit Trailer Hitch
4 Bike Carrier
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 - 2008 Honda, Fit, All Styles
Trailer Hitch Specs:
Bike Rack Specs:
Security Lock Pin Specs:
Part Number | 580407 |
Fits | 2" and 1-1-4" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 2211 |
Fits | 1-1/4" Receiver |
Brand | Draw-Tite |
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 2007 2008
$305 18 $488.93 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$488.93 $305 18
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $76.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24776 1393100G 580407 2211

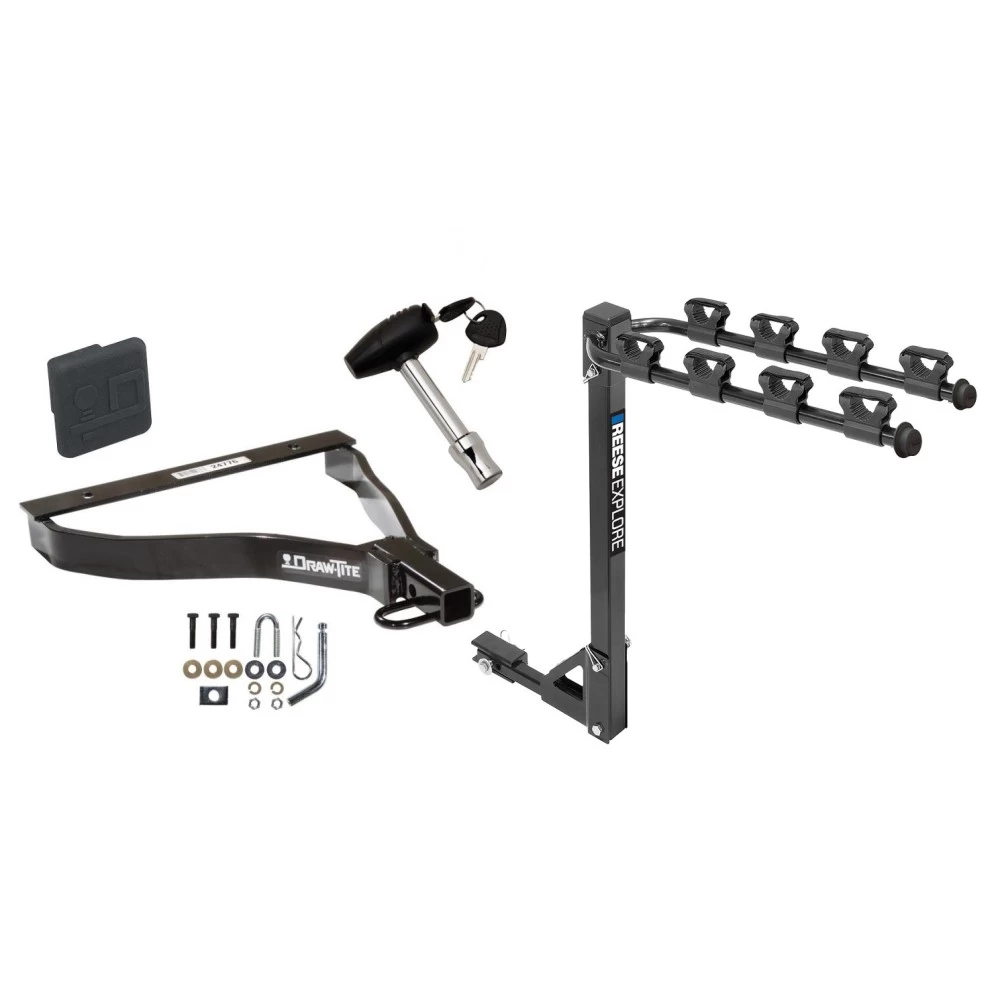

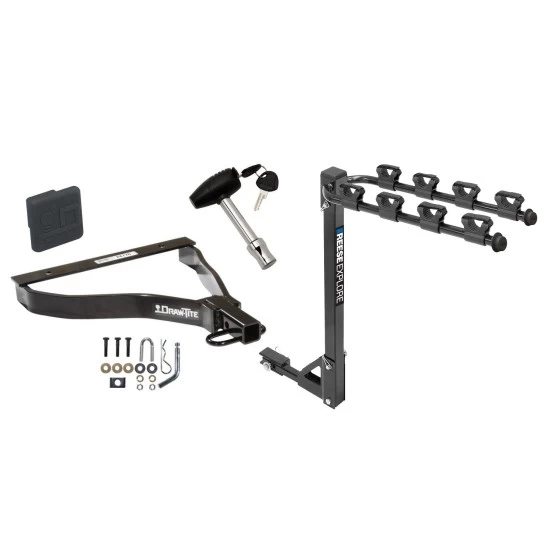

- Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |

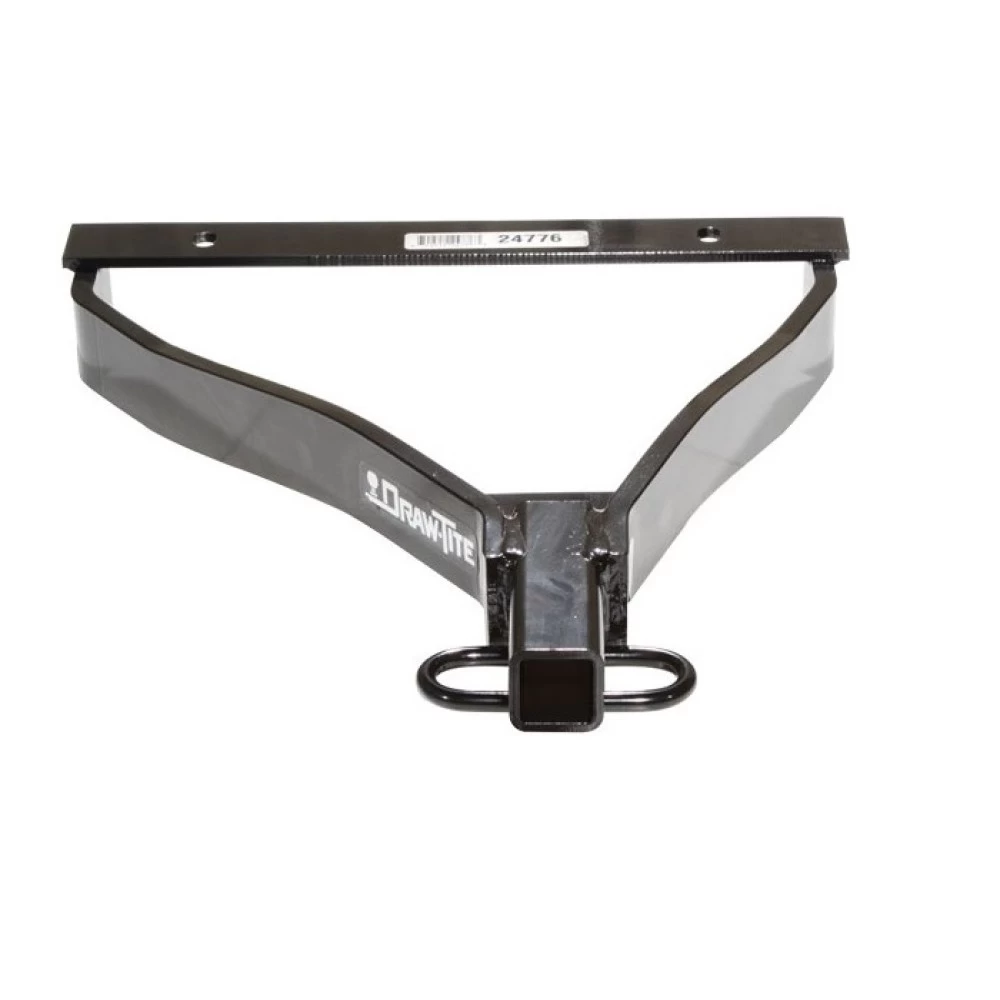

Custom Fit Trailer Hitch
4 Bike Carrier
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 - 2008 Honda, Fit, All Styles
Trailer Hitch Specs:
Bike Rack Specs:
Security Lock Pin Specs:
Part Number | 580407 |
Fits | 2" and 1-1-4" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 2211 |
Fits | 1-1/4" Receiver |
Brand | Draw-Tite |
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 2007 2008
Specification | |
Attachment Location | Rear |
Color | Black |
Drawbar Included | No |
Drilling Required | No |
Gross Towing Weight | 2,000 lbs. |
Hitch Class | I |
Material | Steel |
Maximum Tongue Weight | 200 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 1.25 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Get Expert Help
Trailer Tow Hitch w/ 4 Bike Rack For 07-08 Honda Fit tilt away adult or child arms fold down carrier w/ Lock and Cover Install Notes
Installation Instructions for Honda Fit and Honda Fit Sport
Part Numbers:
- 77153
- 24776
- 60847
Wiring Access Location:
- PC1, PC2
Tools Required:
- Wrenches: 12mm, 13mm, 11/16"
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Skid Shield:
- Remove the three M8 bolts securing the skid shield on the underside of the vehicle trunk pan.
- Retain the skid shield for reinstallation in Step 6.
-
Insert U-Bolt:
- Insert the 3/8”-16 U-bolt through the vehicle tow hook.
-
Position Hitch:
- Raise the hitch into position, aligning the U-bolt with the holes in the tow hook bracket on the receiver.
-
Loosely Install Fasteners:
- Loosely install the 3/8” flat washers, lock washers, and hex nuts on the U-bolt at the tow hook attachment points.
-
Align Components:
- Align the forward slots on the receiver with the holes in the vehicle crossmember.
- Align the skid shield slots with the receiver slots, then install the M8 hex bolts and 3/8” conical toothed washers.
-
Secure Rearward Skid Shield Attachment:
- Place the provided 1/4” x 1” x 1.50” block between the skid shield and the vehicle trunk pan.
- Install the 3/8” conical toothed washer and M8 hex bolt to secure the rearward skid shield attachment.
-
Tighten Fasteners:
- Torque all M8 CL8.8 fasteners to 20 Lb.-Ft. (27 N*M).
- Torque all 3/8”-16 GR5 fasteners to 30 Lb.-Ft. (41 N*M).

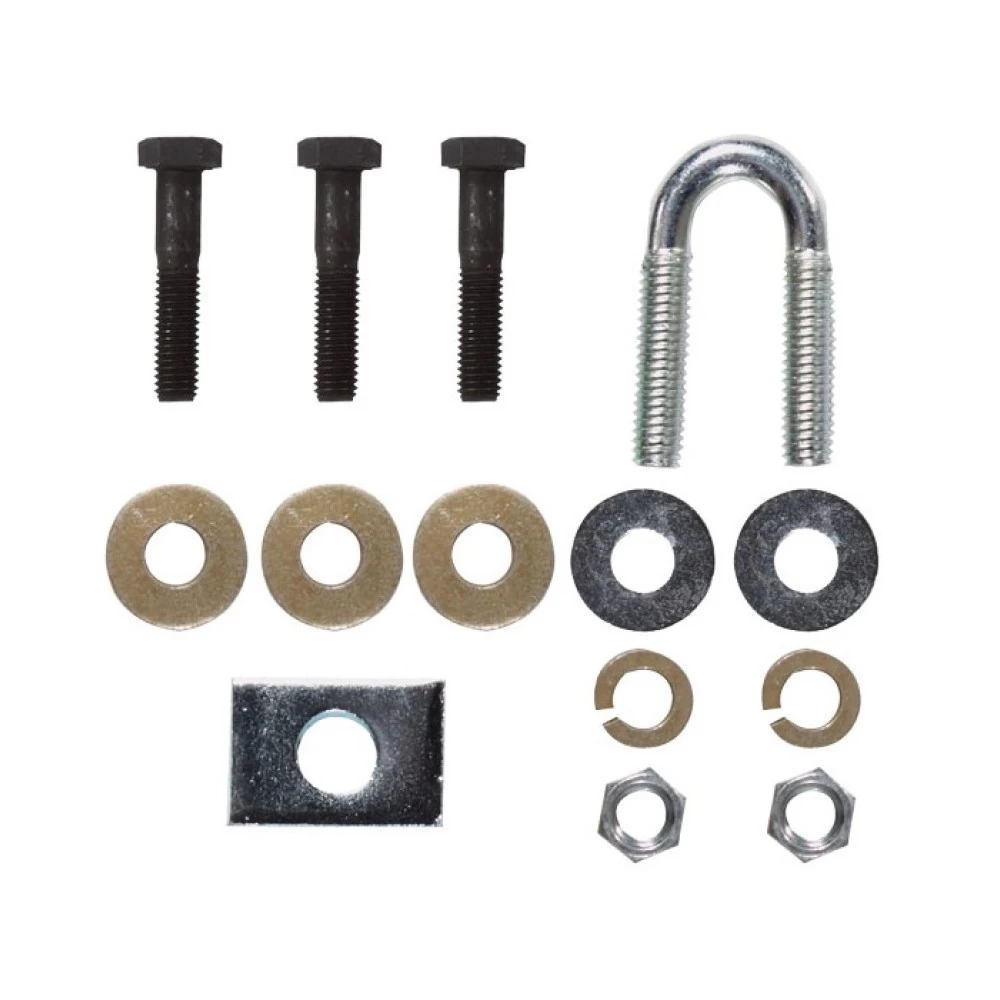

Hardware List:
- (1) 3/8”-16 U-Bolt
- (2) 3/8” Flat Washers
- (2) 3/8” Lock Washers
- (2) 3/8” Hex Nuts
- (3) M8-1.25 x 40mm CL8.8 Hex Bolts
- (3) 3/8” Conical Toothed Washers
- (1) 1/4” x 1” x 1.50” Block
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Installation Instructions for Various Vehicles
Part Numbers:
- 77153
- 24776
- 60847
Wiring Access Location:
- PC1, PC2
Tools Required:
- Wrenches: 12mm, 13mm, 11/16"
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Skid Shield:
- Remove the three M8 bolts securing the skid shield on the underside of the vehicle trunk pan.
- Retain the skid shield for reinstallation in Step 6.
-
Insert U-Bolt:
- Insert the 3/8”-16 U-bolt through the vehicle tow hook.
-
Position Hitch:
- Raise the hitch into position, aligning the U-bolt with the holes in the tow hook bracket on the receiver.
-
Loosely Install Fasteners:
- Loosely install the 3/8” flat washers, lock washers, and hex nuts on the U-bolt at the tow hook attachment points.
-
Align Components:
- Align the forward slots on the receiver with the holes in the vehicle crossmember.
- Align the skid shield slots with the receiver slots, then install the M8 hex bolts and 3/8” conical toothed washers.
-
Secure Rearward Skid Shield Attachment:
- Place the provided 1/4” x 1” x 1.50” block between the skid shield and the vehicle trunk pan.
- Install the 3/8” conical toothed washer and M8 hex bolt to secure the rearward skid shield attachment.
-
Tighten Fasteners:
- Torque all M8 CL8.8 fasteners to 20 Lb.-Ft. (27 N*M).
- Torque all 3/8”-16 GR5 fasteners to 30 Lb.-Ft. (41 N*M).
Hardware List:
- (1) 3/8”-16 U-Bolt
- (2) 3/8” Flat Washers
- (2) 3/8” Lock Washers
- (2) 3/8” Hex Nuts
- (3) M8-1.25 x 40mm CL8.8 Hex Bolts
- (3) 3/8” Conical Toothed Washers
- (1) 1/4” x 1” x 1.50” Block
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
- For complete warranty instructions, please download the full installation PDF.
