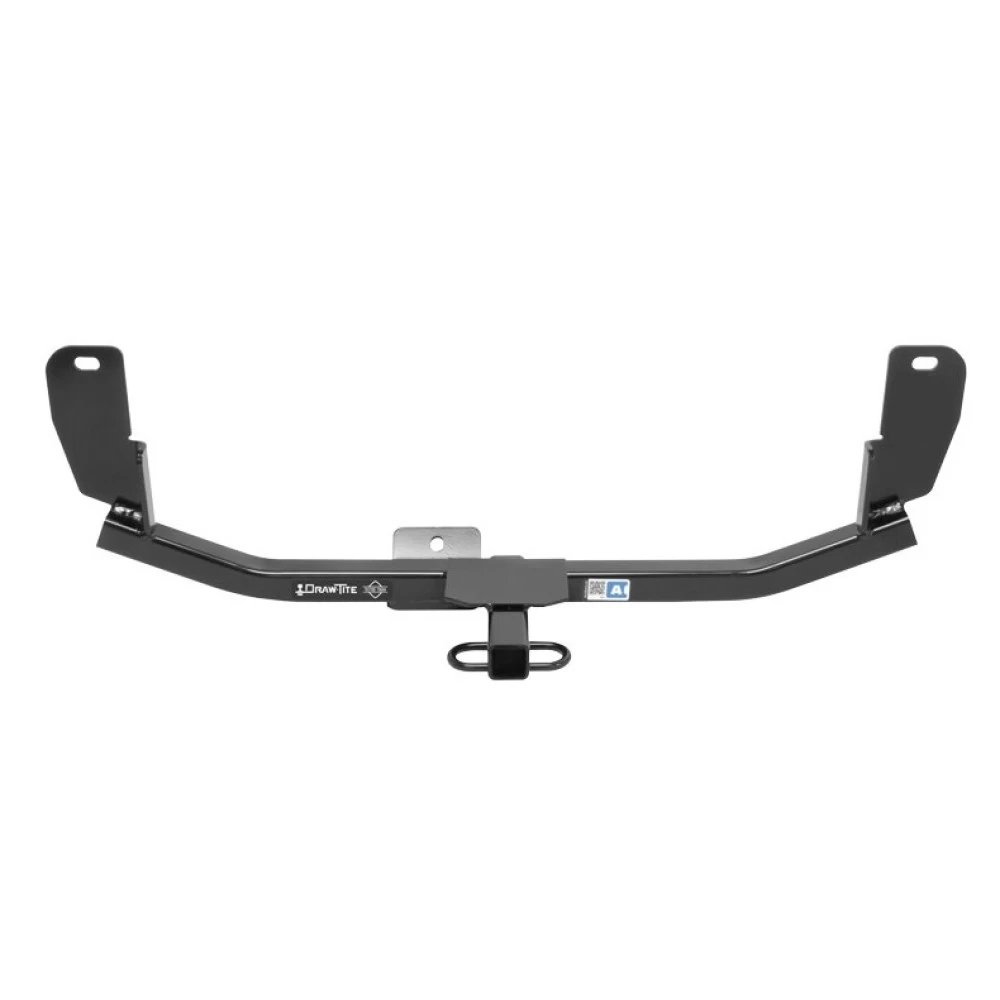

Installation Instructions for Hyundai Elantra GT
Note: Does not fit Korean-manufactured vehicles (See door jamb build sticker or VIN code, second letter "M").

Part Numbers:

• 24905
• 60336
• 77292

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 3/4”
• Crowfoot adaptor

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (91 kg)
• Note: Do not exceed the towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Install Carriage Bolt and Spacer:

   • Place the carriage bolt and spacer onto the tow hook as shown in Figure 1.

2. Position Hitch:

   • Raise the hitch into position behind the end panel.
   • Fasten the hitch to the tow hook with the conical washer and hex nut. Hand-tighten.

3. Attach Hardware:

   • Using the provided pull wire, install the carriage bolt and spacer through the end panel and hitch.
   • Secure with the conical washer and hex nut. Hand-tighten.

4. Tighten All Fasteners:

   • Torque all 1/2” GR5 fasteners to 75 Lb.-Ft. (102 N*M).

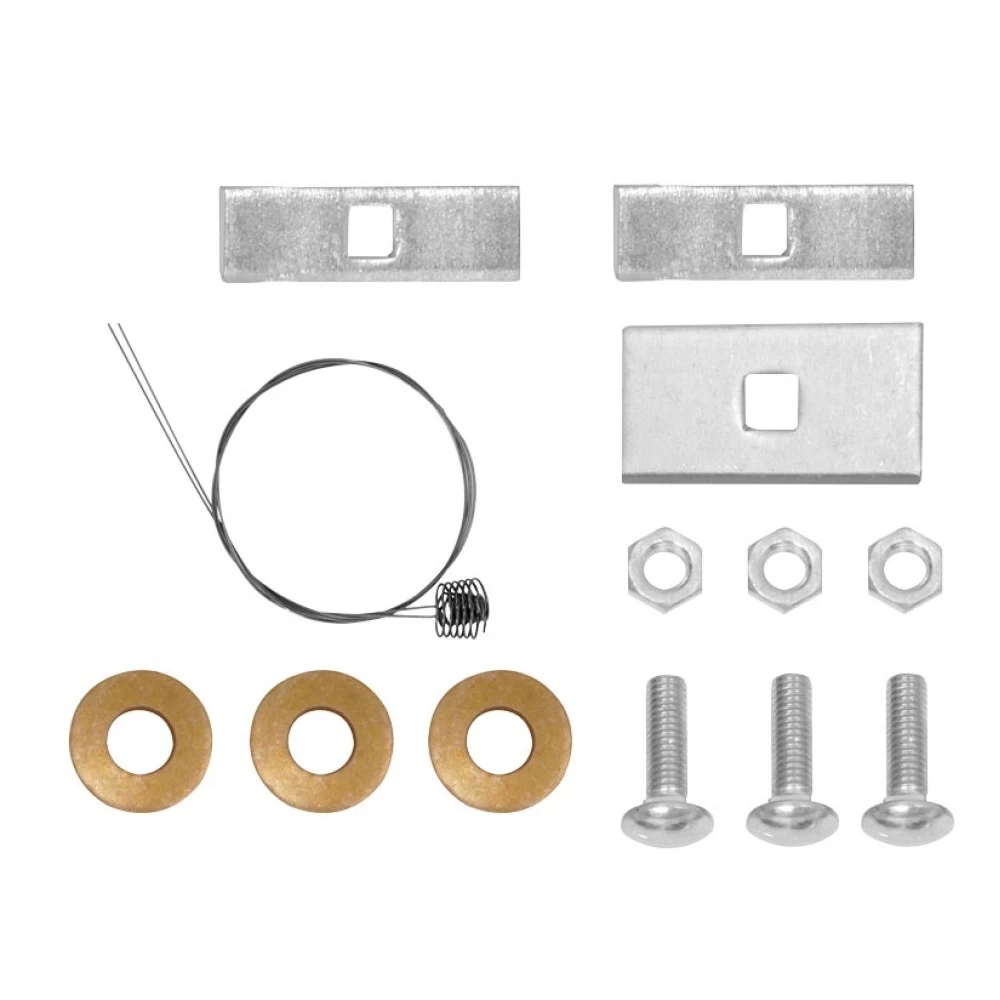

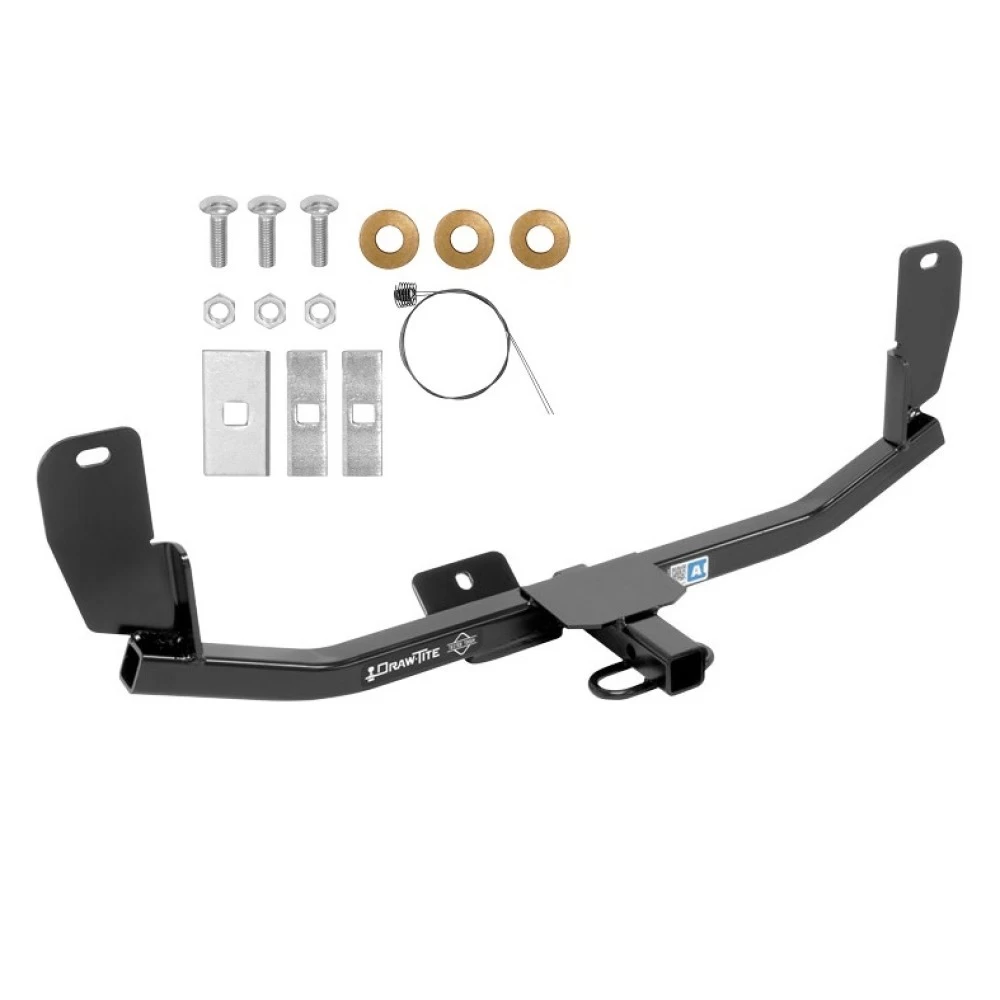

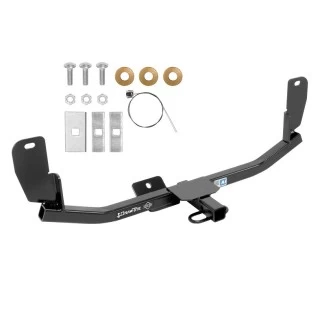

Hardware List:

• (3) Carriage Bolts: 1/2”-13 x 1.75” GR5
• (3) Conical Washers: 1/2”
• (3) Hex Nuts: 1/2”-13
• (2) Spacers
• (1) Pull Wire: 1/2”

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working under the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3594
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.

Installation Instructions for Vehicle (All Models)

Note: Does not fit certain vehicles (See door jamb build sticker or VIN code, second letter "M").

Part Numbers:

• 24905
• 60336
• 77292

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 3/4”
• Crowfoot adaptor

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (91 kg)
• Note: Do not exceed the towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Install Carriage Bolt and Spacer:

   • Place the carriage bolt and spacer onto the tow hook as shown in Figure 1.

2. Position Hitch:

   • Raise the hitch into position behind the end panel.
   • Fasten the hitch to the tow hook with the conical washer and hex nut. Hand-tighten.

3. Attach Hardware:

   • Using the provided pull wire, install the carriage bolt and spacer through the end panel and hitch.
   • Secure with the conical washer and hex nut. Hand-tighten.

4. Tighten All Fasteners:

   • Torque all 1/2” GR5 fasteners to 75 Lb.-Ft. (102 N*M).

Hardware List:

• (3) Carriage Bolts: 1/2”-13 x 1.75” GR5
• (3) Conical Washers: 1/2”
• (3) Hex Nuts: 1/2”-13
• (2) Spacers
• (1) Pull Wire: 1/2”

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working under the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3594
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
