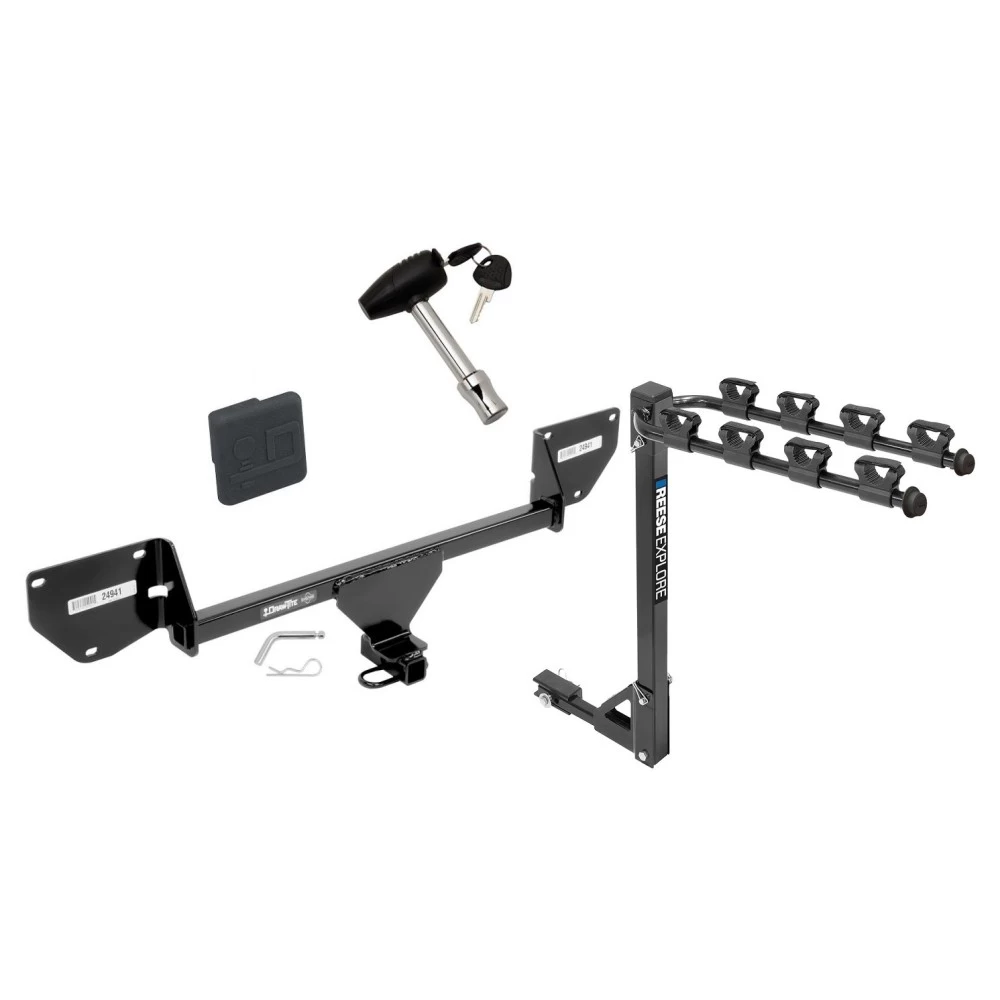

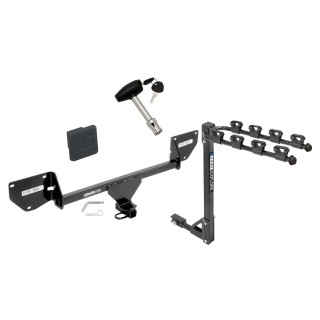

Installation Instructions for Chevrolet Cruze Hatchback (2017-Present)

Part Numbers:

• 24951
• 77951
• CQT24951

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• Plastic Trim Tools
• Flat Head Screwdriver
• Tape Measure
• Marker
• Utility Knife
• Sockets: 7mm, 15mm
• T15 Torx Driver
• 6" Socket Extension

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 2,000 lbs (908 kg)
  • Max Tongue Weight: 200 lbs (91 kg)
• Weight Distributing:
  • Not Applicable

Step-by-Step Instructions:

1. Fascia Removal:

• Bottom Bolts: Using a 7mm socket, remove (4) screws from the bottom of the fascia.
• Wheel Well Bolts: Remove (3) T15 Torx screws from each wheel well. Remove an additional 7mm screw located vertically behind the wheel well liner on both sides.
• License Plate Area: Use a 7mm socket to remove (2) screws near the license plate area.
• Taillights: Open the trunk. Use a flat head screwdriver to remove the caps covering the taillight screws. Remove (2) T15 screws per taillight, gently pull the taillights rearward, disconnect the wiring harness, and set aside.
• Fascia Removal: Use plastic trim tools to carefully detach the fascia starting at the wheel wells. Disconnect the wiring harness attached to the fascia and remove it.

2. Bumper Beam Removal:

• Flange Nuts: Use a 15mm socket to remove (6) M10 flange nuts from the bumper beam.
• Gently remove the bumper beam and set it aside.

3. Hitch Installation:

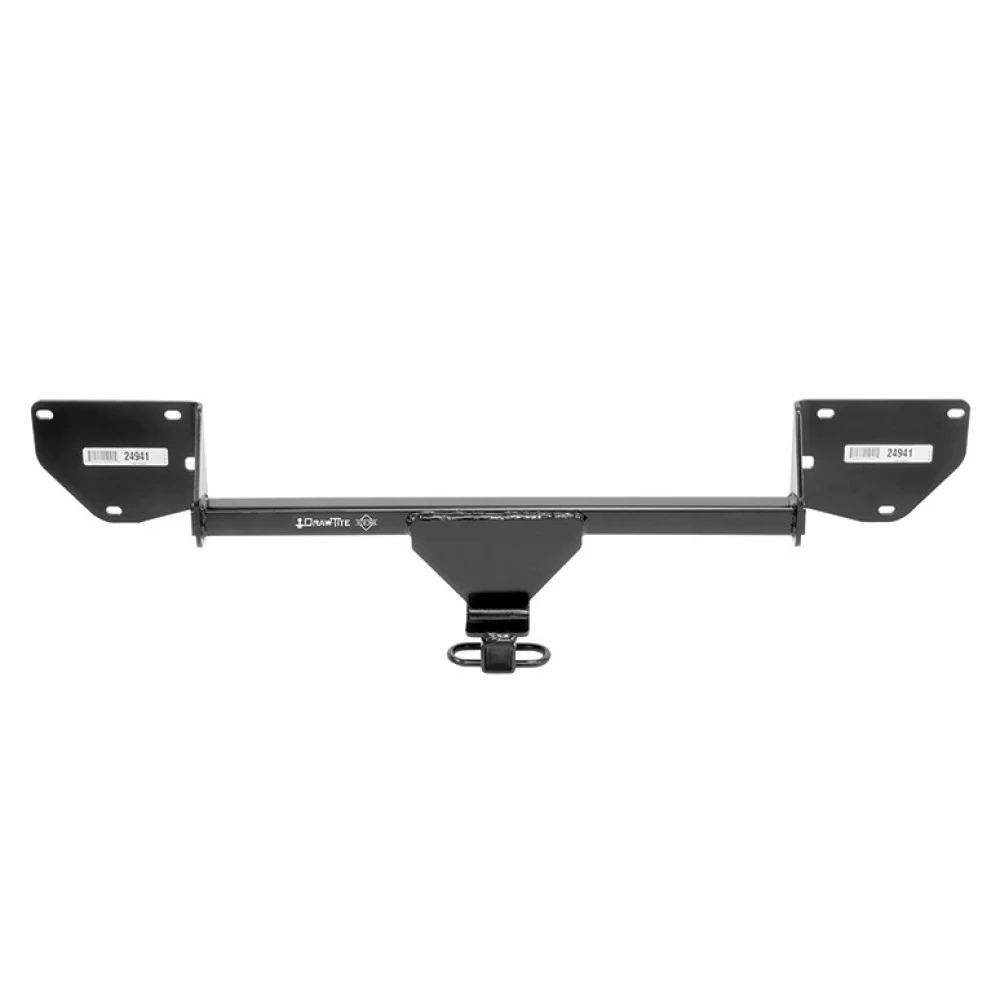

• Position Hitch: Raise the hitch into position, aligning its holes with the studs on the end panel.
• Reinstall Bumper Beam: Place the bumper beam on top of the hitch and loosely reinstall the (6) M10 flange nuts.

4. Tighten Fasteners:

• Use a torque wrench to tighten all M10 fasteners to 38 ft-lbs (52 N·m).

5. Trim Fascia:

• Lower Fascia Trim: Use a tape measure, marker, and utility knife to cut a 3-1/4” wide by 3” deep notch in the lower center of the fascia.
• Raised Areas: Trim (2) raised areas on the inside of the fascia flush with the fascia surface using a utility knife.

6. Reinstall Components:

• Reverse the steps from Step 1 to reinstall the fascia, taillights, and wiring.

Safety Notes:

• Regularly inspect the hitch and all fasteners to ensure a secure fit.
• If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water or exhaust fume entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and observe safety precautions when working beneath a vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class I
• Compliance: This product meets safety specifications per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.

Installation Instructions for Chevrolet Cruze Hatchback (2017-Present)

Part Numbers:

• 24951
• 77951
• CQT24951

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• Plastic Trim Tools
• Flat Head Screwdriver
• Tape Measure
• Marker
• Utility Knife
• Sockets: 7mm, 15mm
• T15 Torx Driver
• 6" Socket Extension

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 2,000 lbs (908 kg)
  • Max Tongue Weight: 200 lbs (91 kg)
• Weight Distributing:
  • Not Applicable

Step-by-Step Instructions:

1. Fascia Removal:

• Bottom Bolts: Using a 7mm socket, remove (4) screws from the bottom of the fascia.
• Wheel Well Bolts: Remove (3) T15 Torx screws from each wheel well. Remove an additional 7mm screw located vertically behind the wheel well liner on both sides.
• License Plate Area: Use a 7mm socket to remove (2) screws near the license plate area.
• Taillights: Open the trunk. Use a flat head screwdriver to remove the caps covering the taillight screws. Remove (2) T15 screws per taillight, gently pull the taillights rearward, disconnect the wiring harness, and set aside.
• Fascia Removal: Use plastic trim tools to carefully detach the fascia starting at the wheel wells. Disconnect the wiring harness attached to the fascia and remove it.

2. Bumper Beam Removal:

• Flange Nuts: Use a 15mm socket to remove (6) M10 flange nuts from the bumper beam.
• Gently remove the bumper beam and set it aside.

3. Hitch Installation:

• Position Hitch: Raise the hitch into position, aligning its holes with the studs on the end panel.
• Reinstall Bumper Beam: Place the bumper beam on top of the hitch and loosely reinstall the (6) M10 flange nuts.

4. Tighten Fasteners:

• Use a torque wrench to tighten all M10 fasteners to 38 ft-lbs (52 N·m).

5. Trim Fascia:

• Lower Fascia Trim: Use a tape measure, marker, and utility knife to cut a 3-1/4” wide by 3” deep notch in the lower center of the fascia.
• Raised Areas: Trim (2) raised areas on the inside of the fascia flush with the fascia surface using a utility knife.

6. Reinstall Components:

• Reverse the steps from Step 1 to reinstall the fascia, taillights, and wiring.

Safety Notes:

• Regularly inspect the hitch and all fasteners to ensure a secure fit.
• If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water or exhaust fume entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and observe safety precautions when working beneath a vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class I
• Compliance: This product meets safety specifications per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
