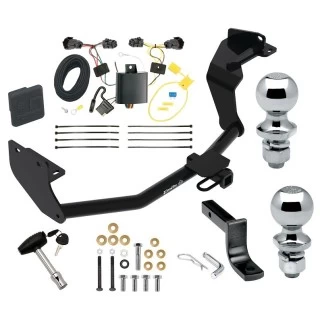

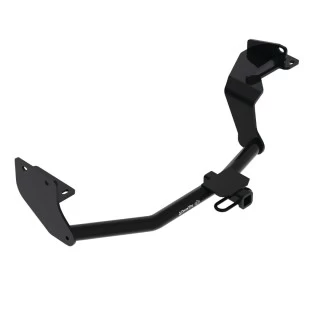

Installation Instructions for Kia Sorento (2016-Current)

Part Numbers:

• 37132
• 06196
• CQT37132

Wiring Access Location:

• PC3

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Exhaust Removal Pliers
• Angle Grinder (if required)
• Phillips Screwdriver
• Sockets: 10mm, 14mm, 16mm, 17mm, 18mm, 19mm, 3/4"
• Lubricant or Soapy Water

Installation Time:

• Estimated: 40 minutes (for professional installers)

Step-by-Step Instructions:

1. Lower and Remove Spare Tire:

   • Access the tire release under the storage compartment at the back of the vehicle.

2. Remove Driver-Side Rear Plastic Cover:

   • Using a Phillips screwdriver, remove fasteners, five (5) plastic push pins, and two (2) nuts.

3. Lower Exhaust:

   • Remove rear and side hangers, supporting the exhaust to prevent damage.
   • Apply lubricant or soapy water to the metal hanger rods and rubber isolators to ease removal.
   • Remove rubber plugs from the bottom of the frame rails on both sides.

4. Prepare Weldnuts:

   • Run M10 bolts into the existing weldnuts in the frame rails to remove debris. Then, remove the bolts.

5. Raise Hitch:

   • Raise the hitch into position.
   • Insert hardware items 1 & 2 on the driver side and items 4 & 5 on the passenger side.
   • Insert bolts through the bracket and frame for support. If the bumper locator pin interferes, trim the pin using an angle grinder.

6. Install Hardware:

   • Insert M10 bolts (items 8 & 7) through the bracket and into the frame.
   • Loosely install the conical washers and hex nuts onto the corresponding bolts.

7. Tighten Fasteners:

   • Tighten M10 CL10.9 fasteners to 40 lb-ft (54 N*m).
   • Tighten 1/2" GR5 fasteners to 75 lb-ft (102 N*m).
   • Tighten M12 GR8.8 fasteners to 68 lb-ft (92 N*m).

8. Reinstall Components:

   • Raise the exhaust back into position and reattach hangers.
   • Reinstall the driver-side rear plastic cover removed in Step 2.
   • Reinstall the spare tire and ensure it is properly seated.

Torque Specifications:

• M10 bolts: 40 lb-ft (54 N*m)
• 1/2" GR5 bolts: 75 lb-ft (102 N*m)
• M12 GR8.8 bolts: 68 lb-ft (92 N*m)

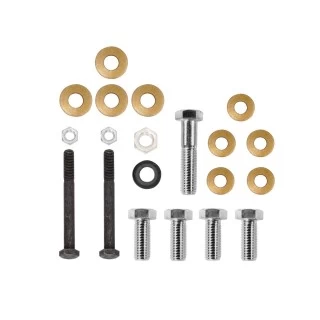

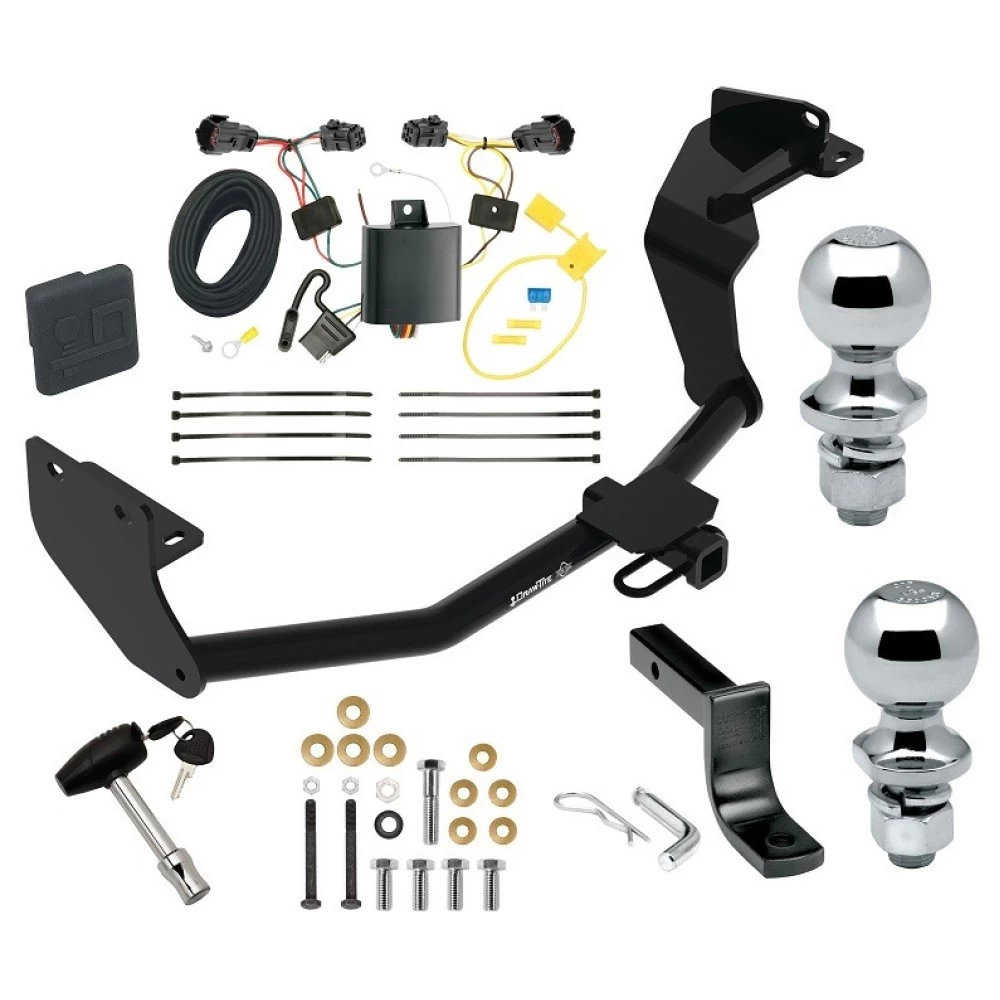

Hardware List:

• (2) Hex Bolts, 1/2"-13 x 4.50" GR5
• (5) Conical Washers, 1/2"
• (2) Hex Nuts, 1/2"-13
• (1) Hex Bolt, M12 x 1.75 x 120 CL8.8
• (1) Flat Washer, 1/2" Hardened
• (1) Hex Nut, M12 x 1.75 CL8
• (4) Bolts, M10 x 1.25 x 30 CL10.9
• (4) Conical Washers, 7/16"

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath a vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,587 kg)
• Max Tongue Weight: 350 lb (158 kg)

Additional Notes:

• Authorized Drawbar Kit: 36071 (sold separately; must be used in the RISE position only).
• Fastener Kit: 37132F.
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Installation Instructions for Vehicles (Excluding Quad Exhaust Models)

Part Numbers:

• 37132
• 06196
• CQT37132

Wiring Access Location:

• PC3

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Exhaust Removal Pliers
• Angle Grinder (if required)
• Phillips Screwdriver
• Sockets: 10mm, 14mm, 16mm, 17mm, 18mm, 19mm, 3/4"
• Lubricant or Soapy Water

Installation Time:

• Estimated: 40 minutes (for professional installers)

Step-by-Step Instructions:

1. Lower and Remove Spare Tire:

   • Access the tire release under the storage compartment at the back of the vehicle.

2. Remove Driver-Side Rear Plastic Cover:

   • Using a Phillips screwdriver, remove fasteners, five (5) plastic push pins, and two (2) nuts.

3. Lower Exhaust:

   • Remove rear and side hangers, supporting the exhaust to prevent damage.
   • Apply lubricant or soapy water to the metal hanger rods and rubber isolators to ease removal.
   • Remove rubber plugs from the bottom of the frame rails on both sides.

4. Prepare Weldnuts:

   • Run M10 bolts into the existing weldnuts in the frame rails to remove debris. Then, remove the bolts.

5. Raise Hitch:

   • Raise the hitch into position.
   • Insert hardware items 1 & 2 on the driver side and items 4 & 5 on the passenger side.
   • Insert bolts through the bracket and frame for support. If the bumper locator pin interferes, trim the pin using an angle grinder.

6. Install Hardware:

   • Insert M10 bolts (items 8 & 7) through the bracket and into the frame.
   • Loosely install the conical washers and hex nuts onto the corresponding bolts.

7. Tighten Fasteners:

   • Tighten M10 CL10.9 fasteners to 40 lb-ft (54 N*m).
   • Tighten 1/2" GR5 fasteners to 75 lb-ft (102 N*m).
   • Tighten M12 GR8.8 fasteners to 68 lb-ft (92 N*m).

8. Reinstall Components:

   • Raise the exhaust back into position and reattach hangers.
   • Reinstall the driver-side rear plastic cover removed in Step 2.
   • Reinstall the spare tire and ensure it is properly seated.

Torque Specifications:

• M10 bolts: 40 lb-ft (54 N*m)
• 1/2" GR5 bolts: 75 lb-ft (102 N*m)
• M12 GR8.8 bolts: 68 lb-ft (92 N*m)

Hardware List:

• (2) Hex Bolts, 1/2"-13 x 4.50" GR5
• (5) Conical Washers, 1/2"
• (2) Hex Nuts, 1/2"-13
• (1) Hex Bolt, M12 x 1.75 x 120 CL8.8
• (1) Flat Washer, 1/2" Hardened
• (1) Hex Nut, M12 x 1.75 CL8
• (4) Bolts, M10 x 1.25 x 30 CL10.9
• (4) Conical Washers, 7/16"

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath a vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,587 kg)
• Max Tongue Weight: 350 lb (158 kg)

Additional Notes:

• Authorized Drawbar Kit: 36071 (sold separately; must be used in the RISE position only).
• Fastener Kit: 37132F.
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty: This product is backed by a limited warranty. For complete warranty instructions, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

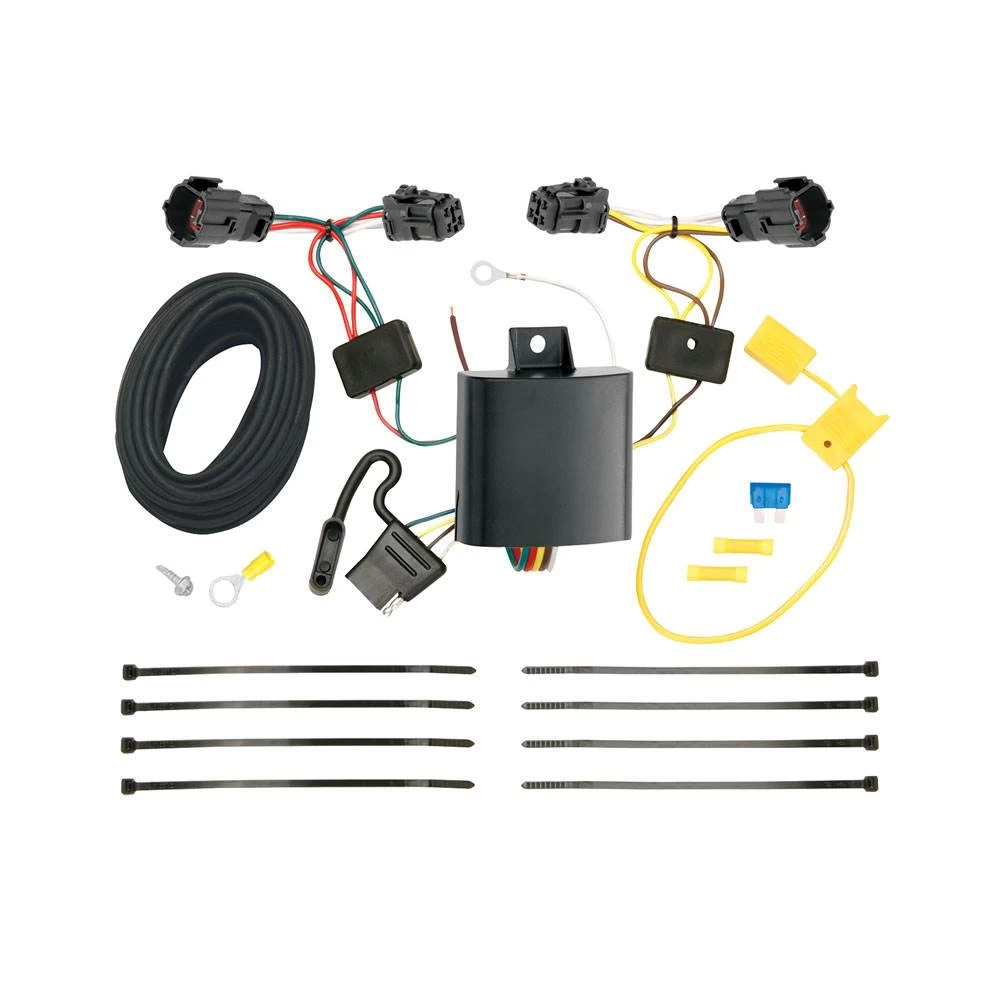

Installation Instructions for T-Connector Adapter for Kia Sorento

Part Numbers:

• 118583

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Open the Rear Tailgate:

   • Access the bolts holding the taillights in place.
   • Use a Phillips head screwdriver to remove the taillights on both the driver and passenger sides.
   • Carefully pull the taillights away from the vehicle to avoid damaging the alignment pins.

2. Disconnect the Vehicle Wiring Harness:

   • On the driver’s side, disconnect the vehicle wiring harness from the taillight socket.
   • Ensure the connectors are clean and free of dirt.

3. Install the Driver-Side T-Connector:

   • Insert the T-Connector with the yellow wire between the vehicle wiring connectors.
   • Ensure the connectors are fully inserted with locking tabs in place.

4. Route the Passenger-Side T-Connector:

   • Route the 4-flat harness and the green and red wires down through the bumper brace.
   • Continue routing behind the bumper fascia and toward the passenger side.
   • Route the green wire harness up to the passenger-side taillight and repeat Steps 2 and 3.

   Warning:

   • Avoid routing the wire near hot pipes, heat shields, fuel tanks, or other areas that may pinch or damage the wire.

5. Mount the Black Box:

   • Use the provided double-sided tape to mount the T-Connector black box to the bottom of the bumper support channel.

6. Ground the White Wire:

   • Locate a suitable grounding point near the driver-side connectors.
   • Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.

   Caution:

   • Verify the area behind the surface before drilling to avoid damage or injury.

7. Connect the Power Wire:

   • Locate the black 12-gauge power wire from the T-Connector box.
   • Attach the provided black wire using the supplied yellow butt connector.
   • Route the wire through the taillight socket opening, behind the bumper, and along the vehicle frame to the engine compartment.

8. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the fuse holder ring terminal to the positive (+) battery cable.
   • Connect the black wire to the fuse holder using the yellow butt connector.
   • Insert the 15-amp fuse into the fuse holder.

   Warning:

   • Follow all warnings and instructions printed on the vehicle battery.

9. Reconnect the Battery:

   • Reconnect the negative (-) battery cable.
   • Test the installation with a test light or trailer.

10. Secure the Wiring:

    • Use the provided cable ties to secure the harness, avoiding areas that could pinch, cut, or melt the wires.

11. Reinstall the Taillight Assemblies:

    • Reinstall the taillight assemblies and any items removed during installation, ensuring no wires are pinched or damaged.

Specifications:

• Max. stop/turn light: 2 per side (4.2 amps)
• Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the product’s stated ratings or the vehicle manufacturer's specifications.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual for additional information.
• Store these instructions for future reference.
