Trailer Tow Hitch Hardware Fastener Kit For 00‑16 Chevrolet Chevy Impala 1 1/4" Receiver Class 2
Model: HWKIT2(36407F)2000 - 2013 Chevrolet, Impala, All Styles
2014 - 2016 Chevrolet, Impala Limited
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 36407 06389 90137
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016
$46 55 $59.81 22% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$59.81 $46 55
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $11.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT2(36407F)
- Includes: Hardware Kit for Class 2 Trailer Tow Hitch
Compatibility Chart
2000 - 2013 Chevrolet, Impala, All Styles
2014 - 2016 Chevrolet, Impala Limited
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 36407 06389 90137
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 00-16 Chevrolet Chevy Impala 1 1/4" Receiver Class 2 Install Notes
Installation Instructions for Chevrolet Impala
Part Numbers:
- 36407
- 06389
- 90137
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrench: 3/4"
- Drill Bits: None
- Pull Wire (provided)
Step-by-Step Instructions:
-
Lower Exhaust:
- Remove rubber hangers from hanger brackets to lower the exhaust.
- If the vehicle has dual exhaust, lower both sides.
-
Insert Fasteners into Frame Rails:
- Fishwire 1/2"-13 x 1 1/4" carriage bolts and blocks through the access slots in the vehicle's frame rail and align them with the holes, on both sides.
-
Insert Fasteners into Cross Member:
- Fishwire 1/2"-13 x 1 3/4" carriage bolts and blocks through the access holes in the cross member and down through the corresponding holes in the cross member.
-
Install Hitch:
- Raise the hitch into position.
- Secure the hitch using conical toothed washers and hex nuts as shown in the diagrams.
-
Tighten Fasteners:
- Use a torque wrench to tighten all 1/2"-13 Grade 5 fasteners to 75 ft-lb (102 N*m).

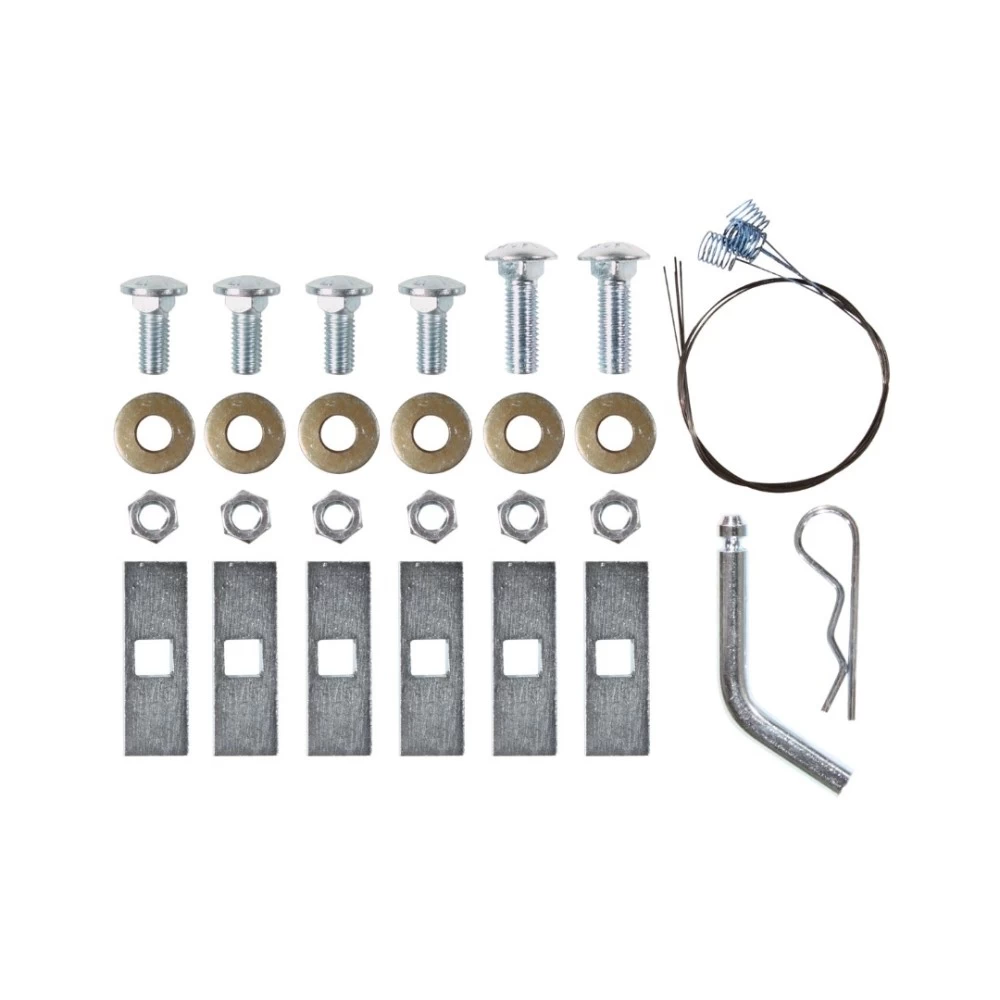

Hardware List:
- (4) Carriage Bolt, 1/2"-13 x 1 1/4"
- (2) Carriage Bolt, 1/2"-13 x 1 3/4"
- (6) Block, 1/4" x 1" x 3"
- (6) Conical Toothed Washer, 1/2"
- (6) Hex Nut, 1/2"-13
- (4) Pull Wire
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
Additional Notes:
- Drawbar Kit: 36061 (sold separately)
- Fastener Kit: 36407F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Chevrolet Impala
Part Numbers:
- 36407
- 06389
- 90137
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrench: 3/4"
- Drill Bits: None
- Pull Wire (provided)
Step-by-Step Instructions:
-
Lower Exhaust:
- Remove rubber hangers from hanger brackets to lower the exhaust.
- If the vehicle has dual exhaust, lower both sides.
-
Insert Fasteners into Frame Rails:
- Fishwire 1/2"-13 x 1 1/4" carriage bolts and blocks through the access slots in the vehicle's frame rail and align them with the holes, on both sides.
-
Insert Fasteners into Cross Member:
- Fishwire 1/2"-13 x 1 3/4" carriage bolts and blocks through the access holes in the cross member and down through the corresponding holes in the cross member.
-
Install Hitch:
- Raise the hitch into position.
- Secure the hitch using conical toothed washers and hex nuts as shown in the diagrams.
-
Tighten Fasteners:
- Use a torque wrench to tighten all 1/2"-13 Grade 5 fasteners to 75 ft-lb (102 N*m).
Hardware List:
- (4) Carriage Bolt, 1/2"-13 x 1 1/4"
- (2) Carriage Bolt, 1/2"-13 x 1 3/4"
- (6) Block, 1/4" x 1" x 3"
- (6) Conical Toothed Washer, 1/2"
- (6) Hex Nut, 1/2"-13
- (4) Pull Wire
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
Additional Notes:
- Drawbar Kit: 36061 (sold separately)
- Fastener Kit: 36407F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
