Trailer Tow Hitch Hardware Fastener Kit For 05‑23 Chrysler 300 08‑23 Dodge Challenger 06‑23 Charger 05‑08 Magnum 1‑1/4" Receiver
Model: HWKIT2(36548F)2005 - 2023 Chrysler 300, All Styles
2005 - 2008 Dodge, Magnum, All Styles
2006 - 2023 Dodge, Charger, All Styles
2008 - 2023 Dodge, Challenger, Except Models w/Quad Tip Exhaust
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 36548 90243 06946
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023
$46 55 $59.81 22% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$59.81 $46 55
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $11.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT2(36548F)
- Includes: Hardware Kit for Class 2 Trailer Tow Hitch
Compatibility Chart
Description
2005 - 2023 Chrysler 300, All Styles
2005 - 2008 Dodge, Magnum, All Styles
2006 - 2023 Dodge, Charger, All Styles
2008 - 2023 Dodge, Challenger, Except Models w/Quad Tip Exhaust
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 36548 90243 06946
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 05-23 Chrysler 300 08-23 Dodge Challenger 06-23 Charger 05-08 Magnum 1-1/4" Receiver Install Notes
Installation Instructions for Dodge Charger, Chrysler 300, Dodge Challenger (Excluding Quad Exhaust Models), and Dodge Magnum
Part Numbers:
- 36548
- 90243
- 06946
Wiring Access Location:
- PC3
Tools Required:
- Sockets: 8mm, 13mm, 15mm, 18mm, 3/4"
- Torque Wrench
- Safety Glasses
- Flat Head Screwdriver
- Plastic Trim Tools
- Ratchet
- Extension
- Universal Joint
Installation Time:
- 30 minutes: For vehicles with exhausts that separate at the rear.
- 50 minutes: For vehicles with welded exhausts and riveted exhaust tips (fascia removal required).
Step-by-Step Instructions:
Pre-2011 Models:
-
Lower Exhaust:
- Remove two (2) exhaust hanger brackets per side using a 13mm socket.
- Apply lubricant or soapy water to ease the removal of the metal hanger rod from the rubber isolator.
-
Prepare Weldnuts:
- Run the M12 bolt into the existing weldnuts to clean out any debris.
-
Fishwire Hardware:
- Fishwire 1/2" carriage bolts and spacers through the access holes on the driver and passenger side frame rails.
- Pull the hardware through the existing holes (two on the passenger side, one on the driver side).
-
Position Hitch:
- Slide the hitch over the mufflers and align it with the frame.
- Loosely install the M12 bolt and conical washer (teeth side facing the hitch) into the existing weldnut.
-
Secure Fasteners:
- Install the 1/2" conical tooth washers (teeth side facing the hitch) and 1/2" hex nuts.
-
Torque Fasteners:
- Tighten all 1/2" fasteners to 75 ft-lb (102 N*m).
- Tighten the M12 bolt to 68 ft-lb (92 N*m).
-
Reinstall Exhaust:
- Reattach the exhaust hangers.
2011 and Newer Models:
-
Remove Plastic Appearance Panels:
- For Chrysler 300/300C, remove the plastic panels covering the trunk pan. Return the panels to the vehicle owner.
-
Lower Exhaust:
- Remove two (2) exhaust hanger brackets per side using a 13mm socket.
- Push the muffler upward and outward to access the frame rail.
-
Remove Muffler:
- V8 Models: Remove and save the two (2) assembly bolts and springs from the flange. Carefully remove the muffler.
- V6 Models: Remove and save the band clamp, separate the exhaust pipes, and remove the muffler.
-
Prepare Weldnuts:
- Run the M12 bolt into the existing weldnuts to clean out any debris.
-
Fishwire Hardware:
- Fishwire 1/2" carriage bolts and spacers through the access holes on the driver and passenger side frame rails.
- Pull the hardware through the existing holes (two on the passenger side, one on the driver side).
-
Install Passenger-Side Bracket:
- Position the bracket over the passenger muffler.
- Support the bracket and loosely install the M12 bolt and conical tooth washer through the bracket and into the frame rail.
- Push the passenger muffler upward and outward for clearance, and install the 1/2" conical washers and hex nuts.
-
Torque Fasteners:
- Tighten all 1/2" fasteners to 75 ft-lb (102 N*m).
- Tighten the M12 bolt to 68 ft-lb (92 N*m).
-
Reinstall Components:
- Reattach the exhaust hangers and reinstall wiring and fascia.
Torque Specifications:
- 1/2"-13 GR5 bolts: 75 ft-lb (102 N*m)
- M12 CL10.9 bolts: 68 ft-lb (92 N*m)

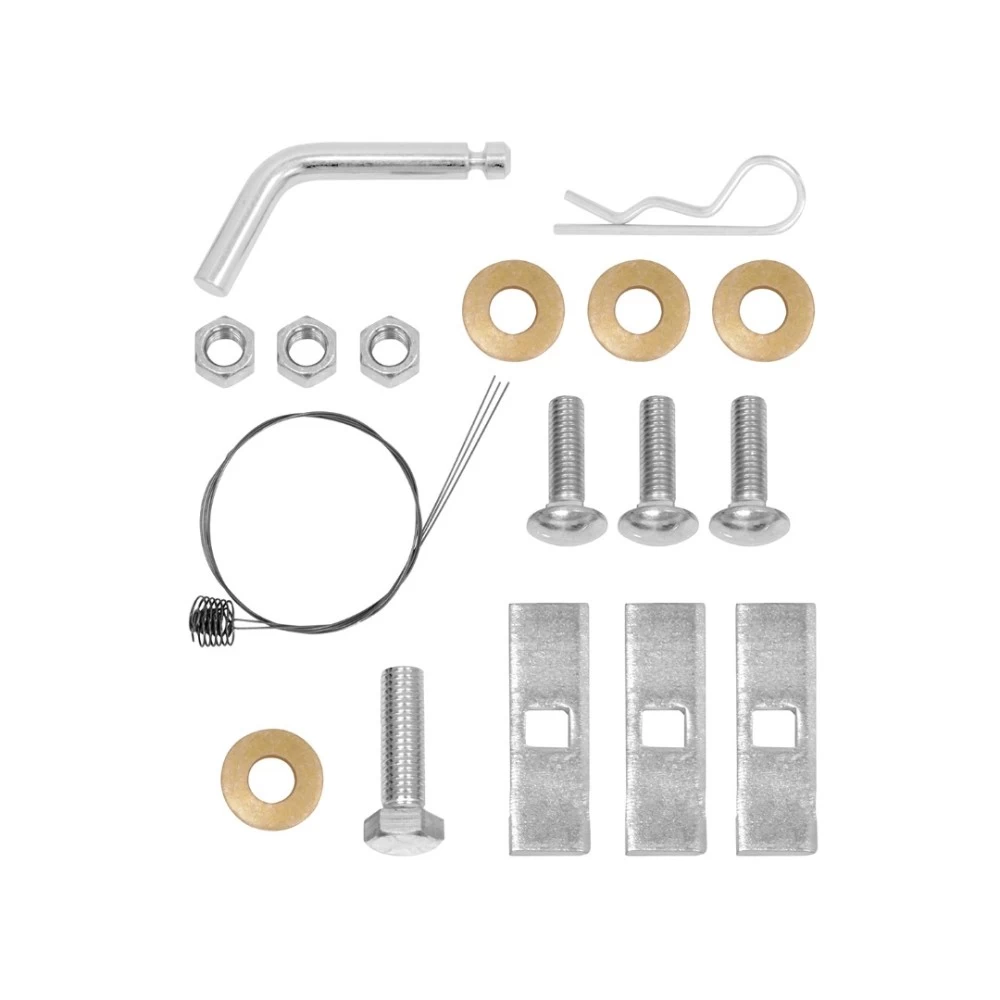

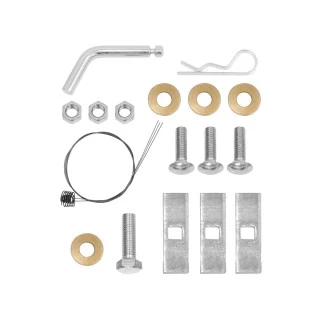

Hardware List:
- (3) Carriage Bolts, 1/2"-13 x 1.50" GR5
- (3) Spacer Blocks, 1" x 3"
- (3) Hex Nuts, 1/2"
- (4) Conical Washers, 1/2"
- (1) Hex Bolt, M12 x 1.75 x 40mm CL10.9
- (3) Fish Wires, 1/2"-13
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,587 kg)
- Max Tongue Weight: 300 lb (136 kg)
Additional Notes:
- Authorized Drawbar Kit: 36061 (sold separately; must be used in the RISE position only)
- Fastener Kit: 36548F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Vehicles (Excluding Quad Exhaust Models)
Part Numbers:
- 36548
- 90243
- 06946
Wiring Access Location:
- PC3
Tools Required:
- Sockets: 8mm, 13mm, 15mm, 18mm, 3/4"
- Torque Wrench
- Safety Glasses
- Flat Head Screwdriver
- Plastic Trim Tools
- Ratchet
- Extension
- Universal Joint
Installation Time:
- 30 minutes: For vehicles with exhausts that separate at the rear.
- 50 minutes: For vehicles with welded exhausts and riveted exhaust tips (fascia removal required).
Step-by-Step Instructions:
Pre-2011 Models:
-
Lower Exhaust:
- Remove two (2) exhaust hanger brackets per side using a 13mm socket.
- Apply lubricant or soapy water to ease the removal of the metal hanger rod from the rubber isolator.
-
Prepare Weldnuts:
- Run the M12 bolt into the existing weldnuts to clean out any debris.
-
Fishwire Hardware:
- Fishwire 1/2" carriage bolts and spacers through the access holes on the driver and passenger side frame rails.
- Pull the hardware through the existing holes (two on the passenger side, one on the driver side).
-
Position Hitch:
- Slide the hitch over the mufflers and align it with the frame.
- Loosely install the M12 bolt and conical washer (teeth side facing the hitch) into the existing weldnut.
-
Secure Fasteners:
- Install the 1/2" conical tooth washers (teeth side facing the hitch) and 1/2" hex nuts.
-
Torque Fasteners:
- Tighten all 1/2" fasteners to 75 ft-lb (102 N*m).
- Tighten the M12 bolt to 68 ft-lb (92 N*m).
-
Reinstall Exhaust:
- Reattach the exhaust hangers.
2011 and Newer Models:
-
Remove Plastic Appearance Panels:
- For certain vehicles, remove the plastic panels covering the trunk pan. Return the panels to the vehicle owner.
-
Lower Exhaust:
- Remove two (2) exhaust hanger brackets per side using a 13mm socket.
- Push the muffler upward and outward to access the frame rail.
-
Remove Muffler:
- V8 Models: Remove and save the two (2) assembly bolts and springs from the flange. Carefully remove the muffler.
- V6 Models: Remove and save the band clamp, separate the exhaust pipes, and remove the muffler.
-
Prepare Weldnuts:
- Run the M12 bolt into the existing weldnuts to clean out any debris.
-
Fishwire Hardware:
- Fishwire 1/2" carriage bolts and spacers through the access holes on the driver and passenger side frame rails.
- Pull the hardware through the existing holes (two on the passenger side, one on the driver side).
-
Install Passenger-Side Bracket:
- Position the bracket over the passenger muffler.
- Support the bracket and loosely install the M12 bolt and conical tooth washer through the bracket and into the frame rail.
- Push the passenger muffler upward and outward for clearance, and install the 1/2" conical washers and hex nuts.
-
Torque Fasteners:
- Tighten all 1/2" fasteners to 75 ft-lb (102 N*m).
- Tighten the M12 bolt to 68 ft-lb (92 N*m).
-
Reinstall Components:
- Reattach the exhaust hangers and reinstall wiring and fascia.
Torque Specifications:
- 1/2"-13 GR5 bolts: 75 ft-lb (102 N*m)
- M12 CL10.9 bolts: 68 ft-lb (92 N*m)
Hardware List:
- (3) Carriage Bolts, 1/2"-13 x 1.50" GR5
- (3) Spacer Blocks, 1" x 3"
- (3) Hex Nuts, 1/2"
- (4) Conical Washers, 1/2"
- (1) Hex Bolt, M12 x 1.75 x 40mm CL10.9
- (3) Fish Wires, 1/2"-13
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,587 kg)
- Max Tongue Weight: 300 lb (136 kg)
Additional Notes:
- Authorized Drawbar Kit: 36061 (sold separately; must be used in the RISE position only)
- Fastener Kit: 36548F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty: This product is backed by a limited warranty. For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
