Trailer Tow Hitch Hardware Fastener Kit For 13‑19 Cadillac XTS 14‑20 Chevy Impala 13‑19 Malibu 10‑16 Buick LaCrosse 11‑17 Regal Receiver
Model: HWKIT2(36538F)2010 - 2016 Buick, LaCrosse, All Styles
2011 - 2017 Buick, Regal, All Styles
2013 - 2019 Cadillac, XTS, All Styles
2013 - 2015 Chevrolet, Malibu, Except LTZ & Canada Models
2014 - 2015 Chevrolet, Malibu LTZ, Except Canada Models
2014 - 2020 Chevrolet, Impala, Except Impala Limited
2016 – 2019 Chevrolet, Malibu, Limited LTZ, Except Canada Models (Old Body Style)
2016 – 2019 Chevrolet, Malibu, Limited, Except LTZ & Canada Models (Old Body Style)
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 36538 90242 06168
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 10 11 12 13 14 15 16 17 18 19 20 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020
$46 53 $59.81 22% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$59.81 $46 53
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $11.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT2(36538F)
- Includes: Hardware Kit for Class 2 Trailer Tow Hitch
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
2010 - 2016 Buick, LaCrosse, All Styles
2011 - 2017 Buick, Regal, All Styles
2013 - 2019 Cadillac, XTS, All Styles
2013 - 2015 Chevrolet, Malibu, Except LTZ & Canada Models
2014 - 2015 Chevrolet, Malibu LTZ, Except Canada Models
2014 - 2020 Chevrolet, Impala, Except Impala Limited
2016 – 2019 Chevrolet, Malibu, Limited LTZ, Except Canada Models (Old Body Style)
2016 – 2019 Chevrolet, Malibu, Limited, Except LTZ & Canada Models (Old Body Style)
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 36538 90242 06168
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 10 11 12 13 14 15 16 17 18 19 20 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 13-19 Cadillac XTS 14-20 Chevy Impala 13-19 Malibu 10-16 Buick LaCrosse 11-17 Regal Receiver Install Notes
Installation Instructions for Chevrolet Malibu, Chevrolet Impala, Buick LaCrosse, Buick Regal, and Cadillac XTS
Part Numbers:
- 36538
- 90242
- 06168
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 10mm, 13mm, 9/16", 3/4"
- Drill Bits: 1/2" (to enlarge holes on Buick LaCrosse and Cadillac XTS)
- Tape Measure (for Impala fascia trimming)
Step-by-Step Instructions:
-
Prepare Hitch Components:
- Unbolt the center section of the hitch, brackets "A" and "B," and keep the fasteners for installation.
-
Install Forward Brackets:
- On the passenger side, remove the existing inner tailpipe hanger 8mm bolt and replace it with the supplied M8 x 55mm bolt and a 5/16" flat washer.
- Sandwich two 1/2" flat washers between the end panel and the hitch bracket. Hand tighten only.
Special Instructions for Models:
- For Buick LaCrosse and Cadillac XTS: Enlarge the rearward hole on the suspension mount to accept a 1/2" bolt.
- Use bracket "B" with the wedge spacer for vehicles before mid-year 2013. Tape the spacer into place for easier installation.
- Use bracket "B" on Buick LaCrosse and bracket "A" on all other models.
-
Attach Rearward Section of Hitch:
- Raise the rearward section of the hitch into place over the 8mm bolts.
- Secure with 3/8" conical washers and M8 hex nuts.
-
Install Carriage Bolts:
- Insert four (4) 1/2"-13 x 1.50" carriage bolts into the hitch's support plate.
- Use the forward hole for Impala and Cadillac models and the rearward hole for Malibu, Regal, and LaCrosse models.
-
Raise Center Section of Hitch:
- Align the center section of the hitch with the carriage bolts on the support plate.
- Attach 1/2" conical washers and hex nuts to the bolts and hand tighten.
-
Secure Forward Section:
- Attach the forward end of the center section to the forward bracket with a 1/2"-13 x 2.00" bolt, 1/2" conical washer, and hex nut.
- Tighten all fasteners to the specified torque.
Torque Specifications:
- Tighten all M8-1.25 CL10.9 fasteners to 25 lb-ft (34 N*m).
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
- Tighten 1/2"-13 GR5 bolts into handle nut fasteners to 50 lb-ft (68 N*m).

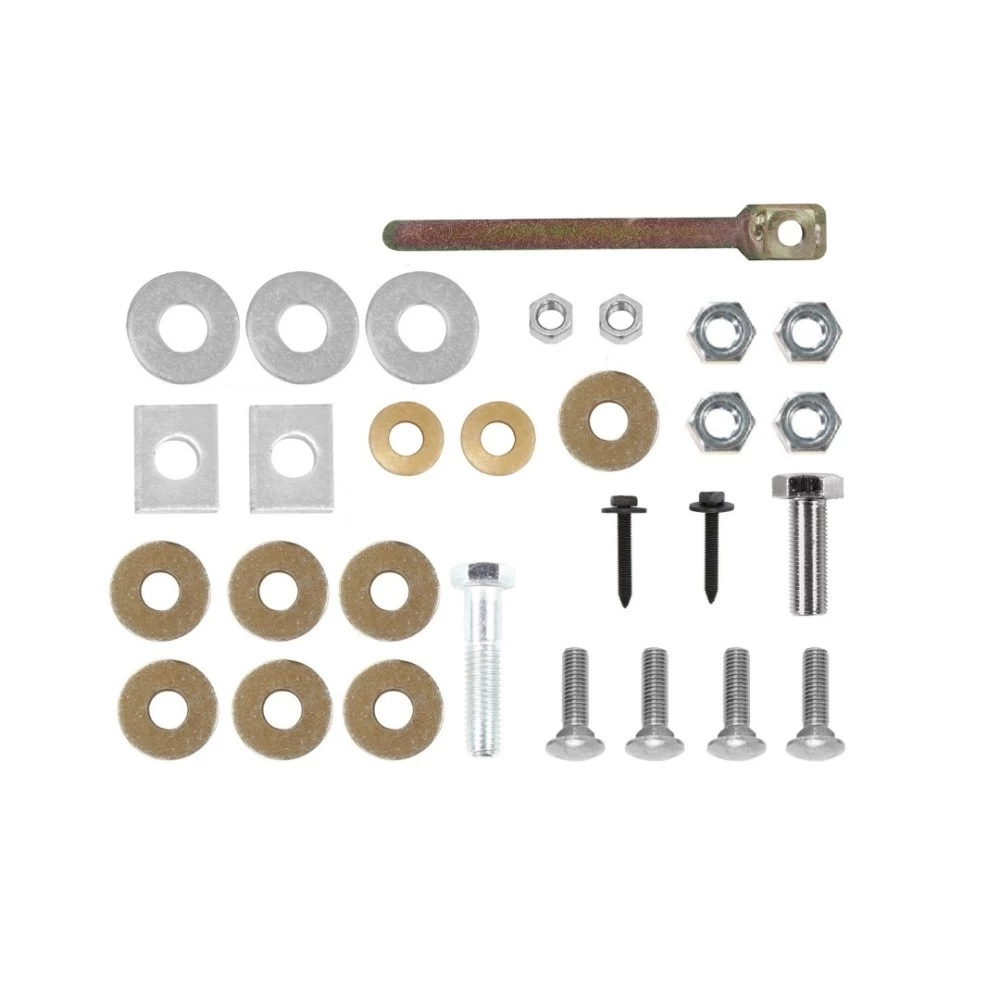

Hardware List:
- (2) Hex Bolts, M8 x 1.25 x 55mm CL10.9
- (4) Carriage Bolts, 1/2"-13 x 1.50" GR5
- (1) Carriage Bolt, 1/2"-13 x 2.00" GR5
- (7) Conical Washers, 1/2"
- (2) Conical Washers, 3/8"
- (7) Hex Nuts, 1/2"-13
- (2) Hex Nuts, M8 x 1.25
- (4) Flat Washers, 1/2"
- (2) Flat Washers, 5/16"
- (1) Handle Nut, 1/2"-13
- (1) Spacer Wedge
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
Additional Notes:
- Drawbar Kit: 36061 (sold separately)
- Fastener Kit: 36538F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Chevrolet Malibu, Chevrolet Impala, Buick LaCrosse, Buick Regal, and Cadillac XTS
Part Numbers:
- 36538
- 90242
- 06168
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 10mm, 13mm, 9/16", 3/4"
- Drill Bits: 1/2" (to enlarge holes on Buick LaCrosse and Cadillac XTS)
- Tape Measure (for Impala fascia trimming)
Step-by-Step Instructions:
-
Prepare Hitch Components:
- Unbolt the center section of the hitch, brackets "A" and "B," and keep the fasteners for installation.
-
Install Forward Brackets:
- On the passenger side, remove the existing inner tailpipe hanger 8mm bolt and replace it with the supplied M8 x 55mm bolt and a 5/16" flat washer.
- Sandwich two 1/2" flat washers between the end panel and the hitch bracket. Hand tighten only.
Special Instructions for Models:
- For Buick LaCrosse and Cadillac XTS: Enlarge the rearward hole on the suspension mount to accept a 1/2" bolt.
- Use bracket "B" with the wedge spacer for vehicles before mid-year 2013. Tape the spacer into place for easier installation.
- Use bracket "B" on Buick LaCrosse and bracket "A" on all other models.
-
Attach Rearward Section of Hitch:
- Raise the rearward section of the hitch into place over the 8mm bolts.
- Secure with 3/8" conical washers and M8 hex nuts.
-
Install Carriage Bolts:
- Insert four (4) 1/2"-13 x 1.50" carriage bolts into the hitch's support plate.
- Use the forward hole for Impala and Cadillac models and the rearward hole for Malibu, Regal, and LaCrosse models.
-
Raise Center Section of Hitch:
- Align the center section of the hitch with the carriage bolts on the support plate.
- Attach 1/2" conical washers and hex nuts to the bolts and hand tighten.
-
Secure Forward Section:
- Attach the forward end of the center section to the forward bracket with a 1/2"-13 x 2.00" bolt, 1/2" conical washer, and hex nut.
- Tighten all fasteners to the specified torque.
Torque Specifications:
- Tighten all M8-1.25 CL10.9 fasteners to 25 lb-ft (34 N*m).
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
- Tighten 1/2"-13 GR5 bolts into handle nut fasteners to 50 lb-ft (68 N*m).
Hardware List:
- (2) Hex Bolts, M8 x 1.25 x 55mm CL10.9
- (4) Carriage Bolts, 1/2"-13 x 1.50" GR5
- (1) Carriage Bolt, 1/2"-13 x 2.00" GR5
- (7) Conical Washers, 1/2"
- (2) Conical Washers, 3/8"
- (7) Hex Nuts, 1/2"-13
- (2) Hex Nuts, M8 x 1.25
- (4) Flat Washers, 1/2"
- (2) Flat Washers, 5/16"
- (1) Handle Nut, 1/2"-13
- (1) Spacer Wedge
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
Additional Notes:
- Drawbar Kit: 36061 (sold separately)
- Fastener Kit: 36538F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
