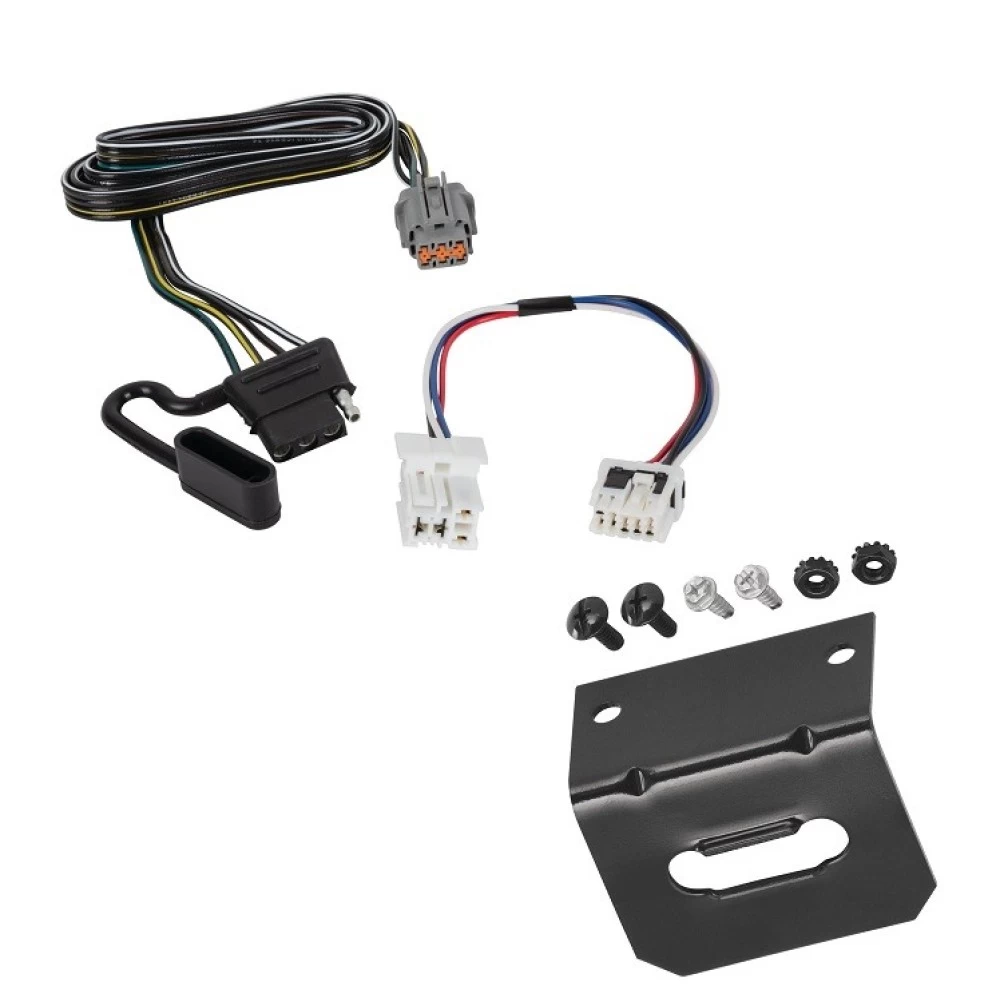

Installation Instructions for T-One® Connector for Nissan Pathfinder and Infiniti QX60

Part Numbers:

• 118850

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Wire Crimpers
• Wire Cutters
• Test Probe

Step-by-Step Instructions:

1. Open the Hatch:

   • Partially remove the cargo tray and plastic threshold cover in the rear cargo area.

2. Remove Retaining Bolts and Clips:

   • Locate and remove the three retaining 10mm bolts and push clips holding the cargo tray in place.
   • Lift the cargo tray and lay it back toward the rear seats.

3. Access Driver-Side Harness Wiring:

   • Remove the rear cargo hooks using a 10mm socket.
   • Partially pull the driver-side trim panel to access the harness wiring.

4. Connect the Relay Harness:

   • Locate the vehicle’s white male connector housing that matches the relay harness.
   • Insert the white female connector into the vehicle’s mating connector housing and lock into place.
   • Insert the relay (provided) into the 4-pin mating relay connector harness.
   • Secure the relay harness with the provided cable ties.

   Warning: Using relays other than those provided in the hardware kit may result in malfunction or damage.

5. Locate Passenger-Side Trailer Harness Connector:

   • Underneath the rear of the vehicle on the passenger side, locate the gray 6-way trailer harness connector near the rear fascia.

6. Route the T-Connector Harness:

   • Route the harness rearward to the back of the bumper fascia.
   • Secure the harness with the provided cable ties, avoiding areas that may pinch, cut, or melt the wire.

7. Mount the 4-Flat End:

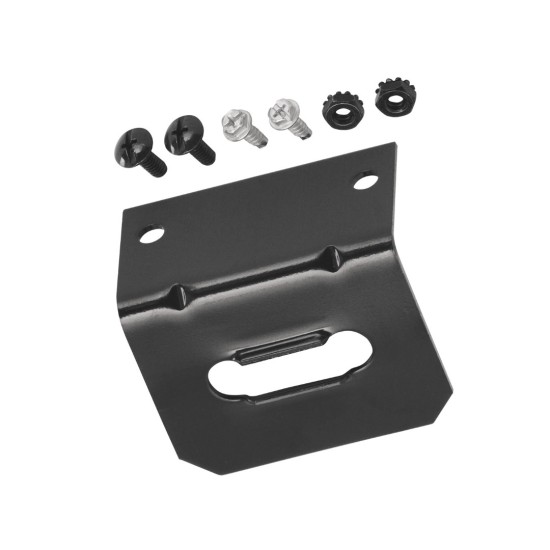

   • Mount the 4-flat end in an accessible location using a bracket or electrical box (not included).

   Warning: Ensure all connections are complete for proper functionality. Test the installation with a test light or trailer. Reset the vehicle's electrical system by temporarily removing the key from the ignition.

8. Reinstall Trim Panels and Components:

   • Reinstall the plastic trim panels, threshold, storage covers, floor coverings, and any other components removed during installation, taking care not to pinch or cut wires.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always read and follow all warnings and instructions printed on the tow vehicle's battery.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Do not exceed the lower of the tow vehicle's manufacturer ratings or the specific amperage ratings stated on the product.
• Always keep the instructions for future reference.

Installation Instructions for T-One® Connector for Nissan Pathfinder and Infiniti QX60

Part Numbers:

• 118850

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Wire Crimpers
• Wire Cutters
• Test Probe

Step-by-Step Instructions:

1. Open the Hatch:

   • Partially remove the cargo tray and plastic threshold cover in the rear cargo area.

2. Remove Retaining Bolts and Clips:

   • Locate and remove the three retaining 10mm bolts and push clips holding the cargo tray in place.
   • Lift the cargo tray and lay it back toward the rear seats.

3. Access Driver-Side Harness Wiring:

   • Remove the rear cargo hooks using a 10mm socket.
   • Partially pull the driver-side trim panel to access the harness wiring.

4. Connect the Relay Harness:

   • Locate the vehicle’s white male connector housing that matches the relay harness.
   • Insert the white female connector into the vehicle’s mating connector housing and lock into place.
   • Insert the relay (provided) into the 4-pin mating relay connector harness.
   • Secure the relay harness with the provided cable ties.

   Warning: Using relays other than those provided in the hardware kit may result in malfunction or damage.

5. Locate Passenger-Side Trailer Harness Connector:

   • Underneath the rear of the vehicle on the passenger side, locate the gray 6-way trailer harness connector near the rear fascia.

6. Route the T-Connector Harness:

   • Route the harness rearward to the back of the bumper fascia.
   • Secure the harness with the provided cable ties, avoiding areas that may pinch, cut, or melt the wire.

7. Mount the 4-Flat End:

   • Mount the 4-flat end in an accessible location using a bracket or electrical box (not included).

   Warning: Ensure all connections are complete for proper functionality. Test the installation with a test light or trailer. Reset the vehicle's electrical system by temporarily removing the key from the ignition.

8. Reinstall Trim Panels and Components:

   • Reinstall the plastic trim panels, threshold, storage covers, floor coverings, and any other components removed during installation, taking care not to pinch or cut wires.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always read and follow all warnings and instructions printed on the tow vehicle's battery.
• Always wear safety glasses and follow safety precautions during installation.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.
