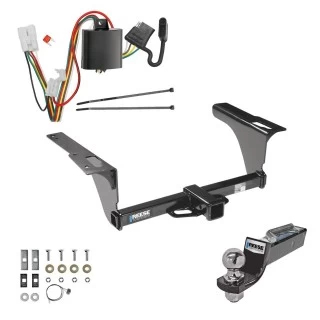

Installation Instructions for Subaru Legacy and Outback
(All Models)

Part Numbers:

• 75673
• 44631
• 87568
• 75159 (U-Haul)

Tools Required:

• Tin Snips
• Spray Lubricant
• Wrenches: 10mm, 11/16”
• Drill Bits: 1-1/8” Hole Saw

Wiring Access Location:

• PC3

Step-by-Step Instructions:

1. Lower the Exhaust:

   • Temporarily lower the exhaust system by removing the two rubber isolators from the muffler hangers and one below the rear axle.
   • Note: Spray hangers with lubricant to ease removal. For dual exhaust systems, repeat on both sides.

2. Lower Heat Shields:

   • Temporarily lower the heat shields by removing four (4) M6 bolts.
   • Save the bolts for reinstallation.

3. Remove Rubber Plugs:

   • Remove the rubber plugs from the holes in the bottom of the frame.

4. Drill Access Hole:

   • Drill a 1-1/8” access hole in the bottom of the frame approximately 2” from the forward heat shield attachment point (see Figure 1).

5. Fishwire Carriage Bolts:

   • Fishwire a 7/16”-14 x 1.5” carriage bolt and a 1” x 2” spacer block through the access hole and down through the rearmost hole in the frame.
   • Repeat with a 1” x 3” spacer block for the forward hole.

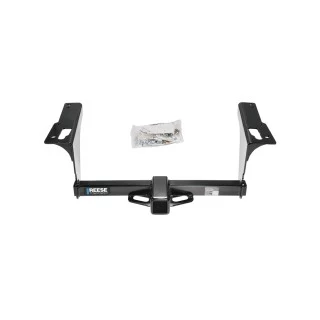

6. Position the Hitch:

   • Raise the hitch into position, aligning the holes in the hitch with the carriage bolts. Be careful not to push bolts back into the frame.

7. Install Rear Fasteners:

   • Loosely install conical toothed washers and hex nuts onto the rearmost carriage bolts.

8. Install Forward Fasteners:

   • Place a flat washer between the forward carriage bolt and the hitch bracket.
   • Install conical toothed washers and hex nuts onto the forward carriage bolts.
   • Tighten all fasteners to the specified torque (50 lb-ft or 68 N·m).

9. Trim Heat Shields:

   • Trim the heat shields around the forward attachment bolt area to ensure they sit flat against the hitch bracket.

10. Reinstall Heat Shields:

    • Reattach the heat shields on top of the hitch brackets using the four (4) M6 bolts removed earlier.

11. Reinstall the Exhaust:

    • Raise the exhaust back into position and reattach the rubber isolators, including the one under the axle.

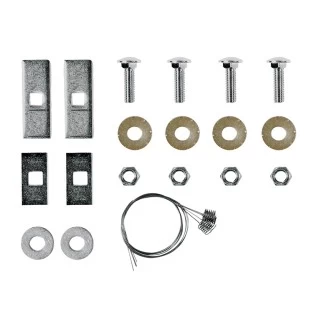

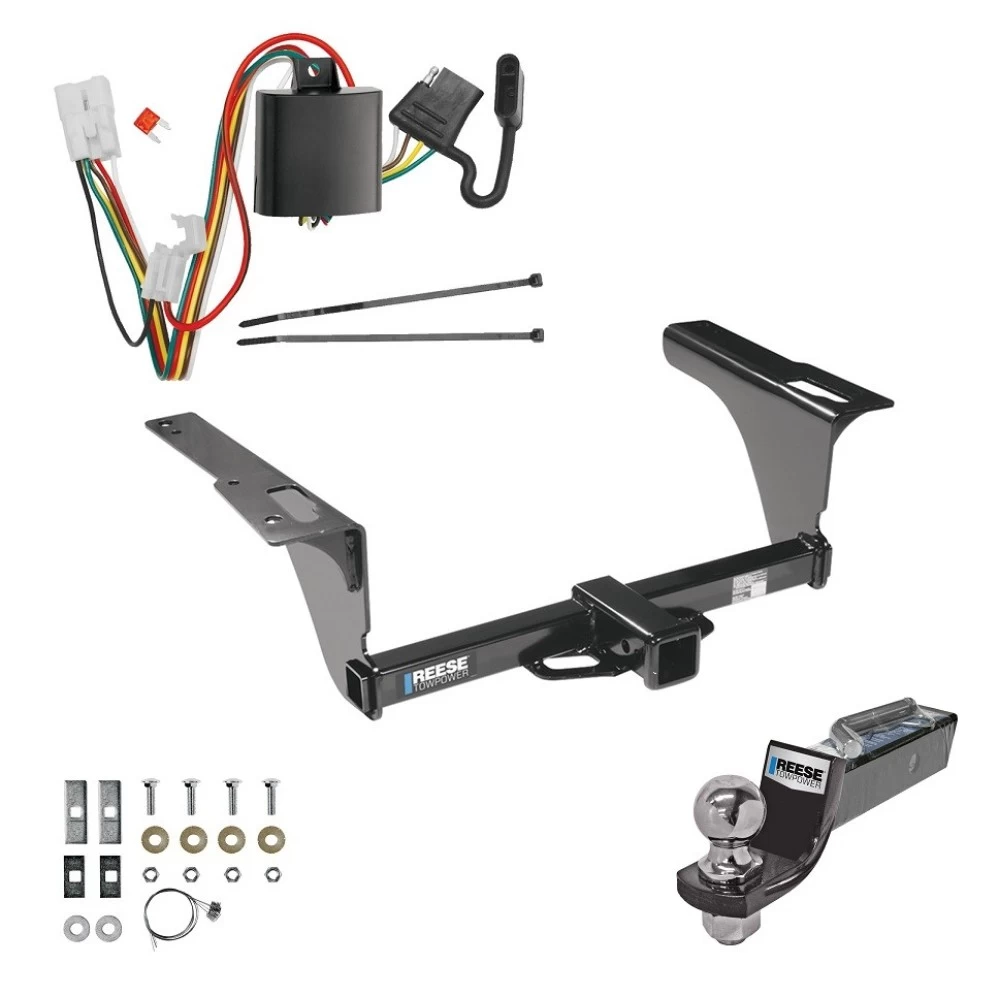

Hardware List:

• (4) Carriage Bolts, 7/16”-14 x 1.5”
• (2) Flat Washers, 7/16”
• (2) Spacer Blocks, 3/16” x 1” x 2”
• (2) Spacer Blocks, 1/4” x 1” x 3”
• (4) Conical Toothed Washers, 7/16”
• (4) Fish Wires, 7/16”
• (4) Hex Nuts, 7/16”-14

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

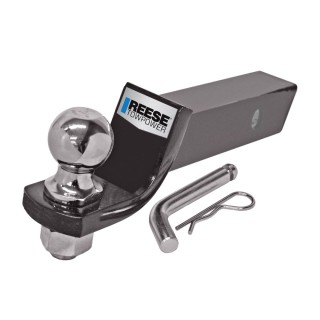

• Hitch Type and Weight Ratings:
  • Weight Distributing: Not for use with spring bars.
  • Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,814 kg), Max Tongue Weight 600 lbs (272 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions

Part Numbers:

• 75673
• 44631
• 87568
• 75159 (U-Haul)

Tools Required:

• Tin Snips
• Spray Lubricant
• Wrenches: 10mm, 11/16”
• Drill Bits: 1-1/8” Hole Saw

Wiring Access Location:

• PC3

Step-by-Step Instructions:

1. Lower the Exhaust:

   • Temporarily lower the exhaust system by removing the two rubber isolators from the muffler hangers and one below the rear axle.
   • Note: Spray hangers with lubricant to ease removal. For dual exhaust systems, repeat on both sides.

2. Lower Heat Shields:

   • Temporarily lower the heat shields by removing four (4) M6 bolts.
   • Save the bolts for reinstallation.

3. Remove Rubber Plugs:

   • Remove the rubber plugs from the holes in the bottom of the frame.

4. Drill Access Hole:

   • Drill a 1-1/8” access hole in the bottom of the frame approximately 2” from the forward heat shield attachment point (see Figure 1).

5. Fishwire Carriage Bolts:

   • Fishwire a 7/16”-14 x 1.5” carriage bolt and a 1” x 2” spacer block through the access hole and down through the rearmost hole in the frame.
   • Repeat with a 1” x 3” spacer block for the forward hole.

6. Position the Hitch:

   • Raise the hitch into position, aligning the holes in the hitch with the carriage bolts. Be careful not to push bolts back into the frame.

7. Install Rear Fasteners:

   • Loosely install conical toothed washers and hex nuts onto the rearmost carriage bolts.

8. Install Forward Fasteners:

   • Place a flat washer between the forward carriage bolt and the hitch bracket.
   • Install conical toothed washers and hex nuts onto the forward carriage bolts.
   • Tighten all fasteners to the specified torque (50 lb-ft or 68 N·m).

9. Trim Heat Shields:

   • Trim the heat shields around the forward attachment bolt area to ensure they sit flat against the hitch bracket.

10. Reinstall Heat Shields:

    • Reattach the heat shields on top of the hitch brackets using the four (4) M6 bolts removed earlier.

11. Reinstall the Exhaust:

    • Raise the exhaust back into position and reattach the rubber isolators, including the one under the axle.

Hardware List:

• (4) Carriage Bolts, 7/16”-14 x 1.5”
• (2) Flat Washers, 7/16”
• (2) Spacer Blocks, 3/16” x 1” x 2”
• (2) Spacer Blocks, 1/4” x 1” x 3”
• (4) Conical Toothed Washers, 7/16”
• (4) Fish Wires, 7/16”
• (4) Hex Nuts, 7/16”-14

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Distributing: Not for use with spring bars.
  • Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,814 kg), Max Tongue Weight 600 lbs (272 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:

For complete warranty instructions, please download the full installation PDF.

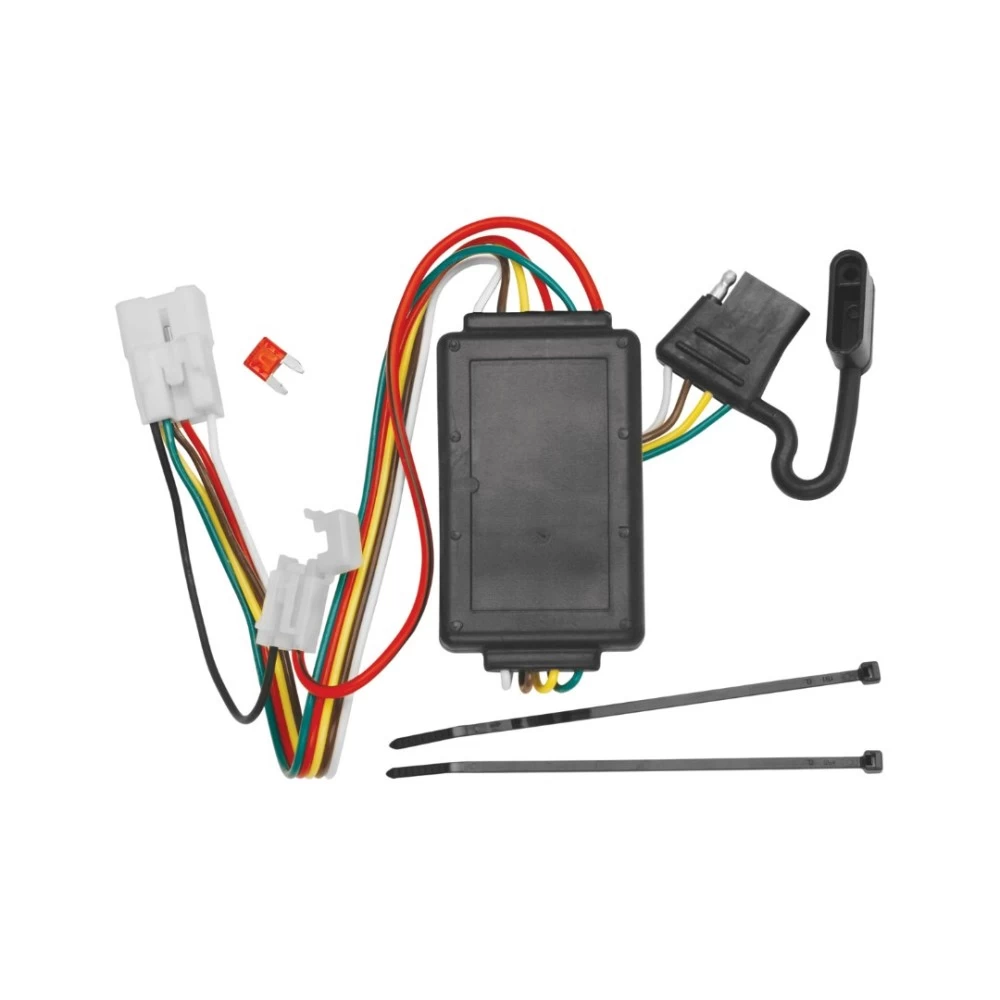

Installation Instructions for T-Connector Adapter for Subaru (Forester, Outback, XV Crosstrek)

Part Numbers:

• 118467

Tools Required:

• Trim Panel Remover
• Test Probe

Step-by-Step Instructions:

1. Prepare the Rear Cargo Area:

   • Open the vehicle’s rear tailgate.
   • Remove the cargo nets and cargo floor hatch to access the spare tire area.

2. Locate the Tow Plug Housing:

   • 2009-2013 Subaru Forester: Remove the driver’s side and center foam cargo trays to locate the tow plug housing under the driver’s side foam tray.
   • 2010-2019 Subaru Outback: Locate the tow plug housing behind the driver’s side trim panel. It is taped to the wire harness with blue tape.
   • 2014-Current Subaru Forester / XV Crosstrek: Locate the tow plug housing behind the driver’s side trim panel. It is taped to the wire harness with tape.
   • 2020-Current Subaru Outback: Temporarily remove the rear threshold plate. Locate the tow plug on the passenger side under the rear threshold plate. It is taped to the harness with tape.

3. Connect the T-Connector Harness:

   • Insert the T-Connector harness into the vehicle’s tow plug housing and lock it into place.
   • Ensure the connectors are fully inserted with the locking tabs engaged.

   Warning:

   • All connections must be complete for the T-Connector to function properly.
   • Test and verify the installation with a test light or trailer. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition.

4. Mount the Black Box:

   • On the driver’s side, mount the T-Connector black box using the provided double-sided tape.
   • Secure the remaining T-Connector harness with the provided cable ties, avoiding areas that could cut or pinch the wire.

   Note:

   • Store the 4-flat connector in the spare tire compartment when not in use.

   Warning:

   • Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the following specifications:
     • Max. stop/turn light: 1 per side (2.1 amps)
     • Max. tail lights: (5.6 amps)

Safety Notes:

• Always follow all warnings and instructions included with the product before beginning installation.
• Wear safety glasses and use all safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and instruction sheet for additional details.

Installation Instructions for T-Connector Adapter for Subaru (Forester, Outback, XV Crosstrek)

Part Numbers:

• 118467

Tools Required:

• Trim Panel Remover
• Test Probe

Step-by-Step Instructions:

1. Prepare the Rear Cargo Area:

   • Open the vehicle’s rear tailgate.
   • Remove the cargo nets and cargo floor hatch to access the spare tire area.

2. Locate the Tow Plug Housing:

   • 2009-2013 Subaru Forester: Remove the driver’s side and center foam cargo trays to locate the tow plug housing under the driver’s side foam tray.
   • 2010-2019 Subaru Outback: Locate the tow plug housing behind the driver’s side trim panel. It is taped to the wire harness with blue tape.
   • 2014-Current Subaru Forester / XV Crosstrek: Locate the tow plug housing behind the driver’s side trim panel. It is taped to the wire harness with tape.
   • 2020-Current Subaru Outback: Temporarily remove the rear threshold plate. Locate the tow plug on the passenger side under the rear threshold plate. It is taped to the harness with tape.

3. Connect the T-Connector Harness:

   • Insert the T-Connector harness into the vehicle’s tow plug housing and lock it into place.
   • Ensure the connectors are fully inserted with the locking tabs engaged.

   Warning:

   • All connections must be complete for the T-Connector to function properly.
   • Test and verify the installation with a test light or trailer. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition.

4. Mount the Black Box:

   • On the driver’s side, mount the T-Connector black box using the provided double-sided tape.
   • Secure the remaining T-Connector harness with the provided cable ties, avoiding areas that could cut or pinch the wire.

   Note:

   • Store the 4-flat connector in the spare tire compartment when not in use.

   Warning:

   • Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the following specifications:
     • Max. stop/turn light: 1 per side (2.1 amps)
     • Max. tail lights: (5.6 amps)

Safety Notes:

• Always follow all warnings and instructions included with the product before beginning installation.
• Wear safety glasses and use all safety precautions during installation.

Manufacturer Notes:

• Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
• Refer to the vehicle owner’s manual and instruction sheet for additional details.

Warranty Information:

• This product is covered by a warranty for X years from the date of purchase. The warranty covers defects in materials and workmanship under normal use.
• For complete warranty instructions, please download the full installation PDF.

For Technical Support: For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
