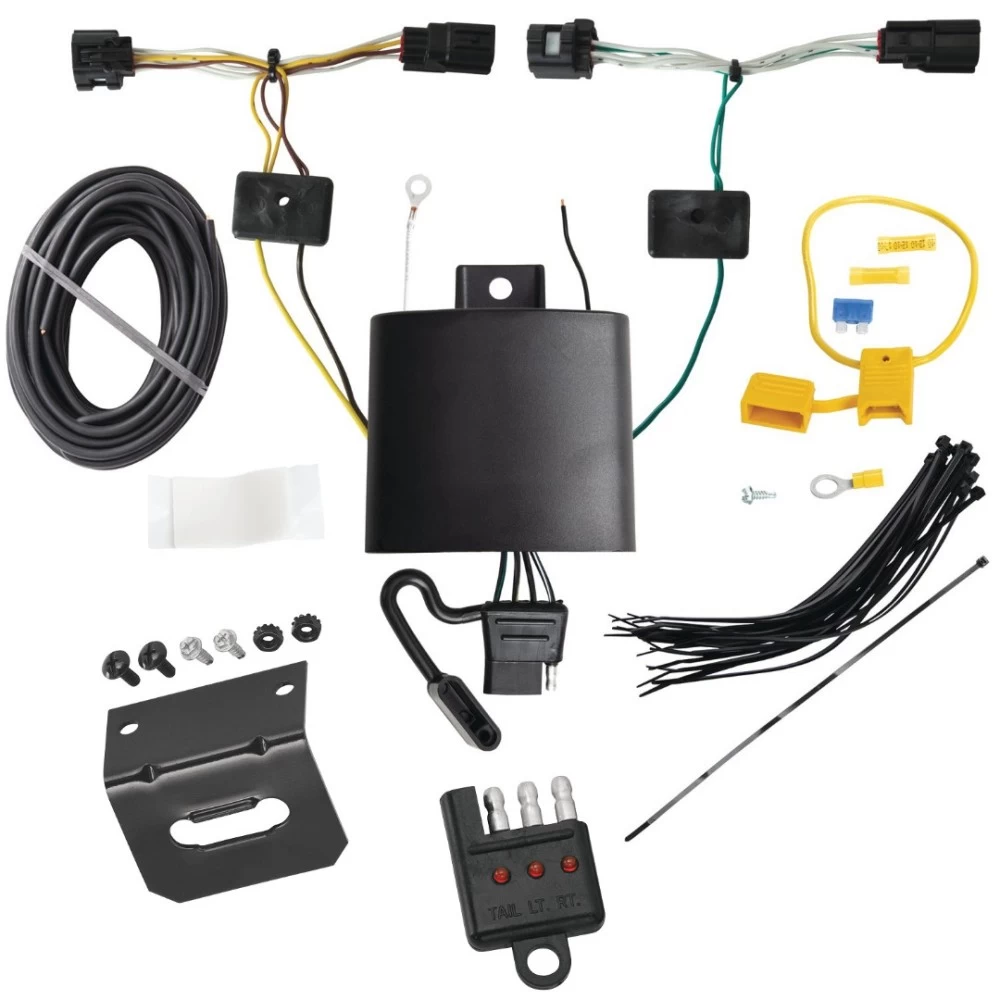

Installation Instructions for T-One® T-Connector for Hyundai Genesis

Part Numbers:

• 118851

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Open the Hatch:

   • Locate and remove trim panels covering the taillights.
   • Use a 10mm socket to remove the mounting screws on both driver’s and passenger’s taillights.
   • Carefully remove the trim panels, ensuring not to damage the mounting tabs.

2. Disconnect the Wiring Harness:

   • Disconnect the vehicle wiring harness from both taillight sockets.
   • Set the taillights aside, ensuring not to damage the locking tabs.

3. Route the Driver-Side T-Connector:

   • Underneath the vehicle, route the harness containing the yellow wire up through the opening between the vehicle bumper and body to the driver’s side taillight pocket.
   • For ease of installation, use a fish wire to pull the harness through.

4. Connect the Driver-Side T-Connector:

   • Insert the T-One® Connector end with the yellow wire between the vehicle wiring connectors.
   • Ensure all connector surfaces are clean and free of dirt before locking them into place.

5. Mount the Black Box:

   • Locate a mounting point behind the rear bumper fascia on the passenger’s side.
   • Mount the T-One® Connector black box using the provided double-sided tape, ensuring the epoxy side faces downward to prevent water accumulation.

6. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
   • Clean dirt and rustproofing from the grounding area before securing.

   Caution: Verify the area behind the surface before drilling to avoid damage or injury.

7. Route the Passenger-Side T-Connector:

   • Route the harness containing the green wire underneath the vehicle up through the opening between the rear fascia and body to the passenger’s side taillight pocket.
   • Use a fish wire for easier routing.

8. Connect the Passenger-Side T-Connector:

   • Insert the T-One® Connector end with the green wire between the passenger-side wiring connectors.
   • Ensure all connector surfaces are clean and securely locked in place.

9. Access the Rear Battery Area:

   • Remove the rear cargo area threshold, cargo trays, and other trim panels to access the battery.

10. Connect the Power Wire:

    • Disconnect the vehicle’s Negative (-) battery cable.
    • Attach the provided ring terminal to the Positive (+) battery cable.
    • Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
    • Route the black 12-gauge wire through a slit in the floor grommet and seal with silicone after routing.

11. Connect the Power Wire to the Black Box:

    • Attach the black 12-gauge wire to the power wire on the T-One® Connector black box using the yellow butt connector provided.

12. Reconnect the Battery and Test:

    • Reconnect the Negative (-) battery cable.
    • Insert the 15-amp fuse into the fuse holder.

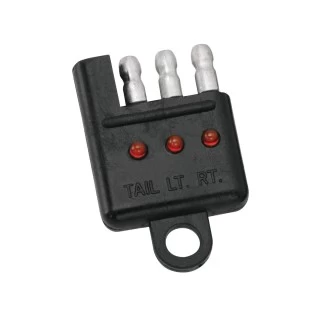

    • Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

13. Reassemble the Vehicle:

    • Replace all trim panels, thresholds, and other components removed during installation.
    • Ensure no wires are pinched or damaged.

14. Secure the 4-Flat Connector:

    • Store the 4-flat connector in the rear cargo area when not in use.
    • When towing, pull the connector out and route it carefully to avoid pinching in the door latch.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.
• Follow all warnings and instructions printed on the tow vehicle’s battery.

Installation Instructions for T-One® T-Connector for Hyundai Genesis

Part Numbers:

• 118851

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Open the Hatch:

   • Locate and remove trim panels covering the taillights.
   • Use a 10mm socket to remove the mounting screws on both driver’s and passenger’s taillights.
   • Carefully remove the trim panels, ensuring not to damage the mounting tabs.

2. Disconnect the Wiring Harness:

   • Disconnect the vehicle wiring harness from both taillight sockets.
   • Set the taillights aside, ensuring not to damage the locking tabs.

3. Route the Driver-Side T-Connector:

   • Underneath the vehicle, route the harness containing the yellow wire up through the opening between the vehicle bumper and body to the driver’s side taillight pocket.
   • For ease of installation, use a fish wire to pull the harness through.

4. Connect the Driver-Side T-Connector:

   • Insert the T-One® Connector end with the yellow wire between the vehicle wiring connectors.
   • Ensure all connector surfaces are clean and free of dirt before locking them into place.

5. Mount the Black Box:

   • Locate a mounting point behind the rear bumper fascia on the passenger’s side.
   • Mount the T-One® Connector black box using the provided double-sided tape, ensuring the epoxy side faces downward to prevent water accumulation.

6. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
   • Clean dirt and rustproofing from the grounding area before securing.

   Caution: Verify the area behind the surface before drilling to avoid damage or injury.

7. Route the Passenger-Side T-Connector:

   • Route the harness containing the green wire underneath the vehicle up through the opening between the rear fascia and body to the passenger’s side taillight pocket.
   • Use a fish wire for easier routing.

8. Connect the Passenger-Side T-Connector:

   • Insert the T-One® Connector end with the green wire between the passenger-side wiring connectors.
   • Ensure all connector surfaces are clean and securely locked in place.

9. Access the Rear Battery Area:

   • Remove the rear cargo area threshold, cargo trays, and other trim panels to access the battery.

10. Connect the Power Wire:

    • Disconnect the vehicle’s Negative (-) battery cable.
    • Attach the provided ring terminal to the Positive (+) battery cable.
    • Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
    • Route the black 12-gauge wire through a slit in the floor grommet and seal with silicone after routing.

11. Connect the Power Wire to the Black Box:

    • Attach the black 12-gauge wire to the power wire on the T-One® Connector black box using the yellow butt connector provided.

12. Reconnect the Battery and Test:

    • Reconnect the Negative (-) battery cable.
    • Insert the 15-amp fuse into the fuse holder.
    • Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

13. Reassemble the Vehicle:

    • Replace all trim panels, thresholds, and other components removed during installation.
    • Ensure no wires are pinched or damaged.

14. Secure the 4-Flat Connector:

    • Store the 4-flat connector in the rear cargo area when not in use.
    • When towing, pull the connector out and route it carefully to avoid pinching in the door latch.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow safety precautions during installation.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
