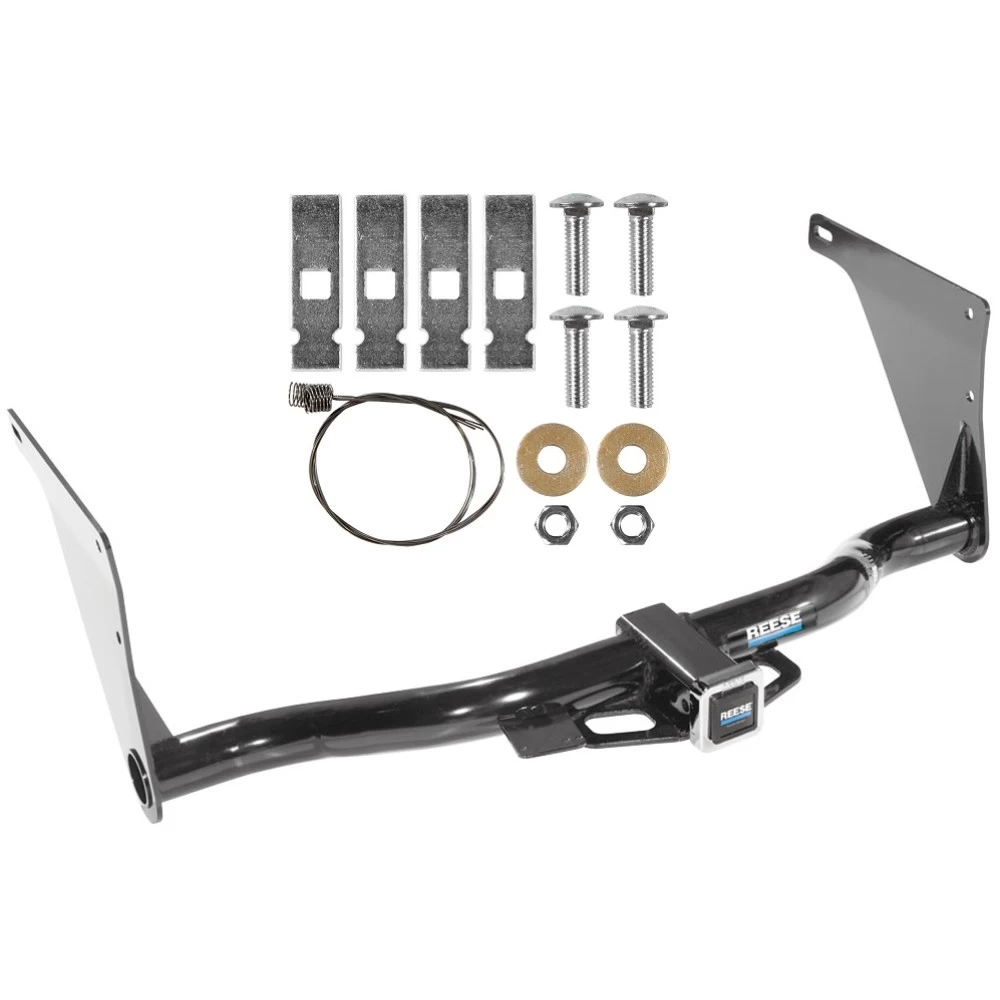

Reese Trailer Tow Hitch For 13‑19 Ford Escape Class 3 2" Towing Receiver
Model: 446812013 - 2019 Ford, Escape, All Styles
Trailer Hitch Specs:
| Part Number | 44681 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 675/675 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 13 14 15 16 17 18 19 2013 2014 2015 2016 2017 2018 2019
$234 44 $366.13 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$366.13 $234 44
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $58.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44681
- UPC: 016118118513
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
2013 - 2019 Ford, Escape, All Styles
Trailer Hitch Specs:
| Part Number | 44681 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 675/675 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 13 14 15 16 17 18 19 2013 2014 2015 2016 2017 2018 2019
Get Expert Help
Reese Trailer Tow Hitch For 13-19 Ford Escape Class 3 2" Towing Receiver Install Notes
Installation Instructions for Ford Escape
Part Numbers:
- 75758
- 87627
- 44681
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 11/16"
- Other Tools: Pull Wires (provided)
Step-by-Step Instructions:
- Prepare fasteners:
- Feed spacers and carriage bolts into position using the provided pull wires on both frame rails. Leave the pull wires attached.
- Note: It is easier to insert the bolts and spacers separately into the frame rail (see Figure 3).
- Position fasteners:
- Push the fasteners back into the frame rail, leaving the pull wires and extra wire protruding.
- Raise hitch into position:
- Position the hitch between the frame rails. Feed the pull wires through adjacent holes in the hitch.
- On the passenger side, raise the forward end of the bracket over the hoses crossing the frame rail (not shown in diagram).
- Secure fasteners:
- Pull the fasteners back through the access holes and the hitch.
- Remove the pull wires and attach conical washers and nuts. Be careful not to push the fasteners back into the frame rail.
- Tighten fasteners:
- Torque all fasteners to the specified value using a wrench.

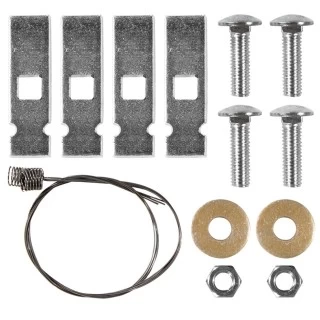

Hardware List:
- Qty (4): Carriage Bolt – 7/16-14 x 1.50 GR5
- Qty (4): Spacer – 1/4 x 7/8 x 3.00
- Qty (4): Conical Washer – 7/16"
- Qty (4): Hex Nut – 7/16-14 GR2
- Qty (4): Pull Wire – 7/16
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 5,000 lbs (2,270 kg)
- Max Tongue Weight: 675 lbs (306 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
- Max Tongue Weight: 675 lbs (306 kg)
Manufacturer Notes:
- Tighten all 7/16-14 GR5 fasteners to 50 lb-ft (68 N*m).
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- For vehicles equipped with the “Hands-Free Lift Gate” option, the sensor will only work in a limited area (see Figure 2).
- If the spacer and bolt head do not fit through the access hole, modify the hole using a file or by prying it open as illustrated.
Installation Instructions
Part Numbers:
- 75758
- 87627
- 44681
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 11/16"
- Other Tools: Pull Wires (provided)
Step-by-Step Instructions:
- Prepare fasteners:
- Feed spacers and carriage bolts into position using the provided pull wires on both frame rails. Leave the pull wires attached.
- Note: It is easier to insert the bolts and spacers separately into the frame rail (see Figure 3).
- Position fasteners:
- Push the fasteners back into the frame rail, leaving the pull wires and extra wire protruding.
- Raise hitch into position:
- Position the hitch between the frame rails. Feed the pull wires through adjacent holes in the hitch.
- On the passenger side, raise the forward end of the bracket over the hoses crossing the frame rail (not shown in diagram).
- Secure fasteners:
- Pull the fasteners back through the access holes and the hitch.
- Remove the pull wires and attach conical washers and nuts. Be careful not to push the fasteners back into the frame rail.
- Tighten fasteners:
- Torque all fasteners to the specified value using a wrench.
Hardware List:
- Qty (4): Carriage Bolt – 7/16-14 x 1.50 GR5
- Qty (4): Spacer – 1/4 x 7/8 x 3.00
- Qty (4): Conical Washer – 7/16"
- Qty (4): Hex Nut – 7/16-14 GR2
- Qty (4): Pull Wire – 7/16
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 5,000 lbs (2,270 kg)
- Max Tongue Weight: 675 lbs (306 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
- Max Tongue Weight: 675 lbs (306 kg)
Manufacturer Notes:
- Tighten all 7/16-14 GR5 fasteners to 50 lb-ft (68 N·m).
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- For vehicles equipped with the “Hands-Free Lift Gate” option, the sensor will only work in a limited area (see Figure 2).
- If the spacer and bolt head do not fit through the access hole, modify the hole using a file or by prying it open as illustrated.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
