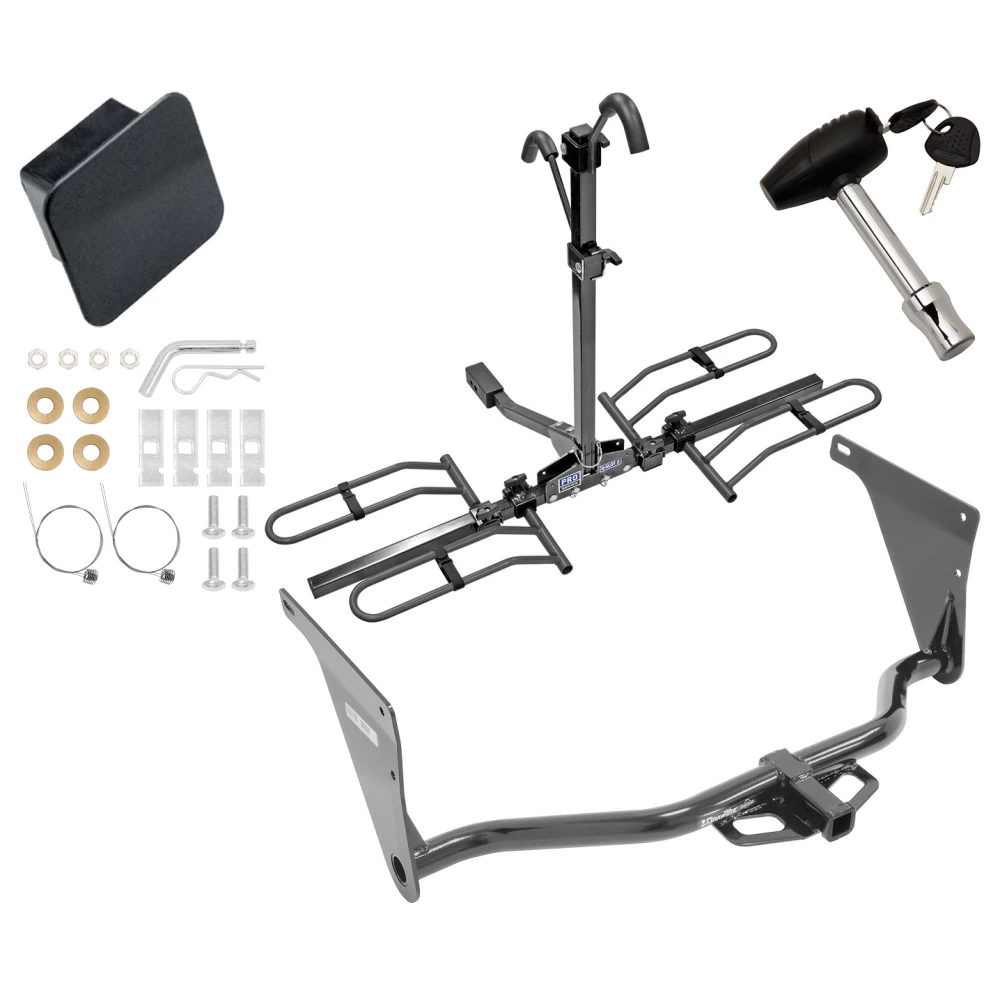

Trailer Tow Hitch For 13‑19 Ford Escape Class 2 Platform Style 2 Bike Rack Hitch Lock and Cover
Model: 36524 63134 580407 2211Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2013 - 2019 Ford, Escape, All Styles

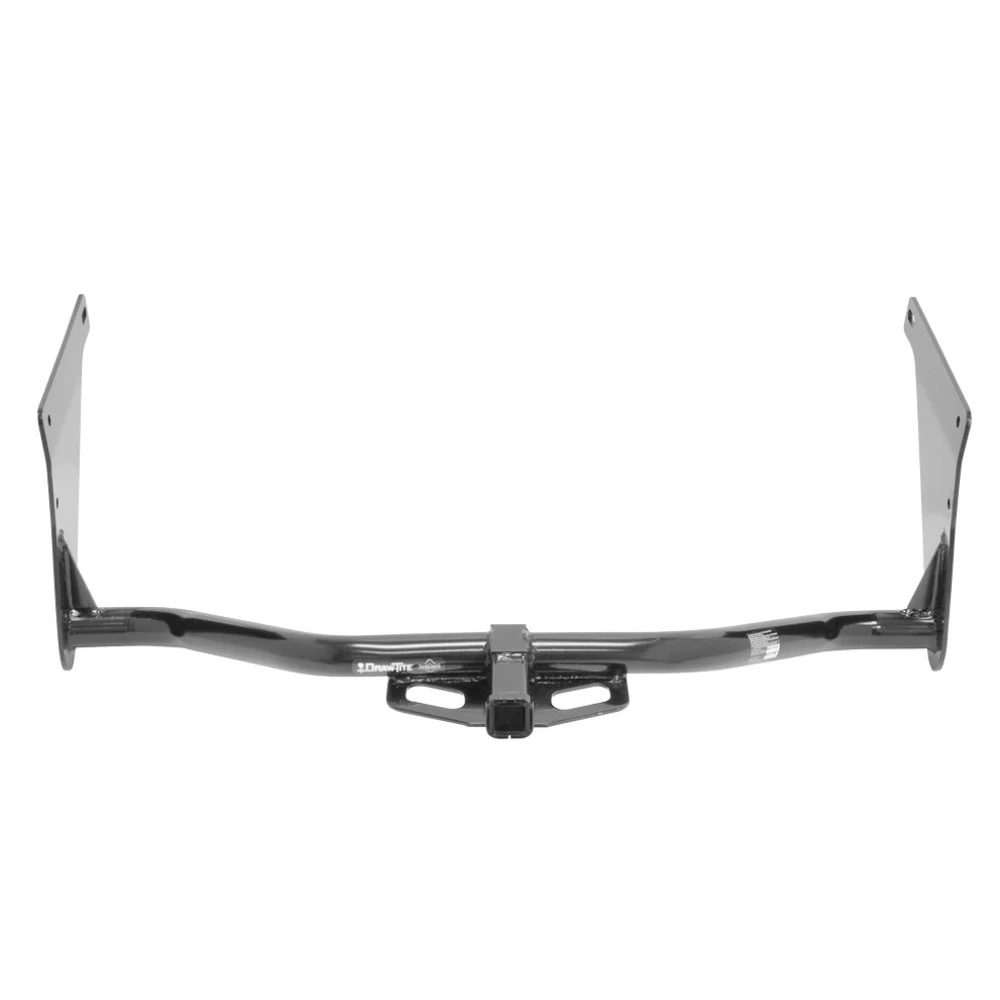

Trailer Hitch Specs:
Security Lock Pin Specs:
Part Number | 580407 |
Fits | 2" and 1-7/8" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 2211 |
Fits | 1-1/4" Receiver |
Brand | Draw-Tite |
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
Warranty | 1 Year |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 13 14 15 16 17 18 19 2013 2014 2015 2016 2017 2018 2019
$451 11 $721.38 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$721.38 $451 11
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $112.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 36524 63134 580407 2211
- Includes: Class 2 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Color | Black |
Drawbar Included | No |
Drilling Required | No |
Gross Towing Weight | 3,500 lbs. |
Hitch Class | II |
Material | Steel |
Maximum Tongue Weight | 300 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 1.25 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2013 - 2019 Ford, Escape, All Styles
Trailer Hitch Specs:
Security Lock Pin Specs:
Part Number | 580407 |
Fits | 2" and 1-7/8" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 2211 |
Fits | 1-1/4" Receiver |
Brand | Draw-Tite |
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
Warranty | 1 Year |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 13 14 15 16 17 18 19 2013 2014 2015 2016 2017 2018 2019
Get Expert Help
Trailer Tow Hitch For 13-19 Ford Escape Class 2 Platform Style 2 Bike Rack Hitch Lock and Cover Install Notes
Installation Instructions for Ford Escape
Part Numbers:
- 36524
- 90219
- 06147
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrench: 11/16"
- Drill with 3/8" Drill Bit (for enlarging access holes if necessary)
Step-by-Step Instructions:
-
Prepare Frame Rails:
- Feed spacers and carriage bolts into position in both frame rails using the provided pull wires. Leave pull wires attached.
- Note: Do not engage the bolt and spacer when inserting into the frame. Insert them separately as shown in Figure 3.
-
Push Fasteners Into Frame Rails:
- Push the fasteners back into the frame rails, ensuring the pull wires remain accessible and sticking out of the frame rails.
-
Raise Hitch Into Position:
- Position the hitch between the frame rails.
- Feed the pull wires through the adjacent holes in the hitch.
- On the passenger side, ensure the forward end of the hitch bracket is positioned over the hoses crossing the frame rail.
-
Secure Fasteners:
- Pull the fasteners back through the access holes in the hitch and frame rails.
- Remove the pull wires carefully, ensuring the fasteners do not fall back into the frame.
- Attach conical washers (teeth facing the hitch) and hex nuts to the fasteners.
-
Tighten Fasteners:
- Use a torque wrench to tighten all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).
Torque Specifications:
- Tighten all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).

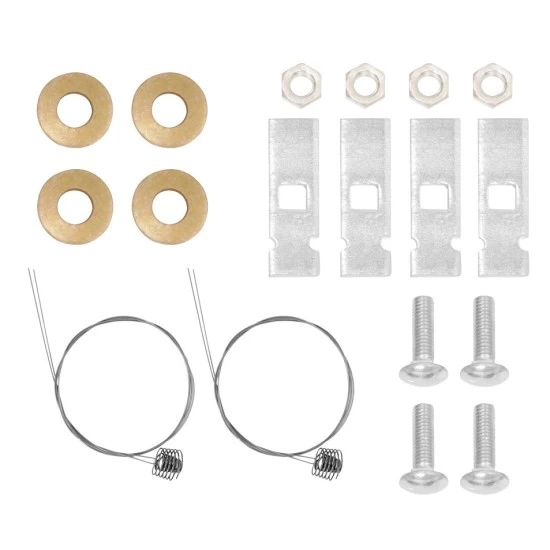

Hardware List:
- (4) Carriage Bolt, 7/16"-14 x 1.50" GR5
- (4) Spacer, 1/4" x 7/8" x 3.00"
- (4) Conical Washer, 7/16"
- (4) Hex Nut, 7/16"-14
- (4) Pull Wire, 7/16"
Notes on Hands-Free Liftgate Sensors:
- If the vehicle is equipped with the "Hands-Free Liftgate" option, the sensor function will be limited to a specific area near the hitch (see Figure 2).
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
Additional Notes:
- Drawbar Kit: 36071 (sold separately)
- Fastener Kit: 36524F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Ford Escape
Part Numbers:
- 36524
- 90219
- 06147
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrench: 11/16"
- Drill with 3/8" Drill Bit (for enlarging access holes if necessary)
Step-by-Step Instructions:
-
Prepare Frame Rails:
- Feed spacers and carriage bolts into position in both frame rails using the provided pull wires. Leave pull wires attached.
- Note: Do not engage the bolt and spacer when inserting into the frame. Insert them separately as shown in Figure 3.
-
Push Fasteners Into Frame Rails:
- Push the fasteners back into the frame rails, ensuring the pull wires remain accessible and sticking out of the frame rails.
-
Raise Hitch Into Position:
- Position the hitch between the frame rails.
- Feed the pull wires through the adjacent holes in the hitch.
- On the passenger side, ensure the forward end of the hitch bracket is positioned over the hoses crossing the frame rail.
-
Secure Fasteners:
- Pull the fasteners back through the access holes in the hitch and frame rails.
- Remove the pull wires carefully, ensuring the fasteners do not fall back into the frame.
- Attach conical washers (teeth facing the hitch) and hex nuts to the fasteners.
-
Tighten Fasteners:
- Use a torque wrench to tighten all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).
Torque Specifications:
- Tighten all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).
Hardware List:
- (4) Carriage Bolt, 7/16"-14 x 1.50" GR5
- (4) Spacer, 1/4" x 7/8" x 3.00"
- (4) Conical Washer, 7/16"
- (4) Hex Nut, 7/16"-14
- (4) Pull Wire, 7/16"
Notes on Hands-Free Liftgate Sensors:
- If the vehicle is equipped with the "Hands-Free Liftgate" option, the sensor function will be limited to a specific area near the hitch (see Figure 2).
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
Additional Notes:
- Drawbar Kit: 36071 (sold separately)
- Fastener Kit: 36524F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
